2-85 — POWER TAKE OFF CONTROL (#26734) — 23 parça
çizim 90601
55
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE 1-09983-068-0 01 1 0610-

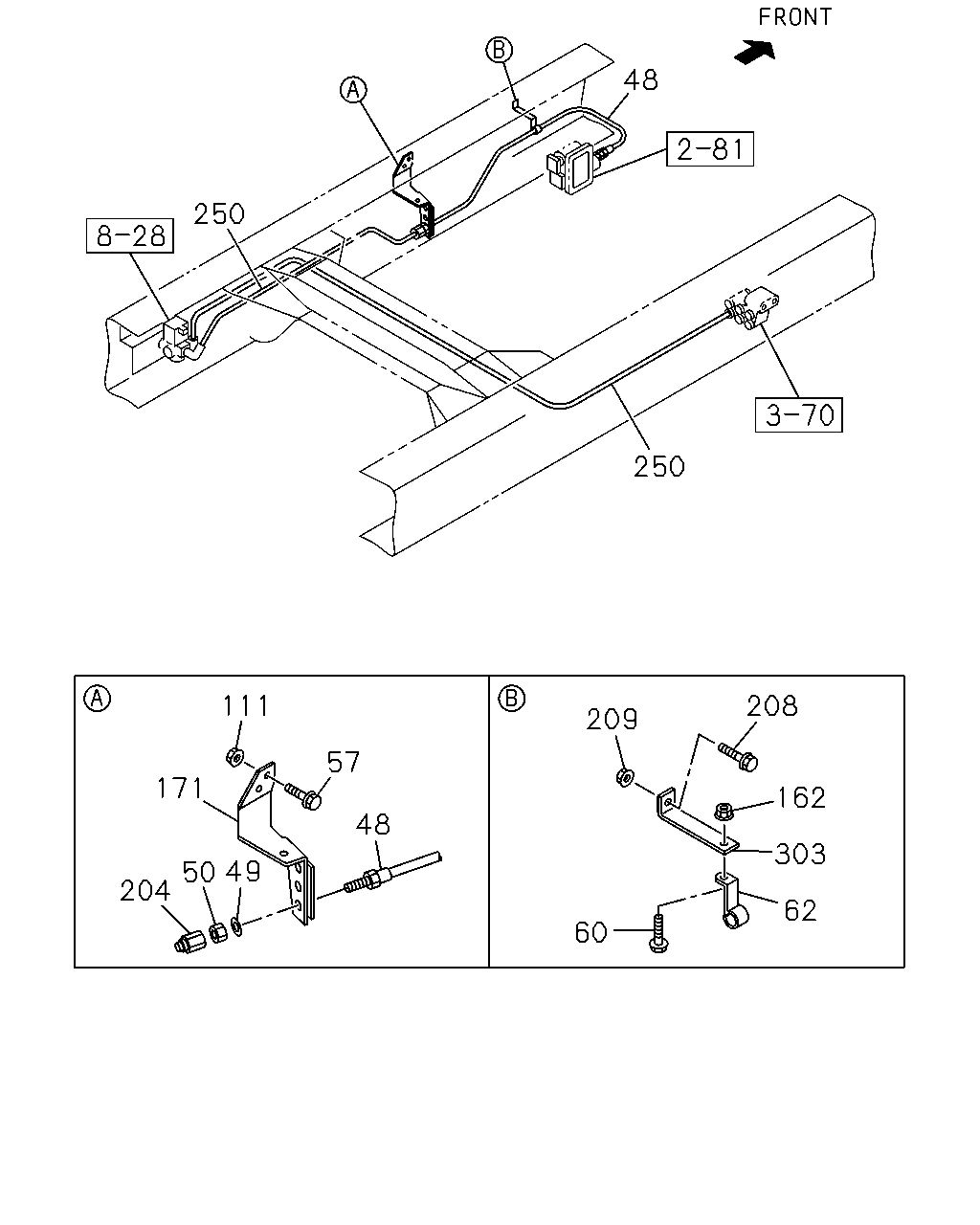

çizim 90729
48 250 250 111 208 209 57 171 162 48 303 204 62 60 50 49
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=380 		1-09363-884-0 01 1 0706-
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=800 		1-09363-695-0 01 1 0610-
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0610-0705
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0706-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0610-0705
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0706-
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 0610-0705
57 BOLT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 0706-
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 0610-
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0610-0705
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0706-
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0610-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-088-0 01 1 0610-0705
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-088-0 01 1 0706-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-0705
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0706-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 0610-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0610-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0610-0705
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0706-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0610-
