4-30 — STEERING WHEEL AND COWL (#2673) — 26 parça

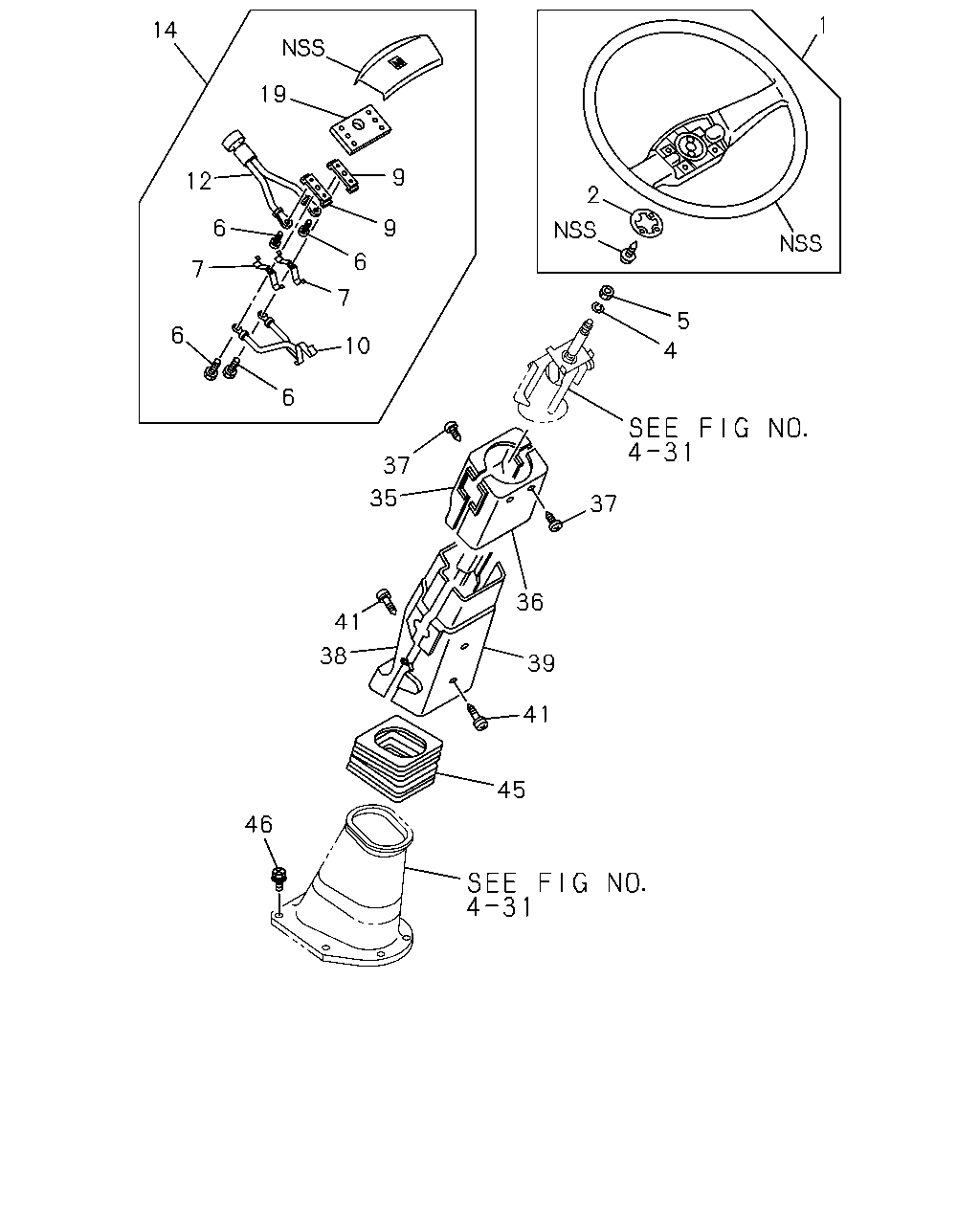

çizim 36927
1 14 19 9 12 2 6 9 6 7 7 5 6 10 4 6 37 35 37 36 41 38 39 41 45 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG 1-44110-048-3 01 1 9101- ●
1 WHEEL; STRG 1-44110-053-2 01 1 9101- ●
2 RING; HORN CONTACT 1-44129-020-2 01 1 9101- ● ●
4 WASHER; LK,STRG WHEEL 9-09150-520-0 01 1 9101- ● ●
5 NUT; STRG WHEEL TO SHAFT 9-99110-420-0 01 1 9101-9608 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9609- ● ●
6 SCREW; HORN SPR CONTACT 9-07076-310-0 06 1 9101- ● ●
7 SPRING; HORN CONTACT 1-44129-026-0 02 1 9101- ● ●
9 PLATE; HORN CONTACT 1-44126-002-0 02 1 9101- ● ●
10 SPRING ASM; LEAD 1-44129-027-2 01 1 9101- ● ●
12 CORD; HORN 1-44127-003-0 01 1 9101- ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-016-3 01 1 9101- ● ●
19 SEAT; HORN 1-44129-028-3 01 1 9101- ● ●
35 COWL; STRG,UPR FRT 1-79997-097-3 01 1 9101- ●
35 COWL; STRG,UPR FRT 1-79997-098-3 01 1 9101- ●
36 COWL; STRG,UPR RR 1-79997-099-2 01 1 9101- ● ●
37 SCREW; STRG COWL UPR 9-09829-321-1 04 1 9101- ● ●
38 COWL; STRG,LWR FRT
STEERING COLUMN TILT TELESCOPING(N37) 		1-79998-112-0 01 1 9101- ● ●
38 COWL; STRG,LWR FRT
EXC. STEERING COLUMN TILT TELESCOPING(N37) 		1-79997-101-2 01 1 9101- ● ●
39 COWL; STRG,LWR RR
STEERING COLUMN TILT TELESCOPING(N37) 		1-79997-104-1 01 1 9101- ● ●
39 COWL; STRG,LWR RR
EXC. STEERING COLUMN TILT TELESCOPING(N37) 		1-79997-105-1 01 1 9101- ● ●
41 SCREW; STRG COWL LWR
M6X12 W/PL WASHER 		1-09981-380-0 02 1 9101- ● ●
41 SCREW; STRG COWL LWR
M6X12 		9-03494-612-0 02 1 9101- ● ●
45 BOOT; STRG SHAFT
STEERING COLUMN TILT TELESCOPING(N37) 		1-44219-044-0 01 1 9101- ● ●
45 BOOT; STRG SHAFT
EXC. STEERING COLUMN TILT TELESCOPING(N37) 		1-79997-112-0 01 1 9101- ● ●
46 SCREW; STRG SHAFT BOOT 1-09981-177-0 04 1 9101- ● ●
