2-05 — CLUTCH PIPING (#26720) — 89 parça

27 30 29 28 26 25 29 28 44 45 46 42 106 115 116 43 34 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0610-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0610-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0610-
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0610-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0610-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0610-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0610-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0610-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0610-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0610-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0610-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0610-
42	BRACKET; FLEX HOSE,CLU CONT	1-47471-203-0	01	1	0610-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0610-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0610-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0610-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0610-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0610-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-

24 153 167 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0610-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0610-
56	BRACKET; FLEX HOSE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98151-406-1	01	1	0907-
56	BRACKET; FLEX HOSE	1-47471-200-0	01	1	0610-0906
56	BRACKET; FLEX HOSE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-47471-200-0	01	1	0907-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0610-0702
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0705
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0706-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
167	BRACKET; UNION	1-71117-183-3	01	1	0610-

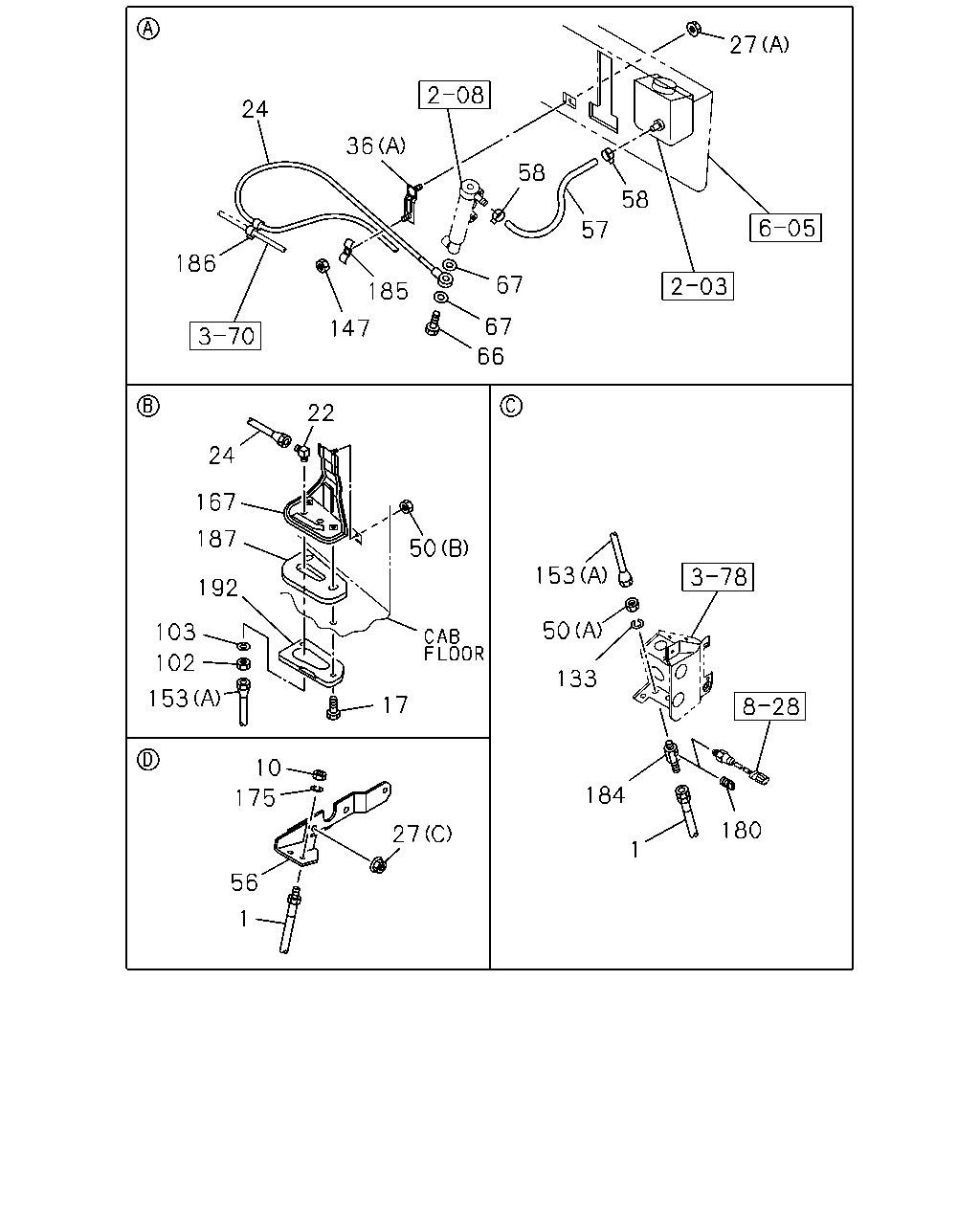

27 24 36 58 58 57 186 67 185 67 147 66 22 24 167 187 50 153 192 50 103 102 133 153 17 10 184 175 180 27 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0610-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0610-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0610-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0610-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0610-
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0610-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0610-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0610-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0610-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0610-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0610-
56	BRACKET; FLEX HOSE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98151-406-1	01	1	0907-
56	BRACKET; FLEX HOSE	1-47471-200-0	01	1	0610-0906
56	BRACKET; FLEX HOSE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-47471-200-0	01	1	0907-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0610-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0610-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0610-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0610-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-0711
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0610-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0610-0702
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0705
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0706-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
167	BRACKET; UNION	1-71117-183-3	01	1	0610-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-
180	PLUG; PIPE	9-09204-510-0	01	1	0610-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0610-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0610-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0610-
187	SEAL; BRKT	1-71117-222-0	01	1	0610-
192	PLATE	1-71117-221-0	01	1	0610-

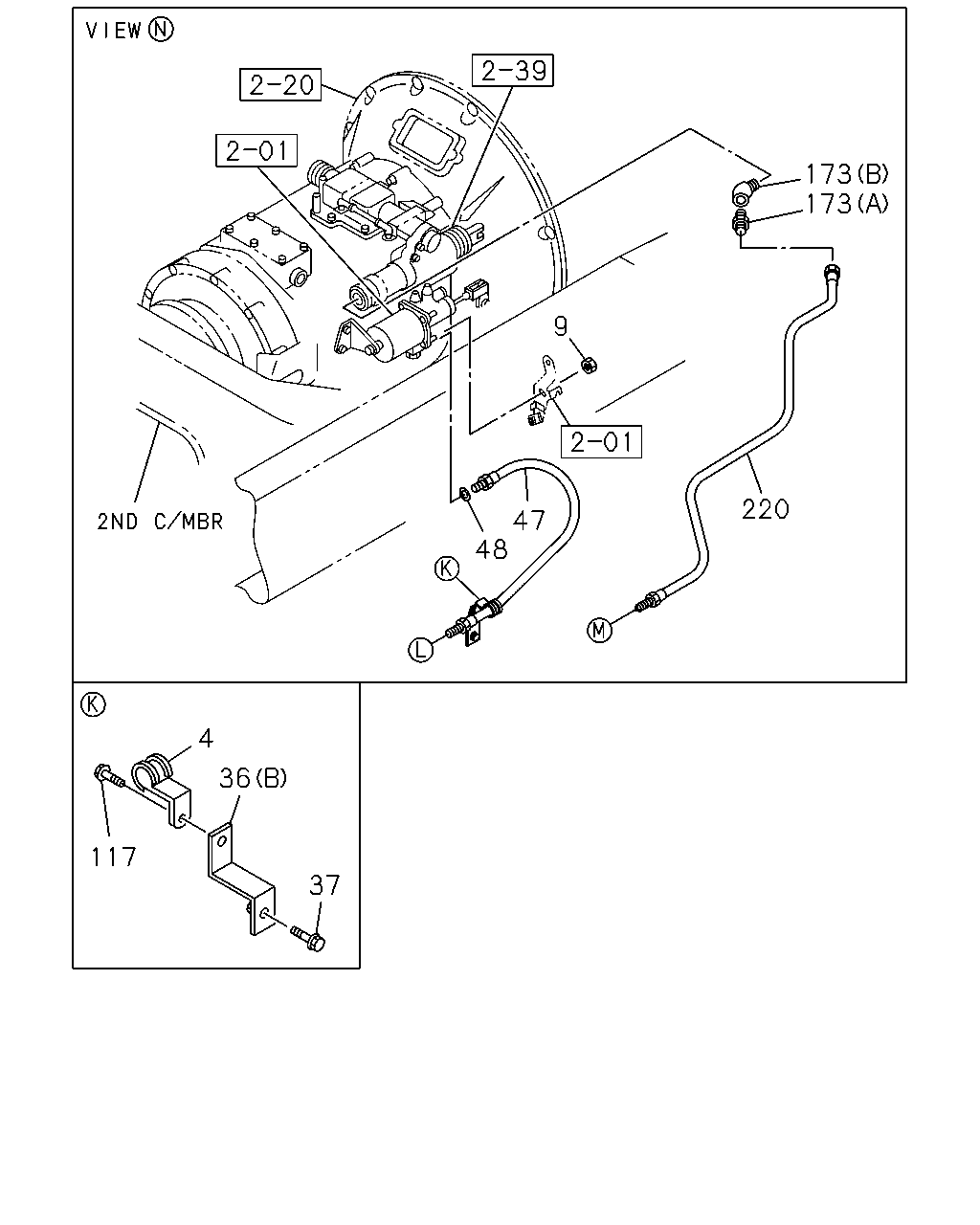

173 173 9 220 47 48 4 36 117 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0610-
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0610-0704
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0705-0705
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0706-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0610-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0610-
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28151-020-0	01	1	0610-
47	HOSE; FLEX,CLU CONT L=700	1-09364-456-0	01	1	0610-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0610-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0610-
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0610-
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	0610-
220	HOSE; FLEX,POWER ASSIST L=360	1-09363-823-0	01	1	0610-

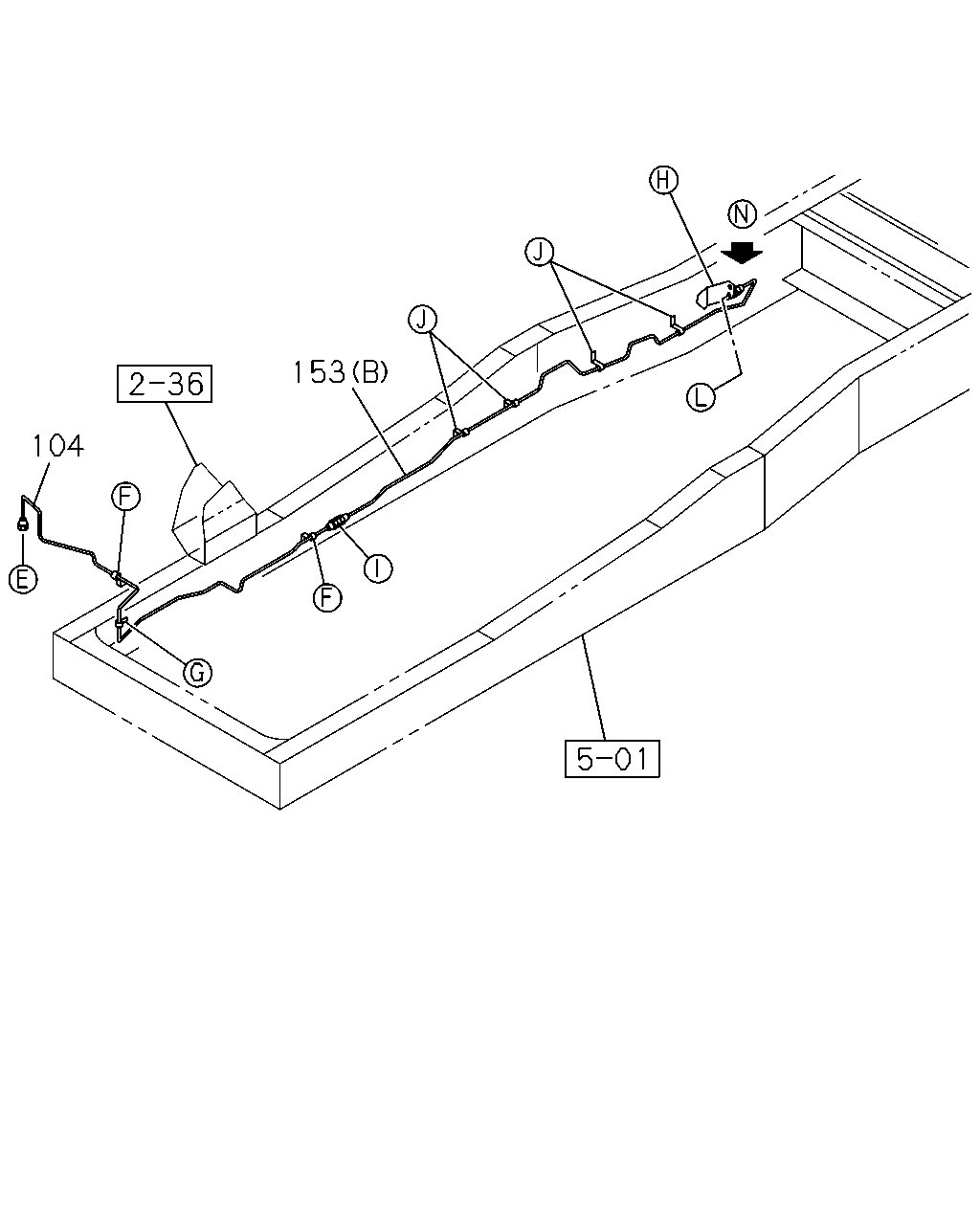

153 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1418 SERVICED BY L=1550	1-47428-766-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0610-0702
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0705
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0706-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
