Sayfa 8-52 - Isuzu EPC

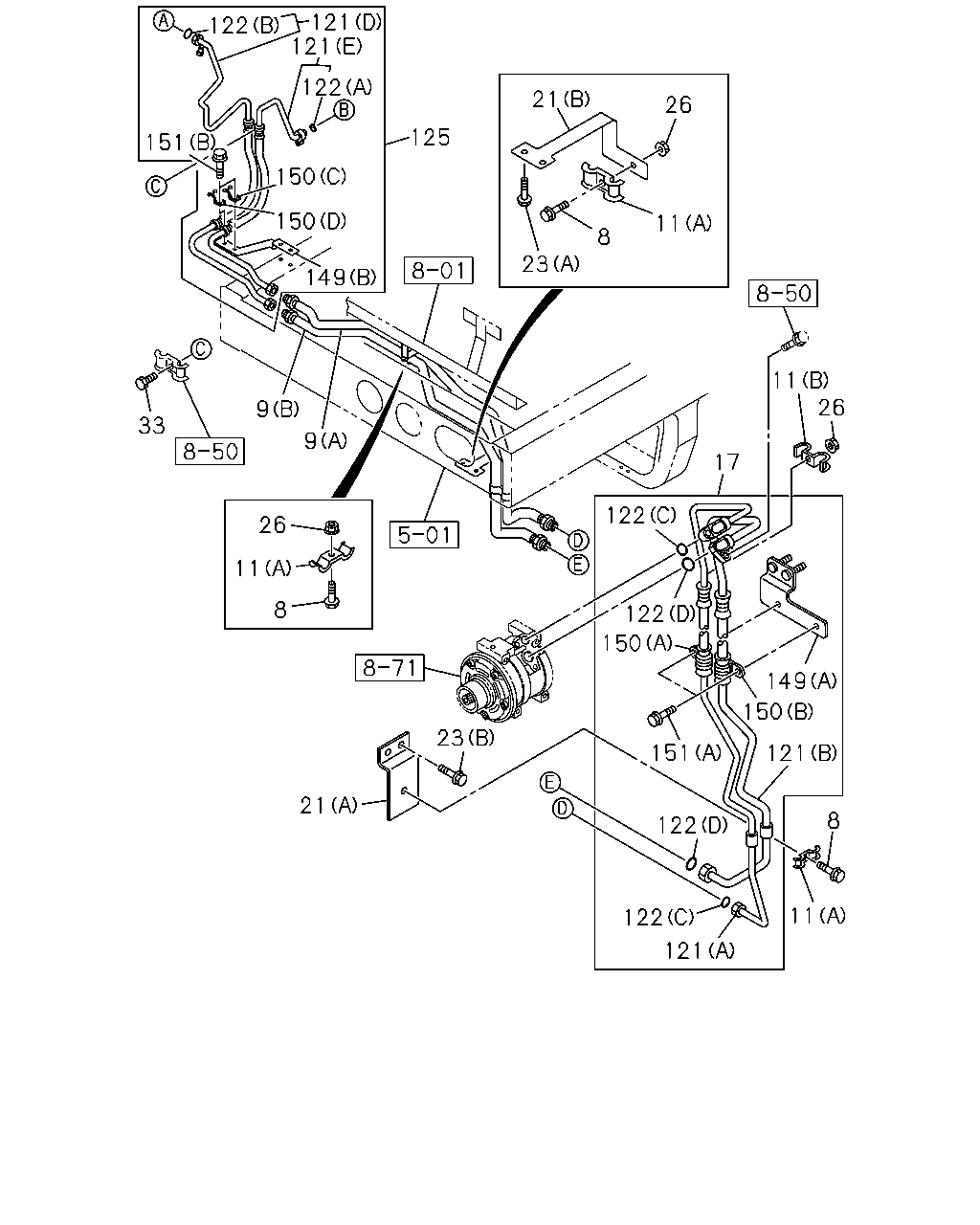

8-52 — PIPING; AIR CONDITIONING (#26713) — 52 parça

121 121 122 122 21 26 125 151 150 150 11 8 149 23 11 26 9 33 9 17 122 26 11 8 122 23 150 149 150 151 121 21 8 122 11 122 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	0411-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-059-0	01	1	0411-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-060-0	01	1	0411-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	03	1	0411-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	0411-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-058-0	01	1	0411-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-202-0	01	1	0411-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-295-0	01	1	0411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	0411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	02	1	0411-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	03	1	0411-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-801-1	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-802-1	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-066-0	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-067-0	01	1	0411-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0411-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0411-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0411-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0411-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-704-1	01	1	0411-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-0	01	1	0411-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-255-0	01	1	0411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	0411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	0411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	0411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	0411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	0411-	●	●

189 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0411-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41) (A)	1-83572-412-0	01	1	0411-	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09575-397-0	01	1	0411-	●	●

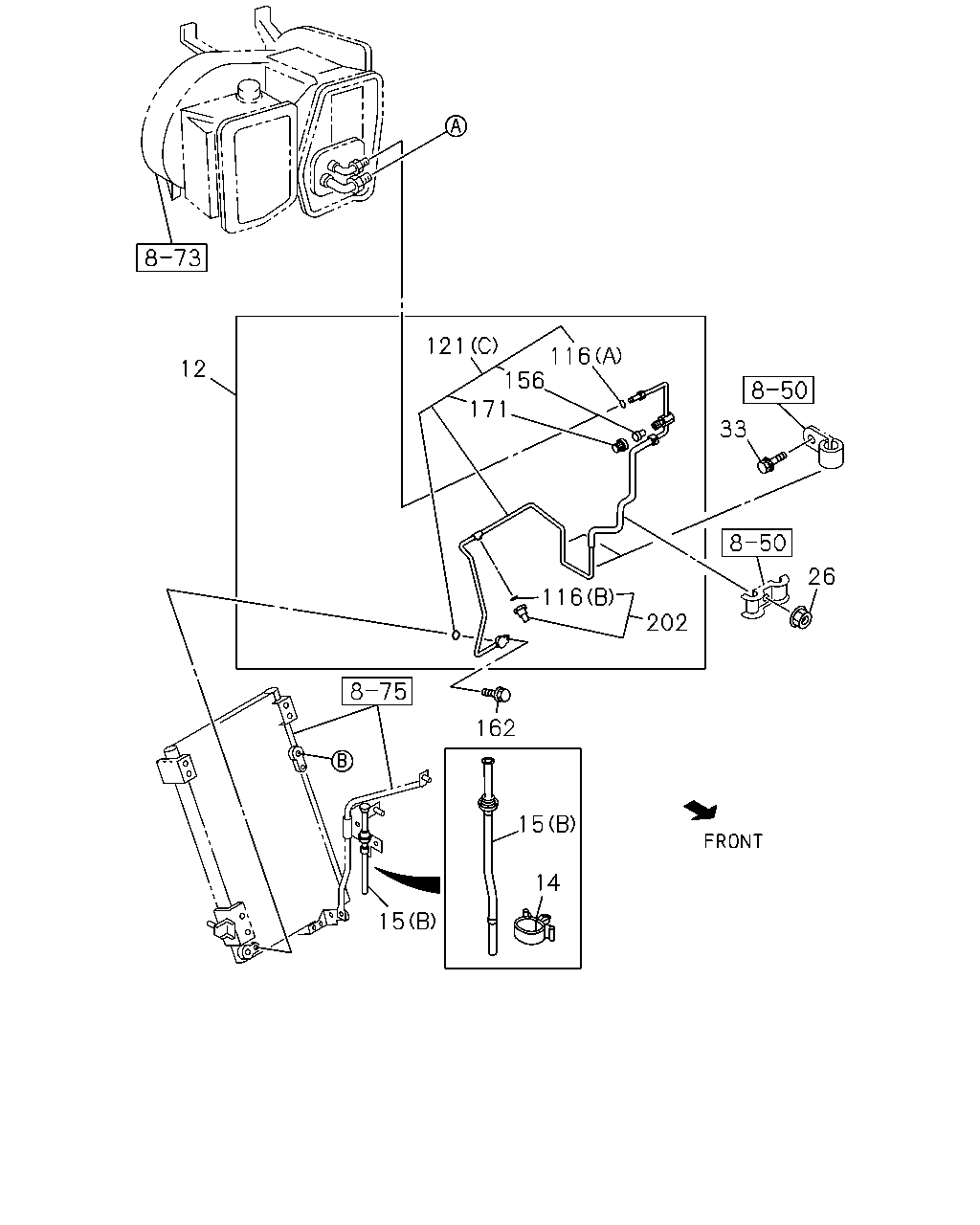

121 116 156 171 12 33 26 116 202 162 15 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-2	01	1	0411-	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0411-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0411-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41) (A)	1-83572-412-0	01	1	0411-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	03	1	0411-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0411-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	01	1	0411-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-801-1	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-802-1	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-066-0	01	1	0411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-067-0	01	1	0411-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0411-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0411-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0411-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-0	01	1	0411-	●	●
