Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

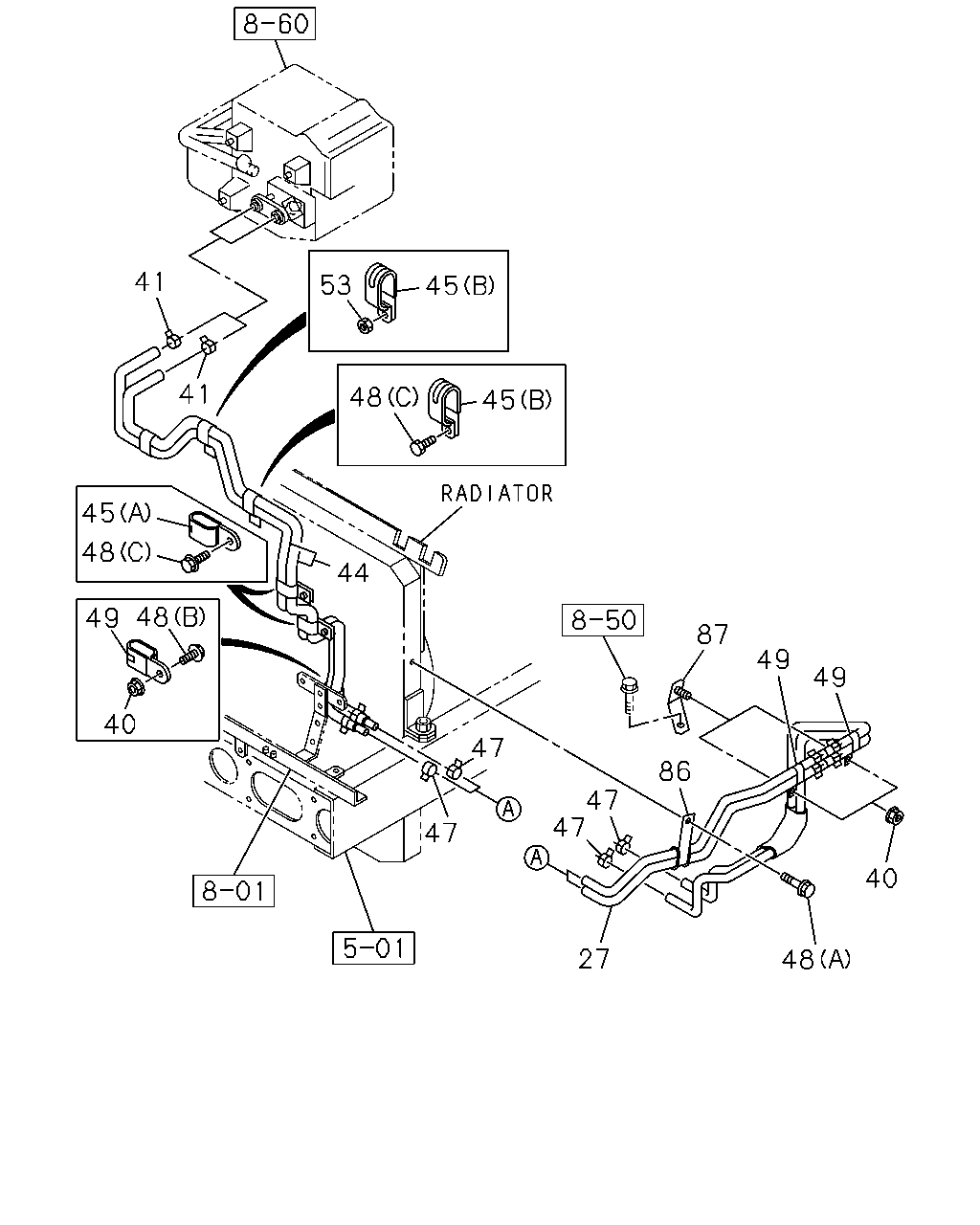

8-45 — HEATER PIPING
(#26711) — 16 parça
Tümü
A - CXZ6MC
B - CXZ6MF
41
53
45
41
48
45
45
48
44
48
49
87
49
49
40
47
86
47
47
47
40
27
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83565-802-2
01
1
0411-
●
●
40
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
03
1
0411-
●
●
41
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-94382-401-0
02
1
0411-
●
●
44
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83565-663-1
01
1
0411-
●
●
45
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW
1-09701-143-1
02
1
0411-
●
●
45
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-09701-238-0
02
1
0411-
●
●
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-94382-401-0
04
1
0411-
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28680-820-0
01
1
0411-0411
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28680-820-0
02
1
0411-
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28680-825-0
01
1
0411-
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0411-
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
03
1
0411-0411
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
04
1
0411-
●
●
53
NUT; HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
01
1
0411-
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-076-0
01
1
0411-
●
●
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-251-1
02
1
0411-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
