8-40 — HEATER SYSTEM (#26710) — 37 parça

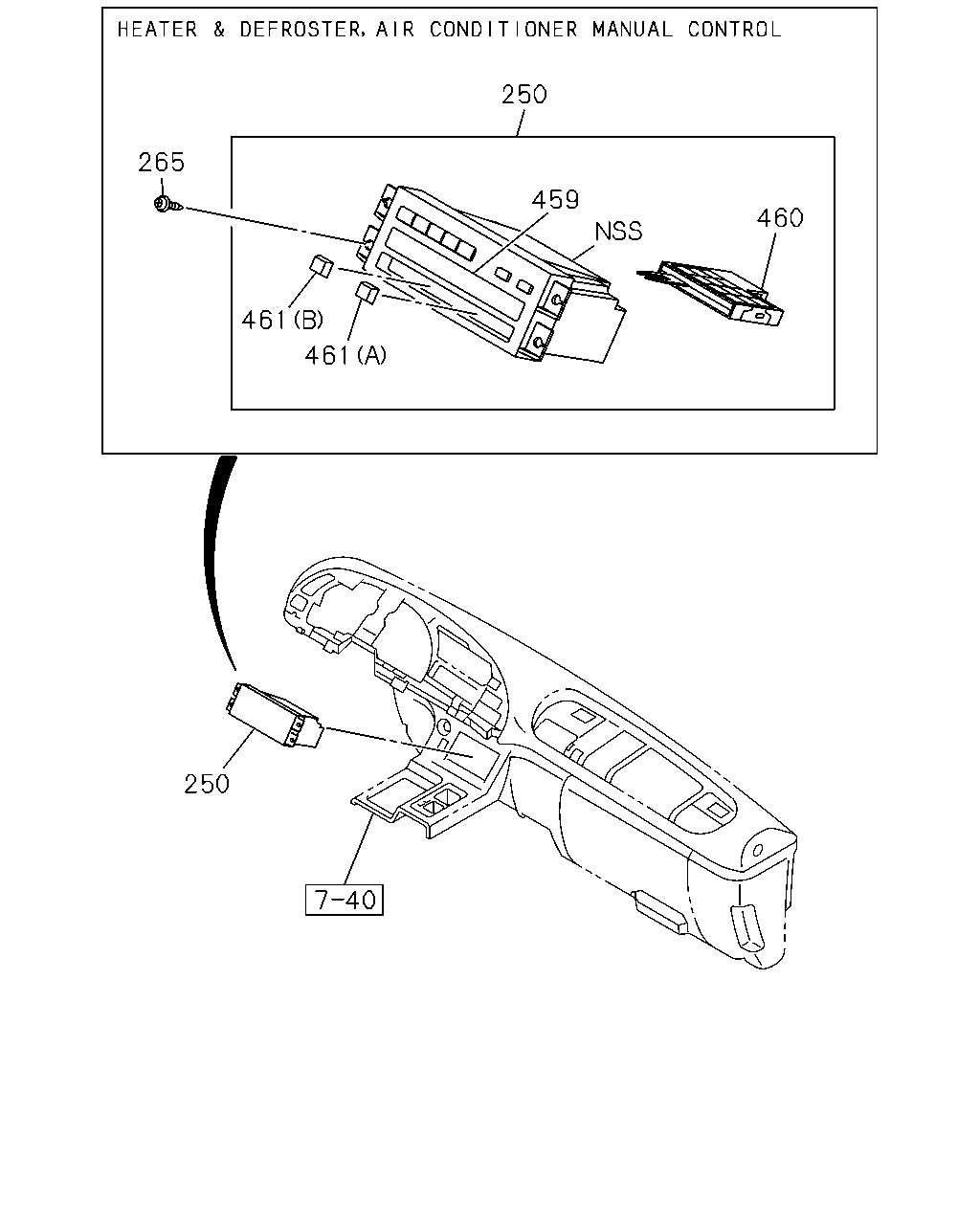

250 265 459 460 461 461 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2)	1-83543-058-0	01	1	0411-	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CHINA EQUIPMENT(YT2)	1-83543-050-0	01	1	0411-	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	0411-	●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0411-	●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0411-	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0411-	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0411-	●	●

71 26 457 77 374 375 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0411-	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0411-	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0411-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-	●	●
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0411-	●	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0411-	●	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0411-	●	●
457	BRACKET; SENSOR	1-71907-603-1	01	1	0411-	●	●

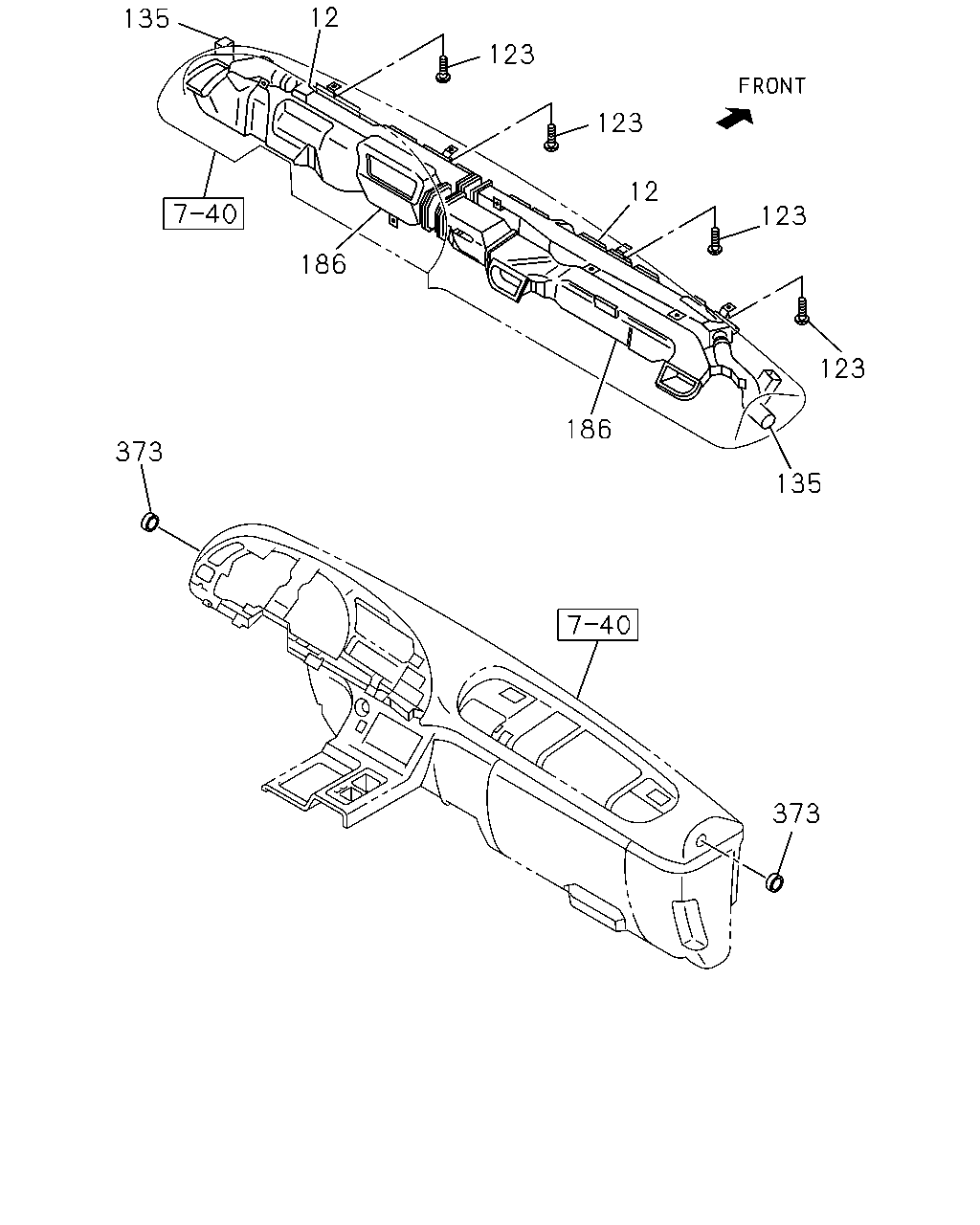

12 135 123 123 12 123 186 123 186 373 135 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	1-76378-360-2	01	1	0411-	●	●
12	NOZZLE; DEFROSTER	1-76377-196-1	01	1	0411-	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0411-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	0411-	●	●
135	HOSE; DEFROSTER	1-76378-364-3	01	1	0411-	●	●
135	HOSE; DEFROSTER	1-76377-231-0	01	1	0411-	●	●
186	DUCT; VENTILATOR	1-76378-362-4	01	1	0411-	●	●
186	DUCT; VENTILATOR	1-76377-197-2	01	1	0411-	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0411-	●	●

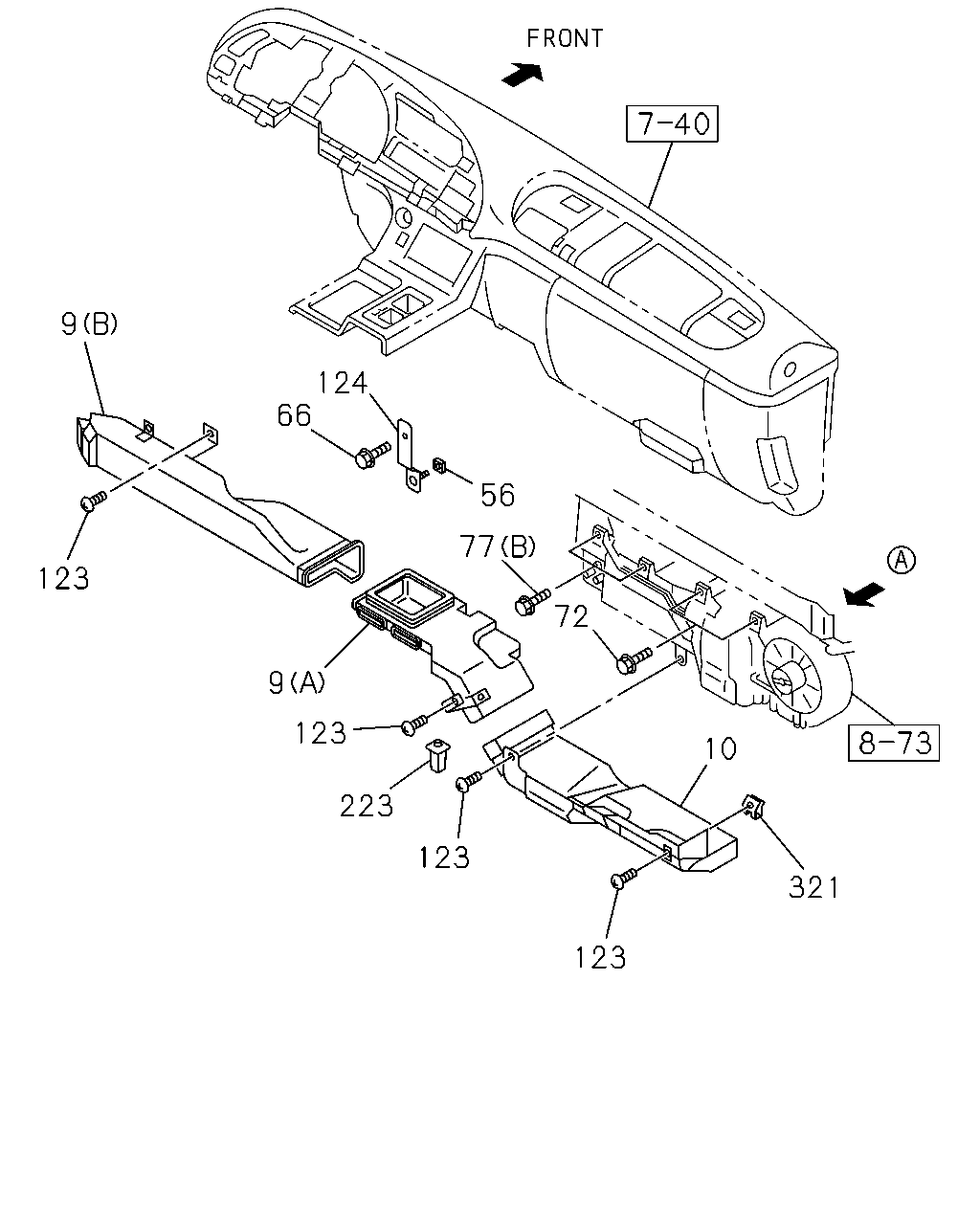

9 124 66 56 77 123 72 9 123 10 223 123 321 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-199-1	01	1	0411-	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-228-2	01	1	0411-	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-200-1	01	1	0411-	●	●
56	NUT; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0411-	●	●
66	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0411-	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0411-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0411-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	0411-	●	●
124	BRACKET ASM; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-79738-186-1	01	1	0411-	●	●
223	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0411-	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0411-	●	●
