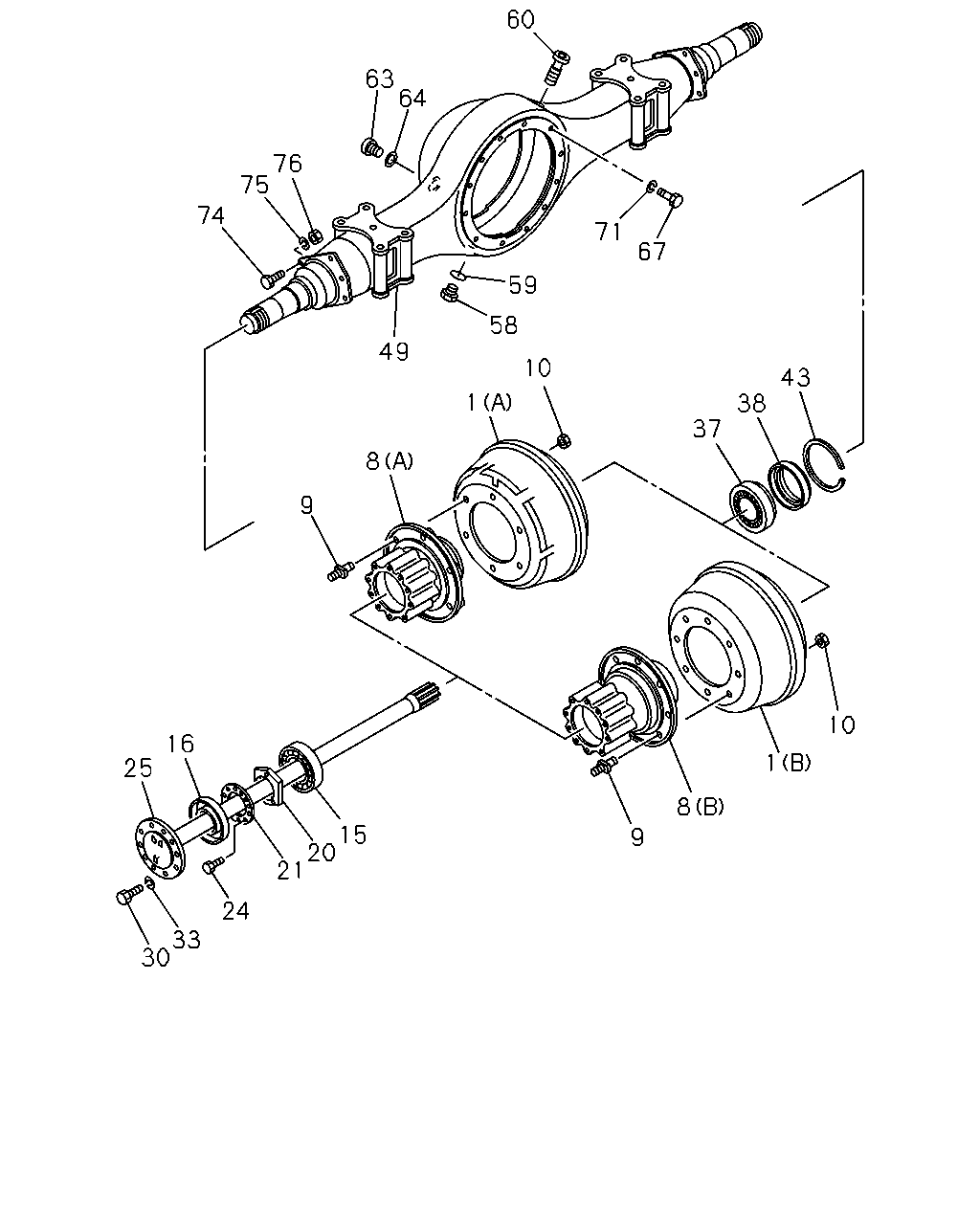

4-20 — REAR AXLE CASE AND SHAFT (#2671) — 81 parça

60 63 64 76 75 74 71 67 59 58 49 10 43 1 38 37 8 9 10 16 1 25 8 15 20 21 9 24 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH> (B)	1-42315-266-1	02	1	9101-9811	●
1	DRUM; BRK,RR DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH> (B)	1-42315-266-1	01	1	9812-9902	●
1	DRUM; BRK,RR DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH> (B)	1-42315-362-0	01	1	9812-9902	●
1	DRUM; BRK,RR DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH> (B)	1-42315-362-1	02	1	9903-	●
1	DRUM; BRK,RR EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> (A)	1-42315-288-1	02	1	9101-9109	●
1	DRUM; BRK,RR (A)	1-42315-288-1	02	1	9101-9109		●
1	DRUM; BRK,RR EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> (A)	1-42315-327-1	02	1	9110-9310	●
1	DRUM; BRK,RR (A)	1-42315-327-1	02	1	9110-9310		●
1	DRUM; BRK,RR EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> (A)	1-42315-339-0	02	1	9311-9811	●
1	DRUM; BRK,RR (A)	1-42315-339-0	02	1	9311-9811		●
1	DRUM; BRK,RR EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> (A)	1-42315-360-0	02	1	9812-	●
1	DRUM; BRK,RR (A)	1-42315-360-0	02	1	9812-		●
8	HUB; RR AXLE DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH> (B)	1-42311-021-1	02	1	9101-	●
8	HUB; RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> (A)	1-42311-009-6	02	1	9101-	●
8	HUB; RR AXLE (A)	1-42311-009-6	02	1	9101-		●
9	PIN; WHEEL,RR AXLE DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	1-42331-055-0	16	1	9101-9109	●
9	PIN; WHEEL,RR AXLE DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	1-42331-110-0	16	1	9110-	●
9	PIN; WHEEL,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M20X34 LH THREAD,M22X41.5 RH THREAD	1-42332-056-0	06	1	9101-9109	●
9	PIN; WHEEL,RR AXLE M20X34 LH THREAD,M22X41.5 RH THREAD	1-42332-056-0	06	1	9101-9109		●
9	PIN; WHEEL,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-0	06	1	9110-	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-0	06	1	9110-		●
9	PIN; WHEEL,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M20X34,M22X41.5 RH THREAD	1-42331-056-0	06	1	9101-9109	●
9	PIN; WHEEL,RR AXLE M20X34,M22X41.5 RH THREAD	1-42331-056-0	06	1	9101-9109		●
9	PIN; WHEEL,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M20X34.5,M22X43.5 RH THREAD	1-42331-106-0	06	1	9110-	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-0	06	1	9110-		●
10	NUT; WHEEL PIN,RR AXLE DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	1-09400-037-0	16	1	9101-9109	●
10	NUT; WHEEL PIN,RR AXLE DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	9-09110-522-0	16	1	9110-9609	●
10	NUT; WHEEL PIN,RR AXLE DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M22 FLANGE	1-09440-055-0	16	1	9610-9811	●
10	NUT; WHEEL PIN,RR AXLE DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M22 FLANGE	1-09440-055-0	08	1	9812-9902	●
10	NUT; WHEEL PIN,RR AXLE DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M22 FLANGE	1-09440-065-0	08	1	9812-9902	●
10	NUT; WHEEL PIN,RR AXLE DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M22 FLANGE	1-09440-065-0	16	1	9903-	●
10	NUT; WHEEL PIN,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	1-09400-037-0	12	1	9101-9109	●
10	NUT; WHEEL PIN,RR AXLE	1-09400-037-0	12	1	9101-9109		●
10	NUT; WHEEL PIN,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	9-09110-522-0	12	1	9110-9609	●
10	NUT; WHEEL PIN,RR AXLE	9-09110-522-0	12	1	9110-9609		●
10	NUT; WHEEL PIN,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M22 FLANGE	1-09440-055-0	12	1	9610-9811	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	12	1	9610-9811		●
10	NUT; WHEEL PIN,RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M22 FLANGE	1-09440-065-0	12	1	9812-	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	9812-		●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	9101-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	9101-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-0	02	1	9101-	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	9101-	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	9101-	●	●
24	BOLT; LK WASHER	0-50040-616-0	06	1	9101-9701	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-	●	●
25	SHAFT; AXLE,RR DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	1-42171-346-2	02	1	9101-	●
25	SHAFT; AXLE,RR EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	1-42171-345-2	02	1	9101-	●
25	SHAFT; AXLE,RR	1-42171-345-2	02	1	9101-		●
30	BOLT; HUB TO AXLE SHAFT	9-09804-239-1	20	1	9101-	●	●
33	WASHER; AXLE SHAFT	9-09150-812-0	20	1	9101-	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	9101-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	9101-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	9101-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-043-0	02	1	9101-9310	●	●
38	SEAL; OIL,RR HUB,INNER	1-09625-569-0	02	1	9311-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	9101-	●	●
49	CASE; RR AXLE DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	1-42150-185-2	01	1	9101-	●
49	CASE; RR AXLE EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	1-42130-915-4	01	1	9101-	●
49	CASE; RR AXLE	1-42130-915-4	01	1	9101-		●
58	PLUG; DRAIN,AXLE CASE	1-09604-023-0	01	1	9101-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9101-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	9101-	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-09604-021-0	01	1	9101-9307	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-09604-022-0	01	1	9308-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9101-9307	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-	●	●
67	BOLT; FINAL DRIVE SETTING M10X35	1-09000-398-0	08	1	9101-	●	●
67	BOLT; FINAL DRIVE SETTING M10X55	1-09000-429-1	04	1	9101-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	9-09150-610-0	12	1	9101-9401	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	9-09150-810-0	12	1	9402-	●	●
74	BOLT; RR BRK ASM SETTING DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH> M14X56	1-09060-004-0	04	1	9101-	●
75	WASHER; LK,RR BRK ASM SETTING DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	9-09150-614-0	16	1	9101-9401	●
75	WASHER; LK,RR BRK ASM SETTING DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	9-09150-814-0	16	1	9402-	●
75	WASHER; LK,RR BRK ASM SETTING EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	9-09150-614-0	12	1	9101-9401	●
75	WASHER; LK,RR BRK ASM SETTING	9-09150-614-0	12	1	9101-9401		●
75	WASHER; LK,RR BRK ASM SETTING EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	9-09150-814-0	12	1	9402-	●
75	WASHER; LK,RR BRK ASM SETTING	9-09150-814-0	12	1	9402-		●
76	NUT; RR BRK ASM SETTING DRUM SIZE20"8STUD<B3S> WHEEL PIN RIGHT HAND<SFH>	9-99110-514-0	16	1	9101-	●
76	NUT; RR BRK ASM SETTING EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH>	9-99110-514-0	12	1	9101-	●
76	NUT; RR BRK ASM SETTING	9-99110-514-0	12	1	9101-		●
