◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#26708) — 25 parça
çizim 25945
234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0411- ● ●

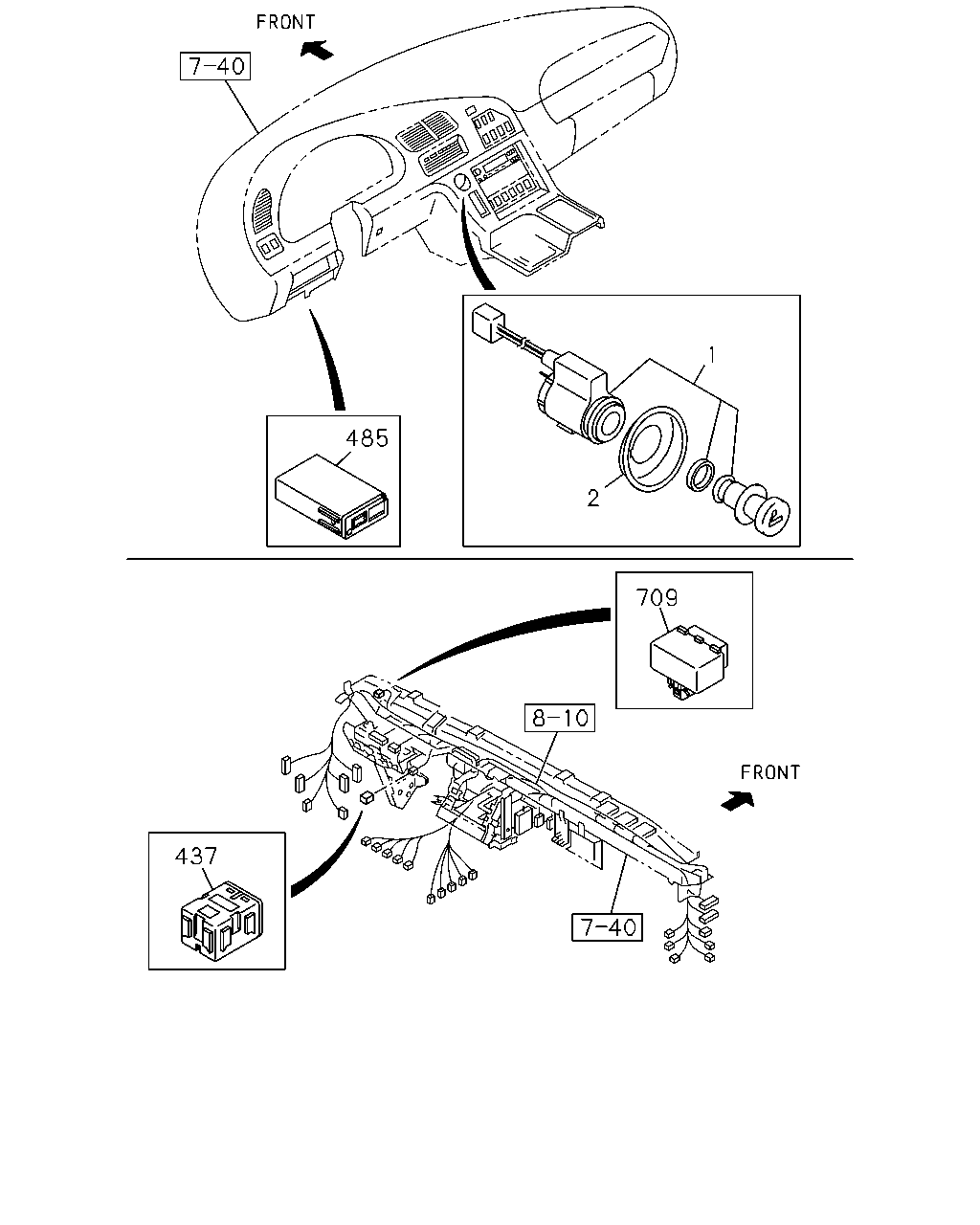

çizim 82543
1 485 2 709 437
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0411- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0411- ● ●
437 CONVERTER; DC
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> KOITO 		8-97359-129-0 01 1 0411- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0411-0411 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ●
709 RESISTOR; HD LAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0411- ● ●

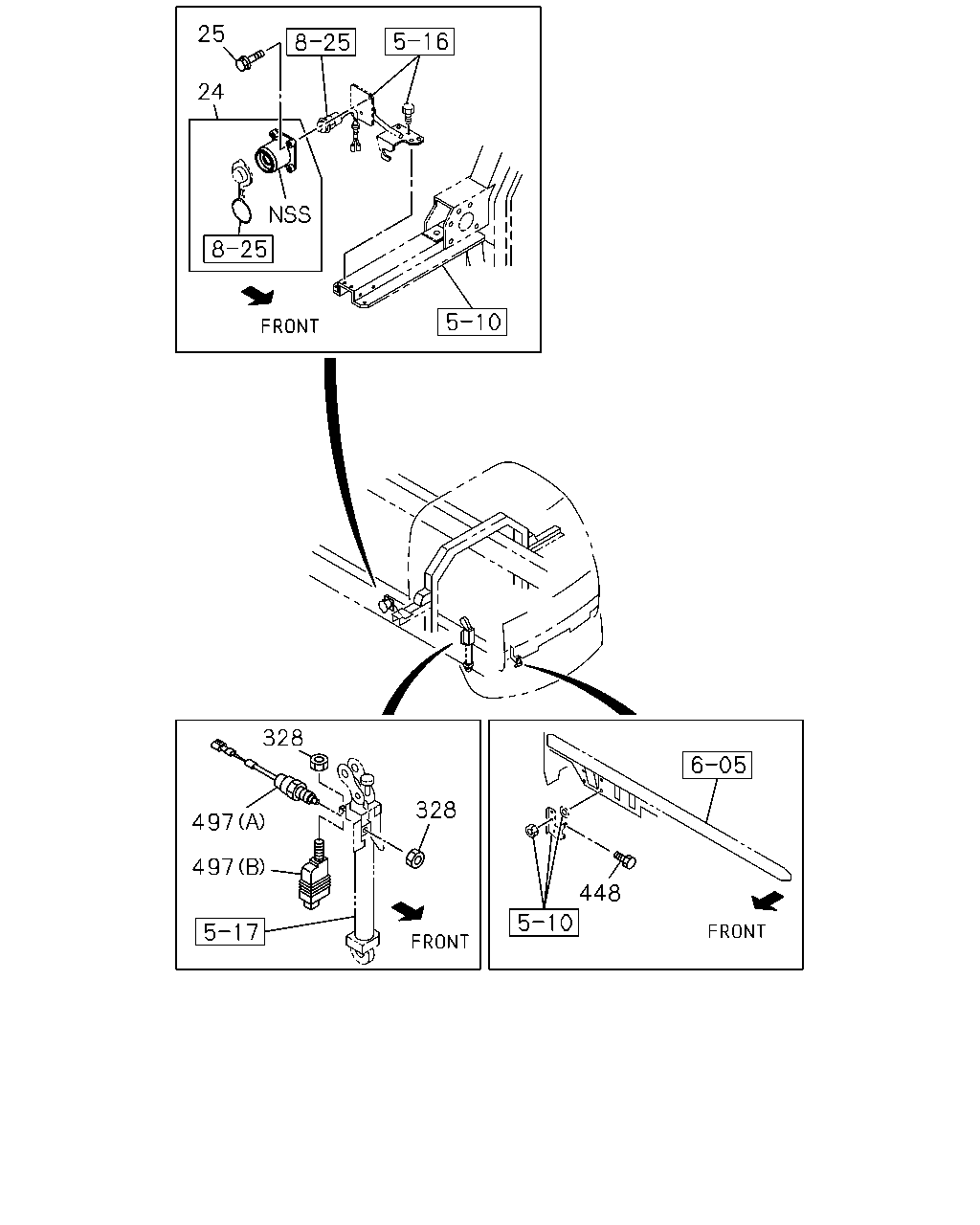

çizim 82574
25 24 328 328 497 497 448
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0411- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 0411- ● ●
328 NUT
M16 		9-99111-416-0 02 1 0411- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0411- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0411- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0411- ● ●

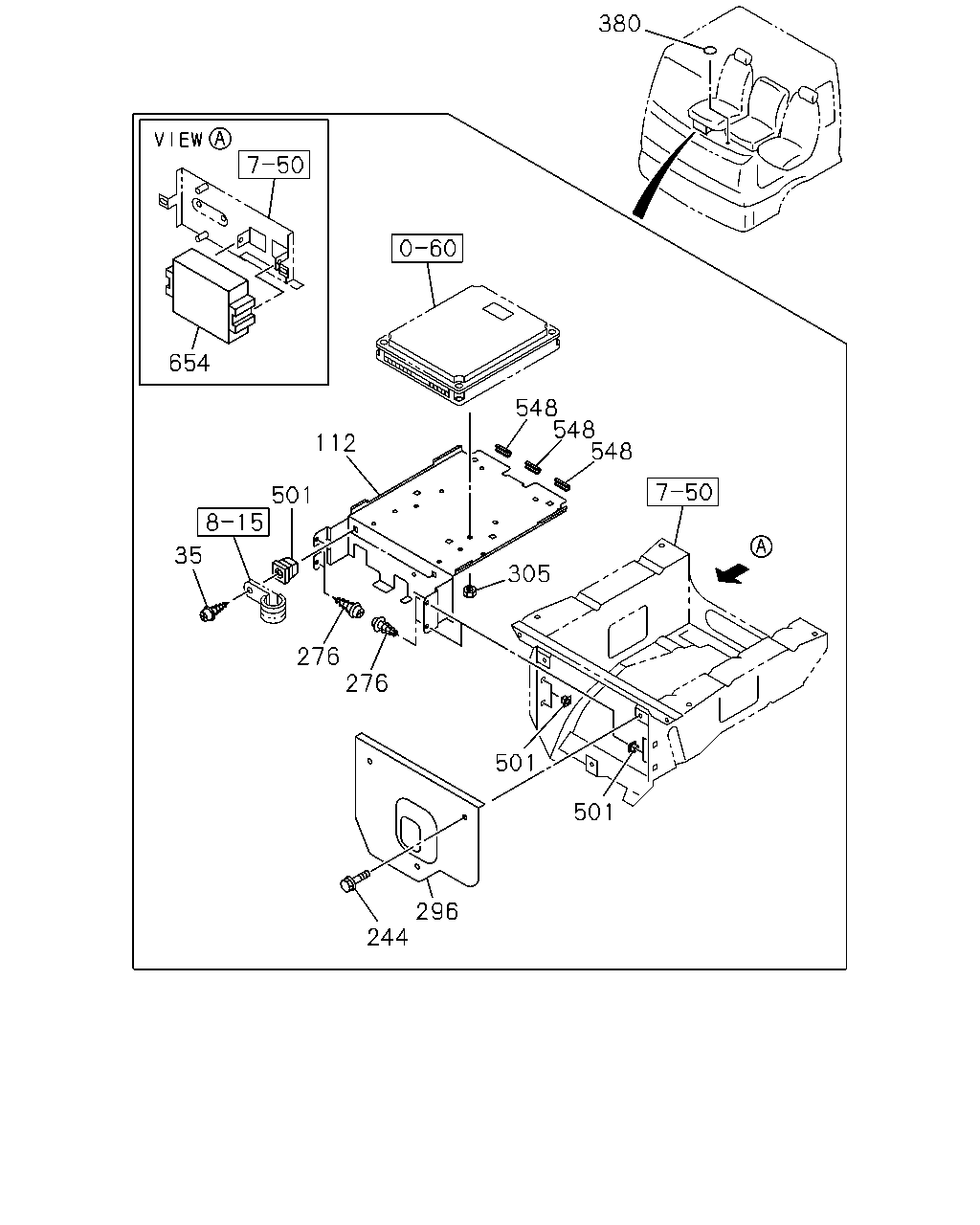

çizim 83502
380 654 548 548 548 112 501 35 305 276 276 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
35 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0411- ● ●
112 BRACKET; CONT UNIT 1-75558-598-3 01 1 0411- ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0411- ● ●
276 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0411- ● ●
296 COVER; CONT UNIT 1-75558-535-3 01 1 0411- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0411- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0411- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0411- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0411- ● ●
548 SEAL; NOISE
30X30 		1-74998-128-0 03 1 0411- ● ●
654 CONTROL UNIT; EXH & RETARDER
FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-80150-117-0 01 1 0411- ● ●
654 CONTROL UNIT; EXH & RETARDER
EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-80150-118-0 01 1 0411- ● ●
