8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#26707) — 37 parça

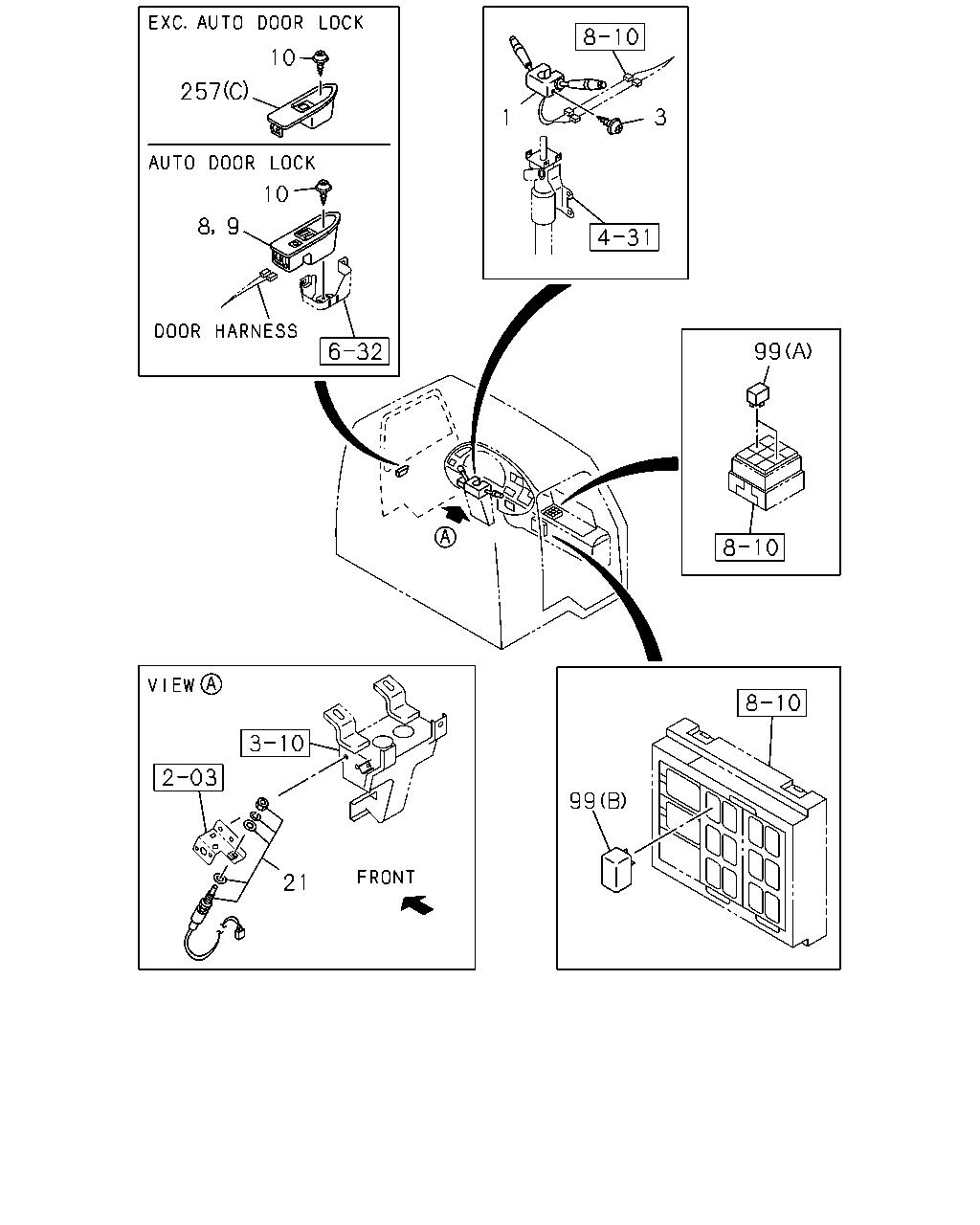

çizim 81927
10 257 3 1 10 8 9 99 99 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
FOG LAMP REAR<NHD> 		1-82360-704-0 01 1 0411- ● ●
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD> 		1-82360-734-0 01 1 0411- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0411- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER 		1-82380-157-3 01 1 0411- ● ●
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER 		1-82380-158-3 01 1 0411- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0411- ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 0411- ● ●
99 RELAY; FOG LAMP
(A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0411- ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> (A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0411- ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> (B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0411- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0411- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0411- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0411- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0411- ● ●

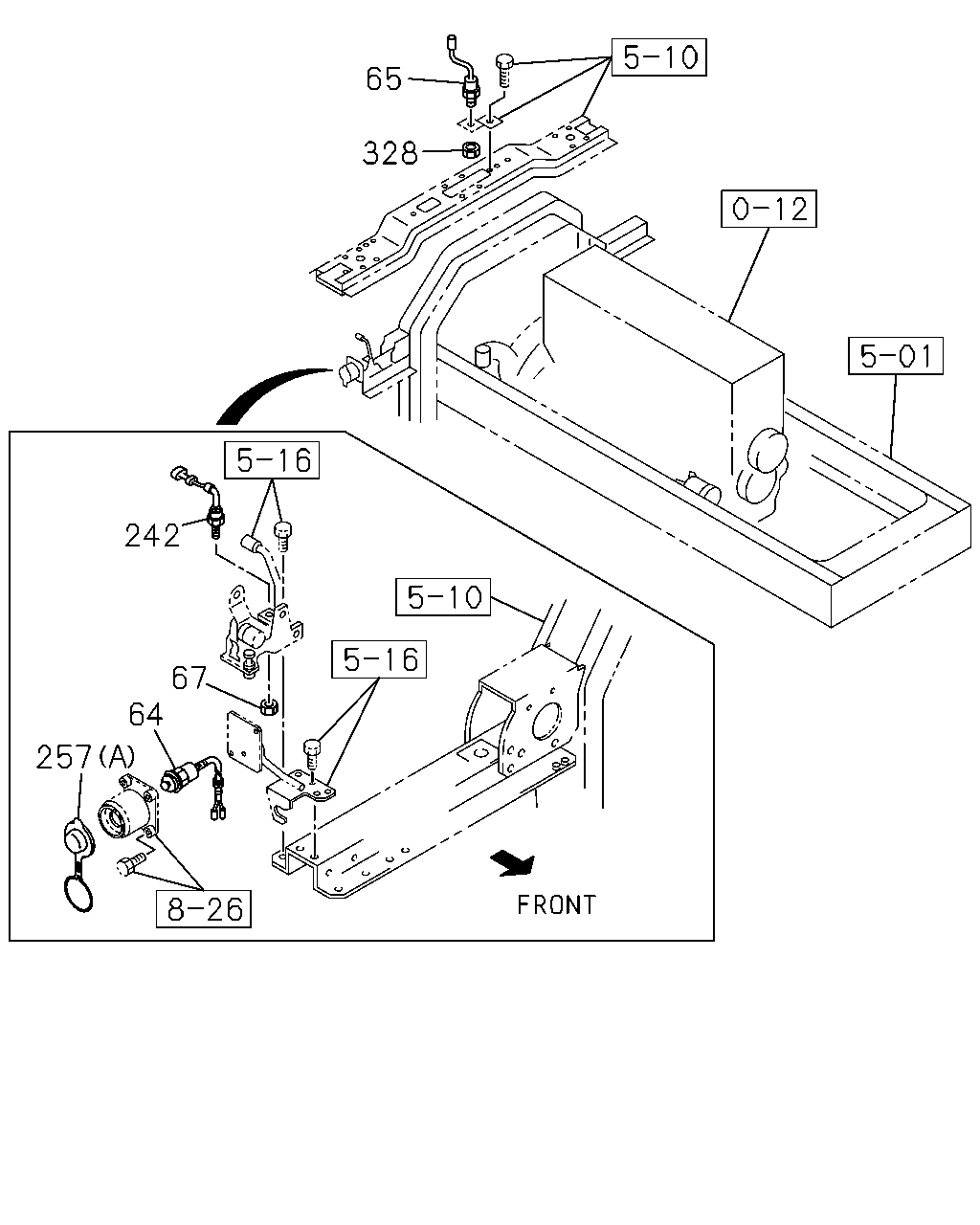

çizim 81961
65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0411- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0411- ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0411- ● ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0411- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0411- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0411- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0411- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0411- ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0411- ● ●

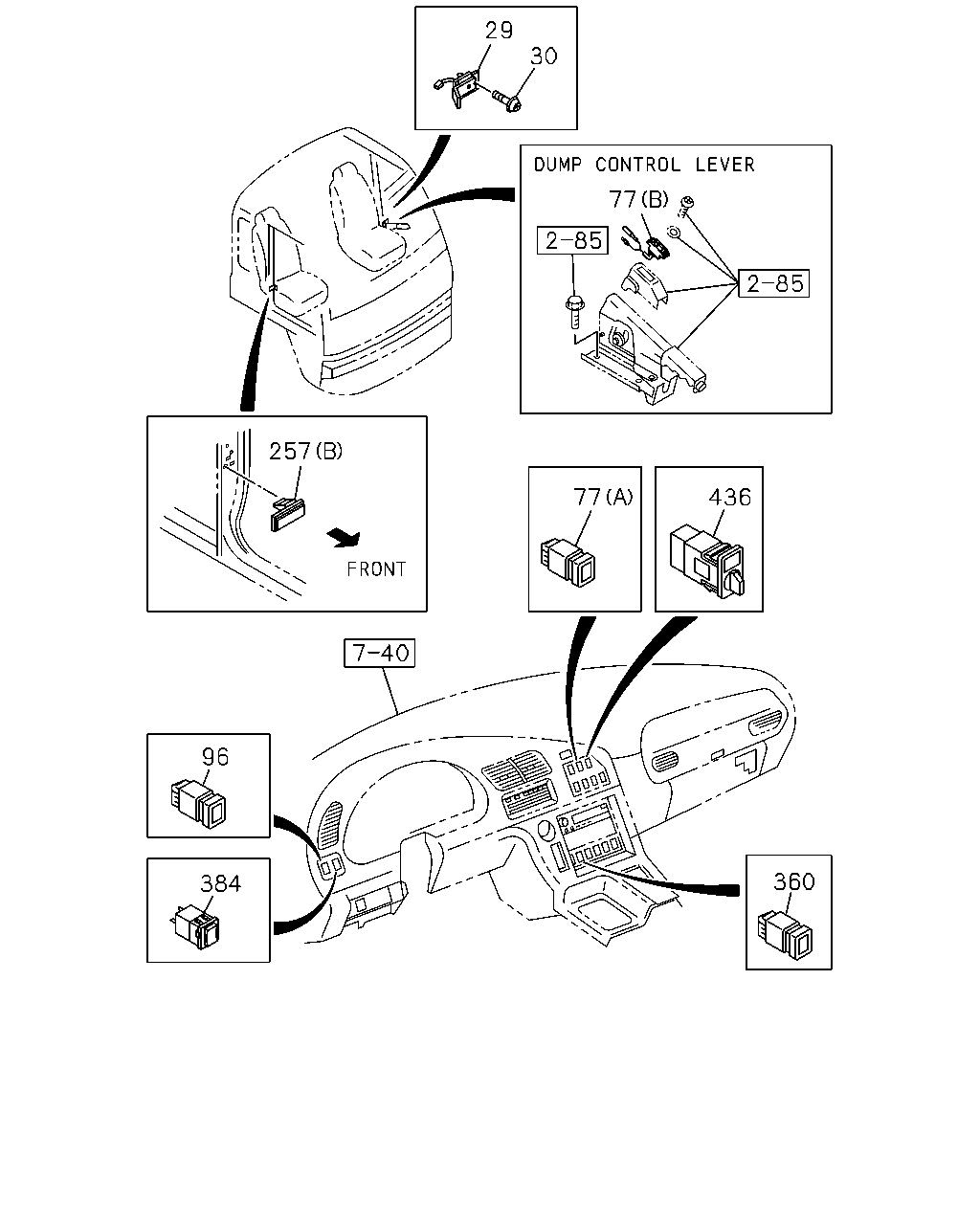

çizim 83060
29 30 77 257 77 436 96 360 384
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0411- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0411- ● ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0411- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0411- ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0411- ● ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 0411- ●
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-628-0 01 1 0411- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0411- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0411- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0411- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0411- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0411- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0411- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82330-043-0 01 1 0411- ● ●
