Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#26704) — 279 parça

334 312 53 53 342 375 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS (A)	1-47479-537-0	09	1	0411-	●	●
53	BRACKET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (B)	1-82698-382-0	01	1	0411-0412	●	●
53	BRACKET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>	1-82698-382-0	01	1	0501-		●
312	BRACKET; CLIP HARNESS	1-82698-479-0	01	1	0411-	●	●
334	BRACKET	1-53458-709-1	01	1	0411-	●	●
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0411-	●	●
342	BRACKET; HARNESS CAB MTG EXC. MIXER TRUCK<RA2> (B)	1-47479-974-0	01	1	0411-	●	●
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0411-	●	●

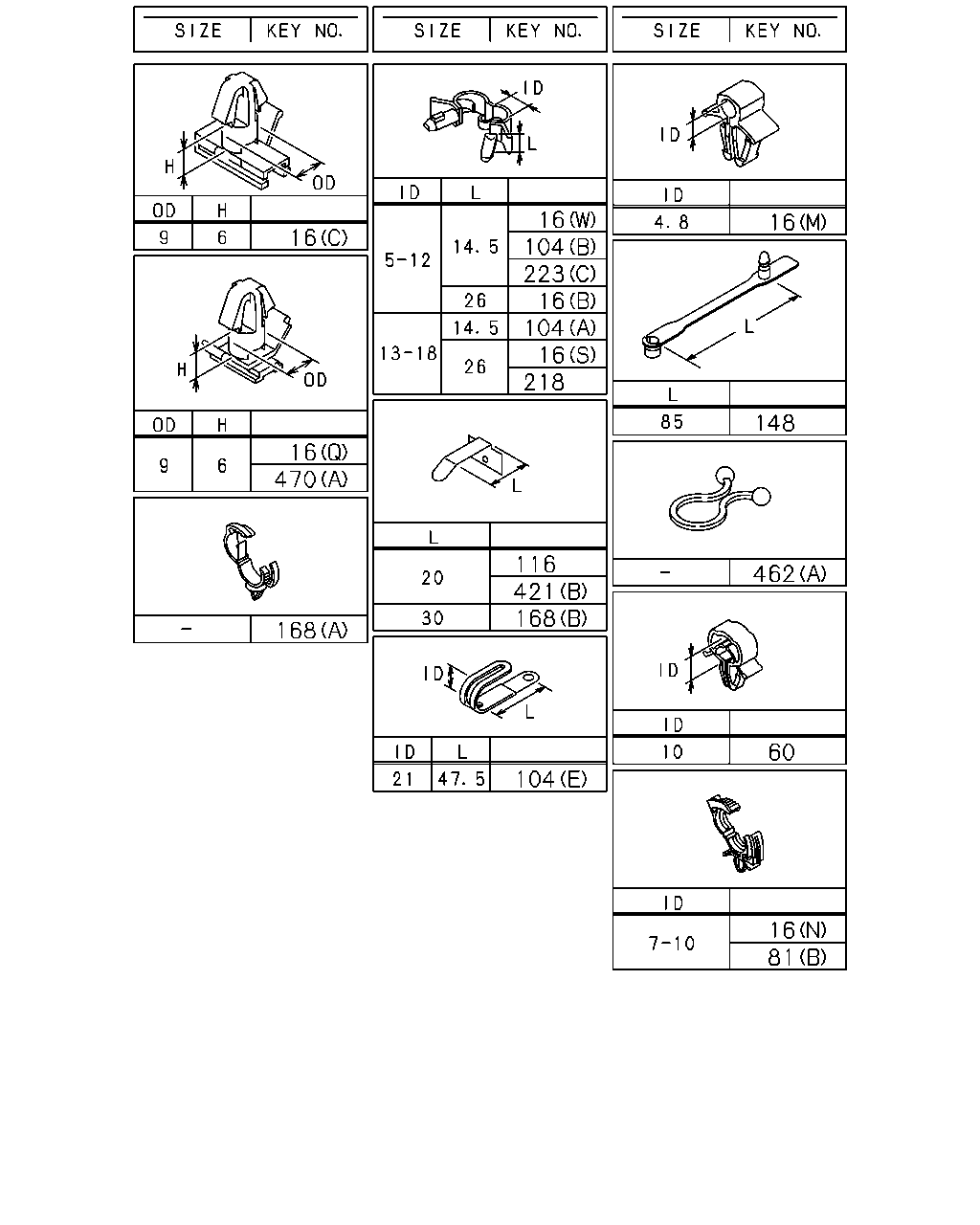

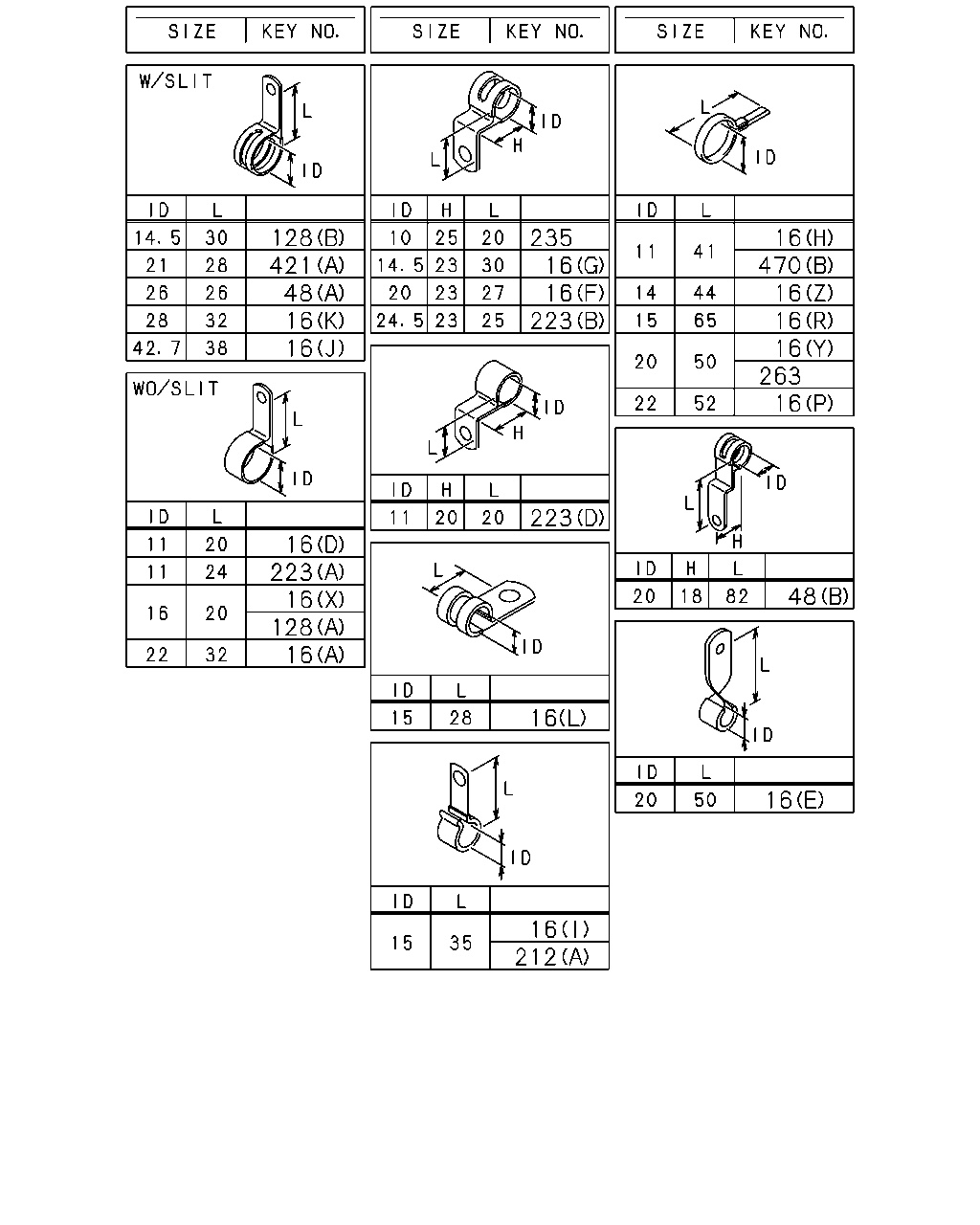

128 421 48 16 16 235 16 16 223 16 470 16 16 16 263 16 223 16 223 16 128 16 48 16 16 16 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> ID=5-12 L=14.5	1-09987-221-0	01	1	0501-		●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0411-	●	●
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0411-	●
16	CLIP; HARNESS POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0411-		●
16	CLIP; HARNESS (S) ID=13-18 L=26	1-09709-293-0	02	1	0411-	●
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	10	1	0411-	●	●
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	0411-	●	●
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0411-	●	●
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0411-	●	●
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0411-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0411-	●	●
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0411-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0411-	●	●
16	CLIP; HARNESS FULL FLOATING CAB(W16) (O) L=180	1-09707-162-1	01	1	0411-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	06	1	0411-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	03	1	0411-	●	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0411-	●	●
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	0411-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0411-	●	●
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	01	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	02	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	0411-	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0411-	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-		●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0411-0412	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> ID=5-12 L=14.5	1-09987-221-0	02	1	0501-	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6	8-97368-793-0	01	1	0411-	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (R) ID=15 L=65	1-09700-466-0	01	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (B) ID=5-12 L=26	1-09709-289-0	02	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (S) ID=13-18 L=26	1-09709-293-0	04	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (S) ID=13-18 L=26	1-09709-293-0	08	1	0411-		●
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0411-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0411-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0411-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0411-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0411-	●	●
212	CLIP; HORN HARNESS (A) ID=15 L=35	1-09700-507-0	01	1	0411-	●	●
212	CLIP; HORN HARNESS (B) L=300	1-09707-001-1	01	1	0411-	●	●
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0411-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0411-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0411-	●	●
223	CLIP; AIR TANK HARNESS (D) ID=11 H=20 L=20	5-09700-351-0	03	1	0411-0412	●	●
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	5-09700-351-0	04	1	0501-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=24	9-09525-045-0	01	1	0411-0412	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	0411-	●	●
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0411-	●	●
421	CLIP; FLOOR HARNESS (A) ID=21 L=28	1-09700-673-1	02	1	0411-	●	●
421	CLIP; FLOOR HARNESS (B) L=20	1-09987-246-2	05	1	0411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0411-	●	●

38 150 242 38 38 38 242 38 313 86 139 242 313 38 242 516 133 358 239 38 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (B) M6X10 FLANGE	0-28080-610-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28080-820-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	02	1	0411-	●	●
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28781-020-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0411-	●	●
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0411-	●	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0411-	●	●
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0411-	●	●
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0411-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0411-	●	●
139	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0411-	●	●
150	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0411-	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0411-	●	●
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28080-812-0	01	1	0411-	●	●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
242	BOLT; BRKT,HARNESS (D) M10X25 FLANGE	0-28681-025-0	02	1	0411-	●	●
242	BOLT; BRKT,HARNESS EXC. MIXER TRUCK<RA2> (C) M8X30 FLANGE	0-28680-830-0	01	1	0411-	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	05	1	0411-	●	●
313	BOLT; BRKT FUEL SEDIMENTER WITH WARNING<EBJ> (A) M8X30 FLANGE	0-28680-830-0	01	1	0411-0412	●	●
313	BOLT; BRKT FUEL SEDIMENTER WITH WARNING<EBJ> M8X30 FLANGE	0-28680-830-0	01	1	0501-		●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0411-	●	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-	●	●

119 64 524 219 294 340 515 515 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0411-	●	●
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	0411-	●	●
219	NUT M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
219	NUT M8 FLANGE	0-91150-108-0	10	1	0411-	●	●
219	NUT EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0411-0412	●	●
219	NUT FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE	0-91150-108-0	01	1	0411-0412	●	●
219	NUT M8 FLANGE	0-91150-108-0	01	1	0411-0412	●	●
219	NUT EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0501-	●	●
219	NUT M8 FLANGE	0-91150-108-0	01	1	0501-	●	●
219	NUT FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE	0-91150-108-0	01	1	0501-		●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
294	NUT M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0411-	●	●
515	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	03	1	0411-	●	●
515	NUT; BRKT (B) M10 FLANGE	0-91150-110-0	02	1	0411-	●	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	02	1	0411-	●	●

5 224 1 1 178 178 178 178 178 510 530 292 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0411-	●	●
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50	5-09360-835-0	01	1	0411-	●	●
5	GUIDE; HARNESS L=360	1-82699-476-1	01	1	0411-	●	●
178	GROMMET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (D) ID=32 OD=40 T=23	1-09332-112-0	01	1	0411-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0411-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	0411-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0411-	●	●
178	GROMMET; HARNESS (E)	1-82699-891-0	01	1	0411-	●	●
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	0411-	●	●
292	CAP; RUBBER CHINA EQUIPMENT(YT2)	1-82691-239-0	02	1	0411-	●	●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	01	1	0411-	●	●
530	SEAL; HARNESS (A) 180X40	1-72498-019-0	01	1	0411-	●	●
530	SEAL; HARNESS (A) 180X40	1-72498-019-0	06	1	0411-	●	●
530	SEAL; HARNESS (A) 180X40	1-72498-019-0	08	1	0411-	●	●
530	SEAL; HARNESS (A) 100X40	1-72498-022-0	01	1	0411-	●	●
530	SEAL; HARNESS (B)	1-76770-009-2	01	1	0411-	●	●

16 51 81 104 142 171 206 212 305 462 16 104 171 194 228 369 194 212 16 48 194 16 51 142 162 194 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> ID=5-12 L=14.5	1-09987-221-0	01	1	0501-		●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0411-	●	●
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0411-	●
16	CLIP; HARNESS POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0411-		●
16	CLIP; HARNESS (S) ID=13-18 L=26	1-09709-293-0	02	1	0411-	●
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	10	1	0411-	●	●
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	0411-	●	●
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0411-	●	●
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0411-	●	●
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0411-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0411-	●	●
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0411-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0411-	●	●
16	CLIP; HARNESS FULL FLOATING CAB(W16) (O) L=180	1-09707-162-1	01	1	0411-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	06	1	0411-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	03	1	0411-	●	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0411-	●	●
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	0411-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0411-	●	●
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	01	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	02	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	0411-	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0411-	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-		●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0411-0412	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> ID=5-12 L=14.5	1-09987-221-0	02	1	0501-	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6	8-97368-793-0	01	1	0411-	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (R) ID=15 L=65	1-09700-466-0	01	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (B) ID=5-12 L=26	1-09709-289-0	02	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (S) ID=13-18 L=26	1-09709-293-0	04	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (S) ID=13-18 L=26	1-09709-293-0	08	1	0411-		●
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0411-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0411-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0411-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0411-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0411-	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0411-	●	●
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=7-10	8-94472-578-0	02	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=140	5-09707-031-1	06	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5	8-94178-108-0	02	1	0411-	●	●
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	02	1	0411-	●	●
142	CLIP; HARNESS,ENG (B) L=140	5-09707-031-1	01	1	0411-	●	●
162	CLIP; SW HARNESS L=180	1-09707-162-1	01	1	0411-	●	●
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	03	1	0411-	●	●
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	06	1	0411-	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	0411-	●	●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0411-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	07	1	0411-	●	●
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0411-	●	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0411-	●	●
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0411-	●	●
212	CLIP; HORN HARNESS (A) ID=15 L=35	1-09700-507-0	01	1	0411-	●	●
212	CLIP; HORN HARNESS (B) L=300	1-09707-001-1	01	1	0411-	●	●
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0411-	●	●
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	0411-	●	●
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0411-	●	●
369	CLIP; BAND EDS HARNESS CHINA EQUIPMENT(YT2) L=250	5-09707-030-1	01	1	0411-	●	●
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0411-	●	●
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0411-	●	●

16 104 223 16 104 16 218 16 16 148 16 470 116 421 168 462 168 60 104 16 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> ID=5-12 L=14.5	1-09987-221-0	01	1	0501-		●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0411-	●	●
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0411-	●
16	CLIP; HARNESS POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250	5-09707-030-1	01	1	0411-		●
16	CLIP; HARNESS (S) ID=13-18 L=26	1-09709-293-0	02	1	0411-	●
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	10	1	0411-	●	●
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	0411-	●	●
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0411-	●	●
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0411-	●	●
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0411-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0411-	●	●
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0411-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0411-	●	●
16	CLIP; HARNESS FULL FLOATING CAB(W16) (O) L=180	1-09707-162-1	01	1	0411-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	06	1	0411-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	03	1	0411-	●	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0411-	●	●
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	0411-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0411-	●	●
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	01	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	02	1	0411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	0411-	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0411-	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-	●	●
16	CLIP; HARNESS (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=26	1-09709-289-0	01	1	0411-		●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0411-0412	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> ID=5-12 L=14.5	1-09987-221-0	02	1	0501-	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6	8-97368-793-0	01	1	0411-	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (R) ID=15 L=65	1-09700-466-0	01	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (B) ID=5-12 L=26	1-09709-289-0	02	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) (S) ID=13-18 L=26	1-09709-293-0	04	1	0411-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (S) ID=13-18 L=26	1-09709-293-0	08	1	0411-		●
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	0411-	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0411-	●	●
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=7-10	8-94472-578-0	02	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=140	5-09707-031-1	06	1	0411-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5	8-94178-108-0	02	1	0411-	●	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	05	1	0411-	●	●
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	0411-	●	●
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	0411-	●	●
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30	1-09987-265-0	01	1	0411-	●	●
218	CLIP; BAND,RR COMB DUMP TRUCK<RA1> ID=13-18 L=26	1-09709-293-0	07	1	0411-	●
218	CLIP; BAND,RR COMB MIXER TRUCK<RA2> ID=13-18 L=26	1-09709-293-0	06	1	0411-	●
218	CLIP; BAND,RR COMB WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) ID=13-18 L=26	1-09709-293-0	06	1	0411-		●
223	CLIP; AIR TANK HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0411-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0411-	●	●
223	CLIP; AIR TANK HARNESS (D) ID=11 H=20 L=20	5-09700-351-0	03	1	0411-0412	●	●
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	5-09700-351-0	04	1	0501-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=24	9-09525-045-0	01	1	0411-0412	●	●
421	CLIP; FLOOR HARNESS (A) ID=21 L=28	1-09700-673-1	02	1	0411-	●	●
421	CLIP; FLOOR HARNESS (B) L=20	1-09987-246-2	05	1	0411-	●	●
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0411-	●	●
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
