8-05 — INTERIOR LAMP (#26702) — 25 parça

34 35 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	COVER; STEP LAMP	1-71907-444-0	02	1	0411-	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0411-	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	0411-	●	●

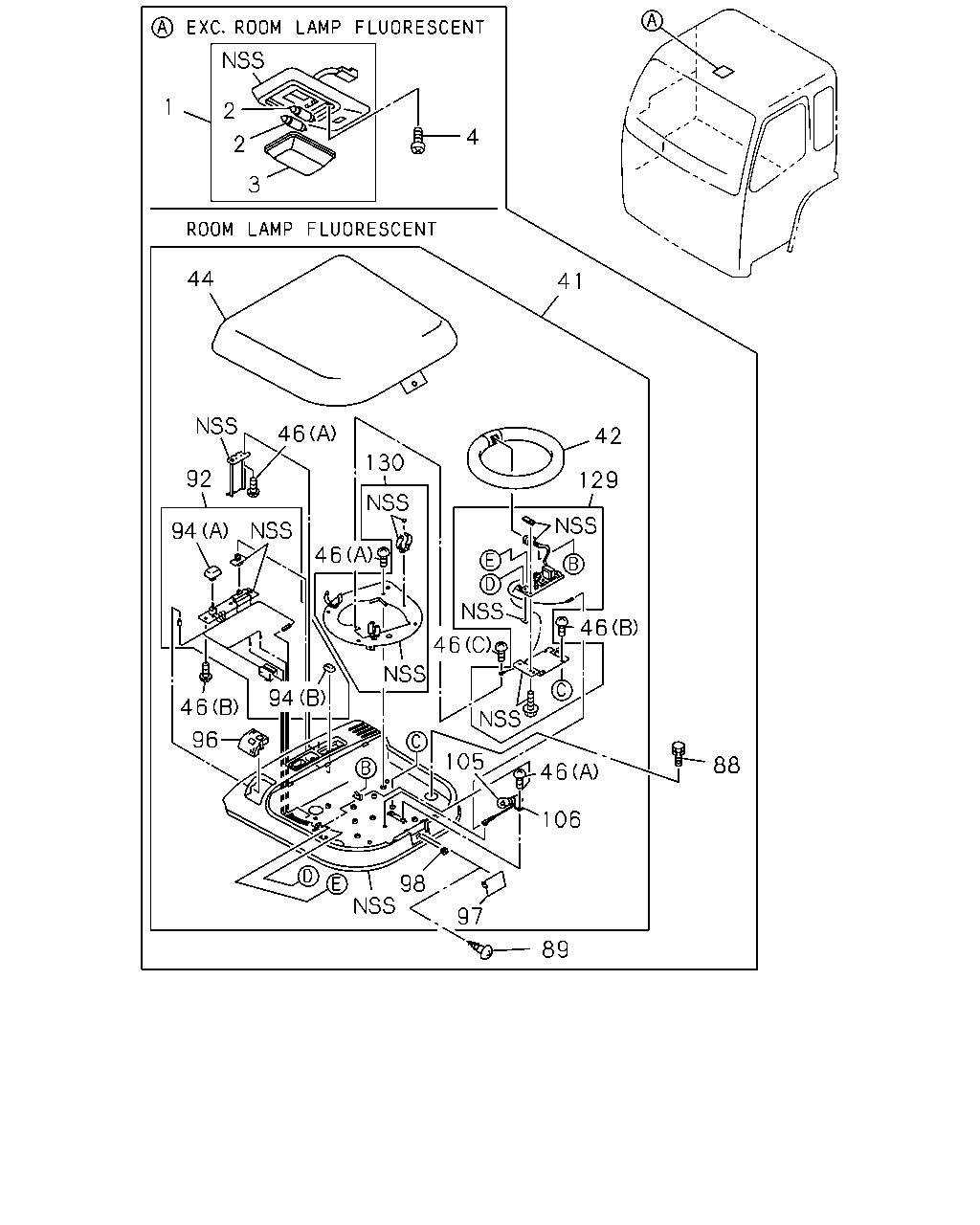

1 2 4 2 3 44 41 46 42 130 92 129 94 46 46 46 94 46 96 105 88 46 106 98 97 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	0411-	●	●
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	0411-	●	●
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	0411-	●	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	0411-	●	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-315-1	01	1	0411-	●	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	0411-	●	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	0411-	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	0411-	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	0411-	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	0411-	●	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0411-	●	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	0411-	●	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-341-0	01	1	0411-	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-312-0	01	1	0411-	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-313-0	01	1	0411-	●	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-337-0	01	1	0411-	●	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-311-0	01	1	0411-	●	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	0411-	●	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	0411-	●	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	0411-	●	●
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	0411-	●	●
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	0411-	●	●
