8-03 — LAMP; REAR AND REAR SIDE (#26701) — 105 parça

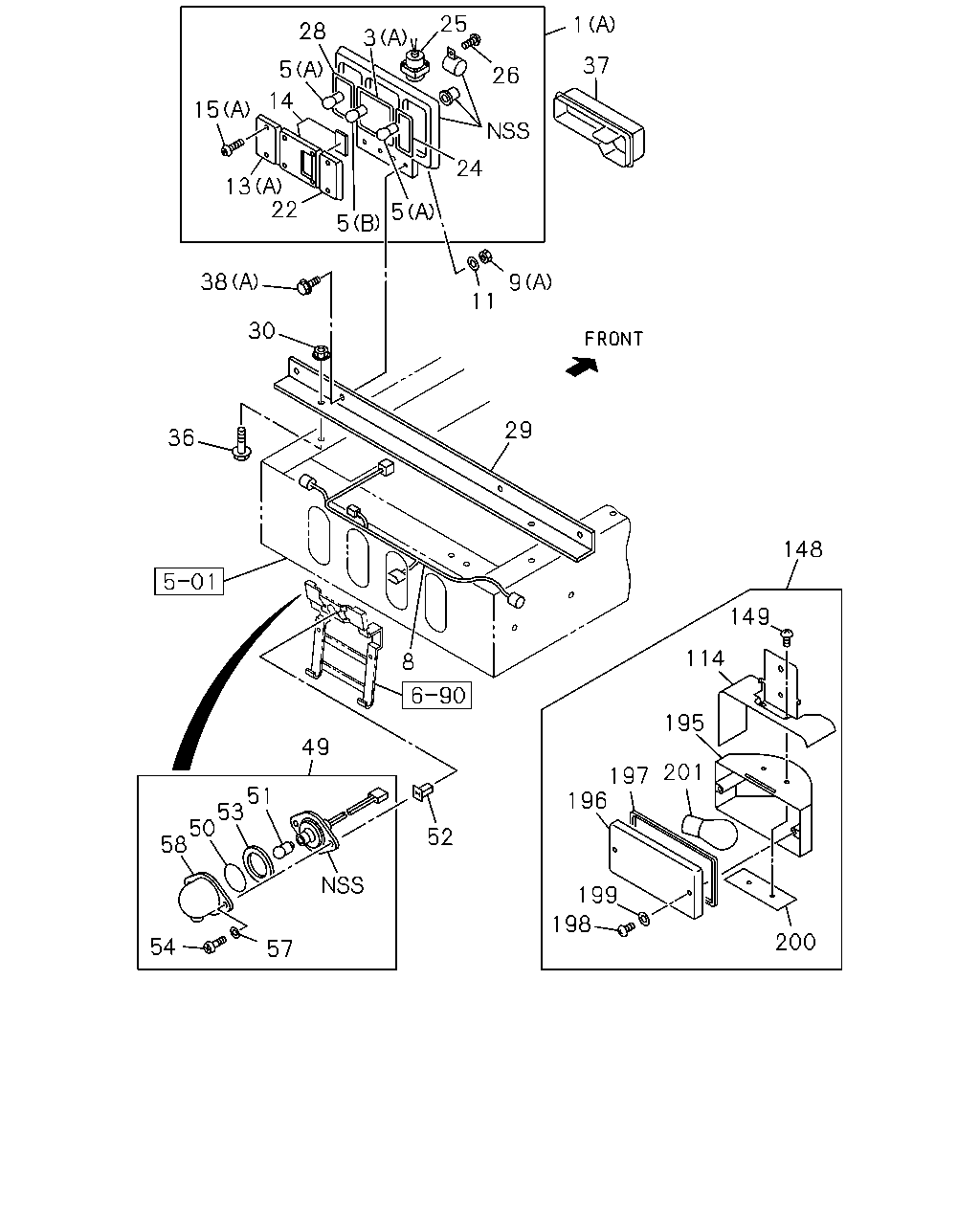

25 1 28 3 37 5 26 14 15 24 13 22 5 5 38 9 11 30 29 36 148 149 114 8 195 49 201 197 196 51 53 50 58 52 199 198 200 54 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) (A)	8-97213-369-0	01	1	0411-	●	●
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A)	8-97213-370-0	01	1	0411-	●	●
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A)	8-97213-368-0	01	1	0411-	●	●
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	0411-	●	●
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	0411-	●	●
3	GASKET; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0411-	●	●
3	GASKET; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0411-	●	●
3	GASKET; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	0411-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	0411-	●	●
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) 24V 21W	1-82194-036-0	02	1	0411-	●	●
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (B) 24V 21/5W	1-82194-038-0	01	1	0411-	●	●
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (B) 24V 21/5W	1-82194-038-0	01	1	0411-	●	●
5	BULB; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B) 24V 21/5W	1-82194-038-0	02	1	0411-	●	●
8	HARNESS; RR COMB LAMP	1-82677-374-1	01	1	0411-	●
8	HARNESS; RR COMB LAMP	1-82677-375-1	01	1	0411-		●
9	NUT; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A) M6	9-09110-406-0	04	1	0411-	●	●
9	NUT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
11	WASHER; PL,LAMP,RR COMB CHINA EQUIPMENT(YT2) ID=6.4 OD=18	9-09160-706-0	04	1	0411-	●	●
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	8-94174-639-0	01	1	0411-	●	●
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	8-94174-638-0	01	1	0411-	●	●
13	LENS; TURN SIGNAL EXC. CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	0411-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94178-625-0	01	1	0411-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94178-624-0	01	1	0411-	●	●
15	SCREW; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0411-	●	●
15	SCREW; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0411-	●	●
15	SCREW; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	0411-	●	●
22	LENS; BACKUP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94257-512-1	01	1	0411-	●	●
22	LENS; BACKUP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94257-512-1	01	1	0411-	●	●
24	GASKET; BACK,LAMP CHINA EQUIPMENT(YT2)	8-94257-506-0	01	1	0411-	●	●
24	GASKET; BACK,LAMP CHINA EQUIPMENT(YT2)	8-94257-506-0	01	1	0411-	●	●
25	HORN ASM; BACK CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	0411-	●	●
26	SCREW; BACK HORN CHINA EQUIPMENT(YT2) M4X14 TAPPING	9-07076-414-0	01	1	0411-	●	●
26	SCREW; BACK HORN CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> M4X12 TAPPING	9-07076-412-0	02	1	0411-	●	●
26	SCREW; BACK HORN CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING	9-07076-412-0	01	1	0411-	●	●
28	GASKET; TURN,LAMP CHINA EQUIPMENT(YT2)	8-94257-507-0	01	1	0411-	●	●
28	GASKET; TURN,LAMP CHINA EQUIPMENT(YT2)	8-94257-507-0	01	1	0411-	●	●
29	BRACKET; LAMP,RR COMB CHINA EQUIPMENT(YT2)	1-53487-021-0	01	1	0411-	●	●
30	NUT; BRKT,RR COMB CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	0411-	●	●
36	BOLT; BRKT,RR COMB CHINA EQUIPMENT(YT2) M10X40 FLANGE	0-28681-040-0	02	1	0411-	●	●
37	COVER; RR COMB LAMP CHINA EQUIPMENT(YT2)	1-82239-008-0	01	1	0411-	●	●
37	COVER; RR COMB LAMP CHINA EQUIPMENT(YT2)	1-82239-007-0	01	1	0411-	●	●
38	BOLT; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	0411-	●	●
38	BOLT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0411-	●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	0411-	●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0411-	●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0411-	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0411-	●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0411-	●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0411-	●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0411-	●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0411-	●	●
114	BRACKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-97108-583-0	01	1	0411-	●	●
148	LAMP ASM; RR FOG FOG LAMP REAR<NHD>	8-97181-002-0	01	1	0411-	●	●
149	SCREW; BRKT TO LAMP BODY FOG LAMP REAR<NHD>	8-94336-372-0	02	1	0411-	●	●
195	LAMP UNIT; RR FOG FOG LAMP REAR<NHD>	8-94336-322-0	01	1	0411-	●	●
196	LENS; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-325-0	01	1	0411-	●	●
197	GASKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-324-0	01	1	0411-	●	●
198	SCREW; LENS TO BODY FOG LAMP REAR<NHD>	0-71190-416-0	02	1	0411-	●	●
199	WASHER; LENS,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-326-0	02	1	0411-	●	●
200	PLATE; SET,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-323-0	01	1	0411-	●	●
201	BULB; RR FOG LAMP FOG LAMP REAR<NHD> 24V 21W	1-82194-036-0	01	1	0411-	●	●

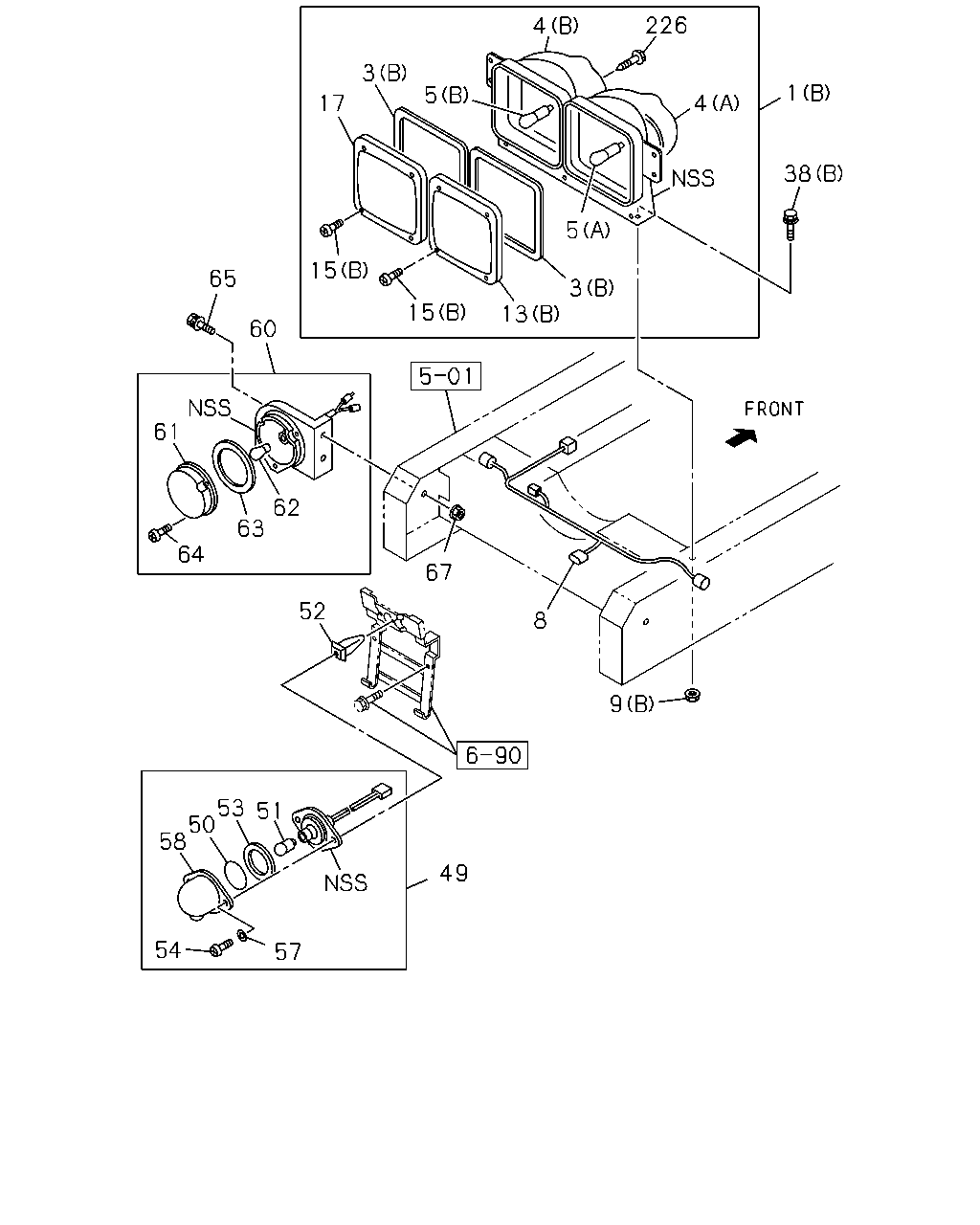

226 4 3 1 5 17 4 38 5 5 65 3 13 15 60 61 62 63 64 67 52 8 9 53 50 58 51 49 54 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) (A)	8-97213-369-0	01	1	0411-	●	●
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A)	8-97213-370-0	01	1	0411-	●	●
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A)	8-97213-368-0	01	1	0411-	●	●
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	0411-	●	●
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	0411-	●	●
3	GASKET; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0411-	●	●
3	GASKET; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0411-	●	●
3	GASKET; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	0411-	●	●
4	COVER; RR,RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (A)	1-82239-033-0	02	1	0411-	●	●
4	COVER; RR,RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82239-034-0	02	1	0411-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	0411-	●	●
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) 24V 21W	1-82194-036-0	02	1	0411-	●	●
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (B) 24V 21/5W	1-82194-038-0	01	1	0411-	●	●
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (B) 24V 21/5W	1-82194-038-0	01	1	0411-	●	●
5	BULB; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B) 24V 21/5W	1-82194-038-0	02	1	0411-	●	●
8	HARNESS; RR COMB LAMP	1-82677-374-1	01	1	0411-	●
8	HARNESS; RR COMB LAMP	1-82677-375-1	01	1	0411-		●
9	NUT; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A) M6	9-09110-406-0	04	1	0411-	●	●
9	NUT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	8-94174-639-0	01	1	0411-	●	●
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	8-94174-638-0	01	1	0411-	●	●
13	LENS; TURN SIGNAL EXC. CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	0411-	●	●
15	SCREW; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0411-	●	●
15	SCREW; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0411-	●	●
15	SCREW; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	0411-	●	●
17	LENS; STOP,RR COMB LAMP EXC. CHINA EQUIPMENT(YT2)	1-82235-002-0	02	1	0411-	●	●
38	BOLT; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	0411-	●	●
38	BOLT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0411-	●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	0411-	●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0411-	●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0411-	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0411-	●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0411-	●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0411-	●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0411-	●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0411-	●	●
60	LAMP; BACKUP EXC. CHINA EQUIPMENT(YT2)	1-82130-023-1	01	1	0411-	●	●
61	LENS; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2)	1-82135-003-0	01	1	0411-	●	●
62	BULB; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	01	1	0411-	●	●
63	GASKET; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2)	1-82136-002-0	01	1	0411-	●	●
64	SCREW; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2)	1-82139-002-0	03	1	0411-	●	●
65	BOLT; LAMP,BACKUP EXC. CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0411-	●	●
67	NUT; FLANGE EXC. CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	0411-	●	●
226	SCREW; PROTECTOR EXC. CHINA EQUIPMENT(YT2)	1-82239-032-0	08	1	0411-	●	●
