4-11 — FRONT HUB AND DRUM OR ROTOR (#2670) — 66 parça

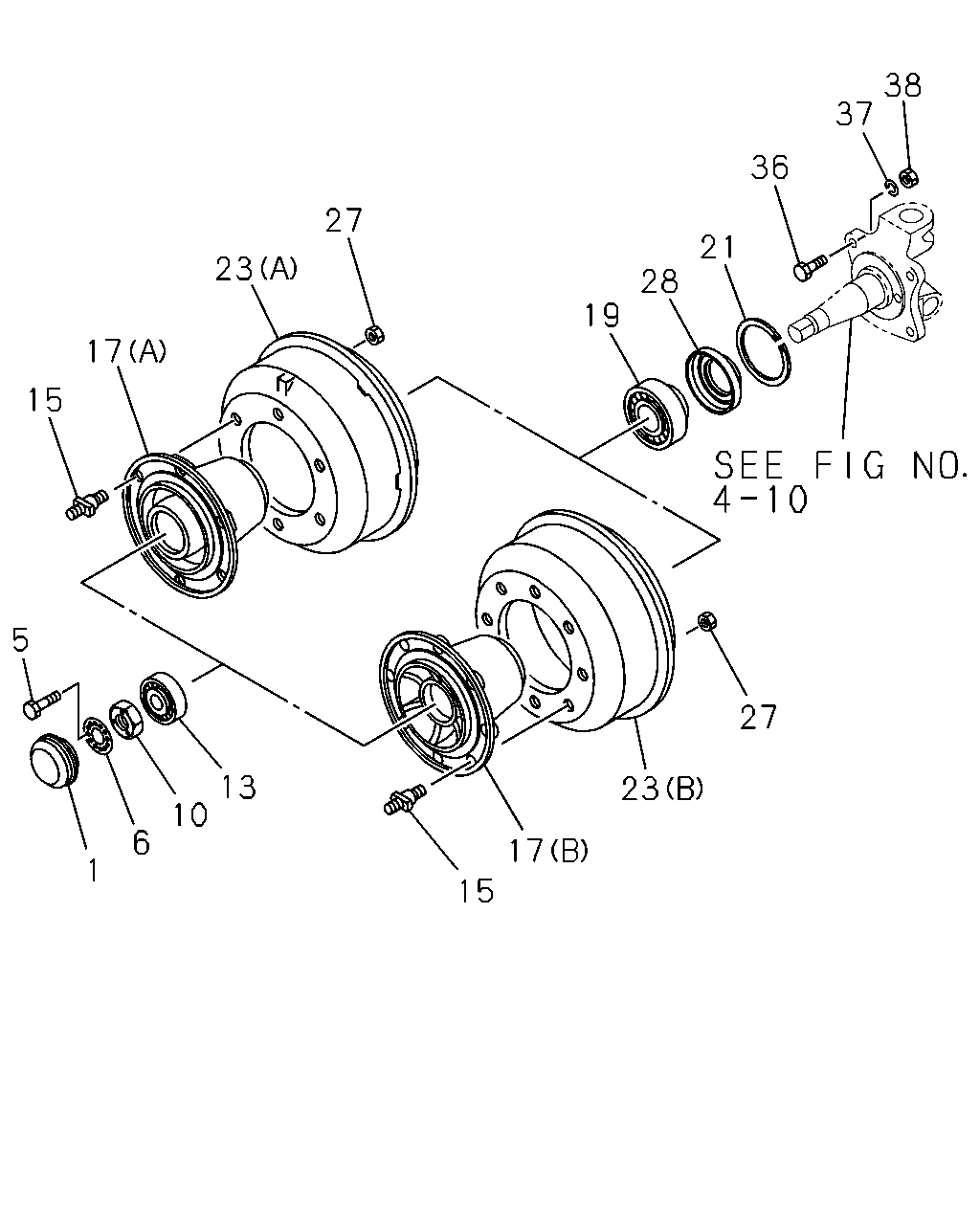

çizim 39209
38 37 36 27 21 23 28 19 17 15 5 27 13 10 23 6 17 1 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 1-42313-019-1 02 1 9101- ● ●
5 BOLT; LK WASHER 0-50040-616-0 06 1 9101-9403 ● ●
5 BOLT; LK WASHER 0-50040-616-0 04 1 9404-9701 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9702- ● ●
6 WASHER; LK,FRT HUB 1-09841-003-0 02 1 9101- ● ●
10 NUT; FRT HUB BRG 1-09840-010-2 02 1 9101-9403 ● ●
10 NUT; FRT HUB BRG 1-09840-019-1 02 1 9404- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK OR 		1-09812-064-0 02 1 9101- ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-065-0 02 1 9101- ● ●
15 PIN; WHEEL,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) M24X35.5,M22X53.5 RH THREAD 		1-42337-028-0 16 1 9101-9111 ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-20<91X> M24X35.5,M22X53.5 RH THREAD 		1-42337-028-0 16 1 9112- ●
15 PIN; WHEEL,FRT AXLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) M24X37.5 LH THREAD,M22X47.5 RH THREAD 		1-42332-128-0 06 1 9101-9111 ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-16<89X> M24X37.5 LH THREAD,M22X47.5 RH THREAD 		1-42332-128-0 06 1 9112-9512 ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-16<89X> M24X37.5 LH THREAD,M22X45.5 RH THREAD 		1-42332-064-0 06 1 9601- ● ●
15 PIN; WHEEL,FRT AXLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) M24X37.5,M22X47.5 RH THREAD 		1-42331-128-0 06 1 9101-9111 ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-16<89X> M24X37.5,M22X47.5 RH THREAD 		1-42331-128-0 06 1 9112-9512 ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-16<89X> M24X37.5,M22X45.5 RH THREAD 		1-42331-064-0 06 1 9601- ● ●
15 PIN; WHEEL,FRT AXLE
TIRE 8.25-16-12 RIB(30S),TIRE 7.50-20-12 RIB(70S), TIRE 7.50-20-12 LUG(71S) M20X37.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-058-0 06 1 9101-9111 ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 8.25-16<92X> M20X37.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-058-0 06 1 9112- ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-20<91X> M20X37.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-058-0 06 1 9112- ●
15 PIN; WHEEL,FRT AXLE
TIRE 8.25-16-12 RIB(30S),TIRE 7.50-20-12 RIB(70S), TIRE 7.50-20-12 LUG(71S) M20X37.5,M22X49.5 RH THREAD 		1-42331-058-0 06 1 9101-9111 ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 8.25-16<92X> M20X37.5,M22X49.5 RH THREAD 		1-42331-058-0 06 1 9112- ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 7.50-20<91X> M20X37.5,M22X49.5 RH THREAD 		1-42331-058-0 06 1 9112- ●
17 HUB; FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) (B) 		1-42312-036-1 02 1 9101-9111 ●
17 HUB; FRT AXLE
RR TIRE 7.50-20<91X> (B) 		1-42312-036-2 02 1 9112- ●
17 HUB; FRT AXLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) (A) 		1-42312-088-0 02 1 9101-9111 ● ●
17 HUB; FRT AXLE
RR TIRE 7.50-16<89X> (A) 		1-42312-088-0 02 1 9112- ● ●
17 HUB; FRT AXLE
TIRE 8.25-16-12 RIB(30S),TIRE 7.50-20-12 RIB(70S), TIRE 7.50-20-12 LUG(71S) (A) 		1-42312-087-0 02 1 9101-9111 ● ●
17 HUB; FRT AXLE
RR TIRE 8.25-16<92X> (A) 		1-42312-087-0 02 1 9112-9304 ●
17 HUB; FRT AXLE
RR TIRE 7.50-20<91X> (A) 		1-42312-087-0 02 1 9112-9304 ●
17 HUB; FRT AXLE
RR TIRE 8.25-16<92X> (A) 		1-42312-117-3 02 1 9305- ●
17 HUB; FRT AXLE
RR TIRE 7.50-20<91X> (A) 		1-42312-117-3 02 1 9305- ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-031-1 02 1 9101- ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		9-00093-205-1 02 1 9101- ● ●
21 RING; SNAP,HUB 1-09587-001-0 02 1 9101- ● ●
23 DRUM; BRK,FRT
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) (B) 		1-42315-278-1 02 1 9101-9111 ●
23 DRUM; BRK,FRT
RR TIRE 7.50-20<91X> (B) 		1-42315-278-1 02 1 9112- ●
23 DRUM; BRK,FRT
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) (A) 		1-42315-326-1 02 1 9101-9109 ● ●
23 DRUM; BRK,FRT
TIRE 7.50-16-12 RIB(10S),TIRE 8.25-16-12 RIB(30S), TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) (A) 		1-42315-326-1 02 1 9110-9111 ●
23 DRUM; BRK,FRT
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-20-12 RIB(70S),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-20-12 LUG(71S),TIRE 7.50-16-14 EXP LUG(71U) (A) 		1-42315-326-1 02 1 9110-9111 ●
23 DRUM; BRK,FRT
RR TIRE 7.50-16<89X>,RR TIRE 8.25-16<92X> (A) 		1-42315-326-1 02 1 9112-9304 ●
23 DRUM; BRK,FRT
RR TIRE 7.50-16<89X>,RR TIRE 7.50-20<91X> (A) 		1-42315-326-1 02 1 9112-9304 ●
23 DRUM; BRK,FRT
RR TIRE 7.50-16<89X>,RR TIRE 8.25-16<92X> (A) 		1-42315-338-2 02 1 9305-9811 ●
23 DRUM; BRK,FRT
RR TIRE 7.50-16<89X>,RR TIRE 7.50-20<91X> (A) 		1-42315-338-2 02 1 9305-9811 ●
23 DRUM; BRK,FRT
EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> (A) 		1-42315-359-1 02 1 9812- ●
23 DRUM; BRK,FRT
(A) 		1-42315-359-1 02 1 9812- ●
23 DRUM; BRK,FRT
TIRE 8.25-16-12 RIB(30S),TIRE 7.50-20-12 RIB(70S), TIRE 7.50-20-12 LUG(71S) (A) 		1-42315-286-1 02 1 9101-9109 ● ●
27 NUT; WHEEL PIN,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) M22 		1-09400-037-0 16 1 9101-9111 ●
27 NUT; WHEEL PIN,FRT AXLE
RR TIRE 7.50-20<91X> M22 		1-09400-037-0 16 1 9112- ●
27 NUT; WHEEL PIN,FRT AXLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) M22 		9-09110-522-0 12 1 9101-9111 ● ●
27 NUT; WHEEL PIN,FRT AXLE
RR TIRE 7.50-16<89X> M22 		9-09110-522-0 12 1 9112-9609 ● ●
27 NUT; WHEEL PIN,FRT AXLE
RR TIRE 7.50-16<89X> M22 FLANGE 		1-09440-055-0 12 1 9610-9811 ● ●
27 NUT; WHEEL PIN,FRT AXLE
RR TIRE 7.50-16<89X> M22 FLANGE 		1-09440-065-0 12 1 9812- ● ●
27 NUT; WHEEL PIN,FRT AXLE
TIRE 8.25-16-12 RIB(30S),TIRE 7.50-20-12 RIB(70S), TIRE 7.50-20-12 LUG(71S) M22 		1-09400-037-0 12 1 9101-9111 ● ●
27 NUT; WHEEL PIN,FRT AXLE
RR TIRE 8.25-16<92X> M22 		1-09400-037-0 12 1 9112- ●
27 NUT; WHEEL PIN,FRT AXLE
RR TIRE 7.50-20<91X> M22 		1-09400-037-0 12 1 9112- ●
28 SEAL; OIL,FRT HUB 1-09625-006-0 02 1 9101-9306 ● ●
28 SEAL; OIL,FRT HUB 1-09625-568-0 02 1 9307- ● ●
36 BOLT; BACK PLATE
EXC. DRUM SIZE20"8STUD<B3S>,WHEEL PIN RIGHT HAND<SFH> M14X45 		0-20801-445-0 08 1 9101-9904 ●
36 BOLT; BACK PLATE
M14X45 		0-20801-445-0 08 1 9101-9904 ●
36 BOLT; BACK PLATE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) M14X45 		9-92061-445-0 08 1 9101-9111 ●
36 BOLT; BACK PLATE
RR TIRE 7.50-20<91X> M14X45 		9-92061-445-0 08 1 9112-9904 ●
36 BOLT; BACK PLATE
M14X45 		9-92061-445-0 08 1 9905- ● ●
37 WASHER; LK,BACK PLATE 9-09150-614-0 08 1 9101-9401 ● ●
37 WASHER; LK,BACK PLATE 9-09150-814-0 08 1 9402- ● ●
38 NUT; BACK PLATE 9-99110-514-0 08 1 9101- ● ●
