Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#267) — 254 parça

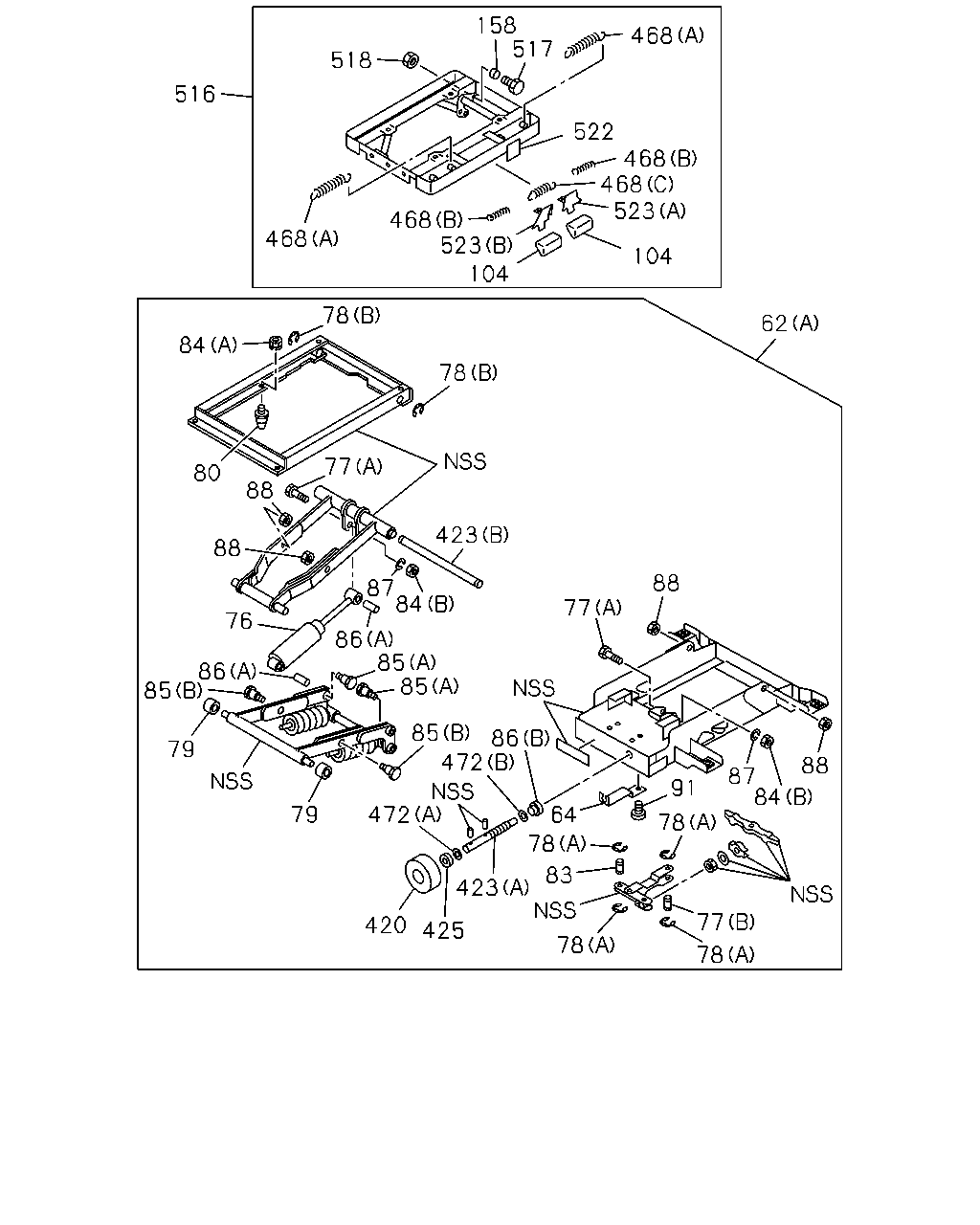

158 517 468 518 516 522 468 468 523 468 523 468 104 104 78 62 84 78 77 80 88 423 88 87 84 88 77 76 86 85 85 86 85 85 86 472 79 88 87 84 91 79 472 64 78 78 83 423 77 420 425 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-114-7	01	1	9212-
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9212-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9212-
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9212-
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9212-
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9212-
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9212-
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9212-
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9212-
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9212-
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9212-
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9212-
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9212-
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9212-
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-
91	SCREW; SEAT ADJ COVER SUSPENSION SEAT<SA3>	1-75530-081-0	01	1	9401-
104	KNOB; TILT SUSPENSION SEAT<SA3>	1-75517-875-0	02	1	9401-
158	BUSHING; LINK ARM SUSPENSION SEAT<SA3>	1-09983-171-0	04	1	9401-
420	KNOB; ADJ,SEAT SUSP SUSPENSION SEAT<SA3>	1-75530-067-0	01	1	9401-
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-064-0	01	1	9401-
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-082-0	01	1	9401-
425	BEARING; THRUST,KNOB SUSPENSION SEAT<SA3>	1-75530-074-0	01	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	01	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-
472	PIN; SPRING SUSPENSION SEAT<SA3> (A)	1-75530-072-0	01	1	9401-
472	PIN; SPRING SUSPENSION SEAT<SA3> (B)	1-75530-075-0	01	1	9401-
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75517-035-0	01	1	9401-
517	BOLT; TILT ADJ SUSPENSION SEAT<SA3>	1-09980-590-0	04	1	9401-
518	NUT; TILT ADJ SUSPENSION SEAT<SA3>	8-94279-521-0	04	1	9401-
522	BUSHING; LEVER SUSPENSION SEAT<SA3>	1-75517-876-0	01	1	9401-
523	PLATE; LEVER SUSPENSION SEAT<SA3> (A)	1-75517-881-0	01	1	9401-
523	PLATE; LEVER SUSPENSION SEAT<SA3> (B)	1-75517-882-0	01	1	9401-

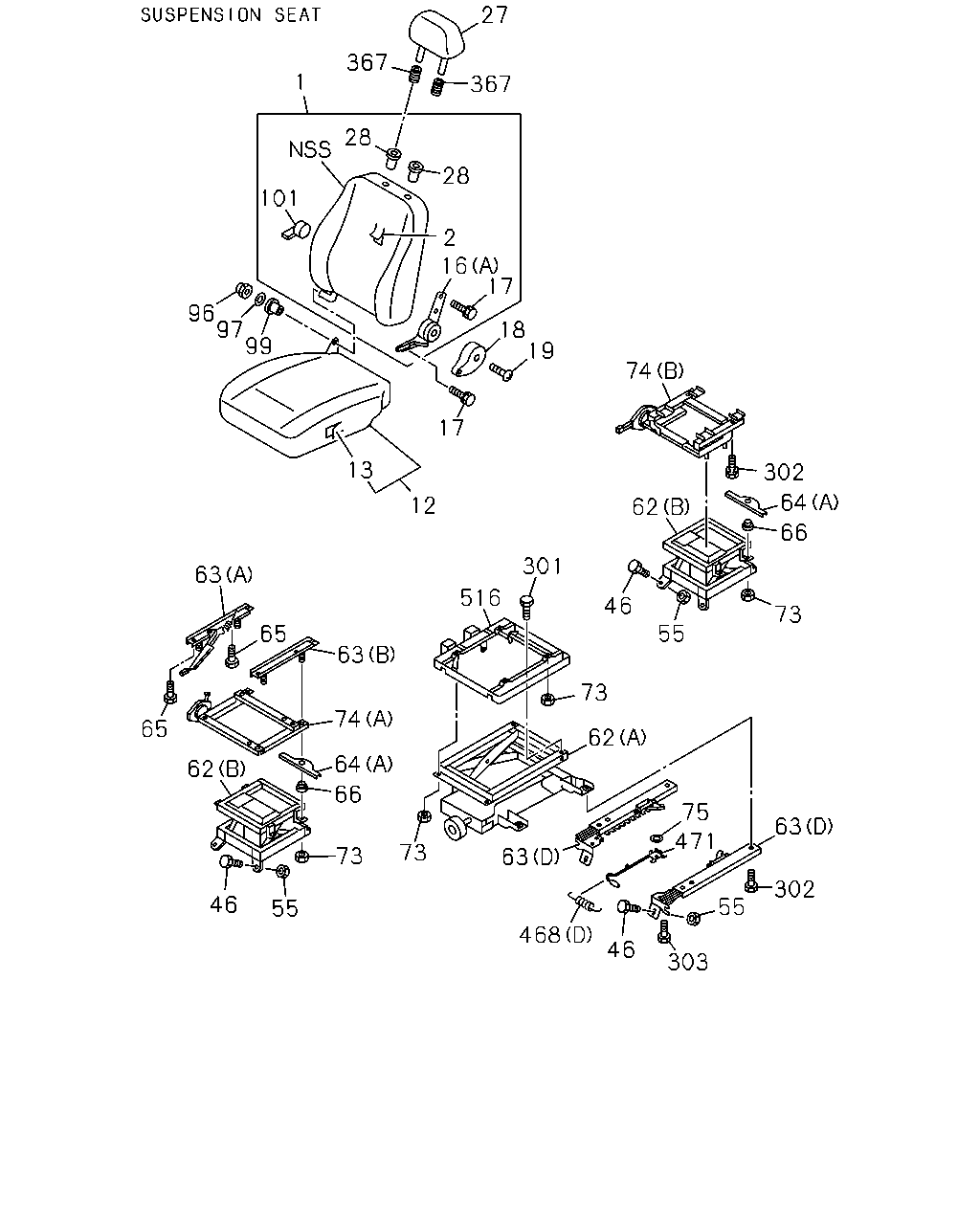

27 367 1 367 28 28 101 2 16 17 96 97 99 18 19 74 17 13 302 64 12 62 66 301 63 516 46 73 55 65 63 73 74 65 62 62 64 66 75 63 471 73 73 63 302 46 55 55 468 46 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-317-0	01	1	9212-
1	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-320-0	01	1	9212-
1	BACK ASM; SEAT EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75028-319-0	01	1	9212-
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-117-0	01	1	9212-
2	COVER; TRIM,FRT SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1)	1-75116-114-0	01	1	9212-
2	COVER; TRIM,FRT SEAT,BACK EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75116-115-0	01	1	9212-
12	CUSHION; SEAT,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-326-0	01	1	9212-
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-540-0	01	1	9401-
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75028-325-0	01	1	9212-
13	COVER; TRIM,FRT SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1)	1-75116-108-0	01	1	9212-
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-219-0	01	1	9401-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75116-109-0	01	1	9212-
16	ADJUSTER ASM; RECLINING (A)	1-75418-015-2	01	1	9212-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-064-0	01	1	9212-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-042-4	01	1	9212-
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9212-
18	COVER; RECLINING	1-75417-061-0	01	1	9212-
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9212-
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9212-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9212-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9212-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9212-
46	BOLT; STAND TO FLOOR DRIVING POSITION WIDE LEG SPACE(PR2) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9212-9504
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9212-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9212-9504
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-504-1	04	1	9212-9504
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-114-7	01	1	9212-
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE(PR2) (C)	1-75518-034-2	01	1	9212-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B)	1-75518-020-1	01	1	9212-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A)	1-75518-019-1	01	1	9212-
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9212-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9212-
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9212-
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-130-0	01	1	9212-
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2), SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9212-
73	NUT; ADJ,HEIGHT CONT SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	08	1	9212-
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2), SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9212-
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9212-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9212-
75	WASHER; SEAT ADJ SUSPENSION SEAT<SA3> ID=4.3 OD=10	9-09160-604-0	04	1	9401-
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9212-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9212-
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9212-
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-003-0	01	1	9212-
301	BOLT; ADJ CONT SUSPENSION SEAT<SA3>	1-09980-585-0	02	1	9401-
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8X18	8-94279-109-1	04	1	9212-9312
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9401-
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9401-
303	BOLT; HINGE,DRIVER SEAT SUSPENSION SEAT<SA3>	1-09980-590-0	01	1	9401-
367	BOOT; HD REST	8-94412-828-0	04	1	9212-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	01	1	9401-
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-
471	LEVER; SEAT ADJ SUSPENSION SEAT<SA3>	1-75518-058-2	01	1	9401-
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75517-035-0	01	1	9401-

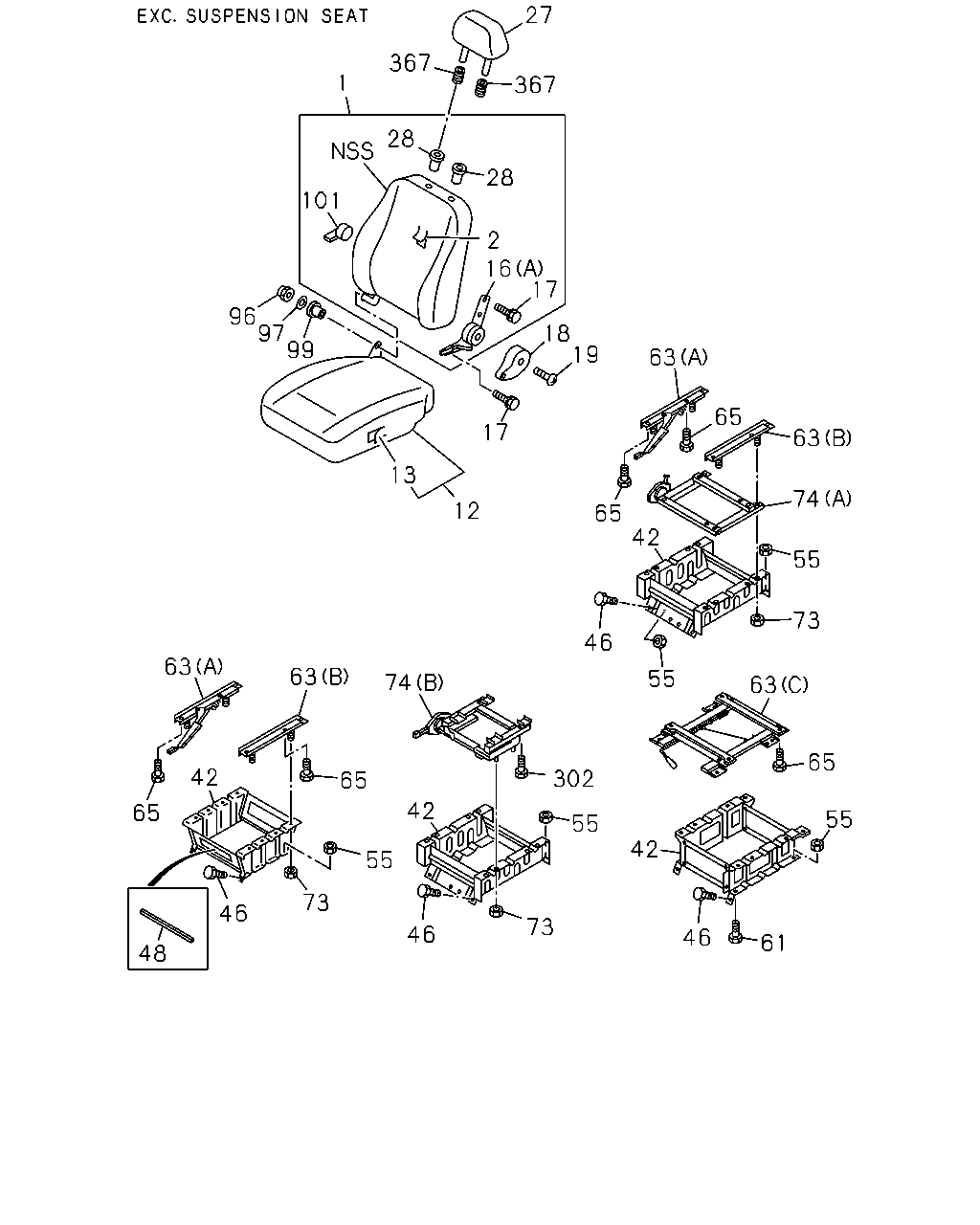

27 367 1 367 28 28 101 2 16 17 96 97 99 18 19 63 65 17 63 13 74 12 65 42 55 73 46 63 63 55 74 63 65 42 302 65 42 65 55 55 42 55 73 46 73 46 46 61 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-317-0	01	1	9212-
1	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-320-0	01	1	9212-
1	BACK ASM; SEAT EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75028-319-0	01	1	9212-
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-117-0	01	1	9212-
2	COVER; TRIM,FRT SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1)	1-75116-114-0	01	1	9212-
2	COVER; TRIM,FRT SEAT,BACK EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75116-115-0	01	1	9212-
12	CUSHION; SEAT,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-326-0	01	1	9212-
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-540-0	01	1	9401-
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75028-325-0	01	1	9212-
13	COVER; TRIM,FRT SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1)	1-75116-108-0	01	1	9212-
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-219-0	01	1	9401-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75116-109-0	01	1	9212-
16	ADJUSTER ASM; RECLINING (A)	1-75418-015-2	01	1	9212-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-064-0	01	1	9212-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-042-4	01	1	9212-
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9212-
18	COVER; RECLINING	1-75417-061-0	01	1	9212-
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9212-
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9212-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9212-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9212-
42	STAND; DRIVER SEAT DELUXE CAB(W14) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9212-9404
42	STAND; DRIVER SEAT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9405-
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE(PR2) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75558-294-4	01	1	9212-9504
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE(PR2) SAUDI ARABIA EQUIPMENT(WH1)	1-75558-294-4	01	1	9505-
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE(PR2) EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75558-294-4	01	1	9505-
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE(PR2) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75558-294-4	01	1	9505-
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75557-391-8	01	1	9212-9504
42	STAND; DRIVER SEAT SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE(PR2)	1-75557-391-8	01	1	9505-
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75557-391-8	01	1	9505-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9212-
46	BOLT; STAND TO FLOOR DRIVING POSITION WIDE LEG SPACE(PR2) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9212-9504
48	PROTECTOR; SEAT STAND EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) SERVICED BY L=500	1-79937-746-0	01	1	9212-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9212-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9212-9504
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-504-1	04	1	9212-9504
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE(PR2)	1-09980-566-0	04	1	9505-
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE(PR2) (C)	1-75518-034-2	01	1	9212-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B)	1-75518-020-1	01	1	9212-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A)	1-75518-019-1	01	1	9212-
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9212-
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2), SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9212-
73	NUT; ADJ,HEIGHT CONT SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE(PR2),SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	08	1	9212-
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2), SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9212-
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9212-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9212-
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9212-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9212-
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9212-
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-003-0	01	1	9212-
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8X18	8-94279-109-1	04	1	9212-9312
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9401-
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9401-
367	BOOT; HD REST	8-94412-828-0	04	1	9212-

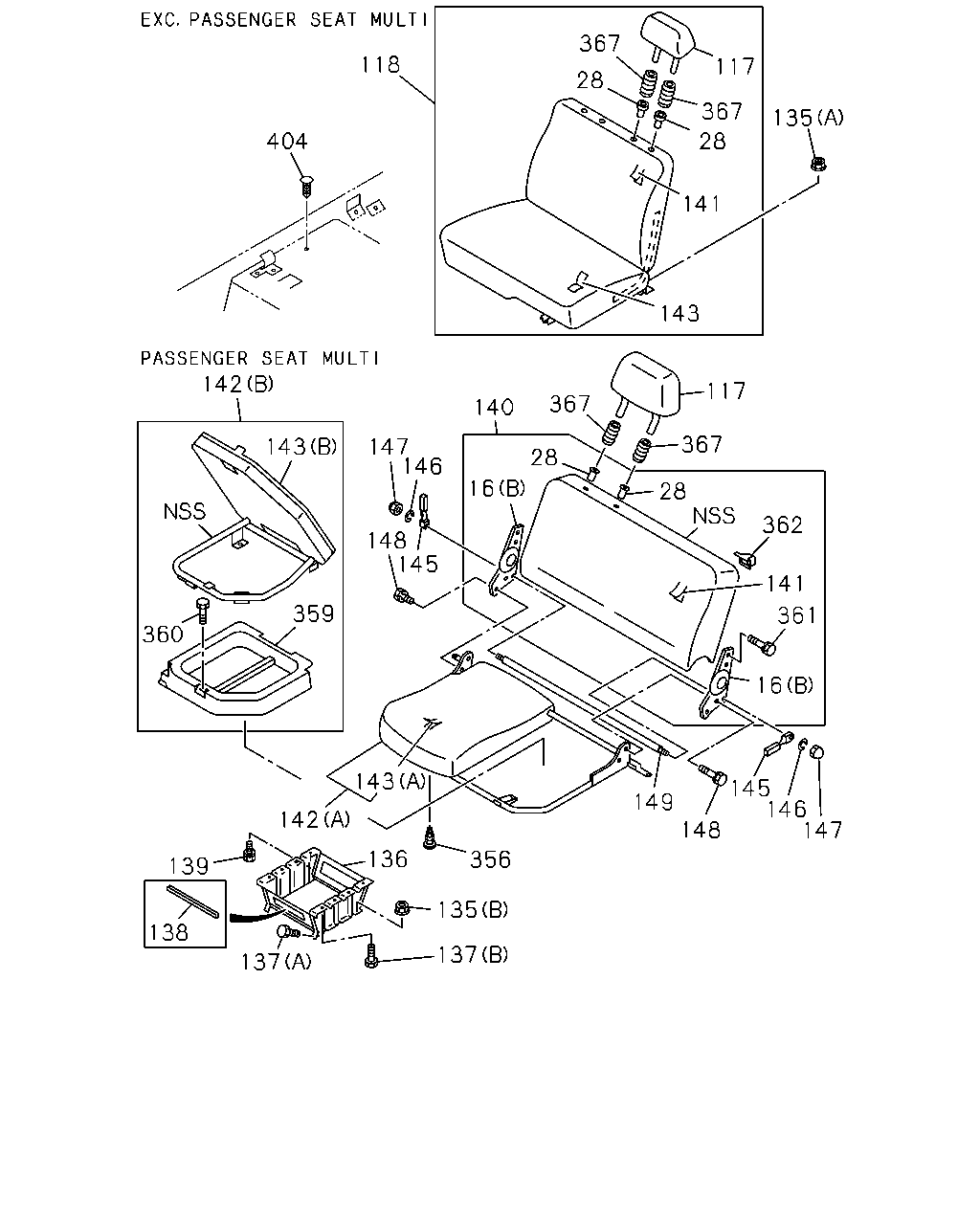

367 118 117 28 367 135 404 28 141 143 142 117 367 140 367 143 147 146 28 16 28 362 148 145 141 359 361 360 16 143 145 146 147 149 148 142 136 356 139 135 138 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING (A)	1-75418-015-2	01	1	9212-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-064-0	01	1	9212-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-042-4	01	1	9212-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9212-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9212-
117	REST; HD PASSENGER SEAT MULTI USED<WX9>	1-75657-020-0	01	1	9212-
117	REST; HD EXC. PASSENGER SEAT MULTI USED<WX9>	1-75657-020-0	02	1	9212-
118	SEAT ASM; BENCH SAUDI ARABIA EQUIPMENT(WH1)	1-75028-300-2	01	1	9212-
118	SEAT ASM; BENCH EXC. SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI USED<WX9>	1-75028-298-2	01	1	9212-
135	NUT; SEAT STAND (A) M8 FLANGE	8-94279-504-1	01	1	9212-
135	NUT; SEAT STAND (B) M8 FLANGE	8-94279-504-1	02	1	9212-
136	STAND; PASSENGER SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75558-331-2	01	1	9212-
136	STAND; PASSENGER SEAT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), PASSENGER SEAT MULTI USED<WX9>,CHINA EQUIPMENT(YT2)	1-75558-454-1	01	1	9212-9504
136	STAND; PASSENGER SEAT SAUDI ARABIA EQUIPMENT(WH1)	1-75558-454-1	01	1	9505-
136	STAND; PASSENGER SEAT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI USED<WX9>,CHINA EQUIPMENT(YT2)	1-75558-454-1	01	1	9505-
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED<WX9>	1-75557-391-8	01	1	9212-
137	BOLT; STAND (A)	1-09980-566-0	02	1	9212-
137	BOLT; STAND (B)	1-09980-566-0	04	1	9505-
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI USED<WX9> SERVICED BY L=500	1-79937-746-0	01	1	9212-
139	BOLT; PASSENGER SEAT	1-09980-566-0	05	1	9212-9504
139	BOLT; PASSENGER SEAT	1-09980-566-0	01	1	9505-
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED<WX9>	1-75028-335-0	01	1	9212-
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED<WX9>	1-75116-121-0	01	1	9212-
141	COVER; TRIM,BENCH SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1)	1-75118-993-0	01	1	9212-
141	COVER; TRIM,BENCH SEAT,BACK EXC. SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI USED<WX9>	1-75118-992-0	01	1	9212-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (A)	1-75028-337-0	01	1	9212-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (B)	1-75028-338-0	01	1	9212-
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED<WX9> (A)	1-75116-123-0	01	1	9212-
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED<WX9> (B)	1-75116-125-0	01	1	9212-
143	COVER; TRIM,BENCH SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1)	1-75118-996-0	01	1	9212-
143	COVER; TRIM,BENCH SEAT,CUSHION EXC. SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI USED<WX9>	1-75118-995-0	01	1	9212-
145	LEVER; SHAFT PASSENGER SEAT MULTI USED<WX9>	1-75418-032-0	01	1	9212-
145	LEVER; SHAFT PASSENGER SEAT MULTI USED<WX9>	1-75418-031-0	01	1	9212-
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI USED<WX9>	5-09985-015-0	02	1	9212-
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI USED<WX9> M6 CAP	1-09984-031-0	02	1	9212-
148	BOLT; LEVER PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9212-
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED<WX9>	1-75418-025-0	01	1	9212-
356	SCREW; CUSHION PASSENGER SEAT MULTI USED<WX9> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	03	1	9212-
359	BOX; PARCEL PASSENGER SEAT MULTI USED<WX9>	1-72538-099-0	01	1	9212-
360	SCREW; PARCEL PASSENGER SEAT MULTI USED<WX9> M4X8 TAPPING	9-07066-408-0	04	1	9212-
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9212-
362	CAP; HD REST PASSENGER SEAT MULTI USED<WX9>	1-75658-036-1	04	1	9212-
367	BOOT; HD REST	8-94412-828-0	04	1	9212-
404	PLUG; SEAT OD=15 L=14.5	1-76378-157-0	05	1	9212-
404	PLUG; SEAT EXC. PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	04	1	9212-

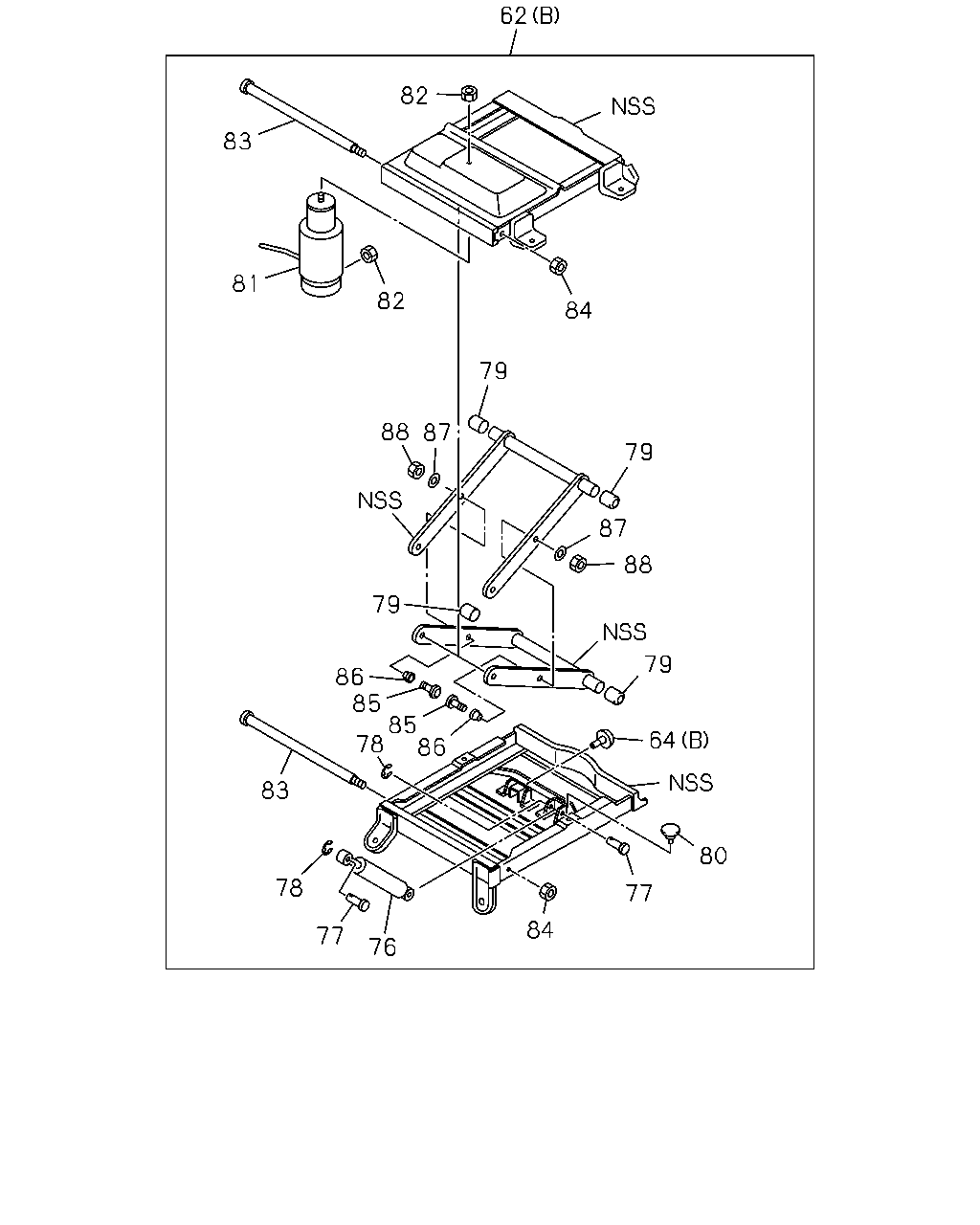

62 82 83 81 82 84 79 88 87 79 87 88 79 79 86 85 85 78 86 64 83 80 78 77 84 77 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-114-7	01	1	9212-
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9212-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9212-
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9212-
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9212-
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9212-
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9212-
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9212-
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-195-0	01	1	9212-
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09984-096-0	02	1	9212-
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9212-
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9212-
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9212-
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9212-
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9212-
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9212-
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
