Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#26699) — 41 parça

44 44

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-0	01	1	0411-	●	●
	44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-0	01	1	0411-	●	●

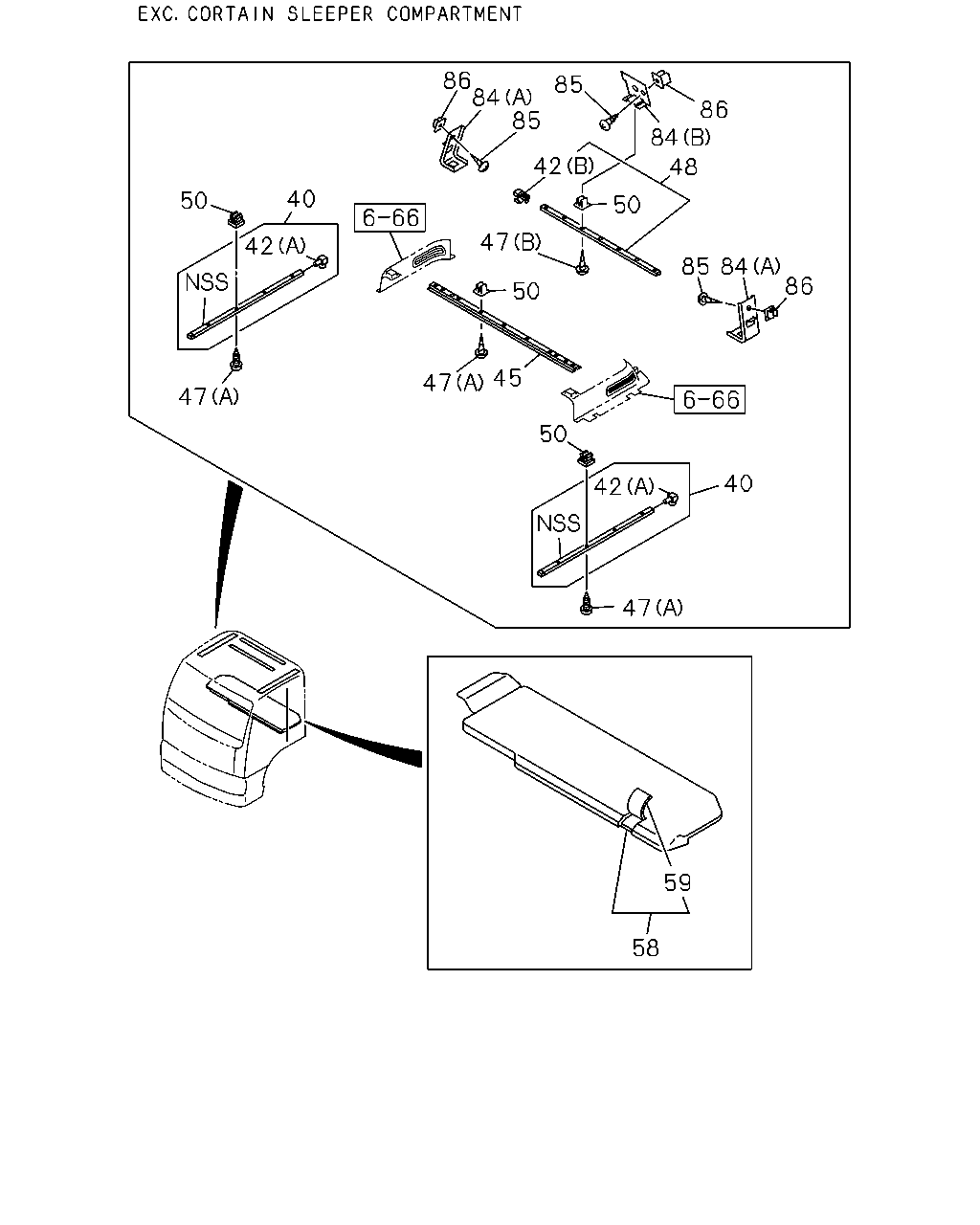

86 84 85 85 86 84 42 48 40 50 50 47 42 85 84 86 50 45 47 47 50 40 42 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE	1-73996-378-0	02	1	0411-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0411-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0411-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-2	01	1	0411-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-1	01	1	0411-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	0411-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0411-	●	●
47	SCREW; CURTAIN RAIL CHINA EQUIPMENT(YT2) (B) M5X25	5-09981-093-0	08	1	0411-	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-0	01	1	0411-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0411-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0411-	●	●
50	GROMMET; SCREW,CURTAIN RAIL CHINA EQUIPMENT(YT2) D=8X8 L=13 M5	1-09983-159-0	08	1	0411-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-1	01	1	0411-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-0	01	1	0411-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0411-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0411-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0411-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0411-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0411-	●	●

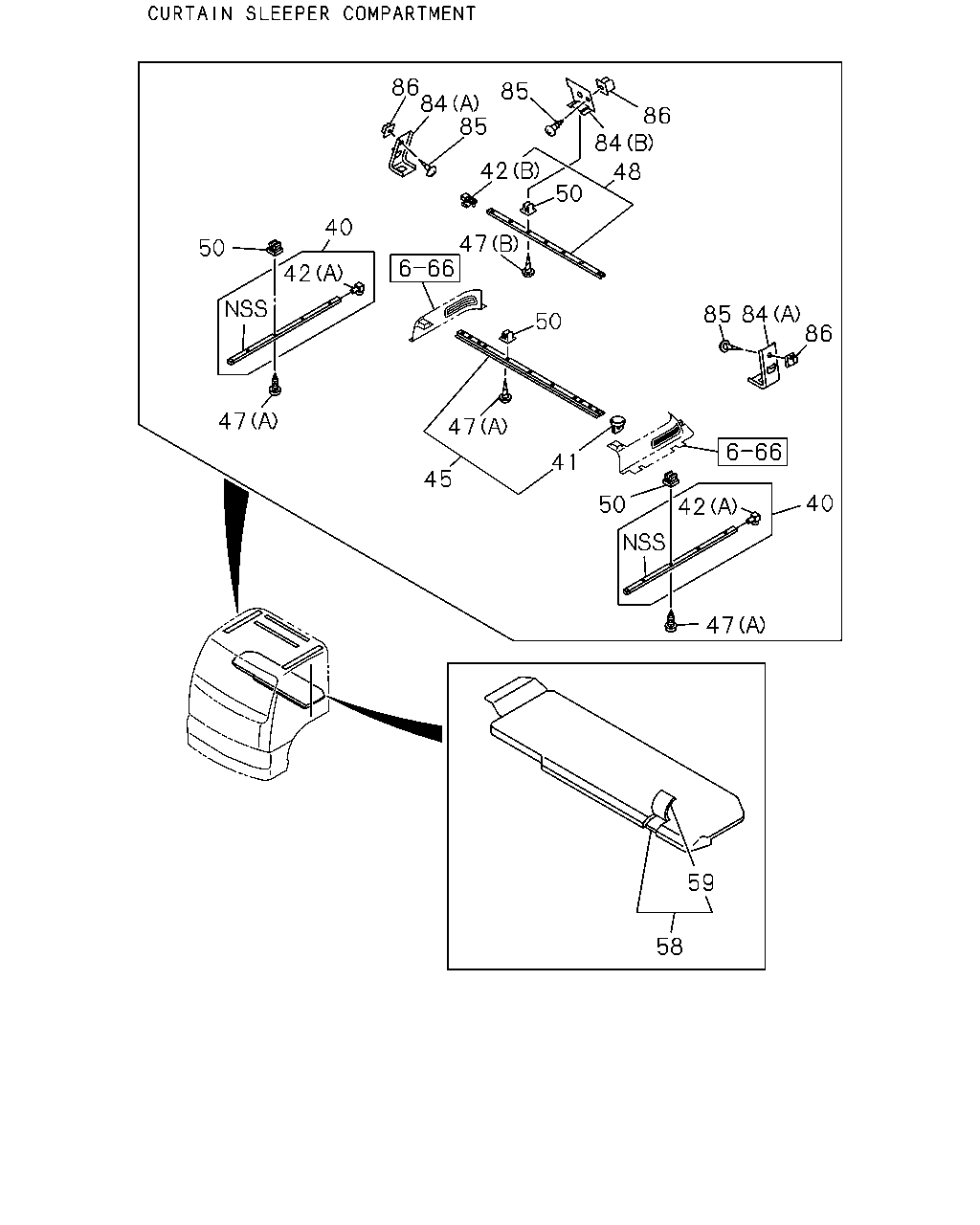

86 84 85 85 86 84 42 48 50 40 47 50 42 84 85 86 50 47 47 41 45 40 50 42 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE	1-73996-378-0	02	1	0411-	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	16	1	0411-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0411-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0411-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-2	01	1	0411-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-1	01	1	0411-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	0411-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0411-	●	●
47	SCREW; CURTAIN RAIL CHINA EQUIPMENT(YT2) (B) M5X25	5-09981-093-0	08	1	0411-	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-0	01	1	0411-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0411-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0411-	●	●
50	GROMMET; SCREW,CURTAIN RAIL CHINA EQUIPMENT(YT2) D=8X8 L=13 M5	1-09983-159-0	08	1	0411-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-1	01	1	0411-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-0	01	1	0411-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0411-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0411-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0411-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0411-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0411-	●	●
