◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#26698) — 11 parça

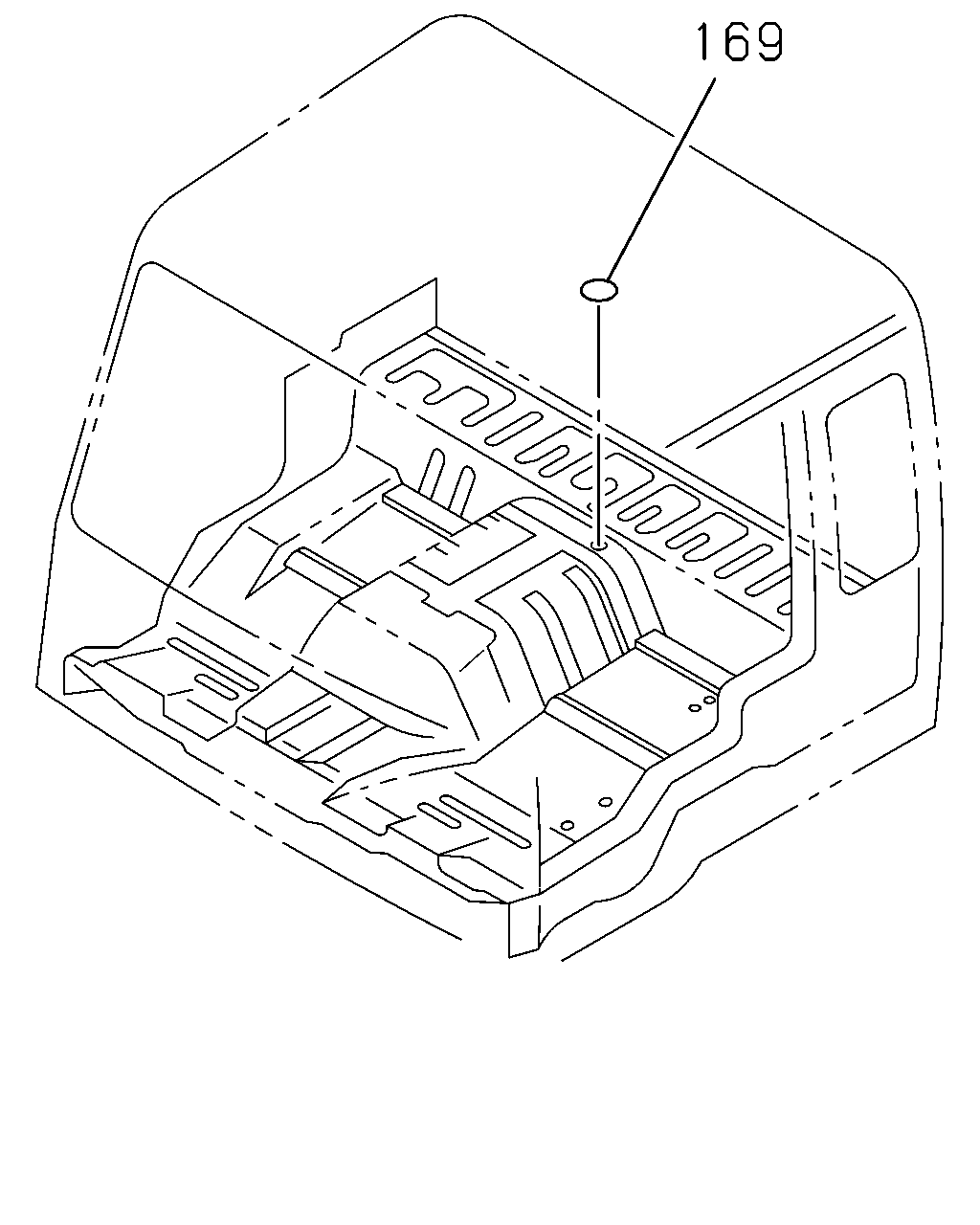

çizim 82005
169
BalonParca AdiParca NoAdetTipApplied Date A B
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0411- ● ●

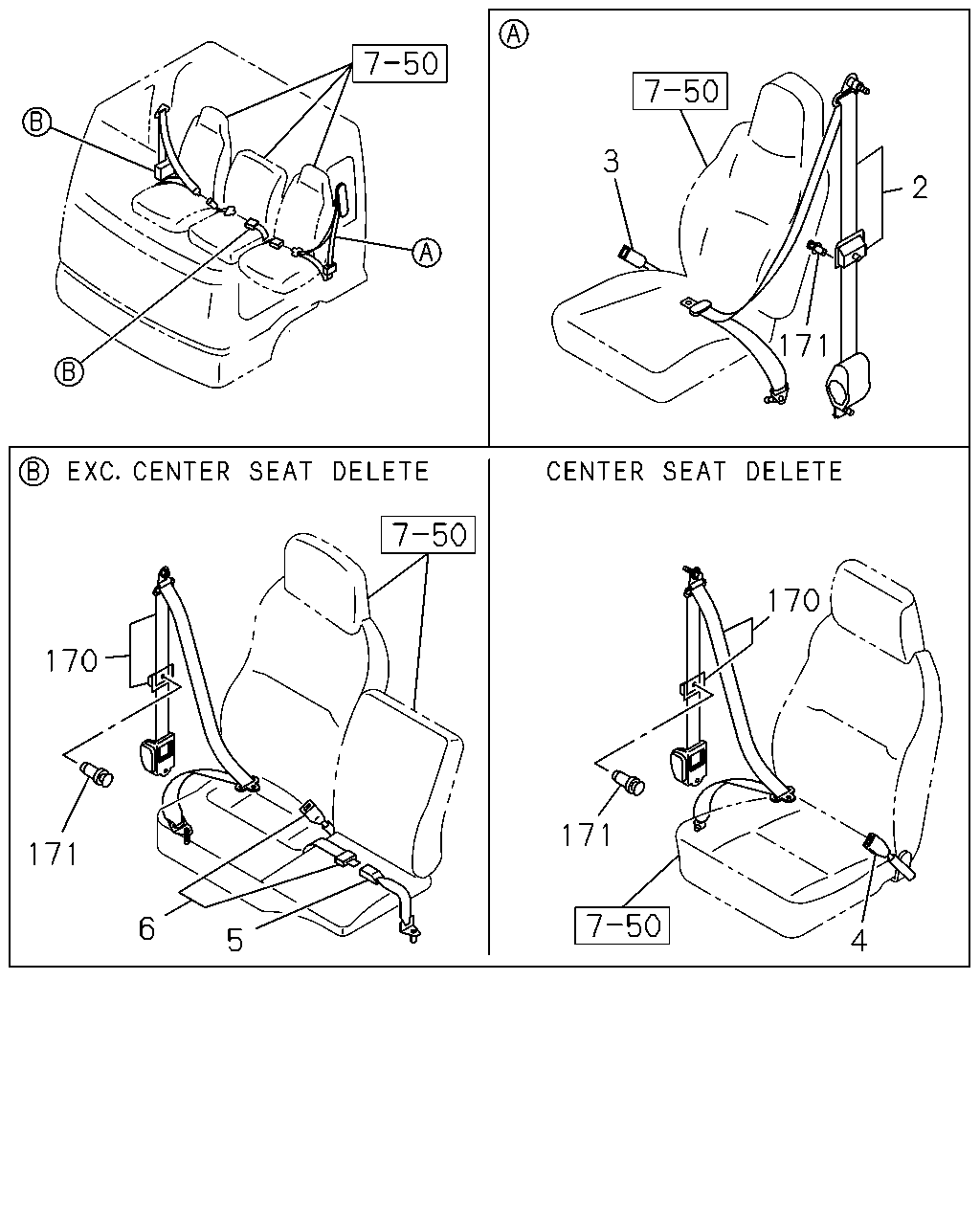

çizim 82340
3 2 171 170 170 171 171 4 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-75618-909-4 01 1 0411- ● ●
2 BELT; SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) 		8-97382-647-0 01 1 0411- ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0411- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 0411- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0411- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) EXC. CHINA EQUIPMENT(YT2) 		1-75618-915-3 01 1 0411- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) EXC. CENTER SEAT DELETE(SP9) 		8-97382-652-0 01 1 0411- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-75618-912-4 01 1 0411- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) CHINA EQUIPMENT(YT2) 		8-97382-650-0 01 1 0411- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0411- ● ●
