◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#26697) — 207 parça

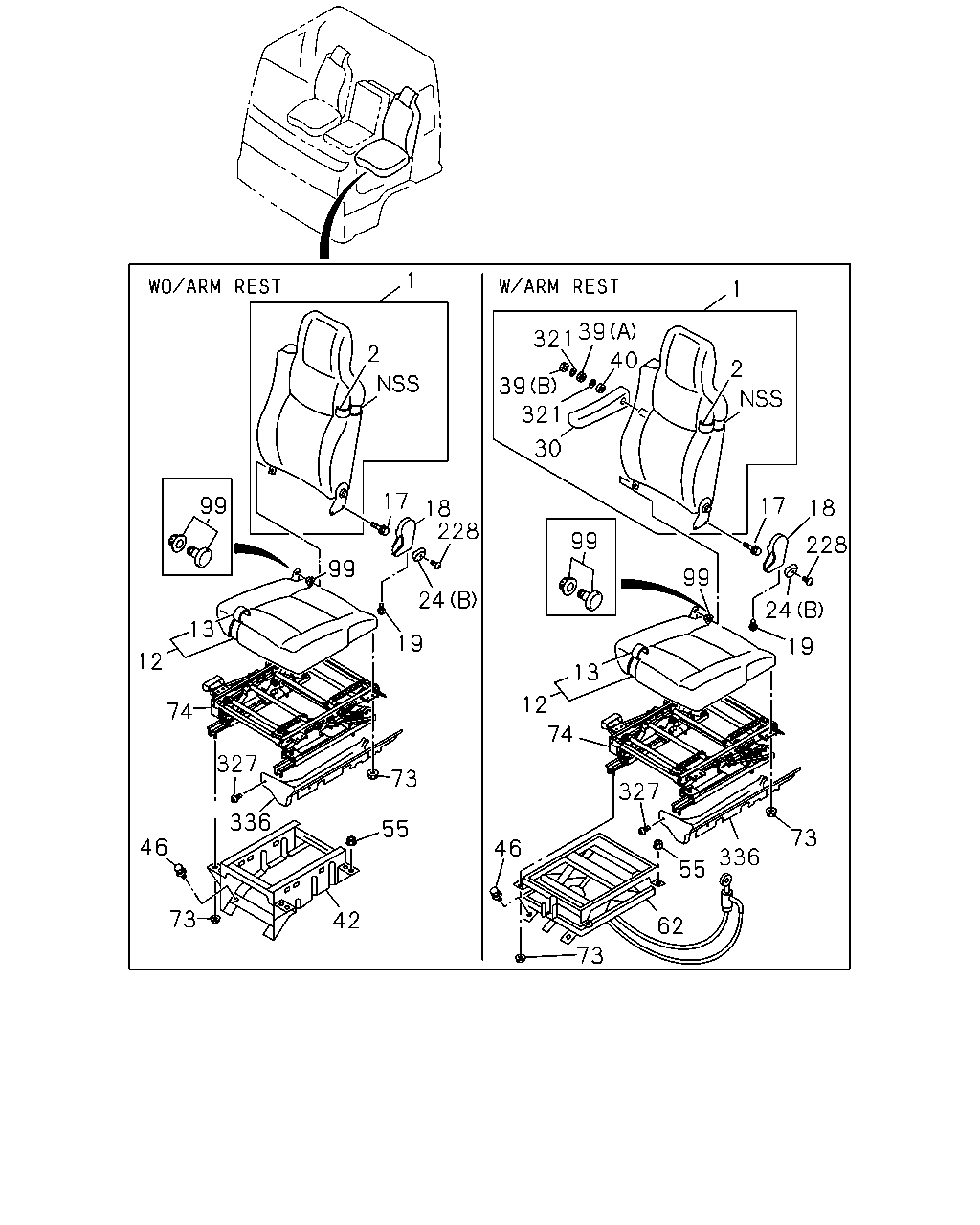

çizim 25819
1 1 39 321 2 40 2 39 321 30 17 99 17 18 18 228 99 228 99 99 24 24 13 19 19 12 13 12 74 74 327 73 327 336 55 73 46 46 336 55 73 42 62 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-648-1 01 1 0411- ● ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75207-728-1 01 1 0411- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-167-0 01 1 0411- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75127-183-0 01 1 0411- ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-640-1 01 1 0411- ● ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75207-006-1 01 1 0411- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-160-1 01 1 0411- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75127-104-0 01 1 0411- ● ●
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) M8X20 		8-97255-906-0 02 1 0411- ● ●
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0411- ● ●
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) DARK GRAY 		8-97859-018-0 01 1 0411- ● ●
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97859-018-0 01 1 0411- ● ●
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL),RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0411- ● ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0411- ● ●
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0411- ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY 		8-97867-021-0 01 1 0411- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (B) DRIVER DARK GRAY 		8-97859-019-0 01 1 0411- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER DARK GRAY 		8-97859-019-0 01 1 0411- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-175-0 01 1 0411- ● ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0411- ● ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0411- ● ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0411- ● ●
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0411- ● ●
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75558-604-0 01 1 0411- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0411- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0411- ● ●
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-6 01 1 0411- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0411- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-331-1 01 1 0411- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-1 01 1 0411- ● ●
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		8-97854-087-0 01 1 0411- ● ●
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0411- ● ●
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) M4X6 		8-97042-273-0 01 1 0411- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0411- ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0411- ● ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0411- ● ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0411- ● ●
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 01 1 0411- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 01 1 0411- ● ●
336 COVER; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-313-0 01 1 0411- ● ●
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-313-0 01 1 0411- ● ●

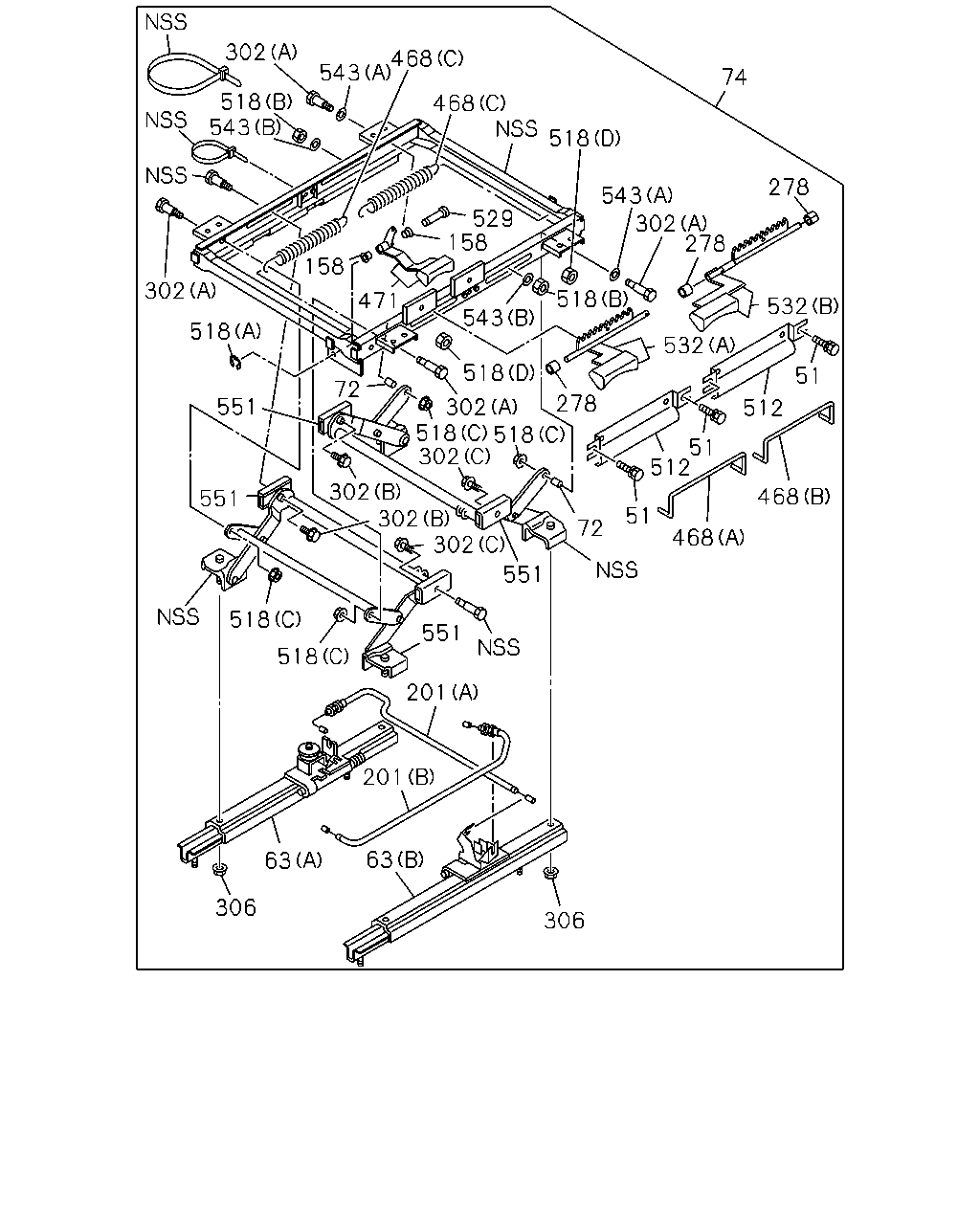

çizim 25879
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-325-1 04 1 0411- ● ●
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (A) 		1-75518-227-1 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-324-0 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0411- ● ●
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-334-1 02 1 0411- ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0411- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-331-1 01 1 0411- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-1 01 1 0411- ● ●
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75518-209-0 02 1 0411- ● ●
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0411- ● ●
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (A) L=667 		1-75518-288-0 01 1 0411- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0411- ● ●
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (B) L=605 		1-75518-289-1 01 1 0411- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0411- ● ●
278 COLLAR; FRT SEAT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-244-0 03 1 0411- ● ●
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0411- ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-266-2 02 1 0411- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0411- ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-270-1 04 1 0411- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0411- ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-336-1 02 1 0411- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0411- ● ●
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0411- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0411- ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0411- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0411- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0411- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0411- ● ●
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75518-290-0 01 1 0411- ● ●
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0411- ● ●
512 COVER; LEVER
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-245-1 02 1 0411- ● ●
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 02 1 0411- ● ●
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (A) 		1-75518-263-0 01 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0411- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-264-0 04 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0411- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0411- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE 		8-94152-886-0 04 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0411- ● ●
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75518-262-0 01 1 0411- ● ●
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0411- ● ●
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-221-0 01 1 0411- ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0411- ● ●
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-222-1 01 1 0411- ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0411- ● ●
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-335-0 02 1 0411- ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0411- ● ●
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) ID=6.4 		9-09160-506-0 04 1 0411- ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0411- ● ●
551 SLIDER; HEIGHT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75518-265-0 04 1 0411- ● ●
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0411- ● ●

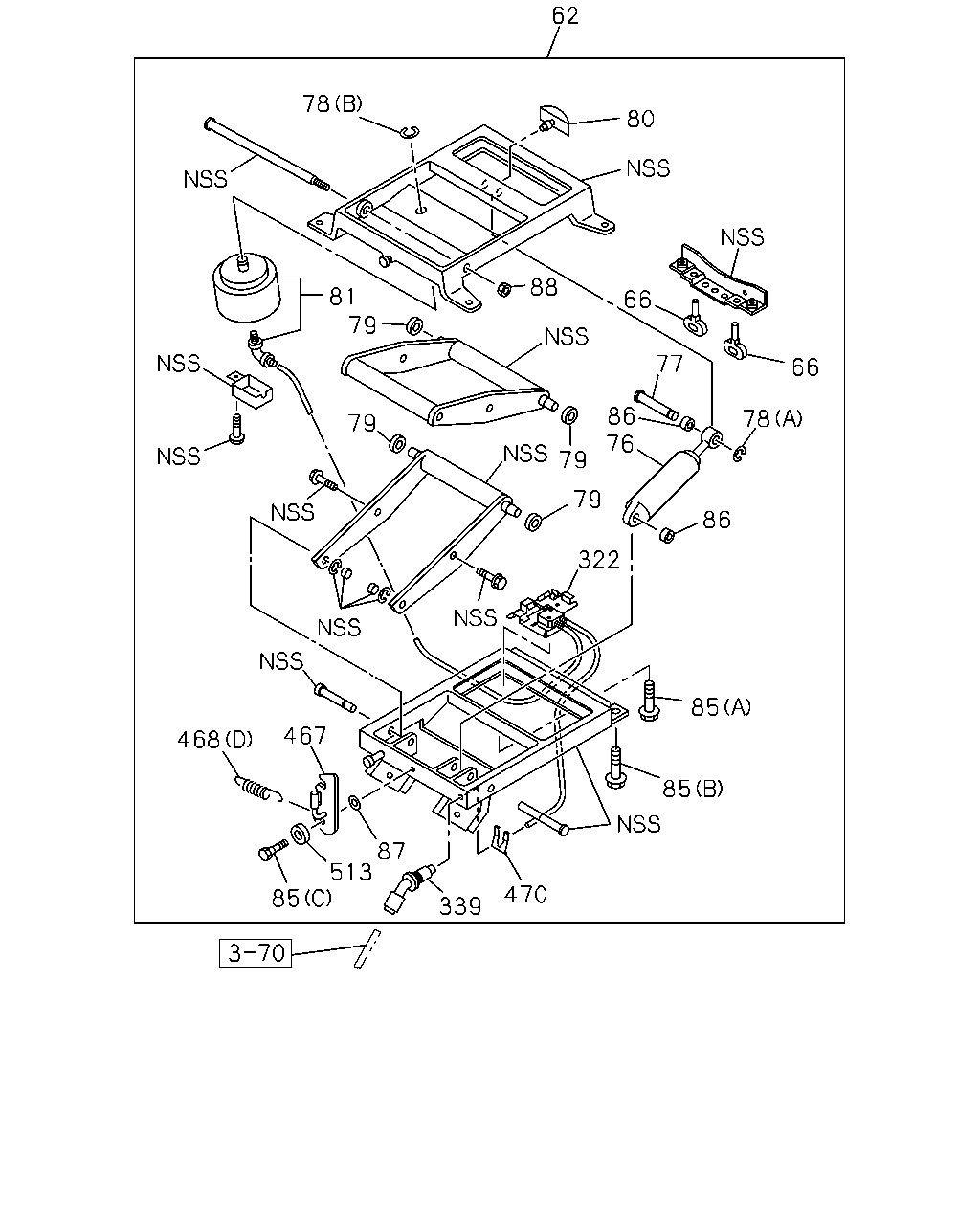

çizim 81873
62 78 80 88 81 79 66 77 66 86 76 78 79 79 79 86 322 85 467 468 85 87 513 85 470 339
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-6 01 1 0411- ● ●
66 RUBBER; LWR STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0411- ● ●
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0411- ● ●
77 PIN; DAMPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0411- ● ●
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0411- ● ●
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0411- ● ●
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0411- ● ●
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 0411- ● ●
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0411- ● ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 0411- ● ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-0 02 1 0411- ● ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0411- ● ●
86 BUSHING; GUIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0411- ● ●
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0411- ● ●
88 NUT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 0411- ● ●
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-2 01 1 0411- ● ●
339 UNION; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-2 01 1 0411- ● ●
467 LEVER; LOCK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0411- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0411- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0411- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0411- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0411- ● ●
470 CLIP; HOSE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0411- ● ●
513 SPACER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0411- ● ●

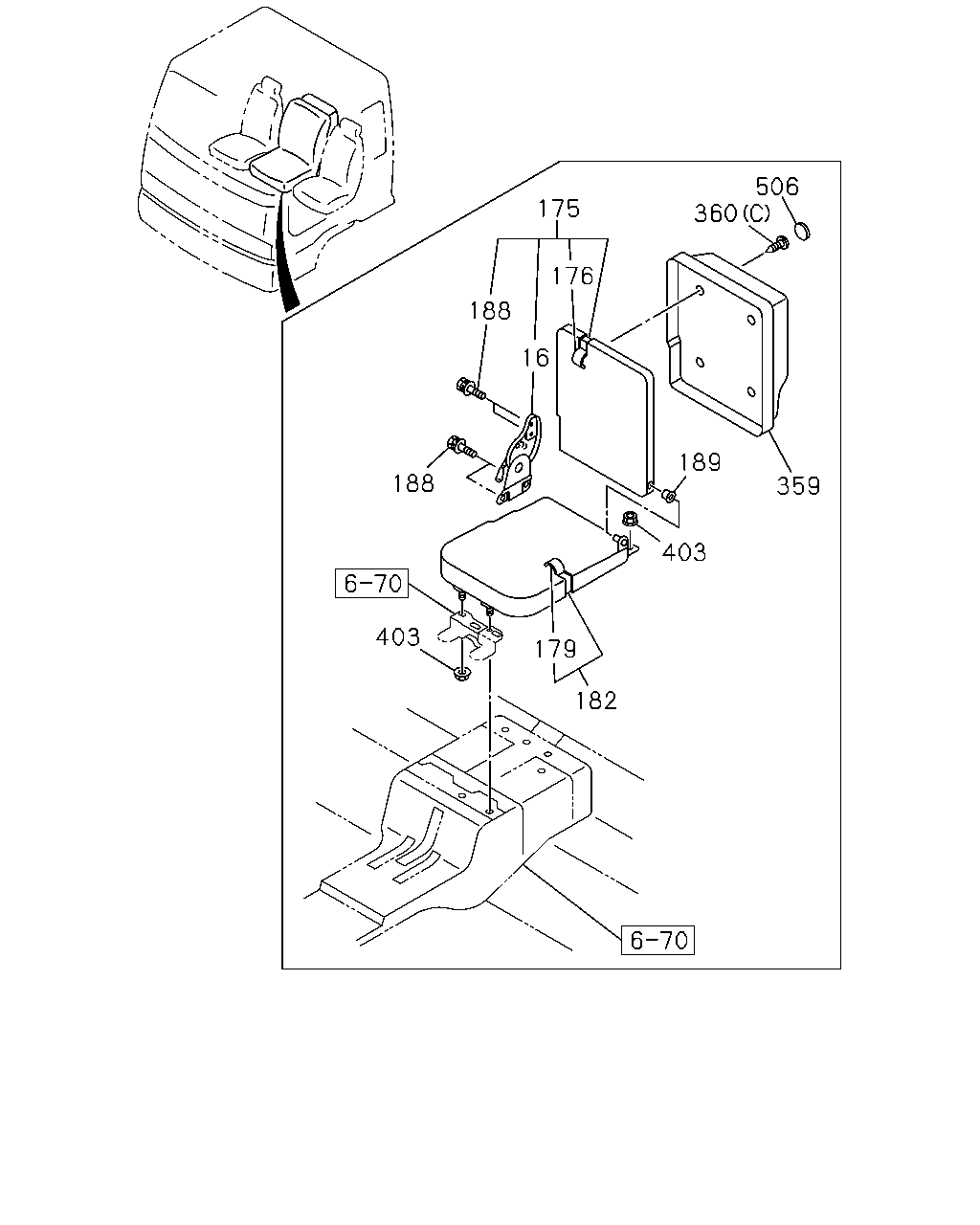

çizim 81878
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0411- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-602-2 01 1 0411- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75026-856-1 01 1 0411- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-156-1 01 1 0411- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75116-710-0 01 1 0411- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-164-0 01 1 0411- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75127-127-0 01 1 0411- ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-644-0 01 1 0411- ● ●
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75207-009-1 01 1 0411- ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0411- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0411- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-2 01 1 0411- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0411- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0411- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0411- ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0411- ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-2 04 1 0411- ● ●

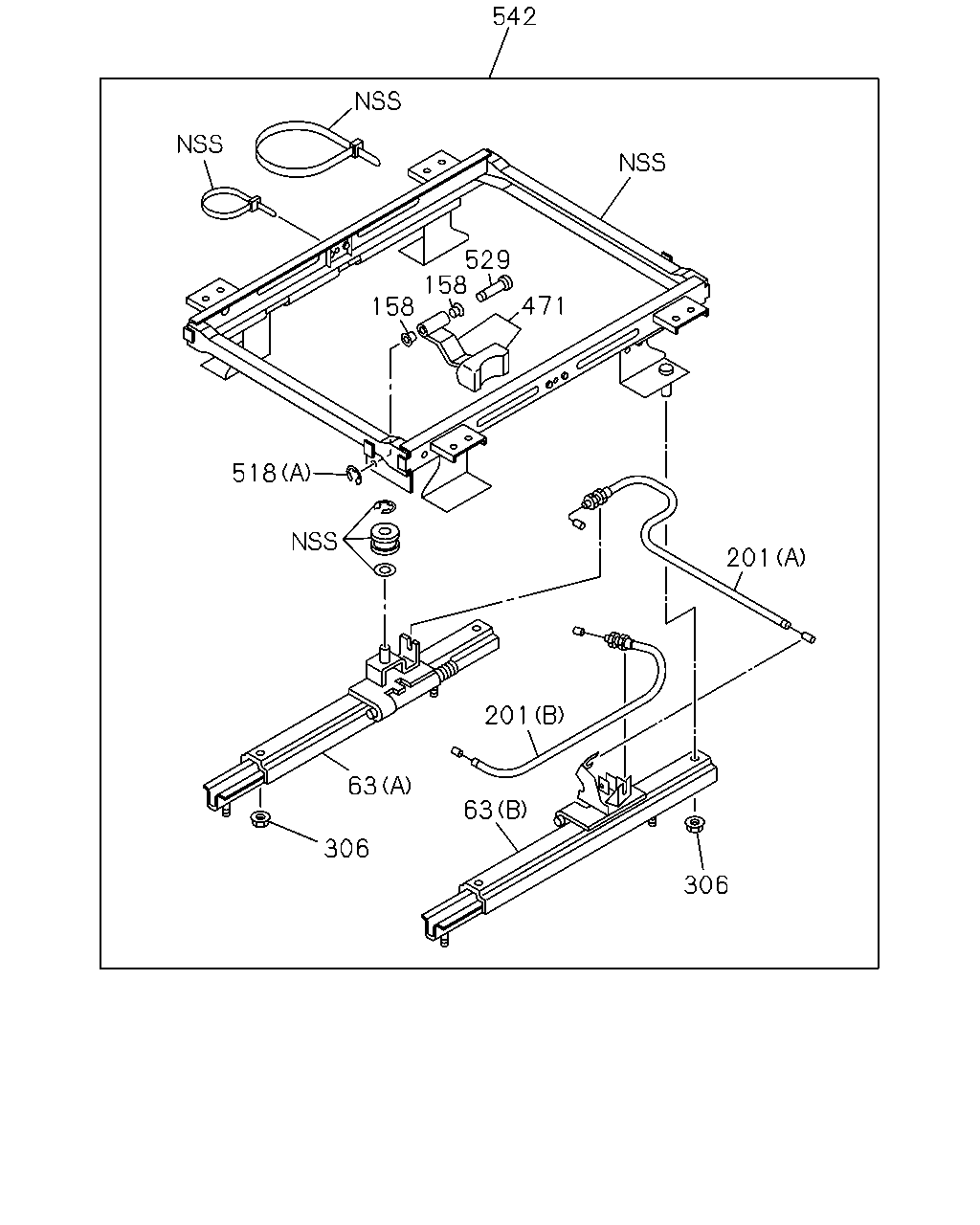

çizim 81900
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (A) 		1-75518-227-1 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-324-0 01 1 0411- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0411- ● ●
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75518-209-0 02 1 0411- ● ●
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0411- ● ●
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (A) L=667 		1-75518-288-0 01 1 0411- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0411- ● ●
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (B) L=605 		1-75518-289-1 01 1 0411- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0411- ● ●
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0411- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0411- ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0411- ● ●
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75518-290-0 01 1 0411- ● ●
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0411- ● ●
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (A) 		1-75518-263-0 01 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0411- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-264-0 04 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0411- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0411- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) EXC. FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE 		8-94152-886-0 04 1 0411- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0411- ● ●
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) 		1-75518-262-0 01 1 0411- ● ●
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0411- ● ●
542 ADJUSTER ASM; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL),RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-1 01 1 0411- ● ●

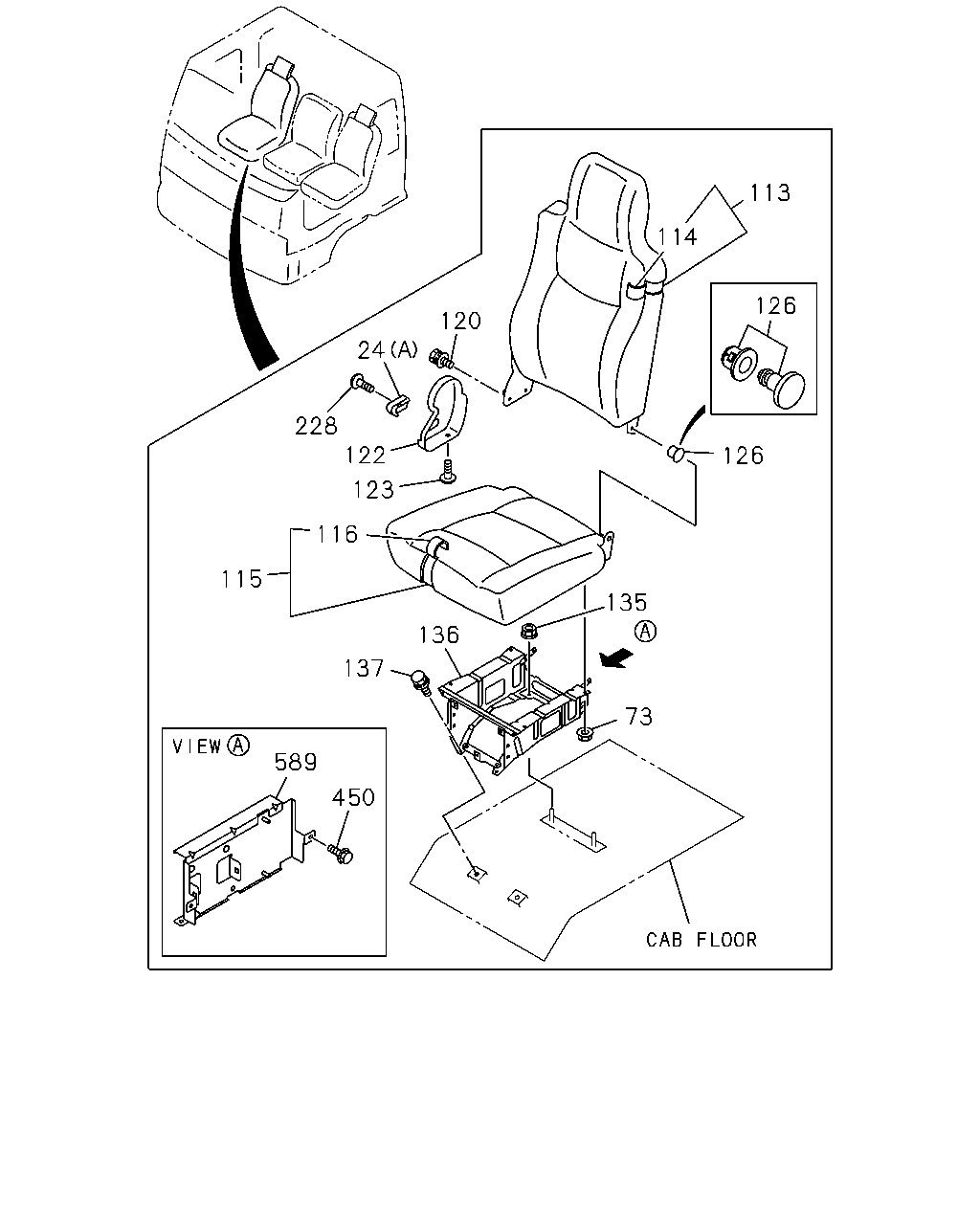

çizim 81902
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73 589 450
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY 		8-97867-021-0 01 1 0411- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) (B) DRIVER DARK GRAY 		8-97859-019-0 01 1 0411- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER DARK GRAY 		8-97859-019-0 01 1 0411- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0411- ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-654-1 01 1 0411- ● ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75208-241-1 01 1 0411- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-173-0 01 1 0411- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-742-0 01 1 0411- ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-0 01 1 0411- ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-367-0 01 1 0411- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-0 01 1 0411- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-133-0 01 1 0411- ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0411- ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0411- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0411- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0411- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0411- ● ●
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0411- ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0411- ● ●
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARMREST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM R EST(SLL) M4X6 		8-97042-273-0 01 1 0411- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0411- ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0411- ● ●
450 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0411- ● ●
589 BRACKET; SEAT STAND
ENG CONTROL TICS<Q3P> 		1-75557-514-0 01 1 0411- ● ●

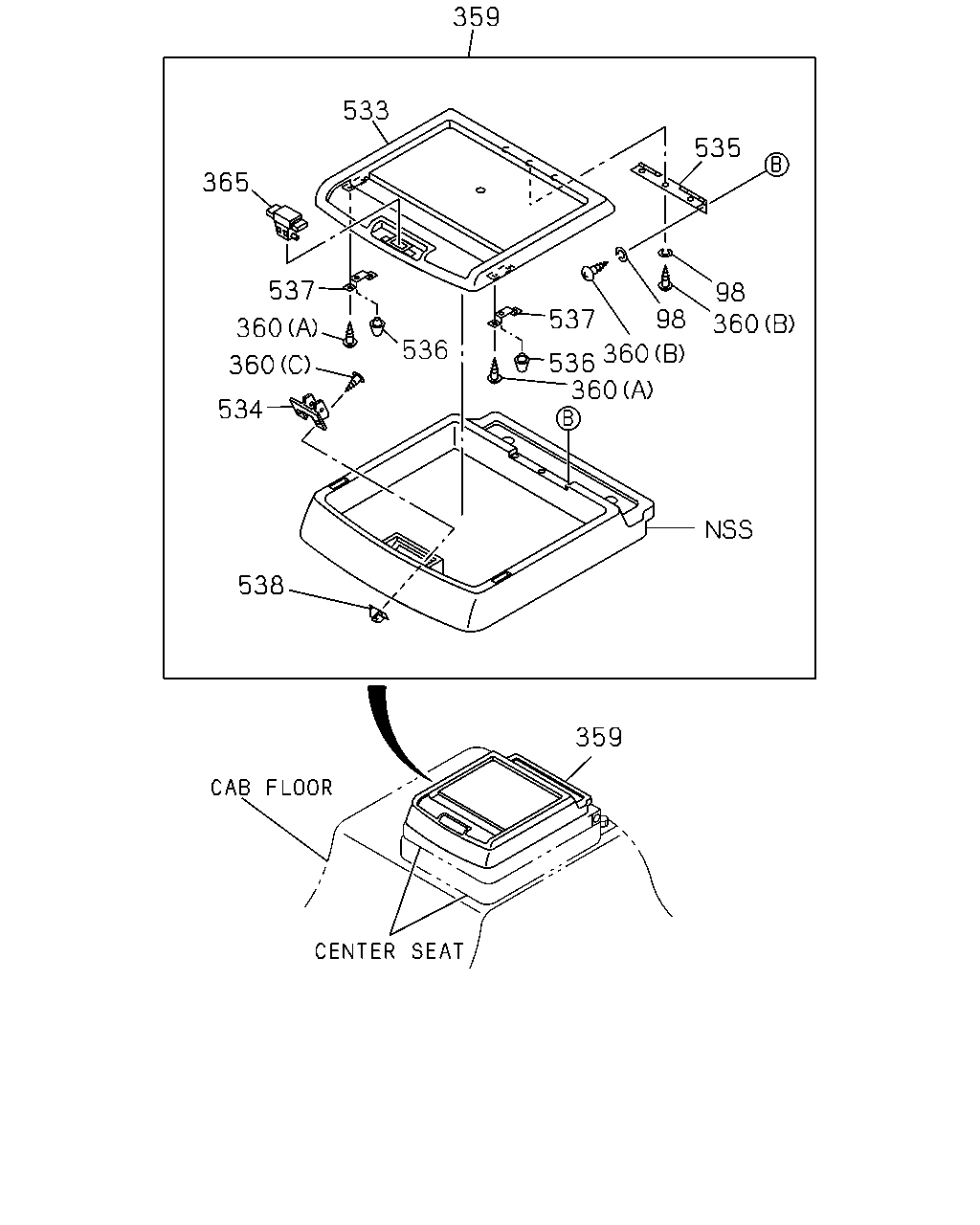

çizim 81904
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 538 359
BalonParca AdiParca NoAdetTipApplied Date A B
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0411- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-2 01 1 0411- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0411- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0411- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0411- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0411- ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-0 01 1 0411- ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-181-0 01 1 0411- ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0411- ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0411- ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0411- ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
