7-10 — CAUTION PLATE AND LABEL (#26691) — 44 parça

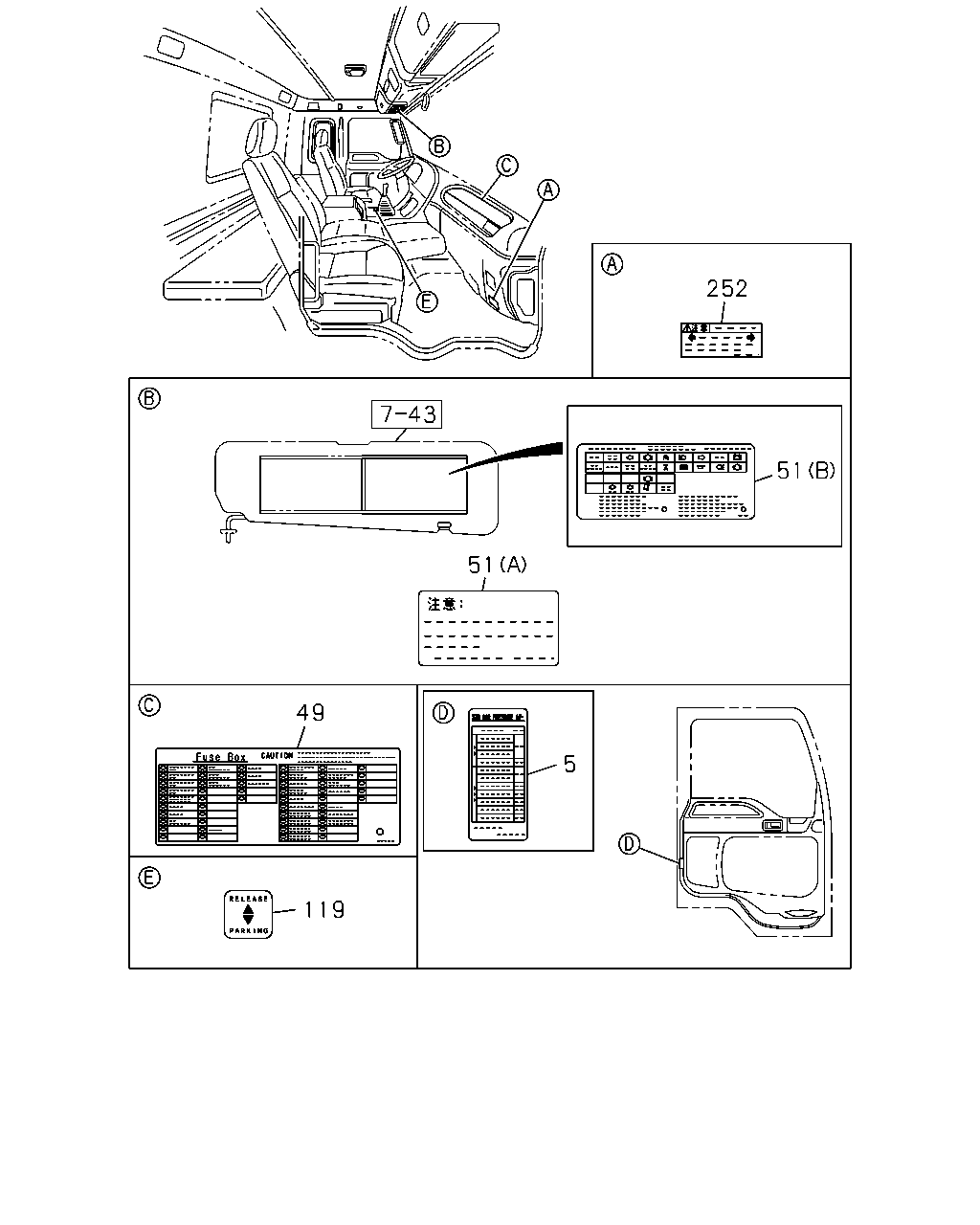

252 51 51 49 5 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2)	1-85880-782-0	01	1	0411-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0411-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-431-0	01	1	0411-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-330-0	01	1	0411-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	1-85878-332-0	01	1	0411-	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85878-393-0	01	1	0411-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-328-0	01	1	0411-	●	●
50	PLATE; CAUTION,WIPER CHINA EQUIPMENT(YT2)	1-85878-525-0	01	1	0411-0412	●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. CHINA EQUIPMENT(YT2) (B)	1-85878-432-0	01	1	0411-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> (B)	1-85878-434-0	01	1	0411-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-433-0	01	1	0411-	●	●
51	PLATE; CAUTION,WARNING CHINA EQUIPMENT(YT2) (A)	8-97606-278-0	01	1	0411-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CHINA EQUIPMENT(YT2)	1-85881-874-0	01	1	0411-	●	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2)	1-85878-528-0	01	1	0411-	●	●
229	PLATE; CAUTION	1-85875-454-0	01	1	0411-	●	●
252	PLATE; CAUTION,HARNESS CHINA EQUIPMENT(YT2)	1-85878-515-0	01	1	0411-	●	●
263	PLATE; CAUTION,JACK TOOL B KIT<SL1>	1-85881-878-0	01	1	0411-	●	●
285	PLATE; CAUTION,FUEL SEDIMENTER CHINA EQUIPMENT(YT2)	1-85875-455-0	01	1	0411-0411	●	●
285	PLATE; CAUTION,FUEL SEDIMENTER CHINA EQUIPMENT(YT2)	1-85875-457-0	01	1	0411-	●	●
286	PLATE; CAUTION,RELAY & FUSE BOX CHINA EQUIPMENT(YT2)	1-85878-524-0	01	1	0411-	●	●
287	PLATE; CAUTION,SPRING CHAMBER	1-85883-231-0	04	1	0411-	●	●
288	PLATE; CAUTION,STRUT CHINA EQUIPMENT(YT2)	1-85881-877-0	01	1	0411-	●	●
289	PLATE; CAUTION,DRIVING CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	0411-	●	●
290	PLATE; CAUTION,OIL TANK CHINA EQUIPMENT(YT2)	1-85881-876-0	01	1	0411-	●	●

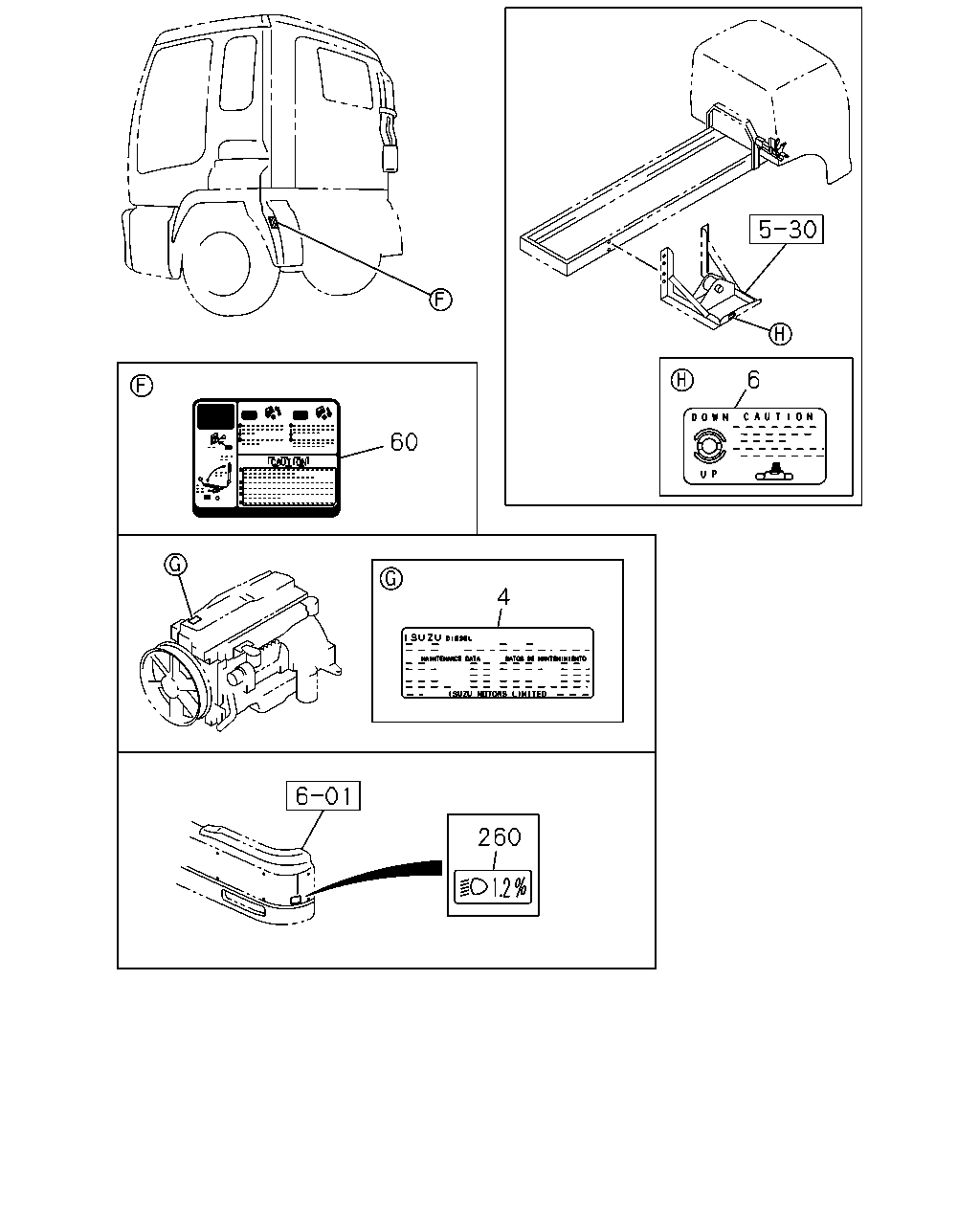

6 60 4 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE	1-85875-174-0	01	1	0411-	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	01	1	0411-	●	●
50	PLATE; CAUTION,WIPER CHINA EQUIPMENT(YT2)	1-85878-525-0	01	1	0411-0412	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0411-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0411-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0411-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT>	1-85883-182-0	01	1	0411-	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0411-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0411-	●	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2)	1-85878-528-0	01	1	0411-	●	●
229	PLATE; CAUTION	1-85875-454-0	01	1	0411-	●	●
260	PLATE; CAUTION,HEAD LAMP LEVELING HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-85878-416-1	01	1	0411-	●	●
263	PLATE; CAUTION,JACK TOOL B KIT<SL1>	1-85881-878-0	01	1	0411-	●	●
285	PLATE; CAUTION,FUEL SEDIMENTER CHINA EQUIPMENT(YT2)	1-85875-455-0	01	1	0411-0411	●	●
285	PLATE; CAUTION,FUEL SEDIMENTER CHINA EQUIPMENT(YT2)	1-85875-457-0	01	1	0411-	●	●
286	PLATE; CAUTION,RELAY & FUSE BOX CHINA EQUIPMENT(YT2)	1-85878-524-0	01	1	0411-	●	●
287	PLATE; CAUTION,SPRING CHAMBER	1-85883-231-0	04	1	0411-	●	●
288	PLATE; CAUTION,STRUT CHINA EQUIPMENT(YT2)	1-85881-877-0	01	1	0411-	●	●
289	PLATE; CAUTION,DRIVING CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	0411-	●	●
290	PLATE; CAUTION,OIL TANK CHINA EQUIPMENT(YT2)	1-85881-876-0	01	1	0411-	●	●
