4-10 — FRONT AXLE (#2669) — 82 parça

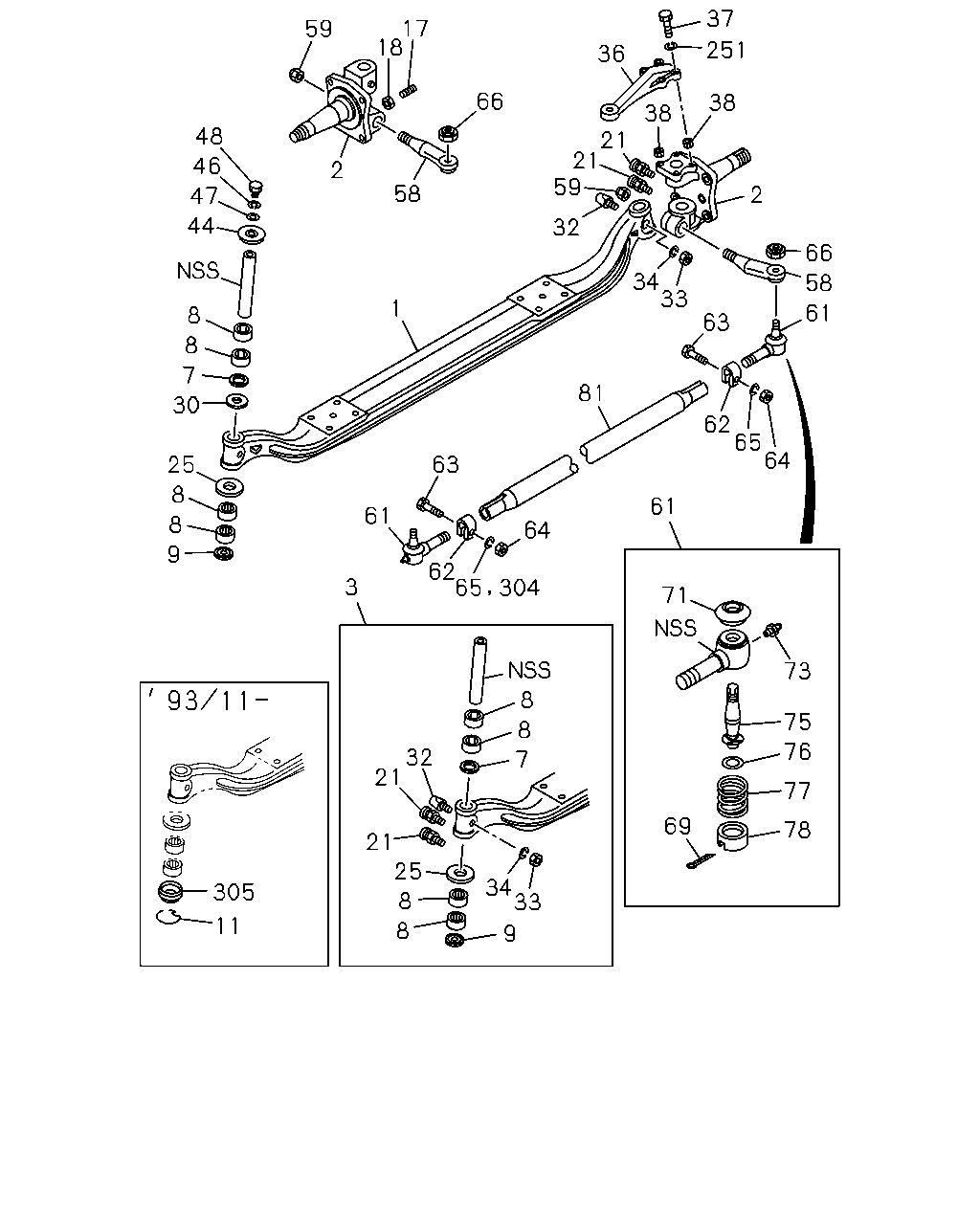

çizim 5415
37 59 17 18 251 36 66 38 38 48 21 21 59 46 2 58 2 47 44 32 66 34 33 58 1 61 8 63 8 7 81 30 62 65 64 63 25 8 61 61 8 64 9 62 65 3 304 71 73 8 75 8 76 32 21 7 77 69 78 21 25 34 33 305 8 11 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-084-3 01 1 9101- ● ●
2 KNUCKLE; FRT AXLE 1-43132-038-3 01 1 9101-9310 ●
2 KNUCKLE; FRT AXLE 1-43132-084-1 01 1 9311- ●
2 KNUCKLE; FRT AXLE 1-43131-038-3 01 1 9101-9310 ●
2 KNUCKLE; FRT AXLE 1-43131-084-1 01 1 9311- ●
2 KNUCKLE; FRT AXLE 1-43132-043-3 01 1 9101-9310 ●
2 KNUCKLE; FRT AXLE 1-43132-086-1 01 1 9311- ●
2 KNUCKLE; FRT AXLE 1-43131-043-3 01 1 9101-9310 ●
2 KNUCKLE; FRT AXLE 1-43131-086-1 01 1 9311- ●
3 KING PIN SET
POWER STEERING(N40) 		1-87830-614-0 02 1 9101-9310 ● ●
3 KING PIN SET
POWER STEERING(N40) 		1-87830-716-0 02 1 9311- ● ●
3 KING PIN SET
EXC. POWER STEERING(N40) 		1-87830-614-0 01 1 9101-9310 ● ●
3 KING PIN SET
EXC. POWER STEERING(N40) 		1-87830-716-0 01 1 9311- ● ●
3 KING PIN SET
EXC. POWER STEERING(N40) 		1-87830-615-0 01 1 9101-9310 ● ●
3 KING PIN SET
EXC. POWER STEERING(N40) 		1-87830-717-0 01 1 9311- ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 9101- ● ●
8 BEARING; NEEDLE,KING PIN
NTN 		1-09811-001-0 08 1 9101- ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-040-0 08 1 9101-9211 ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 9212- ● ●
9 PLUG; KNUCKLE 9-09201-048-0 02 1 9101-9310 ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 9311- ● ●
17 BOLT; STOPPER KNUCKLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) M14X42.5 		1-09009-008-0 02 1 9101-9111 ● ●
17 BOLT; STOPPER KNUCKLE
RR TIRE 7.50-16<89X> M14X42.5 		1-09009-008-0 02 1 9112- ● ●
17 BOLT; STOPPER KNUCKLE
TIRE 8.25-16-12 RIB(30S),TIRE 7.50-20-12 RIB(70S), TIRE 7.50-20-12 LUG(71S) M14X53 		1-09009-062-0 02 1 9101-9111 ● ●
17 BOLT; STOPPER KNUCKLE
RR TIRE 7.50-20<91X>,RR TIRE 8.25-16<92X> M14X53 		1-09009-062-0 02 1 9112- ●
17 BOLT; STOPPER KNUCKLE
RR TIRE 7.50-20<91X> M14X53 		1-09009-062-0 02 1 9112- ●
18 NUT; STOPPER BOLT,KNUCKLE 9-99112-814-0 02 1 9101- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9101-9804 ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5? 		9-09031-110-0 04 1 9805- ● ●
25 BEARING; THRUST,KING PIN
POWER STEERING(N40) NSK 		1-09829-031-0 02 1 9101- ● ●
25 BEARING; THRUST,KING PIN
EXC. POWER STEERING(N40) NSK 		1-09829-033-1 02 1 9101- ● ●
30 WASHER; THRUST,KING PIN
T=3.85 		1-43171-131-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=3.90 		1-43171-132-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 9110- ● ●
30 WASHER; THRUST,KING PIN
T=3.95 		1-43171-133-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 9110- ● ●
30 WASHER; THRUST,KING PIN
T=4.00 		1-43171-134-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 9110- ● ●
30 WASHER; THRUST,KING PIN
T=4.05 		1-43171-135-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 9110- ● ●
30 WASHER; THRUST,KING PIN
T=4.10 		1-43171-136-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 9110- ● ●
30 WASHER; THRUST,KING PIN
T=4.15 		1-43171-137-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 9110- ● ●
30 WASHER; THRUST,KING PIN
T=4.20 		1-43171-138-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.25 		1-43171-139-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.30 		1-43171-140-0 AR 1 9101-9109 ● ●
30 WASHER; THRUST,KING PIN
T=4.35 		1-43171-141-0 AR 1 9101-9109 ● ●
32 BOLT; KEY,KING PIN 1-43116-003-1 02 1 9101- ● ●
33 NUT; KEY BOLT 9-09110-410-0 02 1 9101- ● ●
34 WASHER; LK,KEY BOLT 9-09150-510-0 02 1 9101- ● ●
36 ARM; KNUCKLE 1-43133-029-1 01 1 9101- ● ●
37 BOLT; KNUCKLE ARM 9-92061-240-0 04 1 9101- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-001-0 02 1 9101- ● ●
44 COVER; KING PIN 1-43175-013-0 01 1 9101-9202 ● ●
44 COVER; KING PIN 1-43175-015-0 01 1 9203- ● ●
46 WASHER; LK,COVER 9-09150-512-0 01 1 9101- ● ●
47 WASHER; PL,COVER,KING PIN 9-09164-712-0 01 1 9101- ● ●
48 BOLT; COVER 1-09009-081-0 01 1 9101- ● ●
58 ARM; TIE ROD 1-43135-016-1 01 1 9101- ● ●
58 ARM; TIE ROD 1-43134-016-1 01 1 9101- ● ●
59 NUT; TIE ROD ARM
M24 		9-09844-669-2 02 1 9101- ● ●
61 ROD END; TIE ROD 1-43150-469-0 01 1 9101- ● ●
61 ROD END; TIE ROD 1-43150-468-0 01 1 9101- ● ●
62 CLAMP; TIE ROD 1-43159-002-3 02 1 9101- ● ●
63 BOLT; CLAMP TIE ROD 9-09801-294-0 02 1 9101- ● ●
64 NUT; CLAMP 9-99110-512-0 02 1 9101- ● ●
65 WASHER; LK,CLAMP 9-09150-612-0 02 1 9101-9210 ● ●
65 WASHER; LK,CLAMP 9-09150-812-0 02 1 9211-9410 ● ●
66 NUT; TIE ROD END 1-09449-014-0 02 1 9101- ● ●
69 PIN; SPLIT,TIE ROD END
OD=2.8 L=55 		9-08113-055-0 02 1 9101- ● ●
71 BOOT; TIE ROD END 1-43159-036-0 02 1 9101- ● ●
73 NIPPLE; GREASE,TIE ROD END 9-09031-006-0 01 1 9101- ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9101- ● ●
75 JOINT; BALL,DRAG LINK 1-87090-211-0 02 1 9101- ● ●
76 SEAT; SPR,DRAG LINK 1-44373-002-0 02 1 9101- ● ●
77 SPRING; TIE ROD END 1-09580-080-0 02 1 9101- ● ●
78 PLUG; ADJ,ROD END 1-44375-001-0 02 1 9101- ● ●
81 ROD; TIE 1-43151-053-1 01 1 9101- ● ●
251 WASHER; LK,KNUCKLE ARM 9-09150-612-0 04 1 9101- ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 02 1 9411- ● ●
305 COVER; KNUCKLE 1-43175-022-0 02 1 9311- ● ●
