4-01 — PROPELLER SHAFT (#2668) — 43 parça

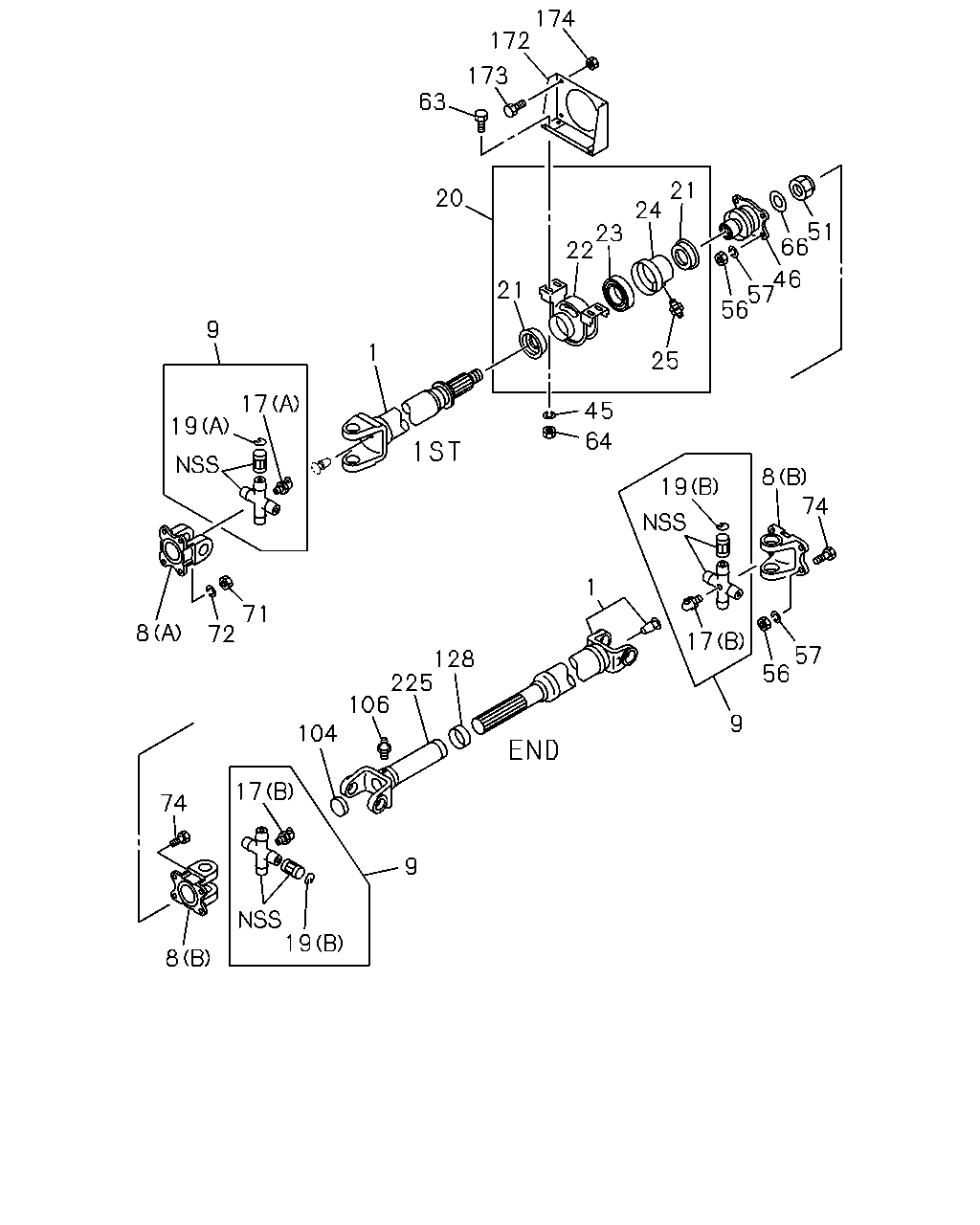

çizim 4851
174 172 173 63 21 24 20 51 66 23 22 46 57 56 21 9 1 25 17 45 19 64 8 74 19 1 71 72 8 17 57 56 128 225 106 9 104 17 74 9 19 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) 1ST L=908 		1-37116-813-0 01 1 9101- ●
1 SHAFT; PROP
ISUZU M/T<X9A> 1ST L=1093 		1-37116-812-0 01 1 9101- ●
1 SHAFT; PROP
END L=1202 		1-37122-628-1 01 1 9101- ● ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) 1ST L=1390 		1-37112-859-0 01 1 9101- ●
1 SHAFT; PROP
ISUZU M/T<X9A> 1ST L=1573 		1-37112-860-0 01 1 9101- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-014-1 01 1 9101- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-037-4 02 1 9101- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-058-0 03 1 9101- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9101- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9101- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=1.95 		1-09587-014-0 04 1 9101- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 9101- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.00 		1-09587-015-2 04 1 9101- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 9101- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.05 		1-09587-016-1 04 1 9101- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 9101- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9101- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9101- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9101- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9101- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9101- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9101- ● ●
45 WASHER; PL,RET TO BRKT 9-09164-610-0 04 1 9101- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-115-0 01 1 9101- ● ●
51 NUT; FLANGE,SPLINED 1-09449-010-0 01 1 9101- ● ●
56 NUT; YOKE 9-99110-512-0 08 1 9101- ● ●
57 WASHER; LK,YOKE 9-09150-612-0 08 1 9101- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST 0-50041-030-0 04 1 9101- ● ●
64 NUT; RET TO BRKT 0-91150-110-0 04 1 9101-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609- ● ●
66 WASHER 1-09503-025-0 01 1 9101- ● ●
71 NUT; YOKE 9-99110-512-0 04 1 9101- ● ●
72 WASHER; LK,YOKE 9-09150-612-0 04 1 9101- ● ●
74 BOLT; YOKE,TRANS 1-09000-076-1 08 1 9101- ● ●
104 PLUG; SLEEVE YOKE 1-09600-014-0 01 1 9101- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9101- ● ●
128 SEAL; SLEEVE 1-37247-001-1 01 1 9101- ● ●
172 BRACKET; CENTER BRG 1-37515-105-0 01 1 9101- ●
172 BRACKET; CENTER BRG 1-37515-106-0 01 1 9101- ●
173 BOLT; BRKT 0-50041-025-0 04 1 9101- ● ●
174 NUT; BRKT 9-09110-410-0 04 1 9101-9307 ● ●
174 NUT; BRKT 9-09110-510-0 04 1 9308- ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37245-177-1 01 1 9101- ● ●
