Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

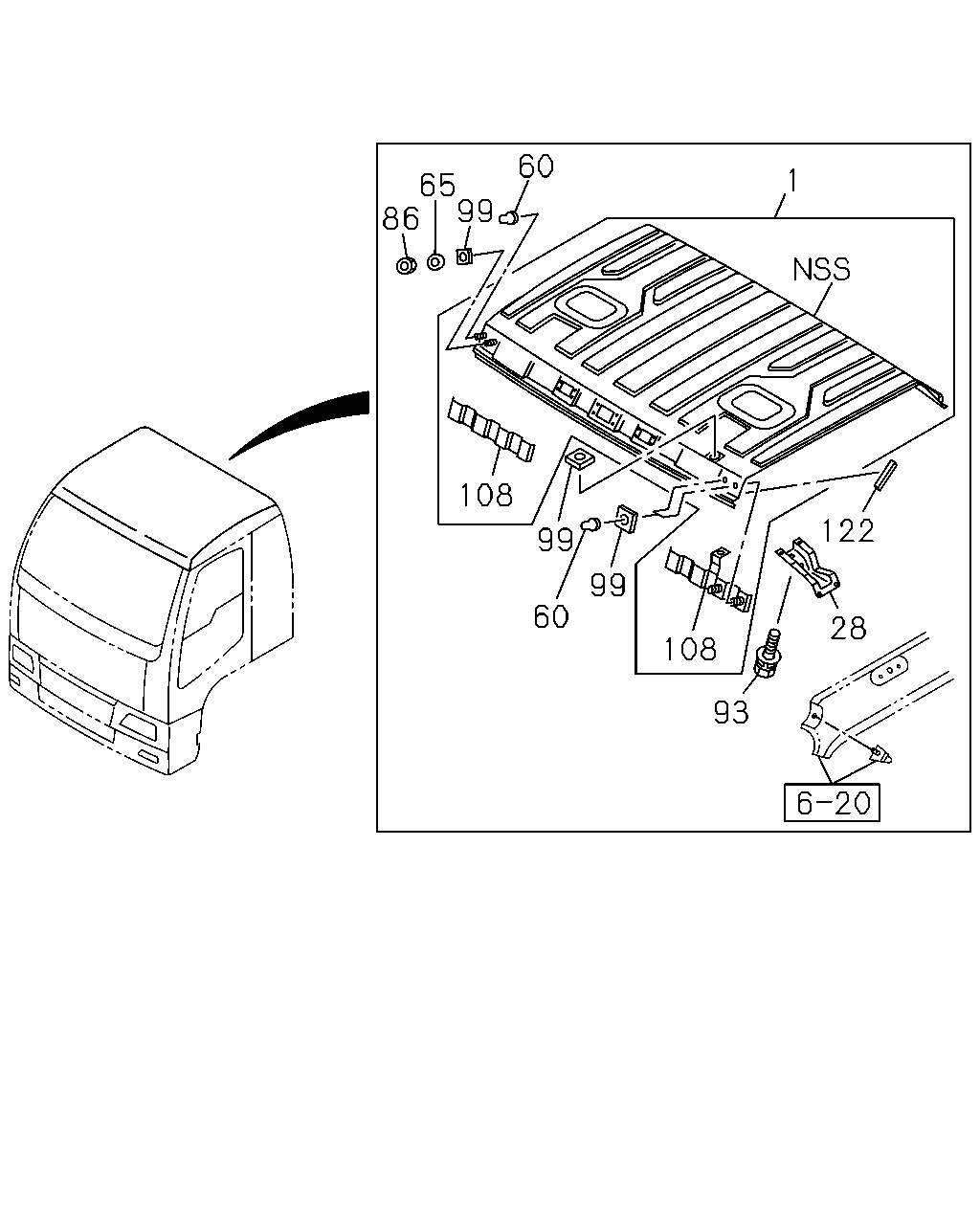

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#26679) — 21 parça
Tümü
A - CXZ6MC
B - CXZ6MF
60
1
65
99
86
108
122
99
99
60
28
108
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC>
1-61170-861-0
01
1
0411-
●
●
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
0411-
●
●
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
0411-
●
●
60
COVER; ROOF
1-79998-922-3
04
1
0411-
●
●
65
WASHER; PL
ID=8 T=2.3
8-94368-403-1
02
1
0411-
●
●
86
NUT; ROOF
M8 LOCK NUT
9-09131-508-0
02
1
0411-
●
●
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0411-
●
●
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
0411-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
10
1
0411-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
02
1
0411-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
02
1
0411-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
0411-
●
●
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-0
02
1
0411-
●
●
99
SEAL; BODY,METAL
CAUTIONS CHINESE<SL7> CHINA EQUIPMENT(YT2) 30X30 ID=20 T=0.7
1-61281-380-1
04
1
0411-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
04
1
0411-
●
●
99
SEAL; BODY,METAL
CAUTIONS CHINESE<SL7> CHINA EQUIPMENT(YT2) 30X30 ID=9 T=0.7
1-61281-444-0
01
1
0411-
●
●
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-0
01
1
0411-
●
●
99
SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> 75X50 ID=36
1-61281-458-0
02
1
0411-
●
●
108
PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC>
1-61170-772-3
01
1
0411-
●
●
108
PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC>
1-61170-862-1
01
1
0411-
●
●
122
SEAL; FRT UPR
1-61270-919-0
02
1
0411-
●
●
