◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#26675) — 96 parça

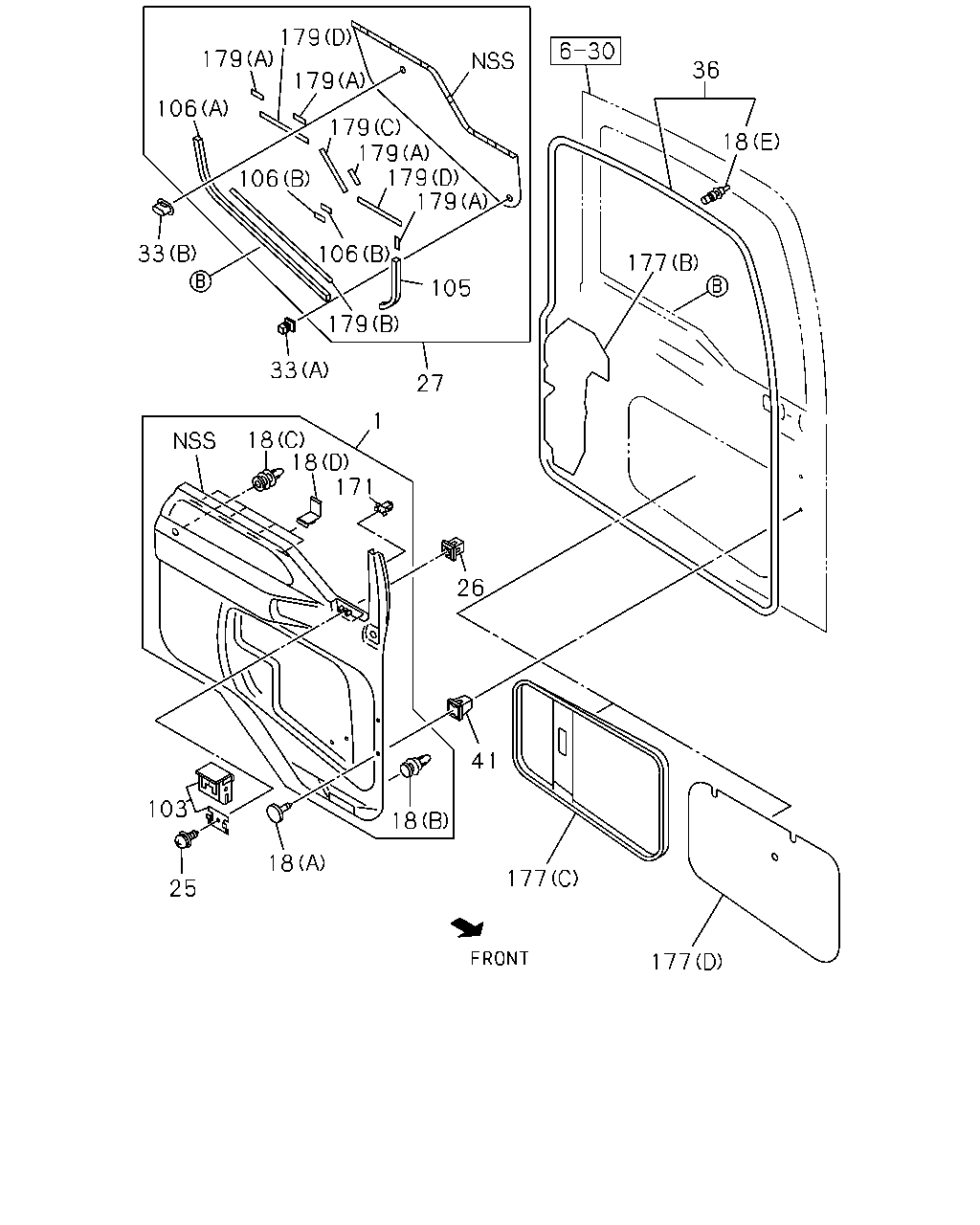

çizim 82042
179 179 36 179 106 179 179 179 179 18 106 33 106 177 105 179 33 27 1 18 18 171 26 41 103 18 18 177 25 177
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73338-539-0 01 1 0411- ● ●
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73337-509-0 01 1 0411- ● ●
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73338-538-0 01 1 0411- ● ●
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73337-510-0 01 1 0411- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0411- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0411- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (D) 		1-09987-262-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (D) 		1-09987-262-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> (D) 		1-09987-262-0 10 1 0411- ● ●
18 CLIP; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0411- ● ●
18 CLIP; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0411- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0411- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0411- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-6 01 1 0411- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-6 01 1 0411- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0411- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0411- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 0411- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 0411- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0411- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-0 01 1 0411- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-0 01 1 0411- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0411- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0411- ● ●
171 RETAINER; DOOR PAD
AUTO DOOR LOCK<AU4> 		1-09987-264-0 01 1 0411- ● ●
171 RETAINER; DOOR PAD
AUTO DOOR LOCK<AU4> 		1-09987-264-0 01 1 0411- ● ●
171 RETAINER; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> 		1-09987-264-0 02 1 0411- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0411- ● ●
177 SEAL; WATER,DOOR
AUTO DOOR LOCK<AU4> (C) 		1-76778-052-0 01 1 0411- ● ●
177 SEAL; WATER,DOOR
AUTO DOOR LOCK<AU4> (A) 		1-76778-035-4 01 1 0411- ● ●
177 SEAL; WATER,DOOR
EXC. AUTO DOOR LOCK<AU4> (D) 		1-76778-047-3 02 1 0411- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0411- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0411- ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0411- ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0411- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0411- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0411- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0411- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0411- ● ●

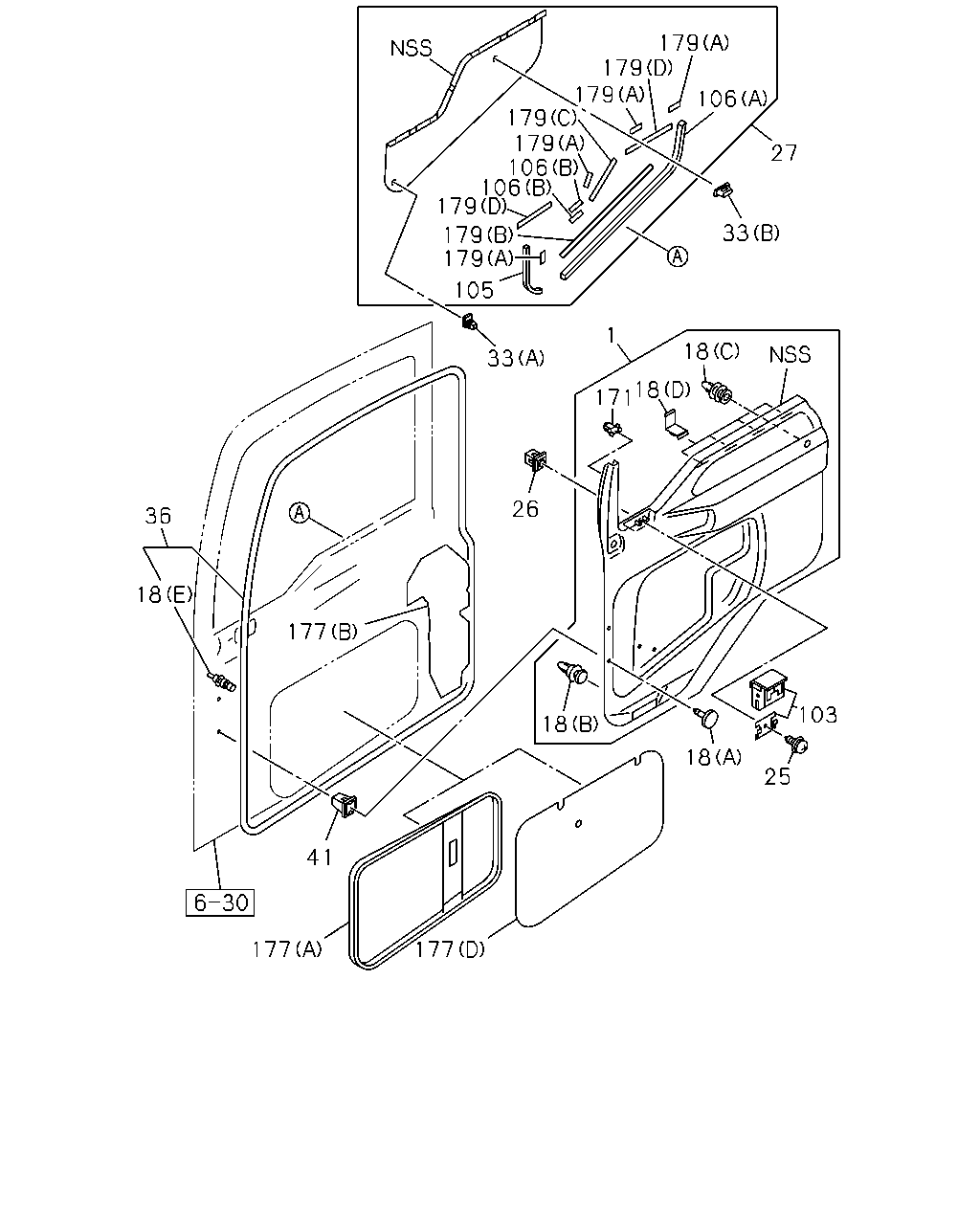

çizim 83855
179 179 179 179 179 106 106 179 106 27 33 179 179 105 1 18 33 18 171 26 36 18 177 103 18 18 25 41 177 177
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73338-539-0 01 1 0411- ● ●
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73337-509-0 01 1 0411- ● ●
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73338-538-0 01 1 0411- ● ●
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73337-510-0 01 1 0411- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0411- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0411- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (D) 		1-09987-262-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (D) 		1-09987-262-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0411- ● ●
18 CLIP; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> (D) 		1-09987-262-0 10 1 0411- ● ●
18 CLIP; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0411- ● ●
18 CLIP; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0411- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0411- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0411- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-6 01 1 0411- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-6 01 1 0411- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0411- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0411- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 0411- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 0411- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0411- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-0 01 1 0411- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-0 01 1 0411- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0411- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0411- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0411- ● ●
171 RETAINER; DOOR PAD
AUTO DOOR LOCK<AU4> 		1-09987-264-0 01 1 0411- ● ●
171 RETAINER; DOOR PAD
AUTO DOOR LOCK<AU4> 		1-09987-264-0 01 1 0411- ● ●
171 RETAINER; DOOR PAD
EXC. AUTO DOOR LOCK<AU4> 		1-09987-264-0 02 1 0411- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0411- ● ●
177 SEAL; WATER,DOOR
AUTO DOOR LOCK<AU4> (C) 		1-76778-052-0 01 1 0411- ● ●
177 SEAL; WATER,DOOR
AUTO DOOR LOCK<AU4> (A) 		1-76778-035-4 01 1 0411- ● ●
177 SEAL; WATER,DOOR
EXC. AUTO DOOR LOCK<AU4> (D) 		1-76778-047-3 02 1 0411- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0411- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0411- ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0411- ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0411- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0411- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0411- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0411- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0411- ● ●
