3-78 — FIXING PARTS; AIR PIPING (#2667) — 120 parça

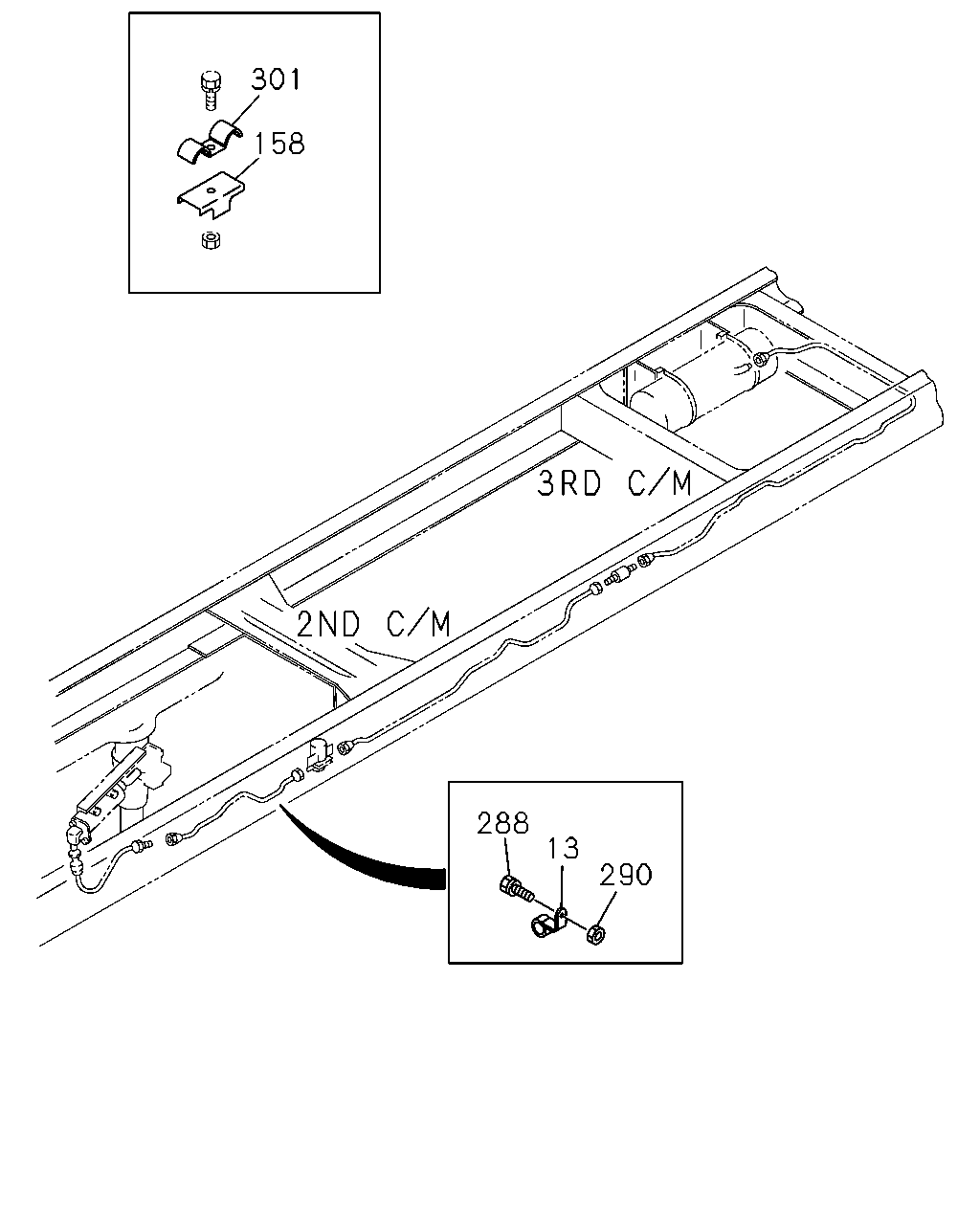

301 158 288 13 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-604-0	01	1	9101-	●	●
158	BRACKET; PIPE CLIP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47475-427-1	01	1	9101-	●
158	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	02	1	9101-	●	●
158	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9101-		●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	01	1	9101-9204	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	01	1	9205-	●	●
290	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	01	1	9101-	●	●
301	CLIP; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9101-		●

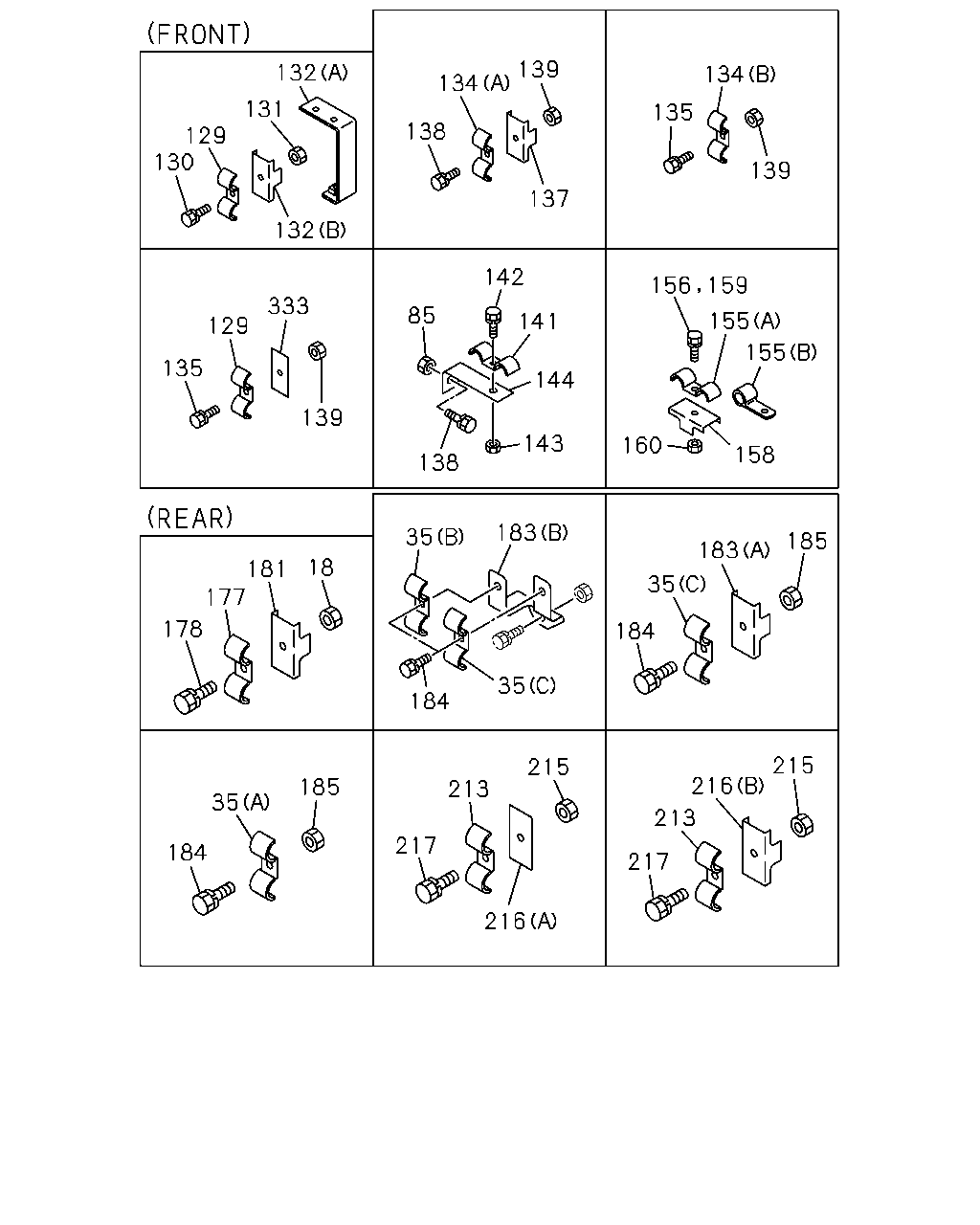

139 132 134 134 131 135 138 129 130 139 137 132 142 156 159 333 85 155 141 129 155 135 144 139 143 160 158 138 183 35 185 183 18 181 177 35 178 184 35 184 215 216 215 185 213 35 213 217 184 217 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	NUT; CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	03	1	9101-	●	●
18	NUT; CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	04	1	9101-	●	●
35	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9101-	●	●
35	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9101-	●	●
35	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	9101-	●	●
85	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	01	1	9101-		●
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9101-9105	●	●
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9106-	●	●
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9106-	●	●
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204	●	●
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-	●	●
131	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
132	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9101-	●	●
132	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	01	1	9101-	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9101-9105	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9101-9105	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9106-	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9101-	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9106-	●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	01	1	9101-9204	●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	01	1	9101-9204	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	01	1	9205-	●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	01	1	9205-	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	9101-	●	●
138	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204	●	●
138	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-	●	●
138	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204		●
138	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-		●
139	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	01	1	9101-	●
139	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
141	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-739-0	01	1	9101-		●
142	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	01	1	9101-9204		●
142	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	01	1	9205-		●
143	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	01	1	9101-		●
144	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-530-0	01	1	9101-		●
155	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9101-	●	●
155	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=20	9-09525-035-0	01	1	9101-	●	●
155	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9101-		●
156	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	01	1	9101-9204	●	●
156	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	01	1	9205-	●	●
158	BRACKET; PIPE CLIP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47475-427-1	01	1	9101-	●
158	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	02	1	9101-	●	●
158	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9101-		●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-840-0	01	1	9101-9204	●	●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-840-0	01	1	9205-	●	●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-840-0	02	1	9101-9204		●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-840-0	02	1	9205-		●
160	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	01	1	9101-	●	●
160	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-		●
177	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-747-0	03	1	9101-	●	●
177	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-747-0	04	1	9101-	●	●
178	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-840-0	03	1	9101-9204	●	●
178	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-840-0	03	1	9205-	●	●
178	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-840-0	04	1	9101-9204	●	●
178	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-840-0	04	1	9205-	●	●
181	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	03	1	9101-	●	●
181	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	04	1	9101-	●	●
183	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	02	1	9101-	●	●
183	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 W/NUT	1-47475-439-2	02	1	9101-	●	●
184	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	05	1	9101-9204	●	●
184	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-	●	●
184	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●	●
184	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-	●	●
185	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	04	1	9101-	●	●
213	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-739-0	04	1	9101-	●
213	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-739-0	03	1	9101-		●
215	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	04	1	9101-	●
215	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	03	1	9101-		●
216	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	04	1	9101-	●
216	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9101-		●
216	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	02	1	9101-		●
217	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	9-01900-840-0	04	1	9101-9204	●
217	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	04	1	9205-	●
217	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204		●
217	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-		●
217	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204		●
217	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-299-2	01	1	9101-	●

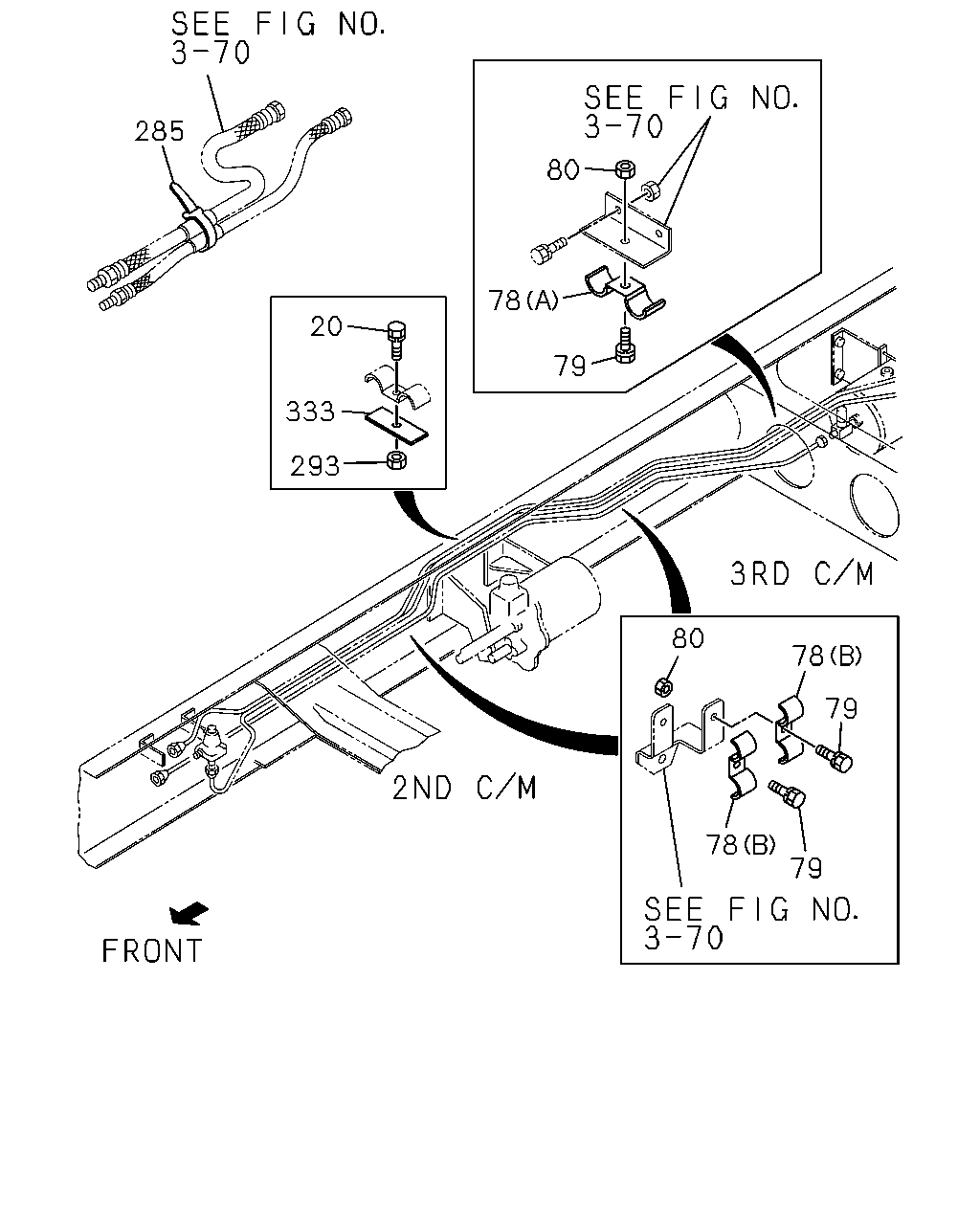

285 80 78 20 79 333 293 80 78 79 78 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	02	1	9101-9204	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	02	1	9205-	●	●
20	BOLT; CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	01	1	9101-9204	●	●
20	BOLT; CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	01	1	9205-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9101-	●	●
78	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9101-	●	●
78	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 11 L=18 & 17	1-09700-657-0	02	1	9101-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	02	1	9101-9204	●	●
79	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	02	1	9205-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	03	1	9101-9204	●	●
79	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	03	1	9205-	●	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	03	1	9101-	●	●
285	CLIP; BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	5-09707-036-1	01	1	9101-	●
293	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
293	NUT; CLIP WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	01	1	9101-	●	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-299-2	01	1	9101-	●

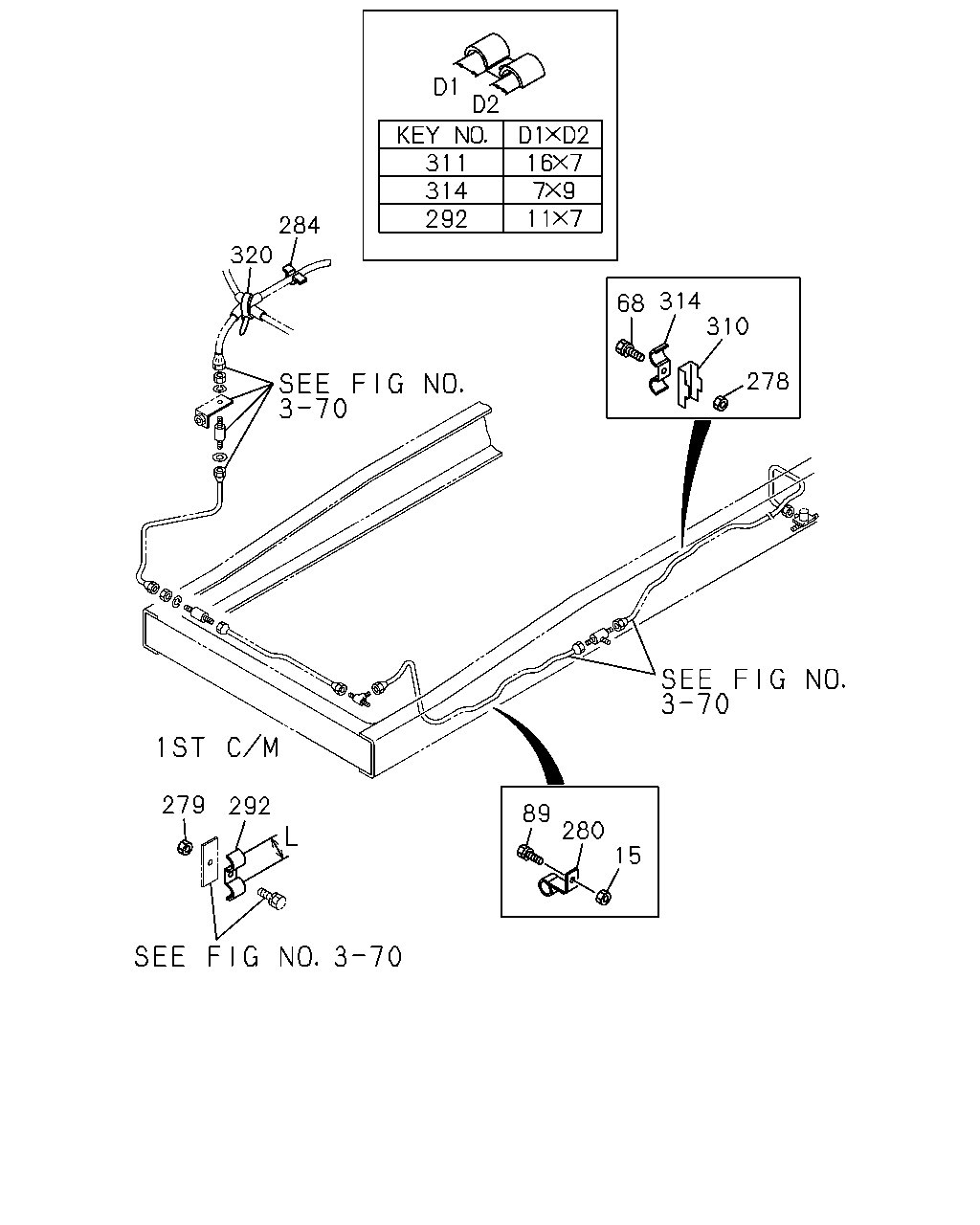

311 314 292 284 320 314 310 68 278 279 292 89 280 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STEERING(N40)	9-09110-408-0	02	1	9101-	●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-840-0	01	1	9101-9204	●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-840-0	01	1	9205-	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STEERING(N40)	9-01900-820-0	02	1	9101-9204	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STEERING(N40)	0-50040-820-0	02	1	9205-	●	●
278	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-		●
280	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-	●	●
284	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09917-425-0	01	1	9101-	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=30 ID=11 & 7 L=15 & 15	1-09700-659-0	02	1	9101-	●	●
292	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=35 ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9101-	●	●
310	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	9101-	●	●
311	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STEERING(N40)	1-09700-675-0	01	1	9101-	●	●
314	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-746-0	01	1	9101-	●	●
320	CLIP; BAND,FLEX FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	5-09707-030-1	01	1	9101-	●	●
