6-05 — FRONT PANEL (#26669) — 209 parça
çizim 24008
544 547 544 560 548 545 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date A B
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0411- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0411- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0411-0411 ● ●
532 BOLT; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412- ●
532 BOLT; FRT PANEL
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412- ●
544 LID; FRT
BODY COLOR ARC WHITE(729) ENG CONTROL TICS<Q3P> 		1-71107-403-0 01 1 0411-0411 ●
544 LID; FRT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729) ENG CONTROL TICS<Q3P> 		1-71107-403-0 01 1 0411-0411 ●
544 LID; FRT
BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> 		1-71107-403-0 01 1 0411- ●
544 LID; FRT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> 		1-71107-403-0 01 1 0411- ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0411-0411 ● ●
545 SEAL; FRT LID
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) 		1-71907-472-0 02 1 0412- ●
545 SEAL; FRT LID
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) 		1-71907-472-0 02 1 0412- ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0411- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0411- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0411-0411 ● ●
545 SEAL; FRT LID
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (D) 		1-71907-578-0 02 1 0412- ●
545 SEAL; FRT LID
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (D) 		1-71907-578-0 02 1 0412- ●
547 RUBBER; CUSHION
CHINA EQUIPMENT(YT2) (C) L=1825 		1-71907-581-0 01 1 0411-0411 ● ●
547 RUBBER; CUSHION
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) L=1825 		1-71907-581-0 01 1 0412- ●
547 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) L=1825 		1-71907-581-0 01 1 0412- ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0411- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0411- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 0411-0411 ● ●
548 STRIKER; FRT LID PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (A) 		1-79317-003-0 01 1 0412- ●
548 STRIKER; FRT LID PANEL
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (A) 		1-79317-003-0 01 1 0412- ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 0411-0411 ● ●
548 STRIKER; FRT LID PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) 		1-79318-008-0 02 1 0412- ●
548 STRIKER; FRT LID PANEL
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) 		1-79318-008-0 02 1 0412- ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0411- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0411-0411 ● ●
560 SEAL; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ●
560 SEAL; COVER
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0411-0411 ● ●
560 SEAL; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ●
560 SEAL; COVER
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0411- ● ●

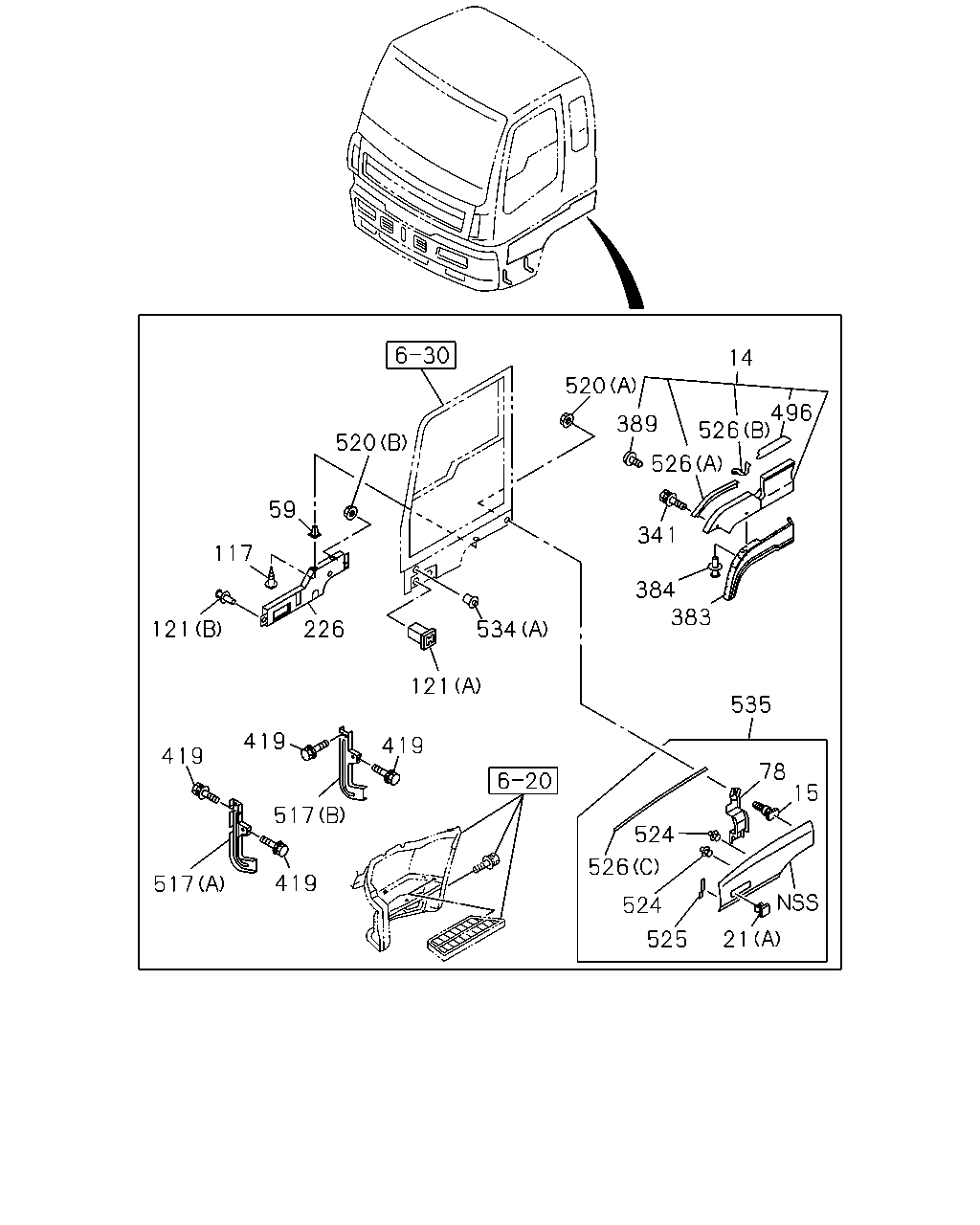

çizim 81840
14 520 496 526 389 520 526 59 341 117 384 383 121 226 534 121 535 419 419 419 78 15 517 524 526 419 517 524 21 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) 		1-65472-874-6 01 1 0504- ● ●
14 FENDER; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) 		1-65472-875-6 01 1 0504- ● ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		1-65472-875-6 01 1 0411- ● ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		1-65472-874-6 01 1 0411- ● ●
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		1-65472-875-6 01 1 0411- ● ●
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		1-65472-874-6 01 1 0411- ● ●
15 BOLT; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) M6X7 		1-71268-294-0 04 1 0411- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0411- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0411- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0411- ● ●
78 BRACKET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		1-71267-215-0 01 1 0411- ● ●
78 BRACKET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		1-71267-214-0 01 1 0411- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0411- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0411- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0411- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0411- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0411- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 15 1 0411- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0411- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-416-2 01 1 0411- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-415-2 01 1 0411- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 0411- ● ●
389 SCREW; STAND,FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) M6X22 		1-65481-386-0 06 1 0411-0503 ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0411- ● ●
496 RUBBER; STEP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		1-71998-862-0 01 1 0411-0503 ● ●
496 RUBBER; STEP 1-71998-862-0 01 1 0504- ● ●
496 RUBBER; STEP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		1-71998-861-0 01 1 0411-0503 ● ●
496 RUBBER; STEP 1-71998-861-0 01 1 0504- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0411- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-778-0 01 1 0411- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0411- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0411- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0411- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0411- ● ●
524 CLIP; FENDER COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) D5.4X8 		1-09983-154-0 08 1 0411- ● ●
525 SEAL; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 10X145 		1-71267-342-0 02 1 0411- ● ●
526 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (C) 		1-71268-275-1 02 1 0411- ● ●
526 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (A) 		1-71907-641-0 02 1 0411-0503 ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0504- ● ●
526 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (B) 		1-71907-643-0 01 1 0411-0503 ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0504- ● ●
526 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (B) 		1-71907-642-0 01 1 0411-0503 ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0504- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0411- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0411- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) 		1-71267-294-1 01 1 0411- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) 		1-71267-293-1 01 1 0411- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) 		1-71267-294-1 01 1 0411- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) 		1-71267-293-1 01 1 0411- ● ●

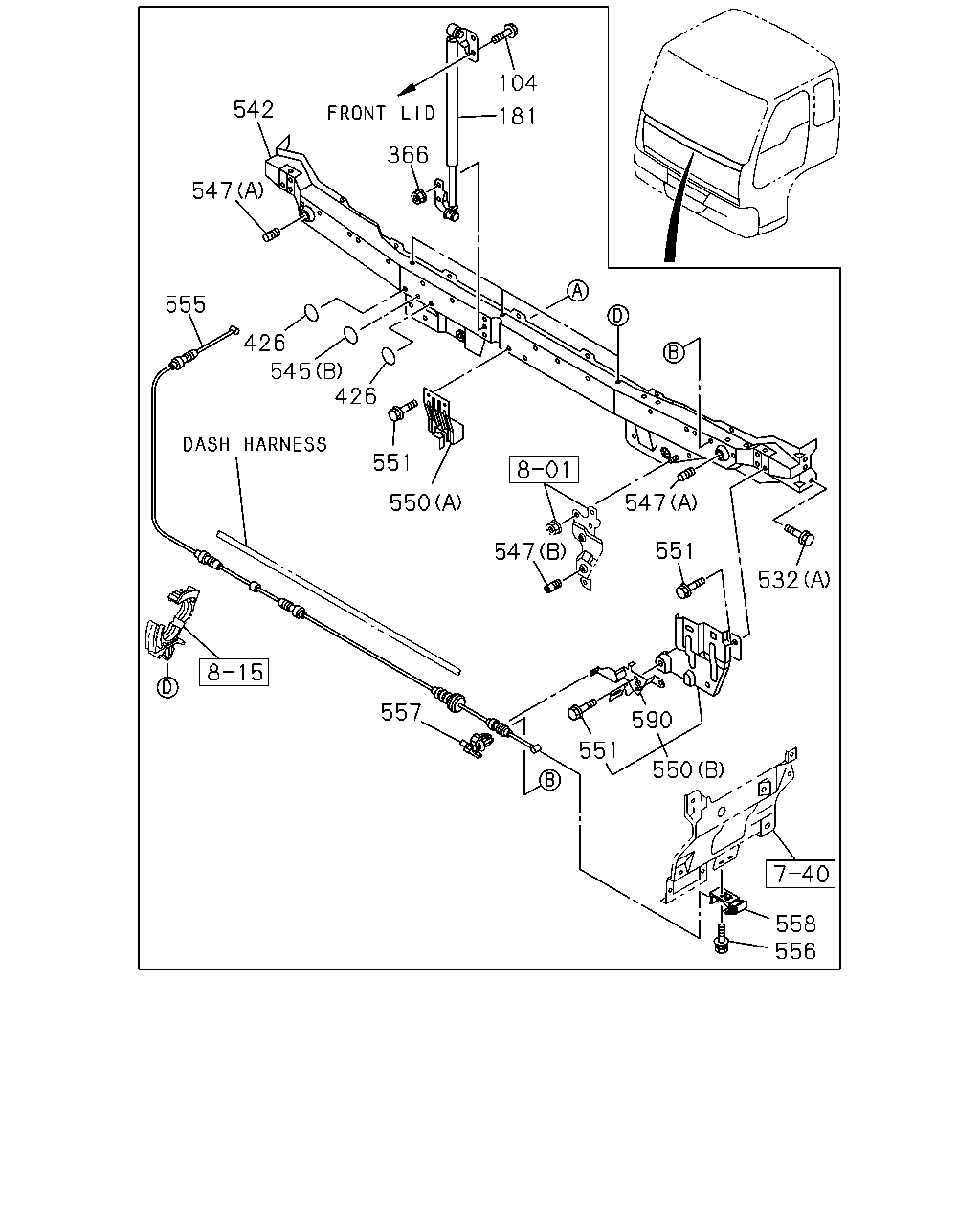

çizim 83133
104 542 181 366 547 555 426 545 426 551 550 547 547 551 532 557 590 551 550 558 556
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0411-0411 ● ●
104 BOLT; SUPPORT BAR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0412- ●
104 BOLT; SUPPORT BAR
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0412- ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0411-0411 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> 		1-71107-261-0 01 1 0412-0412 ●
181 SUPPORT ASM; DOOR CHECK,FRT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> 		1-71107-261-0 01 1 0412-0412 ●
181 SUPPORT ASM; DOOR CHECK,FRT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> 		1-71107-864-0 01 1 0412- ●
181 SUPPORT ASM; DOOR CHECK,FRT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> 		1-71107-864-0 01 1 0412- ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0411- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 0411- ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0411- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0411- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0411- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0411- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0411-0411 ● ●
532 BOLT; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412- ●
532 BOLT; FRT PANEL
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412- ●
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 0411- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0411-0411 ● ●
545 SEAL; FRT LID
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) 		1-71907-472-0 02 1 0412- ●
545 SEAL; FRT LID
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) 		1-71907-472-0 02 1 0412- ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0411- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0411- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0411-0411 ● ●
545 SEAL; FRT LID
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (D) 		1-71907-578-0 02 1 0412- ●
545 SEAL; FRT LID
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (D) 		1-71907-578-0 02 1 0412- ●
547 RUBBER; CUSHION
CHINA EQUIPMENT(YT2) (C) L=1825 		1-71907-581-0 01 1 0411-0411 ● ●
547 RUBBER; CUSHION
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) L=1825 		1-71907-581-0 01 1 0412- ●
547 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) L=1825 		1-71907-581-0 01 1 0412- ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0411- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0411- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-013-0 01 1 0411- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-017-0 01 1 0411- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-016-0 01 1 0411- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0411- ● ●
551 BOLT; LOCK
BUMPER W/HEADLAMPS<SLB> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0411- ● ●
555 CABLE; FRT LID
BUMPER W/HEADLAMPS<SLB> L=2612 		1-79347-008-1 01 1 0411- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0411- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 04 1 0411- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 0411- ● ●
590 LOCK; FRT LID
BUMPER W/HEADLAMPS<SLB> 		1-79318-007-4 01 1 0411- ● ●
590 LOCK; FRT LID
BUMPER W/HEADLAMPS<SLB> 		1-79318-006-2 01 1 0411- ● ●

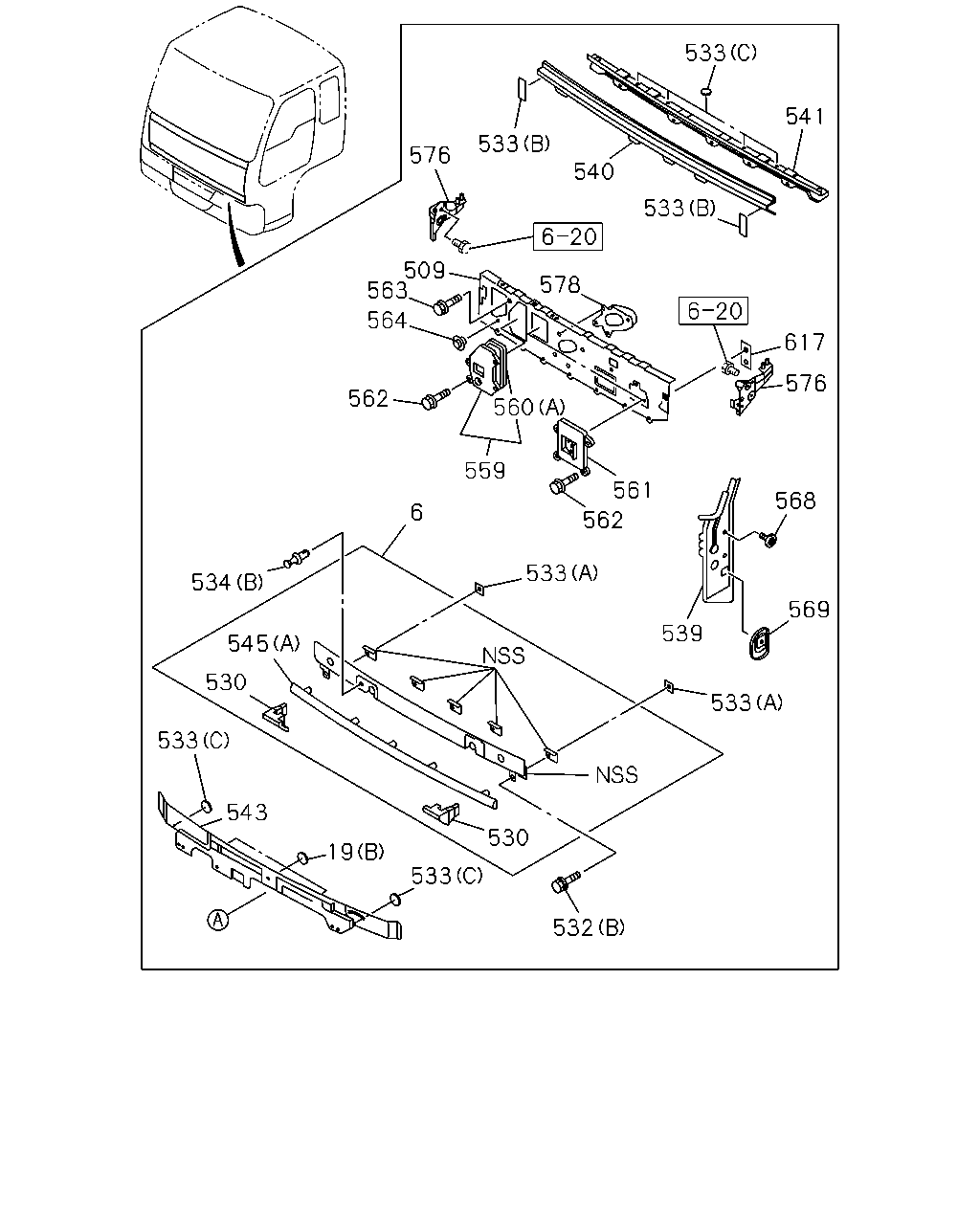

çizim 83878
533 541 533 576 540 533 509 563 578 564 617 560 576 562 559 561 568 6 562 533 534 569 539 545 530 533 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65472-551-3 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-411-0 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-410-0 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0411- ● ●
509 PANEL; DASH 1-62270-496-1 01 1 0411- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0411- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0411- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0411- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0411- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0411-0411 ● ●
532 BOLT; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412- ●
532 BOLT; FRT PANEL
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412- ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0411- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0411- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0411- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0411- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0411- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 0411- ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 0411- ● ●
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 0411- ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 0411- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-703-3 01 1 0411- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0411-0411 ● ●
545 SEAL; FRT LID
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) 		1-71907-472-0 02 1 0412- ●
545 SEAL; FRT LID
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (C) 		1-71907-472-0 02 1 0412- ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0411- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0411- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0411-0411 ● ●
545 SEAL; FRT LID
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (D) 		1-71907-578-0 02 1 0412- ●
545 SEAL; FRT LID
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (D) 		1-71907-578-0 02 1 0412- ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 0411- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0411- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0411-0411 ● ●
560 SEAL; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ●
560 SEAL; COVER
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0411-0411 ● ●
560 SEAL; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ●
560 SEAL; COVER
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) ENG CONTROL TICS<Q3P> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0411- ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 0411- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0411- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0411- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0411- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0411- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0411- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0411- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 0411- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 0411- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 0411- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0411- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0411- ● ●

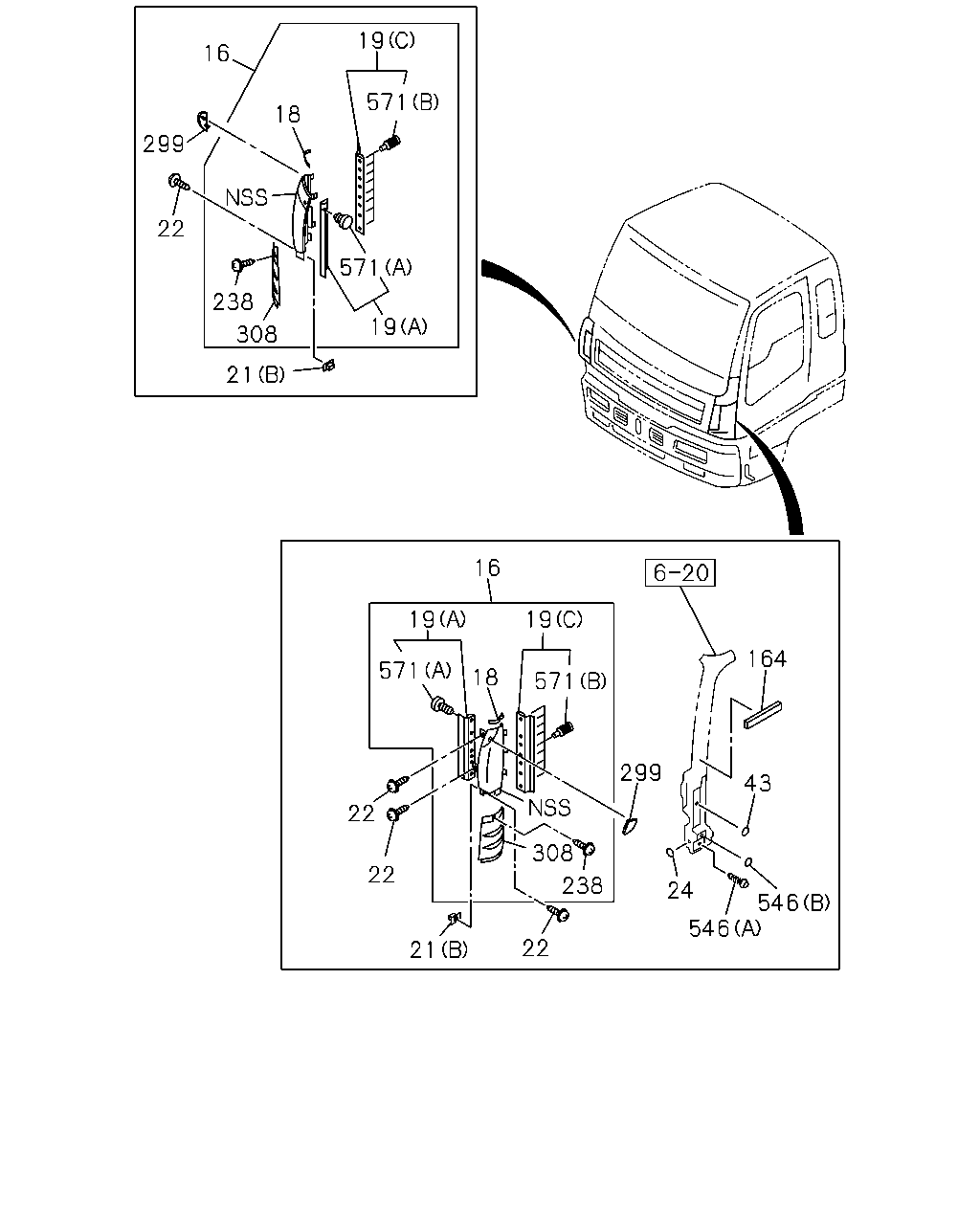

çizim 84571
19 16 571 18 299 22 571 238 19 308 21 16 19 19 164 571 18 571 299 43 22 308 22 546 238 24 546 22 21
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-649-3 01 1 0411- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-648-3 01 1 0411- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-649-3 01 1 0411- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-648-3 01 1 0411- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> 		1-71998-899-2 01 1 0411- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> 		1-71998-898-2 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-411-0 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-410-0 01 1 0411- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0411- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0411- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0411- ● ●
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0411- ● ●
24 SEAL; FRT PANEL LWR
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 06 1 0411- ● ●
24 SEAL; FRT PANEL LWR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 07 1 0411- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0411- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0411- ● ●
238 SCREW
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0411- ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 0411- ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0411- ● ●
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> 		1-65472-569-1 01 1 0411- ● ●
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> 		1-65472-568-1 01 1 0411- ● ●
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 0411- ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 0411- ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0411- ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (B) PINK 		1-09987-256-0 08 1 0411- ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (B) NATURAL 		1-09987-257-0 08 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
