6-01 — FRONT BUMPER (#26667) — 76 parça

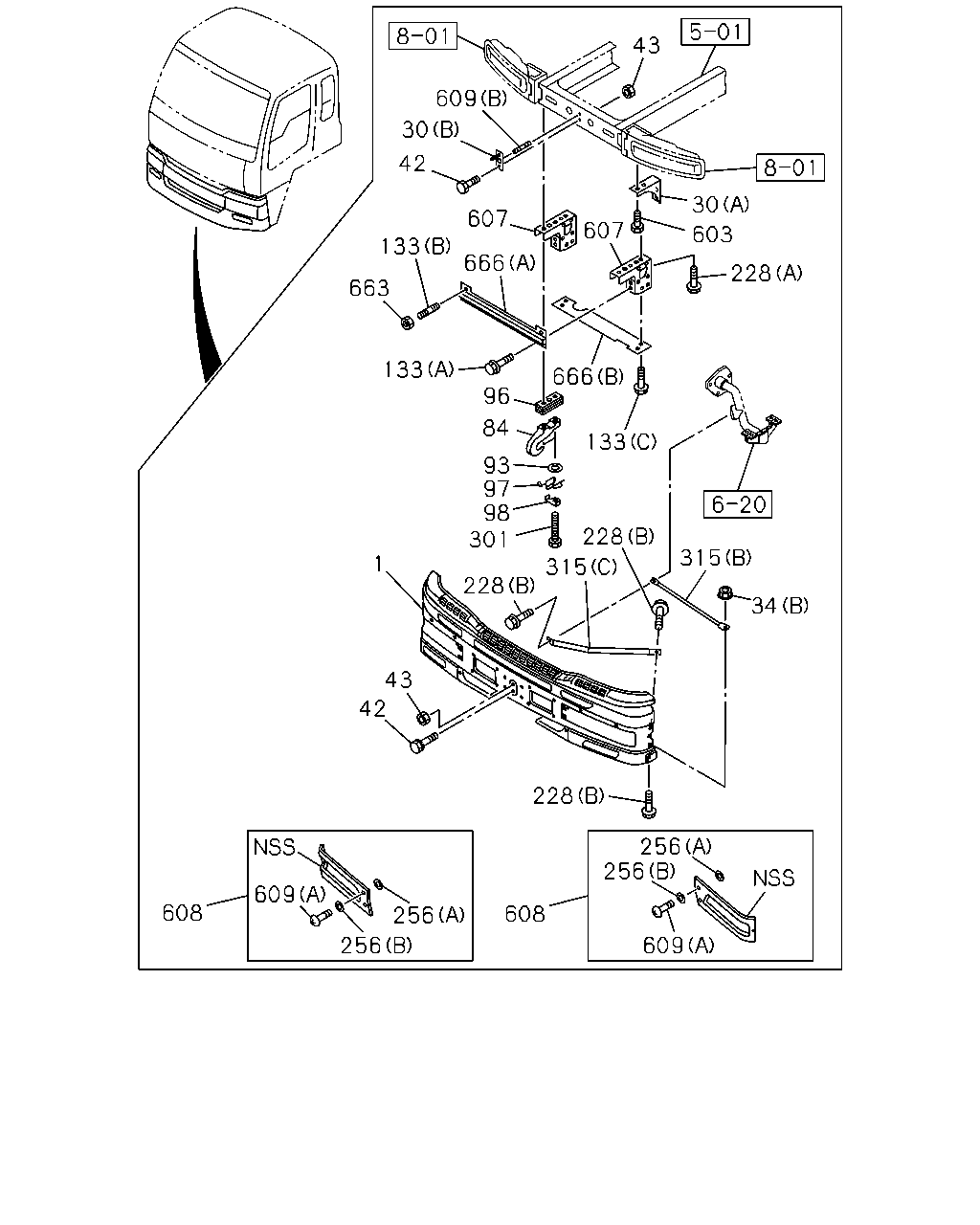

43 609 30 42 30 607 607 603 133 666 228 663 133 666 96 84 133 93 97 98 301 228 315 1 315 228 34 43 42 228 256 256 609 608 608 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE<TEA> WHITE	1-71211-233-2	01	1	0411-	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-611-2	01	1	0411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-432-0	01	1	0411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-433-0	01	1	0411-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
34	NUT; BRKT,BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A) M8 FLANGE	0-91150-108-0	13	1	0411-	●	●
42	BOLT; BUMPER M10X25	8-94279-212-0	02	1	0411-	●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	10	1	0411-0411	●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	08	1	0411-	●	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	01	1	0411-	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	03	1	0411-0411	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	02	1	0411-	●	●
84	HOOK	1-57181-027-1	01	1	0411-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0411-	●	●
96	PLATE; DIST,HOOK	1-53497-473-0	01	1	0411-	●	●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	0411-	●	●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	0411-	●	●
133	BOLT; PROTECTOR FIX M12X40 L=56	1-09300-123-0	02	1	0411-	●	●
133	BOLT; PROTECTOR FIX (A) M12X40 FLANGE	0-28681-240-0	02	1	0411-	●	●
133	BOLT; PROTECTOR FIX (C) M8X25 FLANGE	0-28680-825-0	04	1	0411-	●	●
228	BOLT; BRKT (A) M16X40	9-92061-640-0	06	1	0411-	●	●
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28680-825-0	06	1	0411-	●	●
256	WASHER; PL (A)	1-71260-173-0	06	1	0411-	●	●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0411-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10811-690-0	01	1	0411-	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	0411-	●	●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	0411-	●	●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	0411-	●	●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0411-	●	●
315	STAY; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A)	1-71230-346-2	01	1	0411-	●	●
315	STAY; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A)	1-71230-347-2	01	1	0411-	●	●
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0411-	●	●
607	BRACKET	1-71230-622-4	01	1	0411-	●	●
607	BRACKET	1-71230-623-4	01	1	0411-	●	●
608	LID; BUMPER	1-71211-285-0	01	1	0411-	●	●
608	LID; BUMPER	1-71211-284-0	01	1	0411-	●	●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0411-	●	●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0411-	●	●
663	NUT M12 FLANGE	0-91150-212-0	02	1	0411-	●	●
666	PROTECTOR; UNDER (A)	1-71211-323-2	01	1	0411-	●	●
666	PROTECTOR; UNDER (B)	1-71211-324-3	01	1	0411-	●	●

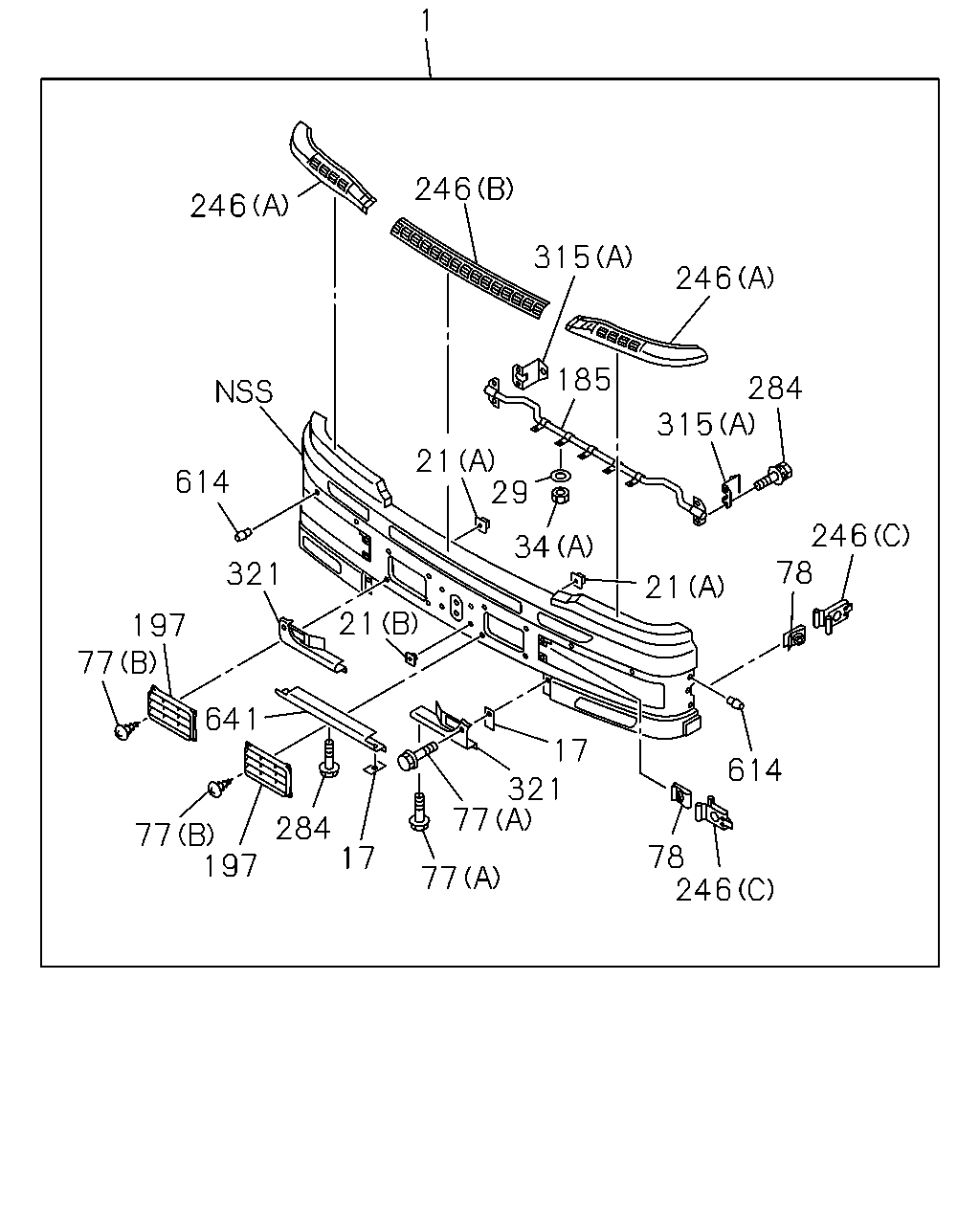

1 246 246 315 246 185 284 315 21 29 614 246 78 34 321 21 21 197 77 641 17 321 77 614 284 17 77 197 78 246 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE<TEA> WHITE	1-71211-233-2	01	1	0411-	●	●
17	PROTECTOR; FRT BUMPER HEADLAMPS VARIANT SQUARE<TEA>	1-71260-185-0	03	1	0411-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR HEADLAMPS VARIANT SQUARE<TEA> (A) D=9X9 L=7 M5	8-94163-979-0	08	1	0411-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR HEADLAMPS VARIANT SQUARE<TEA> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	0411-	●	●
29	WASHER; FRT BUMPER BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE<TEA> ID=8.4 OD=22	9-09160-708-0	17	1	0411-	●	●
29	WASHER; FRT BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) HEADLAMPS VARIANT SQUARE<TEA> ID=8.4 OD=22	9-09160-708-0	13	1	0411-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
34	NUT; BRKT,BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A) M8 FLANGE	0-91150-108-0	13	1	0411-	●	●
77	SCREW; BRKT HEADLAMPS VARIANT SQUARE<TEA> (A) M8X20 W/PL WASHER	1-71260-184-0	04	1	0411-	●	●
77	SCREW; BRKT HEADLAMPS VARIANT SQUARE<TEA> (B) M5X16 TAPPING	9-07076-516-0	08	1	0411-	●	●
78	NUT; SPIRE HEADLAMPS VARIANT SQUARE<TEA>	1-71260-174-0	06	1	0411-	●	●
185	BRACKET; BUMPER,INNER HEADLAMPS VARIANT SQUARE<TEA>	1-71230-610-0	01	1	0411-	●	●
197	GRILLE; BUMPER HEADLAMPS VARIANT SQUARE<TEA>	1-71260-115-1	01	1	0411-	●	●
197	GRILLE; BUMPER HEADLAMPS VARIANT SQUARE<TEA>	1-71260-116-1	01	1	0411-	●	●
246	PROTECTOR; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A)	1-71260-094-1	01	1	0411-	●	●
246	PROTECTOR; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A)	1-71260-095-1	01	1	0411-	●	●
246	PROTECTOR; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (B)	1-71260-155-0	01	1	0411-	●	●
246	PROTECTOR; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (C)	1-71260-162-0	06	1	0411-	●	●
284	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA> M8X20 W/LK&PL WASHER	0-50140-820-0	05	1	0411-	●	●
284	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0411-	●	●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	0411-	●	●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	0411-	●	●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0411-	●	●
315	STAY; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A)	1-71230-346-2	01	1	0411-	●	●
315	STAY; BUMPER HEADLAMPS VARIANT SQUARE<TEA> (A)	1-71230-347-2	01	1	0411-	●	●
321	COVER; BUMPER FRT SIDE BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE<TEA>	1-71260-237-1	01	1	0411-	●	●
321	COVER; BUMPER FRT SIDE BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE<TEA>	1-71260-238-1	01	1	0411-	●	●
321	COVER; BUMPER FRT SIDE BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) HEADLAMPS VARIANT SQUARE<TEA>	1-71260-247-1	01	1	0411-	●	●
321	COVER; BUMPER FRT SIDE BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) HEADLAMPS VARIANT SQUARE<TEA>	1-71260-248-1	01	1	0411-	●	●
321	COVER; BUMPER FRT SIDE BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE<TEA>	1-71260-245-1	01	1	0411-	●	●
321	COVER; BUMPER FRT SIDE BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE<TEA>	1-71260-246-1	01	1	0411-	●	●
614	STOPPER; LID HEADLAMPS VARIANT SQUARE<TEA>	1-71260-163-0	12	1	0411-	●	●
641	BUMPER; FRT,LWR BODY COLOR ARC WHITE(729) HEADLAMPS VARIANT SQUARE<TEA>	1-71211-304-1	01	1	0411-	●	●
641	BUMPER; FRT,LWR BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) HEADLAMPS VARIANT SQUARE<TEA>	1-71211-313-1	01	1	0411-	●	●
641	BUMPER; FRT,LWR BODY COLOR MARINE BLUE(890) HEADLAMPS VARIANT SQUARE<TEA>	1-71211-312-1	01	1	0411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
