Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

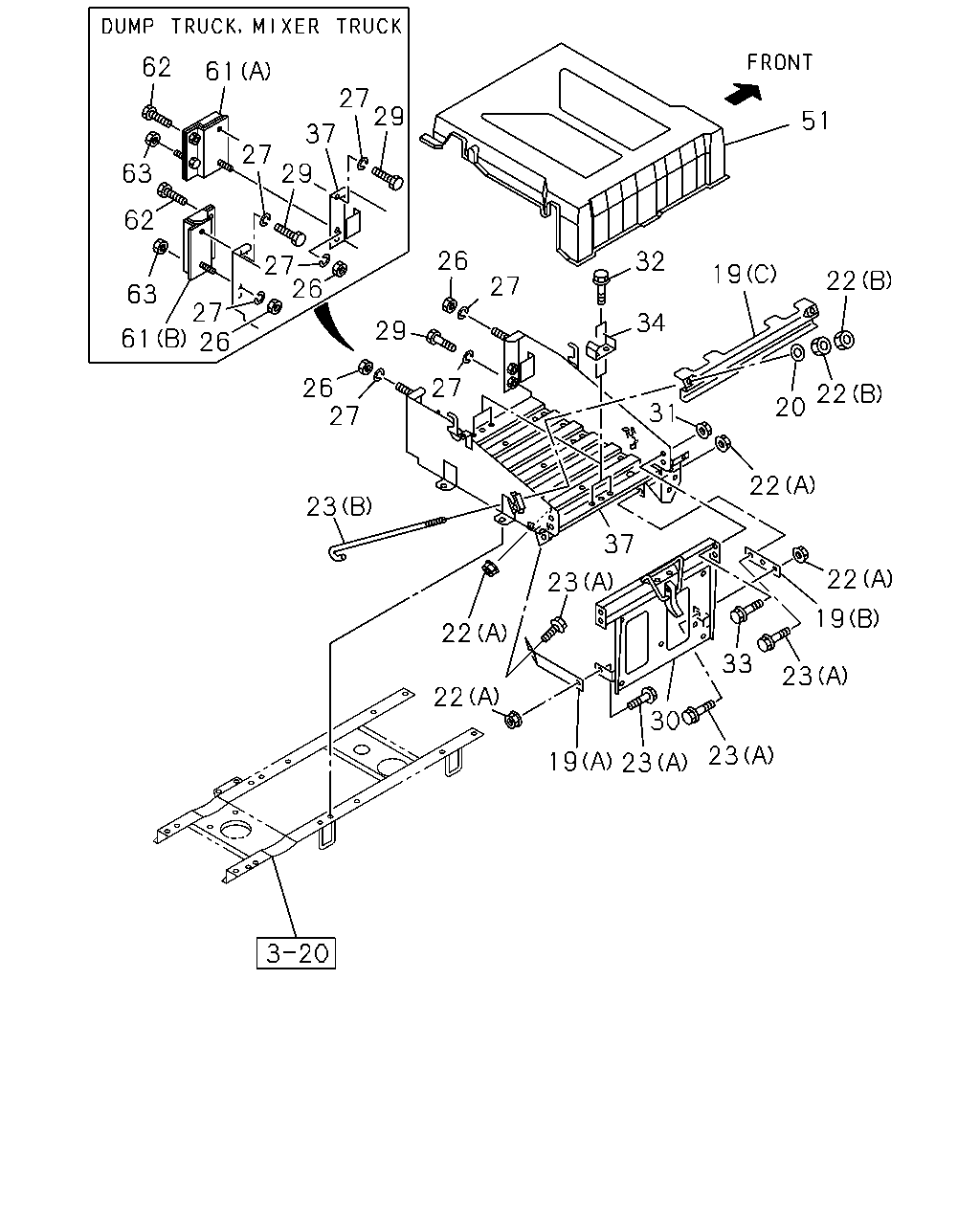

5-20 — BATTERY CARRIER
(#26665) — 28 parça
Tümü
A - CXZ6MC
B - CXZ6MF
62
61
27
29
51
37
27
29
63
62
27
26
26
32
19
22
27
63
27
61
26
34
29
27
26
27
22
20
31
22
23
37
22
23
33
19
22
23
22
30
23
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0411-
●
●
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0411-
●
●
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0411-
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0411-
●
●
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0411-
●
●
22
NUT; STAY
(B) M8
9-09110-408-0
04
1
0411-
●
●
23
BOLT; STAY
(A) M8X20 FLANGE
0-28680-820-0
04
1
0411-
●
●
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0411-
●
●
26
NUT; BRKT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14
9-99110-514-0
02
1
0411-
●
●
26
NUT; BRKT
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14
1-09440-072-0
02
1
0411-
●
●
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0411-
●
●
27
WASHER; LK,BRKT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ID=14.2
9-09150-514-0
08
1
0411-
●
●
29
BOLT; BRKT TO FRAME
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14X30
0-20801-430-0
02
1
0411-
●
●
29
BOLT; BRKT TO FRAME
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14X45
1-09000-764-0
02
1
0411-
●
●
30
PLATE; BATTERY
1-53619-148-0
01
1
0411-
●
●
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0411-
●
●
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28080-816-0
04
1
0411-
●
●
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0411-
●
●
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0411-
●
●
37
BRACKET; BATTERY
1-53610-159-0
01
1
0411-
●
37
BRACKET; BATTERY
1-53610-161-0
01
1
0411-
●
51
COVER; BATTERY
1-53612-068-0
01
1
0411-
●
●
61
DISTANCE; BRKT,BATTERY
MIXER TRUCK<RA2> (A)
1-53613-489-0
01
1
0411-
●
●
61
DISTANCE; BRKT,BATTERY
DUMP TRUCK<RA1> (A)
1-53613-504-0
01
1
0411-
●
●
61
DISTANCE; BRKT,BATTERY
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)
1-53613-505-0
01
1
0411-
●
●
62
BOLT; DIST TO FRAME,BATTERY
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14X45
1-09000-764-0
02
1
0411-
●
●
62
BOLT; DIST TO FRAME,BATTERY
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14X60
1-09000-778-0
02
1
0411-
●
●
63
NUT; DIST TO FRAME
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14
1-09440-072-0
04
1
0411-
●
●
