5-15 — CAB MOUNTING; CAB SIDE (#26662) — 72 parça

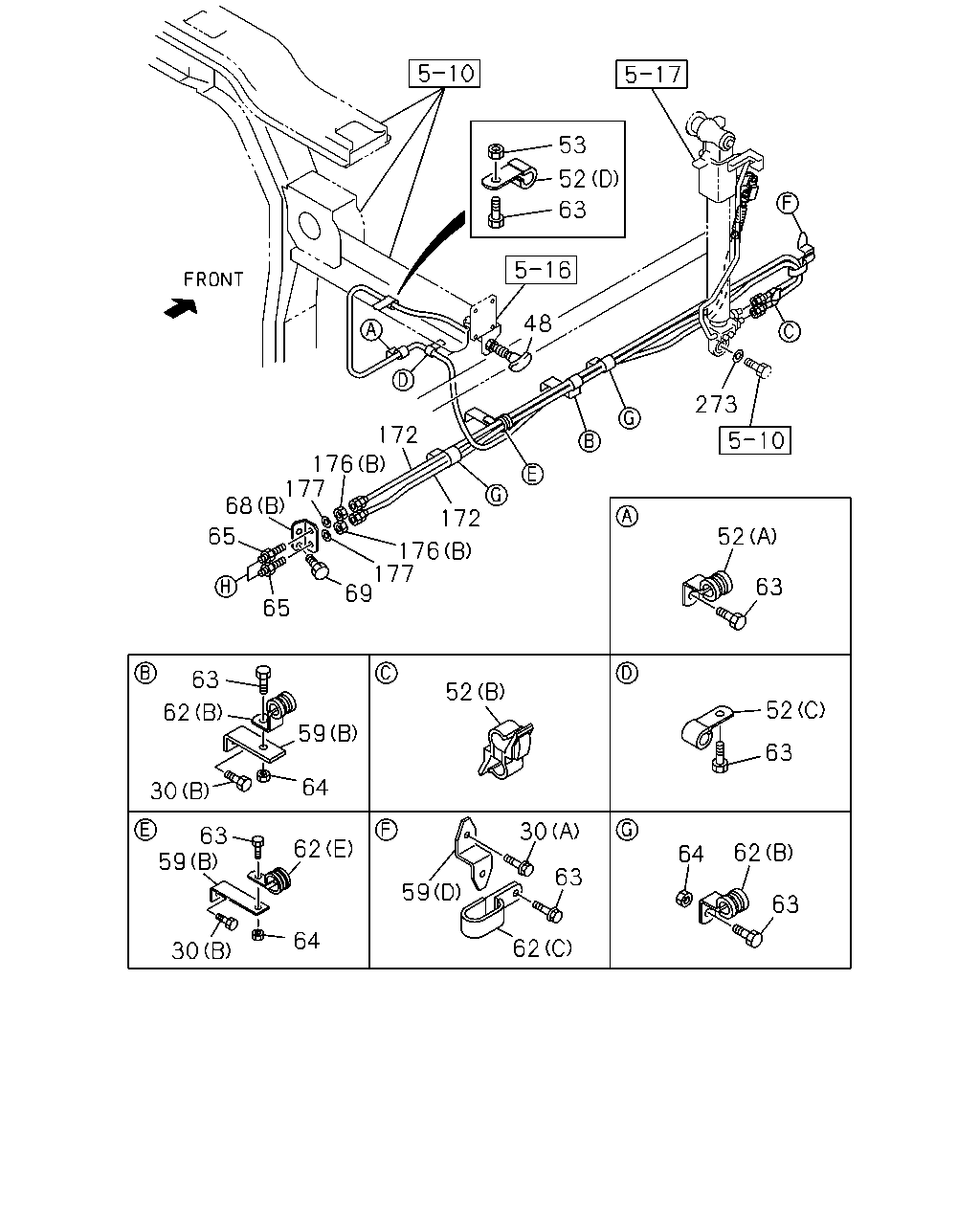

çizim 21460
53 63 48 273 172 176 177 68 172 65 52 176 177 69 63 65 63 52 52 62 59 63 64 30 30 63 59 62 62 64 63 59 63 64 62 30 52
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0411- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0411- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0411- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0411- ● ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0411- ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0411- ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0411- ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0411- ● ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0411- ● ●
59 BRACKET; CLIP
(B) L=115 B=25 		1-47476-758-0 02 1 0411- ● ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0411- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0411- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0411- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 0411- ● ●
62 CLIP; OIL PIPE
(E) ID=24 L=27 		1-09700-809-0 01 1 0411- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 0411- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0411- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0411- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0411- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 05 1 0411- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0411- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 0411- ● ●
68 BRACKET; UNION
(B) 		1-47471-040-0 01 1 0411- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0411- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0411- ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0411- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0411- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0411- ● ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0411- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0411- ● ●
çizim 82690

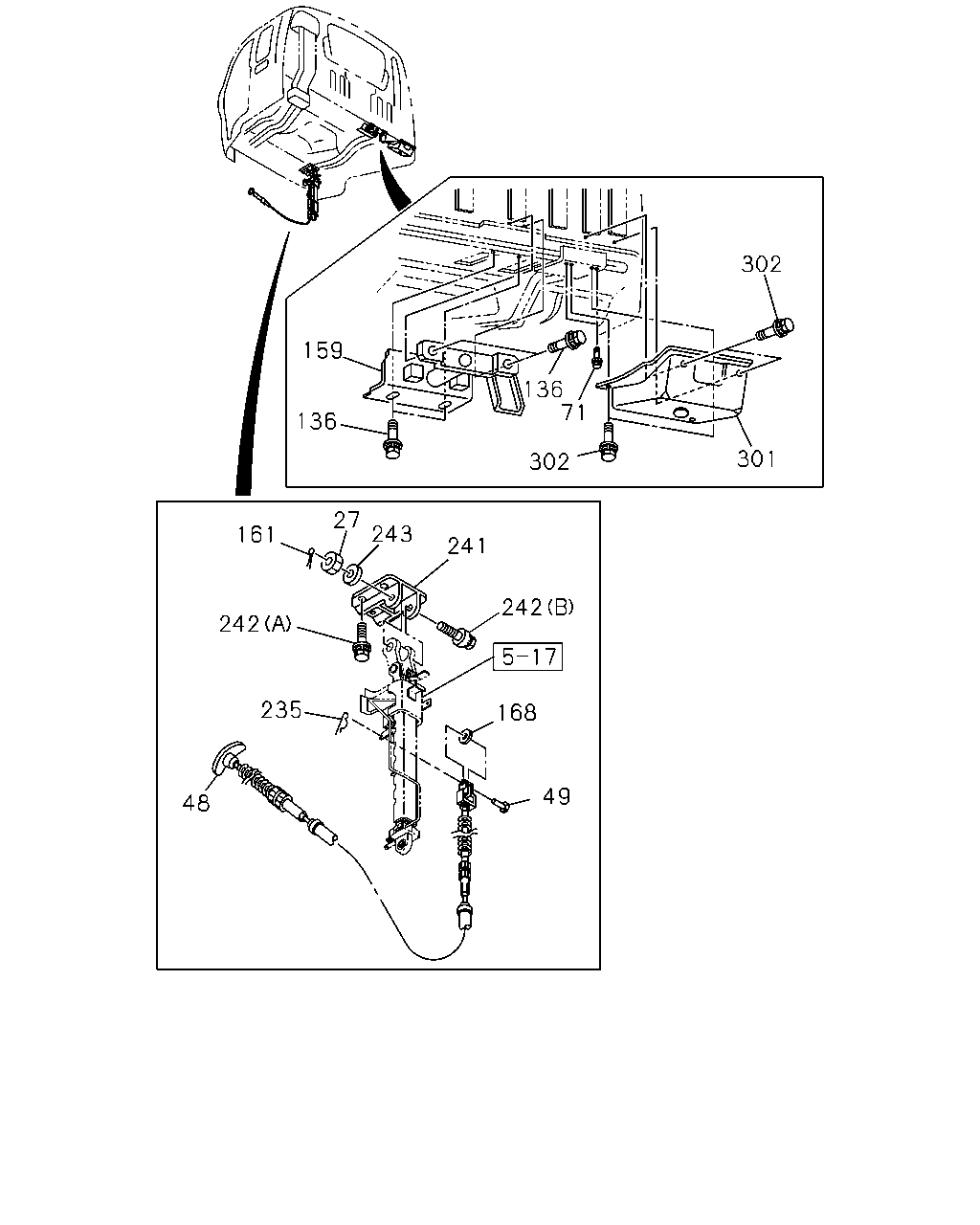

302 159 136 71 136 301 302 27 243 161 241 242 242 235 168 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0411- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0411- ● ●
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0411- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0411- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0411- ● ●
159 PIN 1-79717-627-1 01 1 0411- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0411- ● ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0411- ● ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0411- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-1 01 1 0411- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 0411- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0411- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0411- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0411- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0411- ● ●
çizim 83877

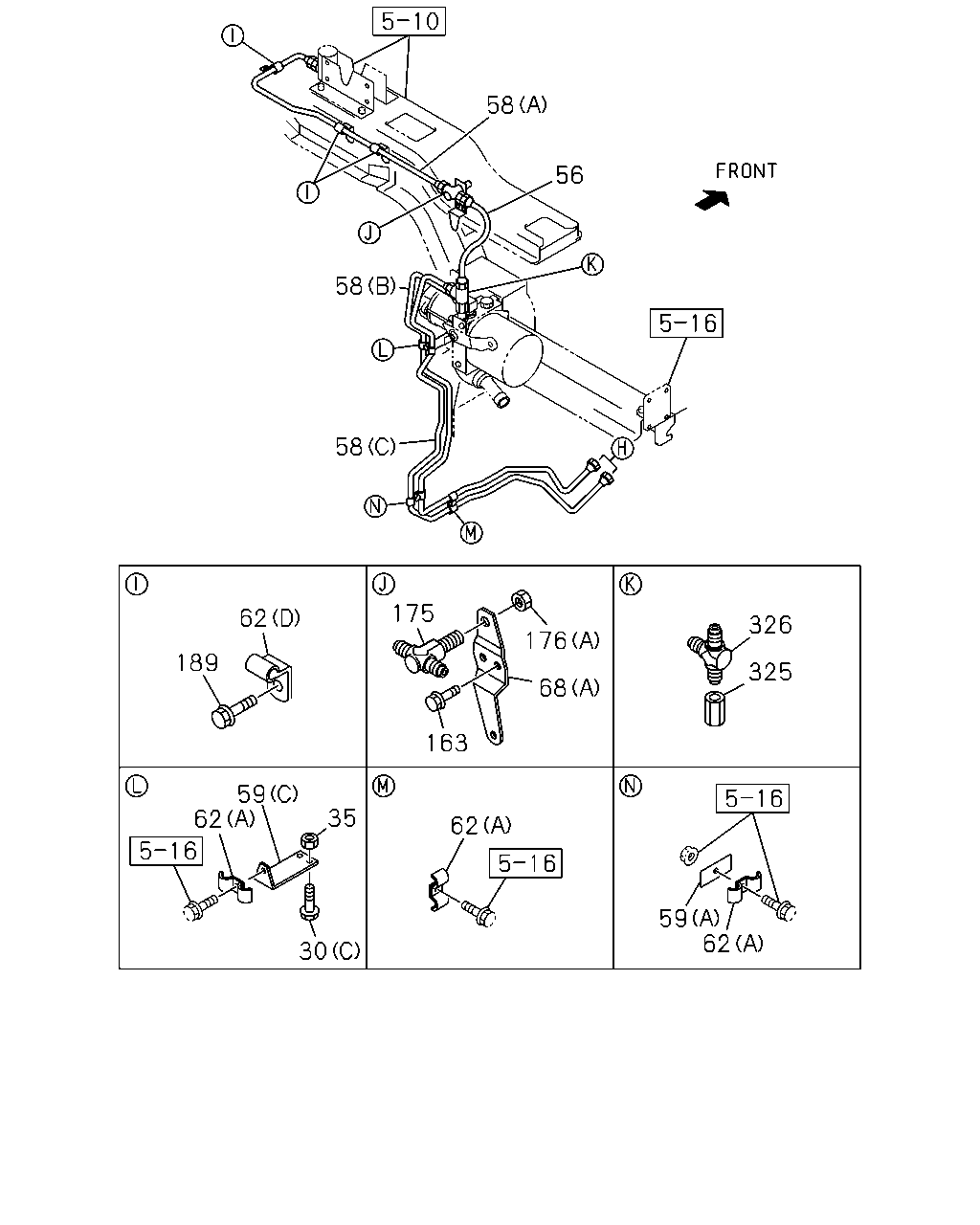

58 56 58 58 175 62 326 176 189 325 68 163 59 62 35 62 59 62 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0411- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0411- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0411- ● ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0411- ● ●
56 HOSE; FLEX,OIL PIPE
L=400 		1-09365-060-0 01 1 0411- ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1134 SERVICED BY L=1200 		1-47428-732-0 01 1 0411-0411 ● ●
58 PIPE; OIL,POWER UNIT
(C) L=1178 SERVICED BY L=1200 		1-47428-732-0 01 1 0411- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 0411-0412 ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1401 SERVICED BY L=1500 		1-47428-735-0 01 1 0501- ● ●
59 BRACKET; CLIP
(B) L=115 B=25 		1-47476-758-0 02 1 0411- ● ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0411- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0411- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0411- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 0411- ● ●
62 CLIP; OIL PIPE
(E) ID=24 L=27 		1-09700-809-0 01 1 0411- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 0411- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0411- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0411- ● ●
68 BRACKET; UNION
(B) 		1-47471-040-0 01 1 0411- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0411- ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0411- ● ●
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 0411- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0411- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0411- ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 0411- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0411- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0411- ● ●
