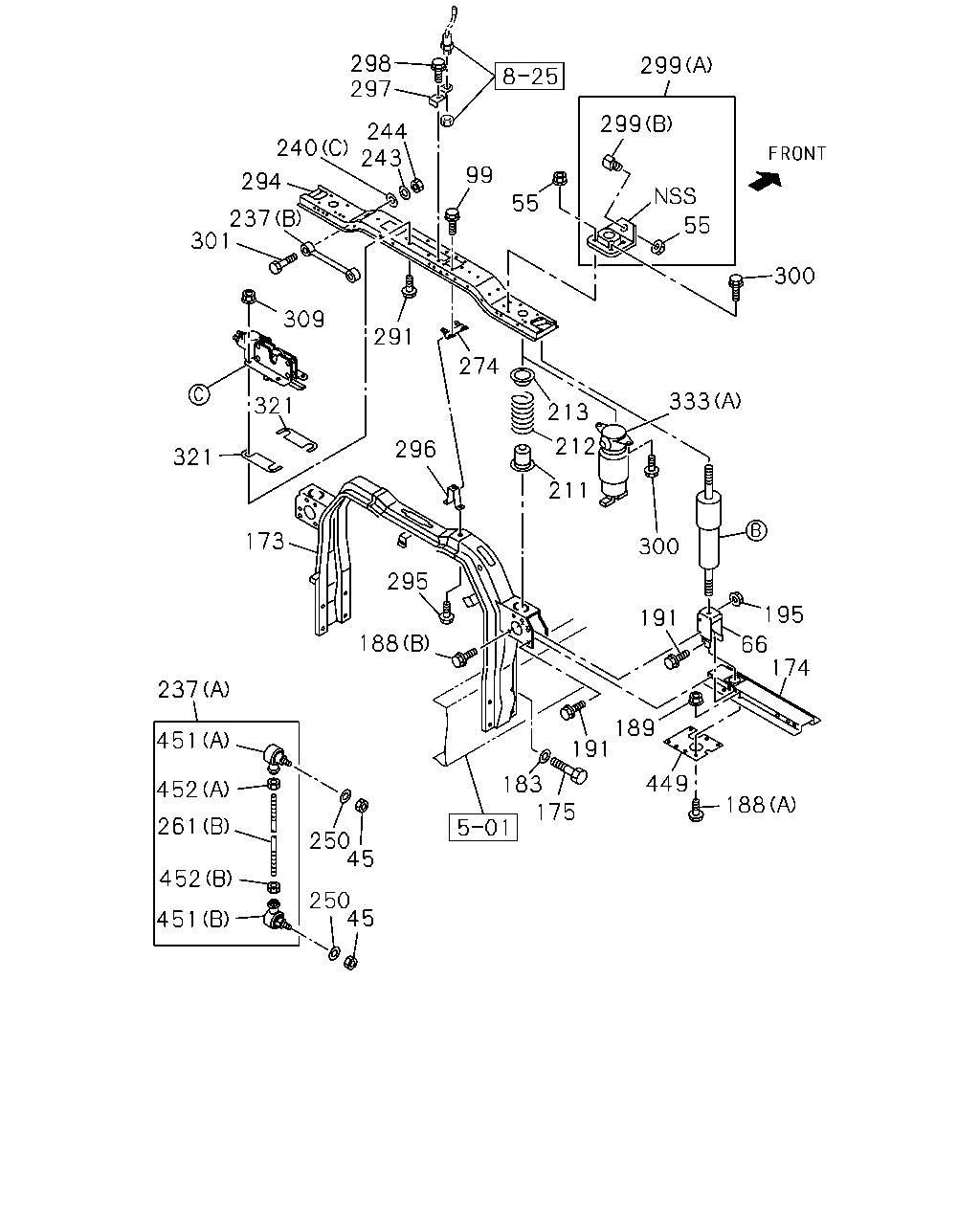

5-10 — CAB MOUNTING; FRAME SIDE (#26661) — 195 parça

298 297 299 299 244 243 240 99 294 55 237 301 55 300 309 291 274 333 321 213 212 296 321 211 173 300 295 195 191 188 66 174 237 189 451 191 449 183 175 452 188 261 250 45 452 250 45 451

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0411-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0411-	●	●
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0411-	●	●
66	BRACKET; S/ABS	1-53458-755-1	01	1	0411-	●	●
66	BRACKET; S/ABS	1-53458-786-0	01	1	0411-	●	●
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0411-	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-674-0	01	1	0411-0412	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-686-0	01	1	0501-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0411-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0411-	●	●
175	BOLT; MEMBER TO FRAME M14X40	9-92061-440-0	08	1	0411-	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0411-	●	●
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28681-020-0	04	1	0411-	●	●
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	0411-	●	●
189	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	04	1	0411-	●	●
191	BOLT; BRKT FIX M10X25 FLANGE	0-28681-025-0	07	1	0411-	●	●
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0411-	●	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0411-	●	●
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0411-	●	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0411-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0411-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0411-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0411-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0411-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0411-	●	●
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0411-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0411-	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0411-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0411-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0411-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A) FRONT	9-08410-507-0	01	1	0411-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B) REAR	9-08410-514-0	01	1	0411-	●	●
274	PIN	1-53458-996-0	01	1	0411-	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0411-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0411-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-1	01	1	0411-	●	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0411-	●	●
296	STOPPER; UPR	1-53458-973-0	01	1	0411-	●	●
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0411-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0411-	●	●
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0411-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	0411-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0411-	●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0411-	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0411-	●	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	0411-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0411-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0411-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0411-	●	●
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0411-	●	●

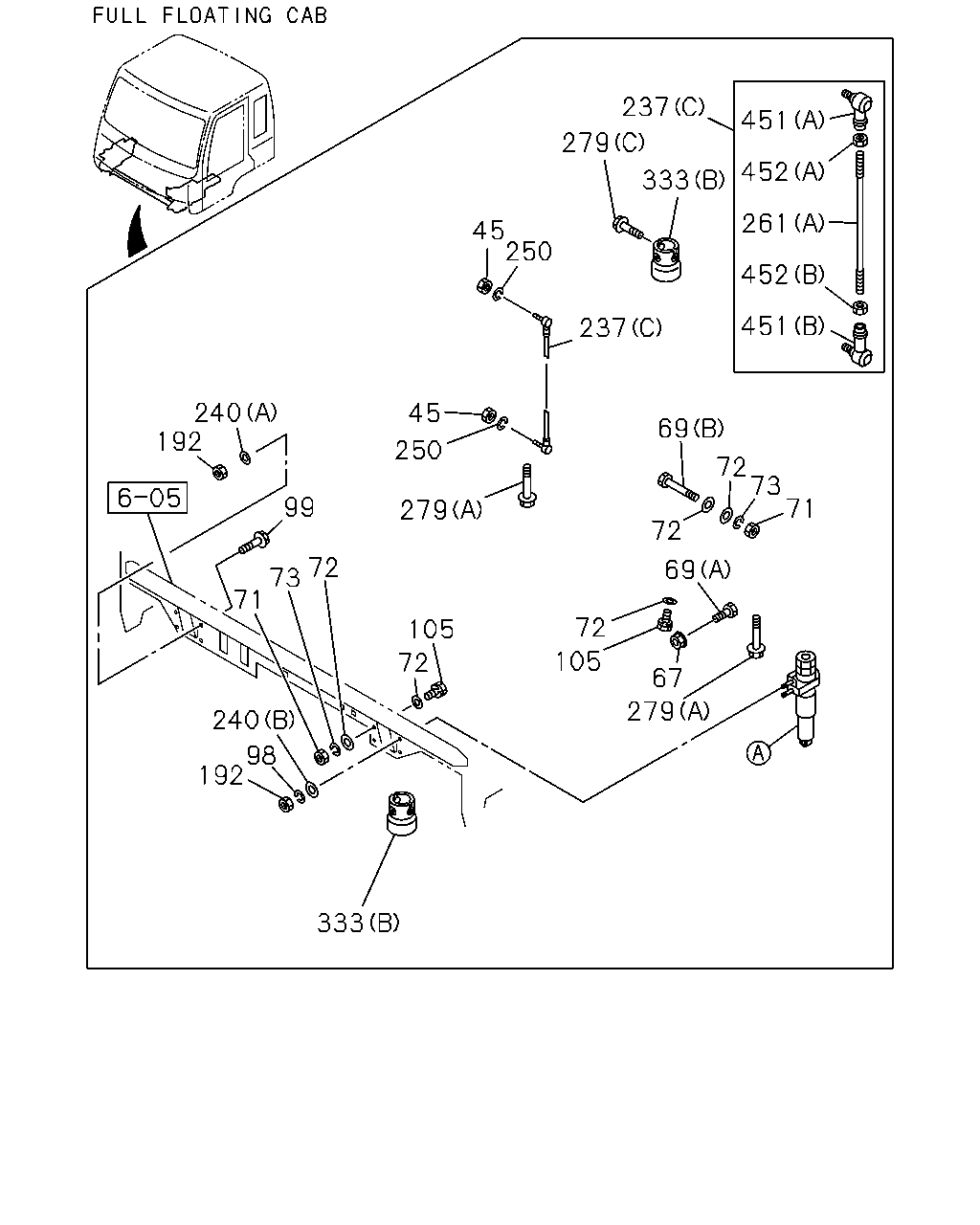

237 451 279 452 333 261 45 250 452 451 237 240 192 45 69 250 72 73 71 99 279 72 72 73 71 69 72 105 105 72 67 279 240 98 192 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0411-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0411-	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0411-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0411-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0411-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0411-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0411-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0411-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0411-	●	●
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0411-	●	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	0411-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0411-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0411-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0411-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0411-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0411-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0411-	●	●
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0411-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0411-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0411-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A) FRONT	9-08410-507-0	01	1	0411-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B) REAR	9-08410-514-0	01	1	0411-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0411-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0411-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28080-860-0	02	1	0411-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0411-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0411-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0411-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0411-	●	●

146 144 145 72 73 69 72 72 71 105 99 112 146 144 69 145 240 72 73 72 67 192 105 71 240 98 192 112 31 120 31 118 27 315 315 113 113 118 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (B) M18X120	1-09000-442-1	02	1	0411-	●	●
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0411-	●	●
31	BRACKET; CAB (A)	1-44226-177-1	01	1	0411-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (B)	1-53453-274-1	01	1	0411-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (B)	1-53453-280-1	01	1	0411-	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0411-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0411-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0411-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0411-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0411-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0411-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0411-	●	●
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0411-	●	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	0411-	●	●

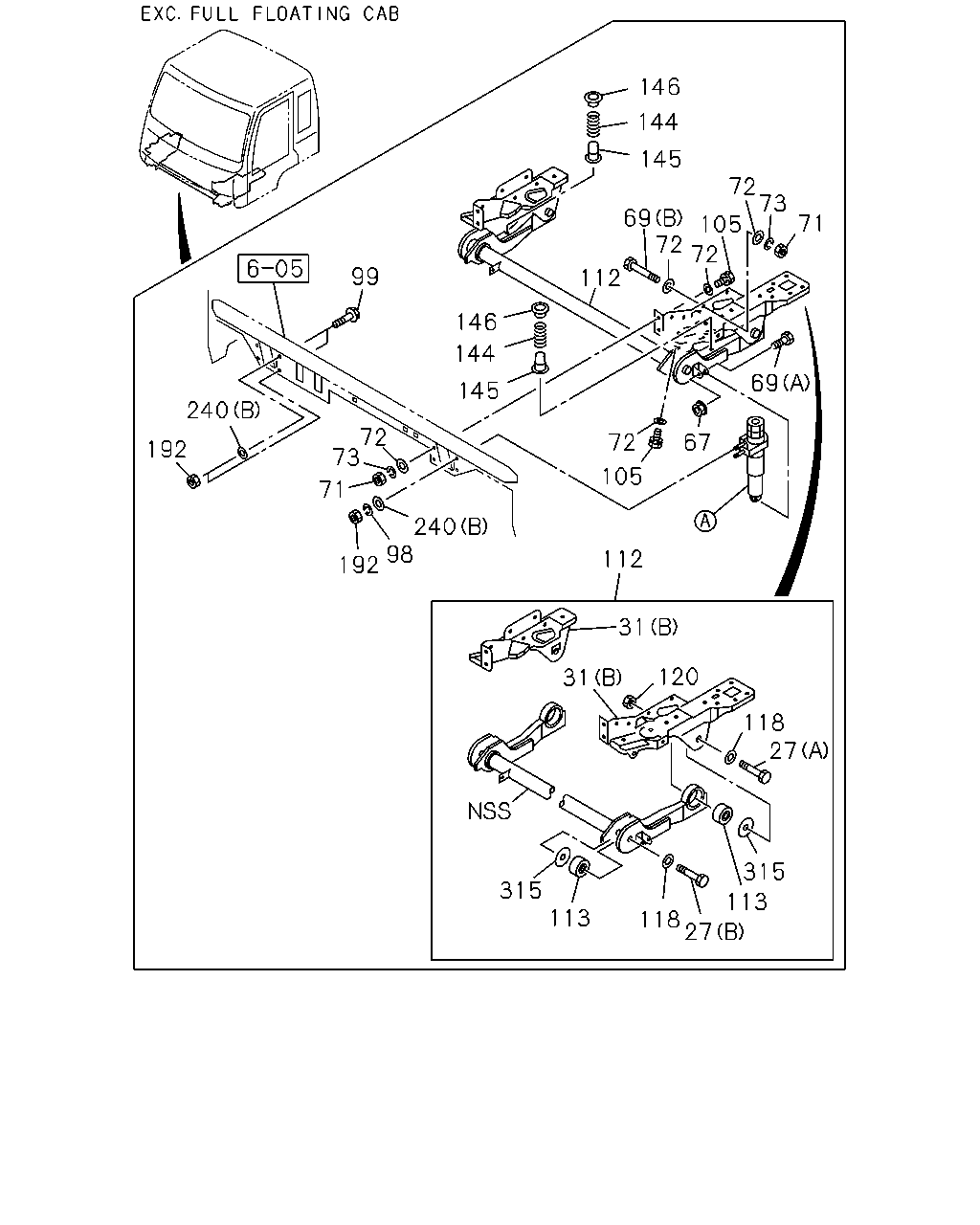

112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-567-6	01	1	0411-	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI EXC. FULL FLOATING CAB(W16)	1-53458-714-0	04	1	0411-	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM EXC. FULL FLOATING CAB(W16) ID=19 OD=30	1-09503-279-0	04	1	0411-	●	●
120	NUT; STOPPER RUBBER,LINK ARM EXC. FULL FLOATING CAB(W16) M18	9-99110-518-0	02	1	0411-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0411-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0411-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0411-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0411-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0411-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0411-	●	●
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0411-	●	●
315	WASHER; CAB MTG EXC. FULL FLOATING CAB(W16) ID=34.5	1-53458-281-1	04	1	0411-	●	●

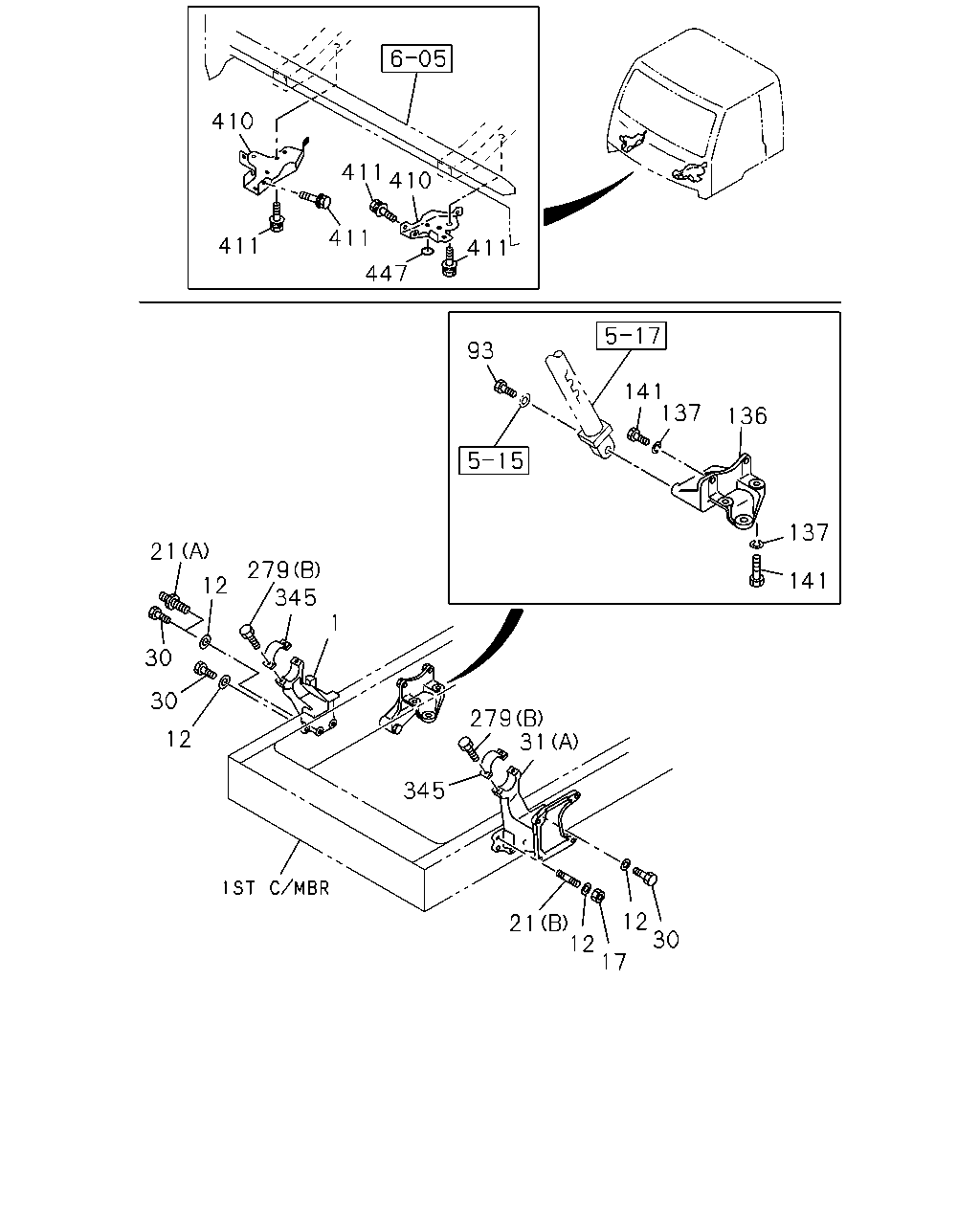

410 411 410 411 411 411 447 93 141 137 136 137 21 279 345 141 12 1 30 30 279 31 12 345 12 30 21 12 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	1-53453-306-1	01	1	0411-	●	●
12	WASHER; LK,BRKT ID=16.2	1-09503-223-0	11	1	0411-	●	●
12	WASHER; LK,BRKT ID=15	9-09651-069-0	02	1	0411-	●	●
17	NUT; BRKT,CAB TILT M16	9-99110-516-0	01	1	0411-	●	●
21	STUD; BRKT,CAB TILT (A) M10X20,M16X50 L=81	1-09029-069-0	02	1	0411-	●	●
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	0411-	●	●
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	03	1	0411-	●	●
30	BOLT; CAB FRT FOOT M16X50	9-92061-650-0	05	1	0411-	●	●
30	BOLT; CAB FRT FOOT M14X60	9-92061-460-0	02	1	0411-	●	●
31	BRACKET; CAB (A)	1-44226-177-1	01	1	0411-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (B)	1-53453-274-1	01	1	0411-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (B)	1-53453-280-1	01	1	0411-	●	●
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0411-	●	●
136	BRACKET; OIL CYL	1-53458-903-0	01	1	0411-	●	●
136	BRACKET; OIL CYL	1-53458-903-0	01	1	0411-	●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0411-	●	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0411-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0411-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0411-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28080-860-0	02	1	0411-	●	●
345	CAP; CAB	1-53458-336-3	02	1	0411-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0411-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-939-0	01	1	0411-	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0411-	●	●
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0411-	●	●
447	SEAL OD=25 BLACK	1-76798-019-0	03	1	0411-	●	●

202 294 202 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-674-0	01	1	0411-0412	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-686-0	01	1	0501-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0411-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0411-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-0	02	1	0411-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0411-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0411-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0411-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0411-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	02	1	0411-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	08	1	0411-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	0411-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0411-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0411-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0411-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0411-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0411-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-1	01	1	0411-	●	●

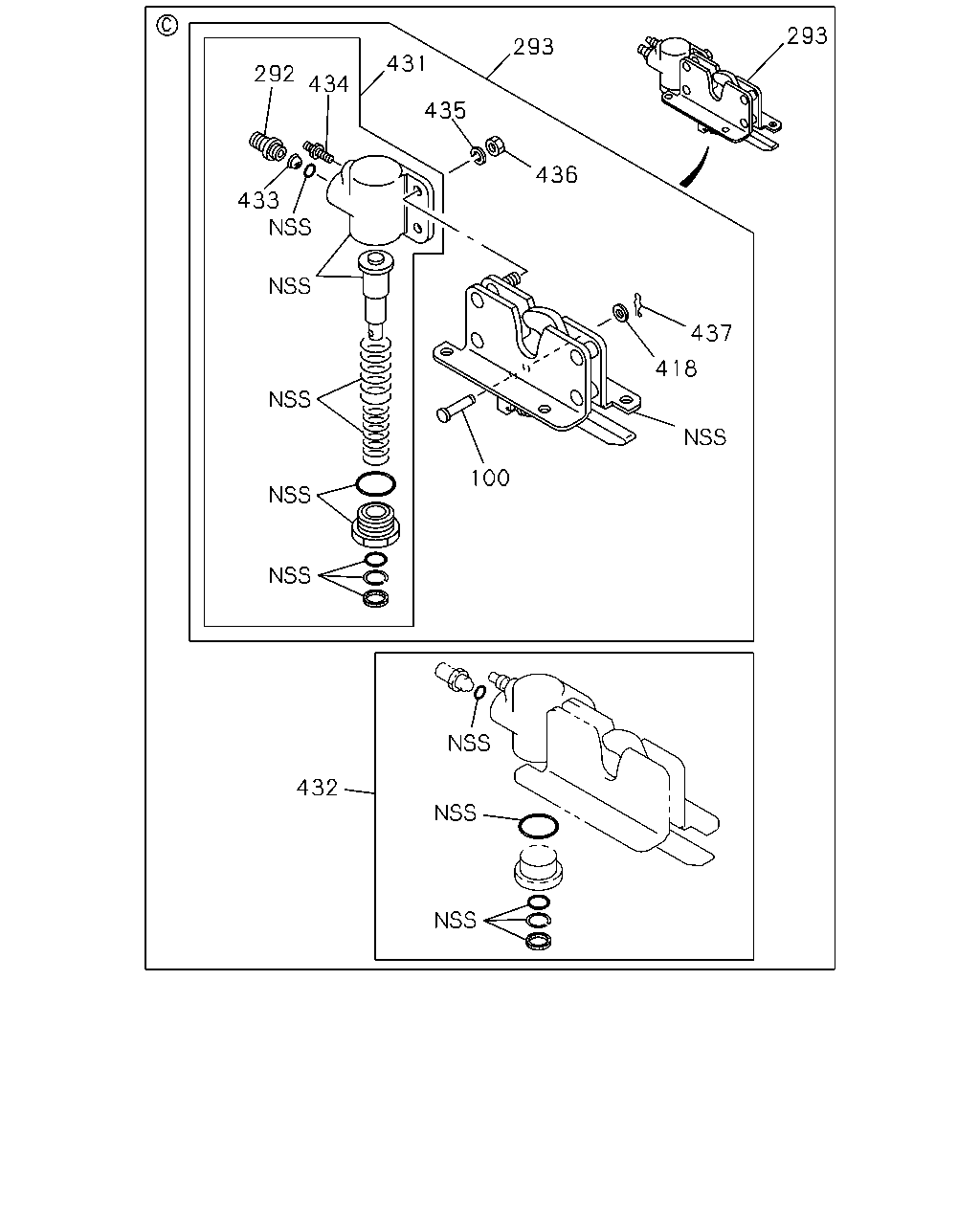

293 293 431 292 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-831-0	01	1	0411-	●	●
292	CONNECTOR; CAB SUSPENSION M12	1-53458-941-0	01	1	0411-	●	●
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0411-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	0411-	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0411-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0411-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	0411-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0411-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0411-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	0411-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	0411-	●	●

202 202 203 69 72 204 205 65 204 203 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-0	02	1	0411-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0411-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0411-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0411-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0411-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0411-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0411-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0411-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0411-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0411-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	02	1	0411-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	08	1	0411-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	0411-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0411-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0411-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0411-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
