5-01 — FRAME AND OTHER PARTS (#26660) — 66 parça

13 13 12 11 12 11 23 23 23 25 25 26 23 25 26 24 39 46 25 25 46 26 35 24 25 23 36 23 37 44 25 25 25 23 26

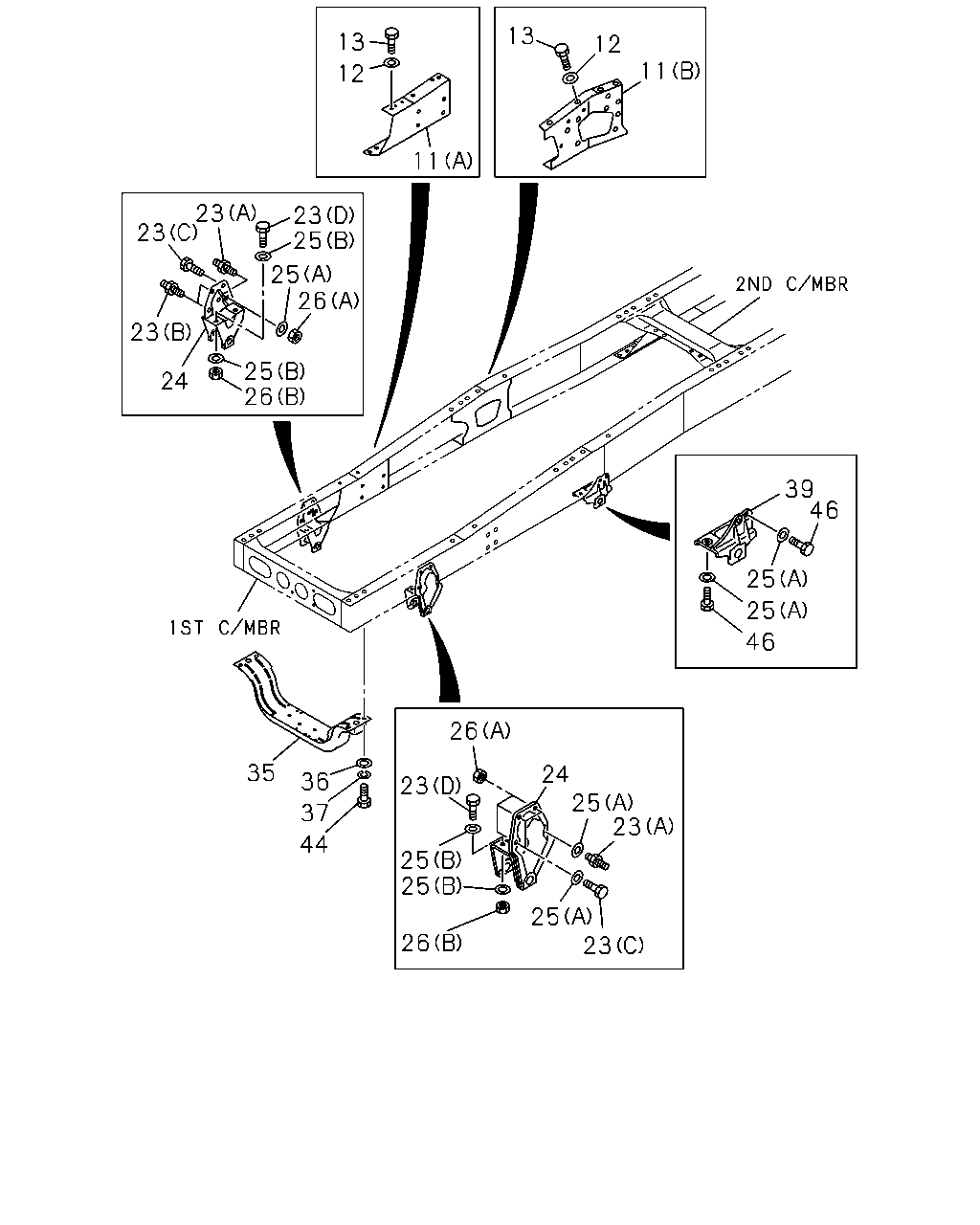

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-0	01	1	0411-	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (B)	1-53239-141-0	01	1	0411-		●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-0	01	1	0411-	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (B)	1-53239-142-0	01	1	0411-		●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0411-	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0411-	●	●	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-0	01	1	0411-	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-0	01	1	0411-	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0411-	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	06	1	0411-	●	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0411-	●	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0411-	●	●	●
23	BOLT; BRKT,SPR (C) M14X50	9-92061-450-0	04	1	0411-	●	●	●
23	BOLT; BRKT,SPR (D) M16X50	9-92061-650-0	04	1	0411-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0411-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0411-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0411-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0411-	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	08	1	0411-	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0411-	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0411-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0411-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0411-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0411-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0411-	●	●	●
44	BOLT; UNDER MBR M16X60	9-92061-660-0	04	1	0411-	●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	0411-	●	●	●

130 86 21 79 21 57 34 41 21 19 41 21 16 130 86 191 21 79 21 2 57 344 41 34 19 21 41 16 21 191 2

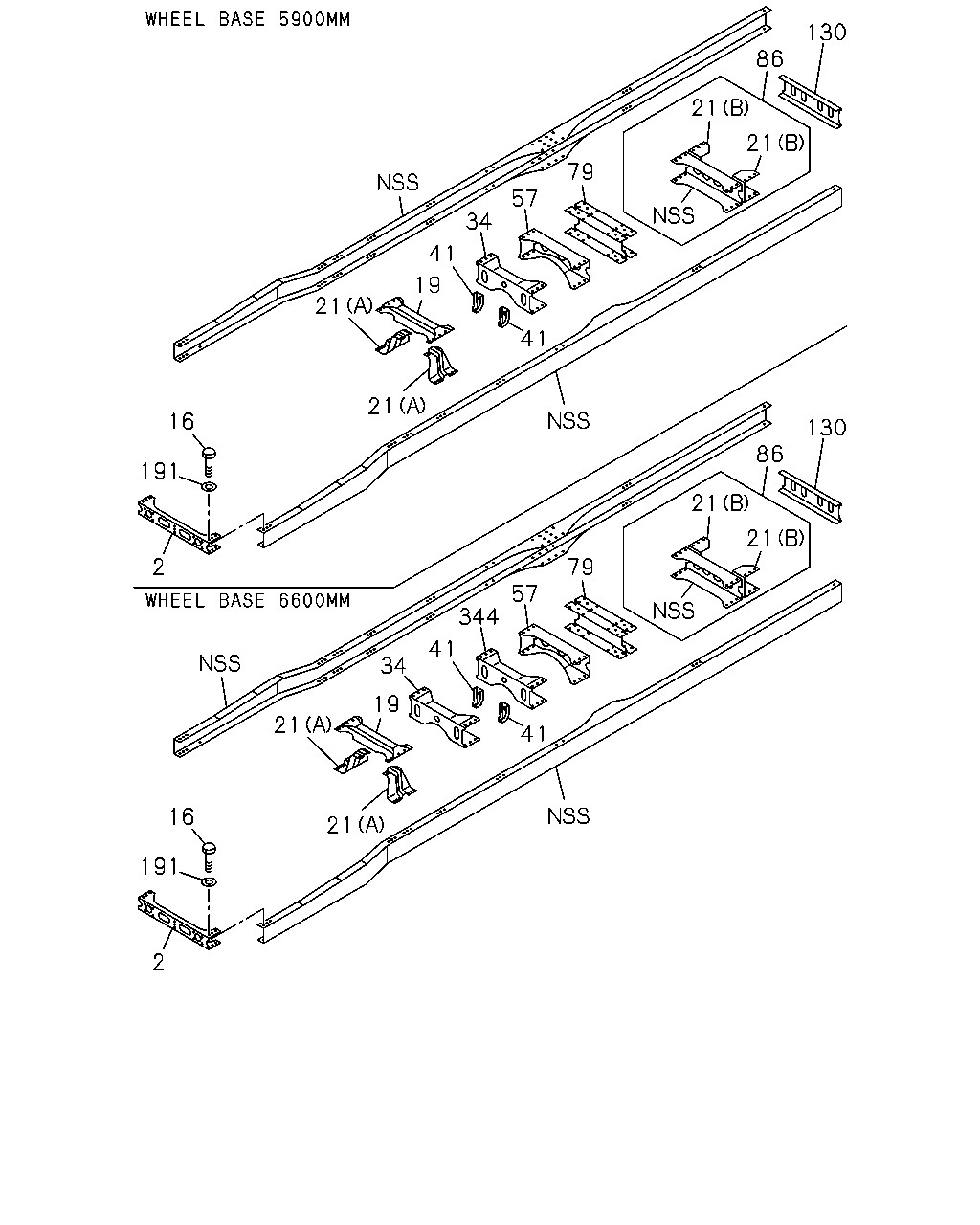

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0411-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0411-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0411-	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0411-	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0411-	●	●	●
34	MEMBER; CROSS,3RD CONCRETE PUMP<RA5>	1-53182-072-0	01	1	0411-		●	●
41	BRACKET; CENTER BRG,FRAME SIDE CONCRETE PUMP<RA5> L=320	1-53271-385-0	02	1	0411-		●
41	BRACKET; CENTER BRG,FRAME SIDE CONCRETE PUMP<RA5> L=340	1-53271-307-1	02	1	0411-			●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53181-994-1	01	1	0411-0411	●
57	MEMBER; CROSS,RR SUSP FRT CONCRETE PUMP<RA5>	1-53181-994-1	01	1	0411-0411		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0411-	●
57	MEMBER; CROSS,RR SUSP FRT CONCRETE PUMP<RA5>	1-53171-685-3	01	1	0411-		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0411-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0411-	●	●	●
130	MEMBER; CROSS,END CONCRETE PUMP<RA5>	1-53171-876-3	01	1	0411-		●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0411-	●	●	●
344	MEMBER; CROSS,4TH CONCRETE PUMP<RA5>	1-53182-072-0	01	1	0411-			●

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 255 80 82 255 255 81 80 79 255 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

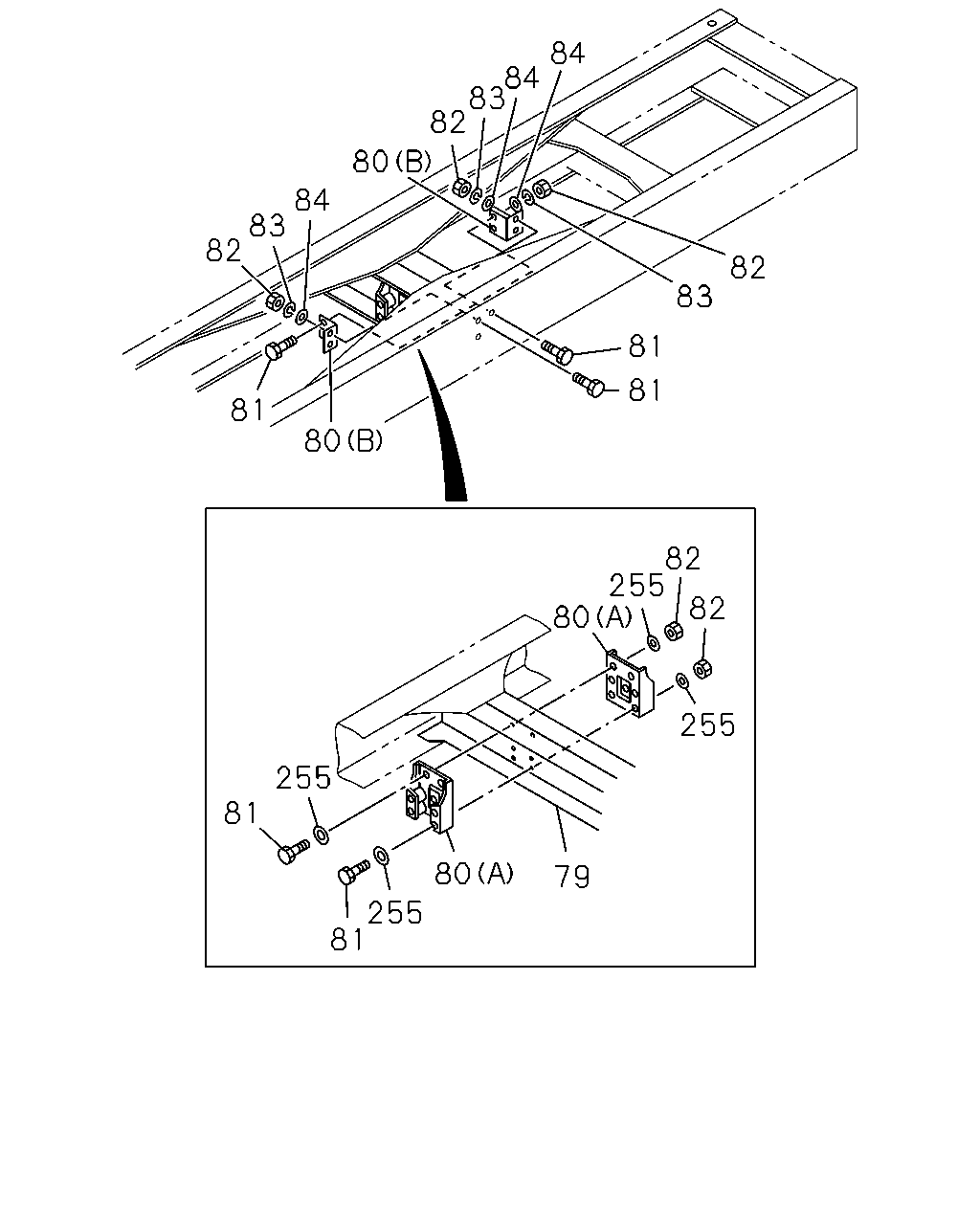

79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0411-	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0411-	●	●	●
80	BRACKET; C/MBR (B)	1-53167-288-0	04	1	0411-	●	●	●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	0411-	●	●	●
81	BOLT; BRKT M14X45	9-92061-445-0	08	1	0411-	●	●	●
82	NUT; BRKT M14	9-99110-514-0	04	1	0411-	●	●	●
82	NUT; BRKT M14	9-99110-514-0	12	1	0411-	●	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	0411-	●	●	●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	0411-	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0411-	●	●	●

86 21 21 79 19 21 21 16 191 86 2 21 21 79 57 19 21 21 16 191 2

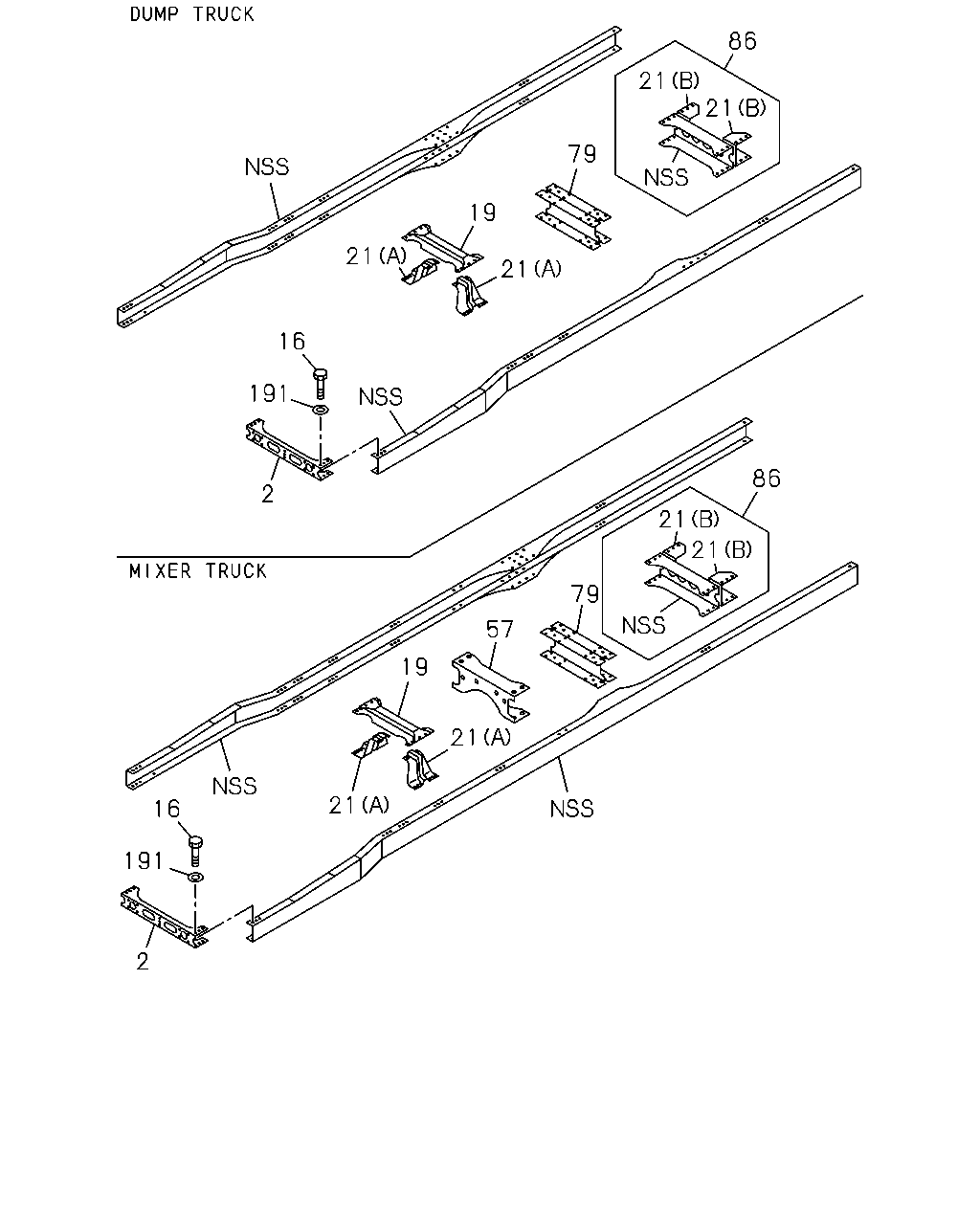

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0411-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0411-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0411-	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0411-	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0411-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53181-994-1	01	1	0411-0411	●
57	MEMBER; CROSS,RR SUSP FRT CONCRETE PUMP<RA5>	1-53181-994-1	01	1	0411-0411		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0411-	●
57	MEMBER; CROSS,RR SUSP FRT CONCRETE PUMP<RA5>	1-53171-685-3	01	1	0411-		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0411-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0411-	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0411-	●	●	●
