4-80 — ROAD WHEEL (#26659) — 44 parça

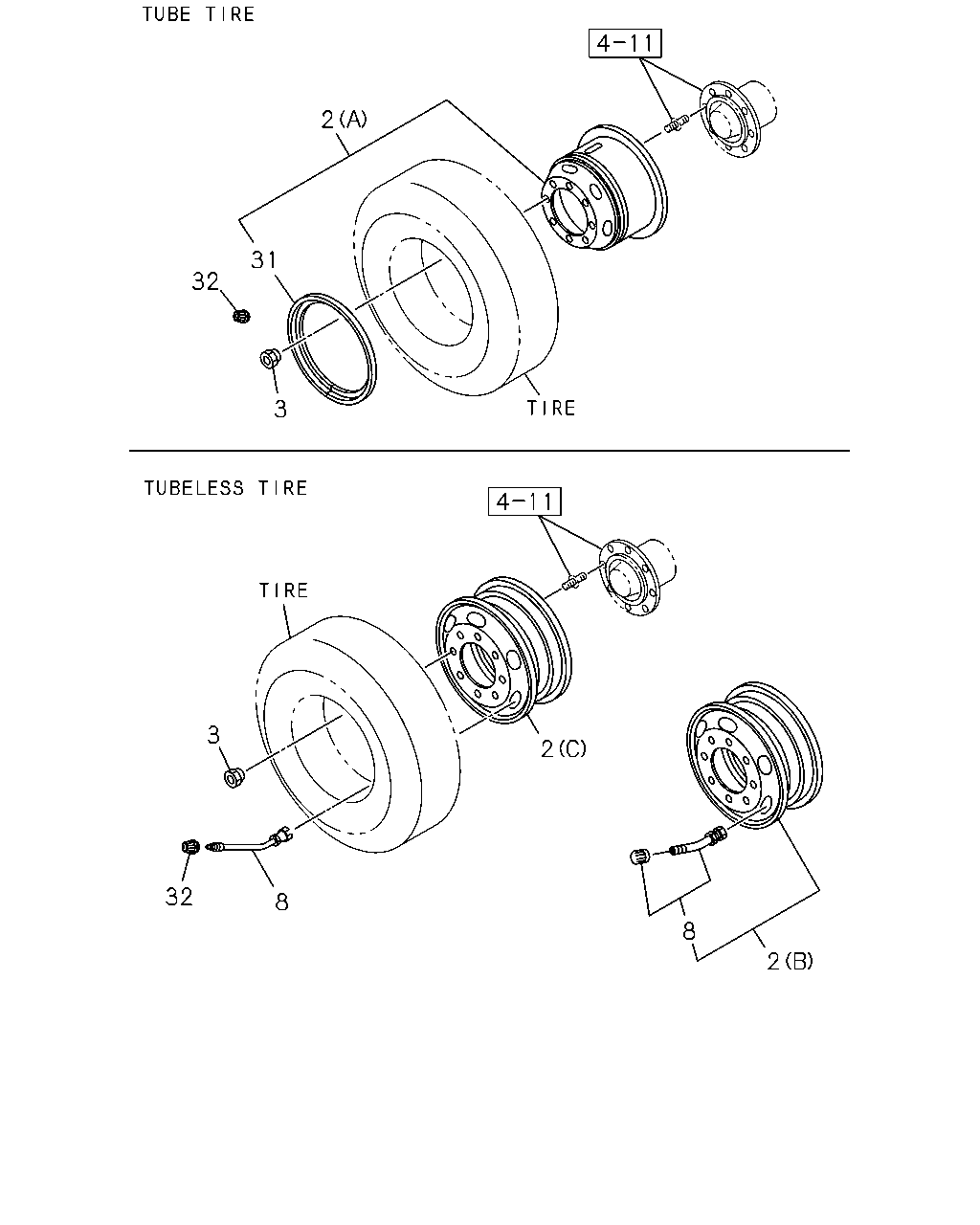

2 31 32 3 3 2 32 8 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	10	1	0411-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-448-0	01	1	0411-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-646-0	10	1	0411-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-646-0	01	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-635-0	10	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-635-0	01	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	10	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-667-0	01	1	0411-	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-0	08	1	0411-	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-0	08	1	0411-	●	●
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0411-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0411-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	10	1	0411-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	10	1	0411-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0411-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	10	1	0411-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-033-1	01	1	0411-	●	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64),WHEEL 8STUD 8.25X22.5 165-13 TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0411-	●	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64),WHEEL 8STUD 8.25X22.5 165-13 TC(SKV) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0411-	●	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42374-001-0	04	1	0411-	●	●

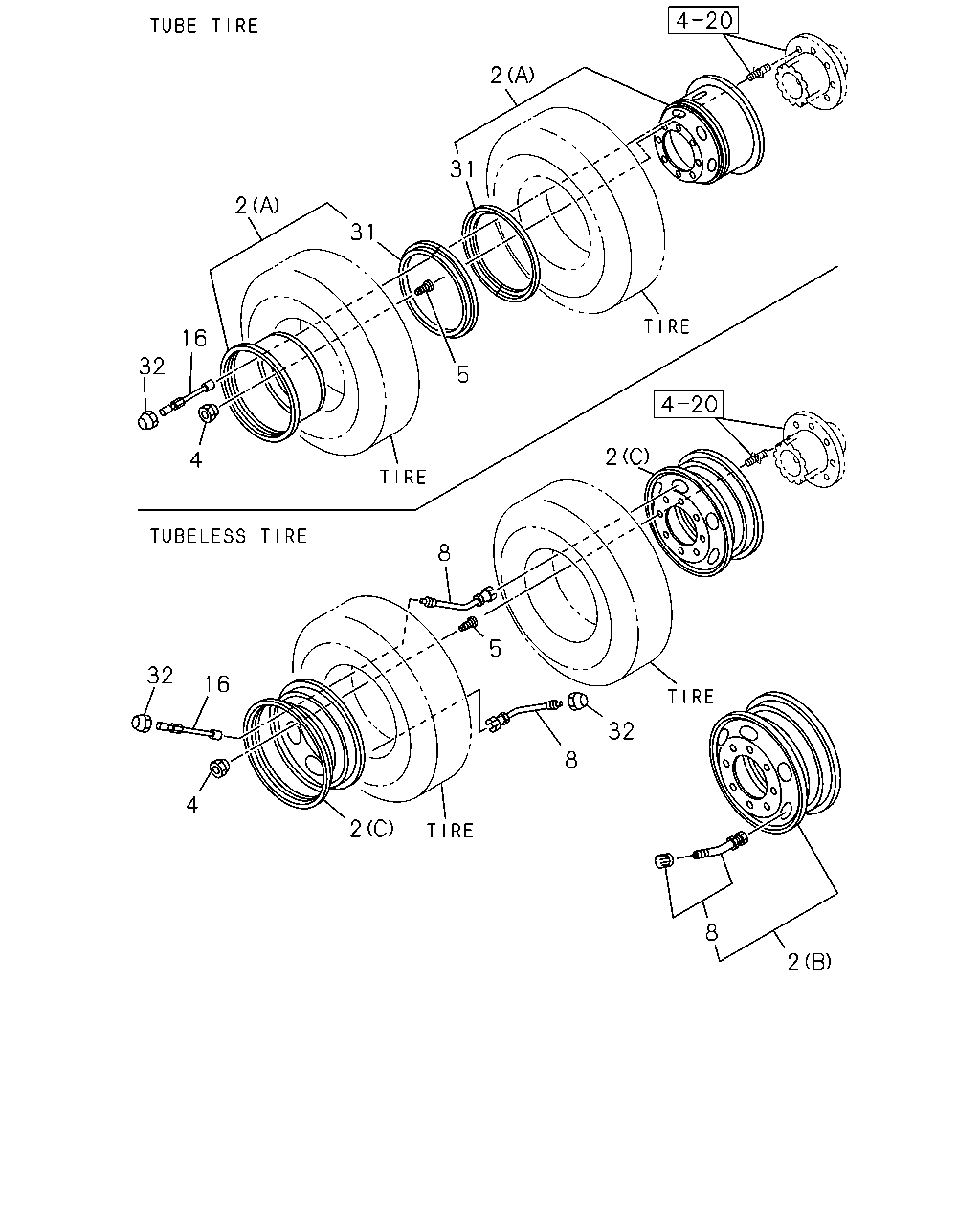

2 31 2 31 16 32 5 2 4 8 5 32 16 32 8 4 2 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	10	1	0411-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-448-0	01	1	0411-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-646-0	10	1	0411-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-646-0	01	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-635-0	10	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-635-0	01	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	10	1	0411-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-667-0	01	1	0411-	●	●
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	40	1	0411-	●	●
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	16	1	0411-	●	●
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	16	1	0411-	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-0	16	1	0411-	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-0	16	1	0411-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0411-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	10	1	0411-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50VX20 165-12(Q64) L=170	1-42370-024-0	04	1	0411-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) L=170	1-42370-024-0	01	1	0411-0502	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	10	1	0411-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0411-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	10	1	0411-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-033-1	01	1	0411-	●	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64),WHEEL 8STUD 8.25X22.5 165-13 TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0411-	●	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64),WHEEL 8STUD 8.25X22.5 165-13 TC(SKV) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0411-	●	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42374-001-0	04	1	0411-	●	●
