◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#26658) — 30 parça

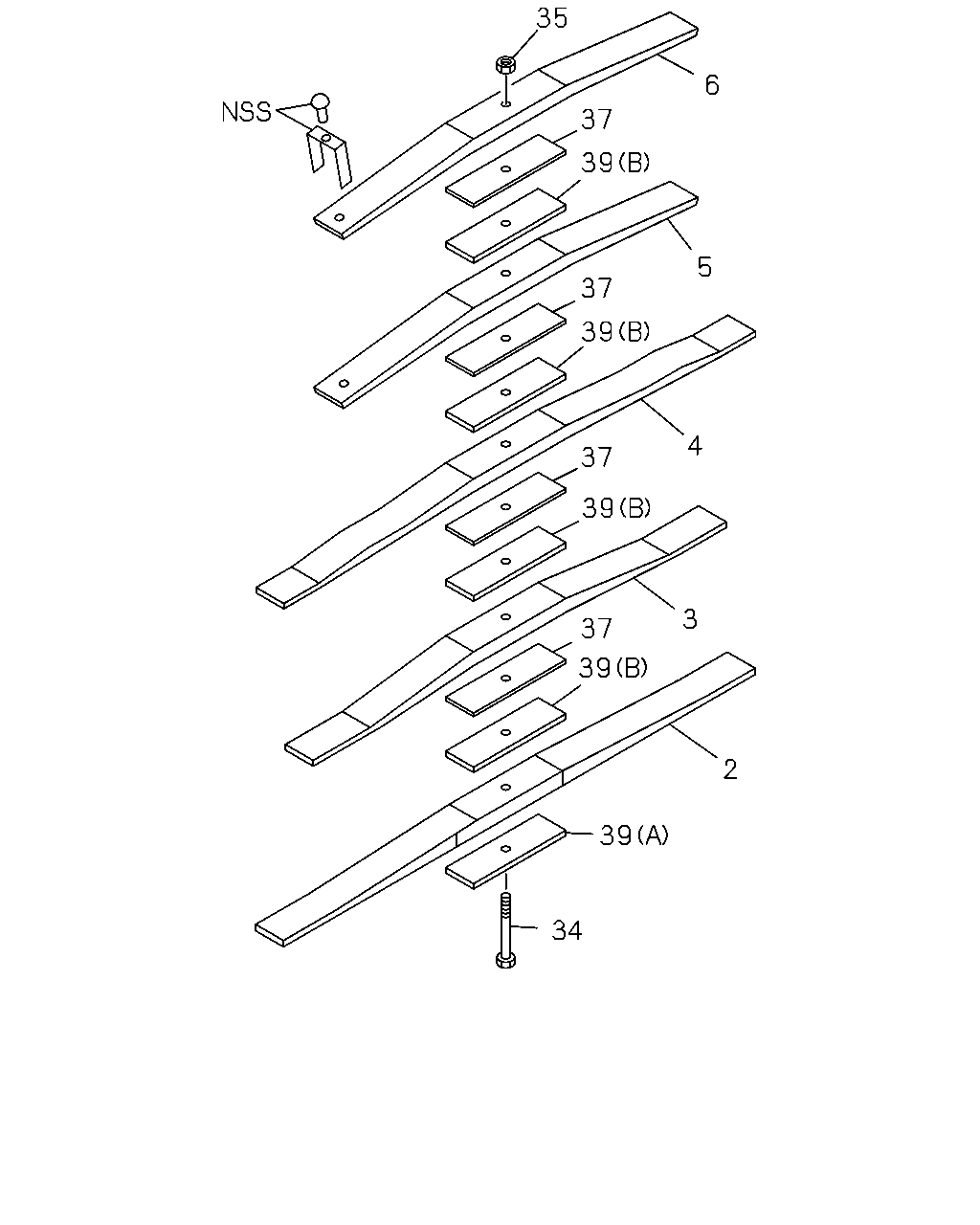

çizim 21458
35 6 37 39 5 37 39 4 37 39 3 37 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51411-294-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51412-294-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51413-294-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5 LEAF ASM PART: B = 1-51410-301-0 		1-51414-275-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51414-294-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5 LEAF, W/CLIP ASM PART: B = 1-51410-301-0 		1-51415-275-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9 LEAF, W/CLIP ASM PART: A = 1-51410-294-0 		1-51415-294-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51410-294-0 		1-51356-120-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51410-301-0 		1-51356-364-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51410-294-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: B = 1-51410-301-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: B = 1-51410-301-0 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=2 ASM PART: B = 1-51410-301-0 		1-51377-398-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: B = 1-51410-301-0 		1-51377-399-0 04 1 -
çizim 84488
35 10 9 7 6 5 4 3 36 2 34 8
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51411-294-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51412-294-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51413-294-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5 LEAF ASM PART: B = 1-51410-301-0 		1-51414-275-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51414-294-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5 LEAF, W/CLIP ASM PART: B = 1-51410-301-0 		1-51415-275-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9 LEAF, W/CLIP ASM PART: A = 1-51410-294-0 		1-51415-294-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51416-294-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51417-294-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51418-294-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9 LEAF ASM PART: A = 1-51410-294-0 		1-51419-294-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51410-294-0 		1-51356-120-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51410-301-0 		1-51356-364-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51410-294-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: B = 1-51410-301-0 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51410-294-0 		1-09000-326-0 01 1 -
