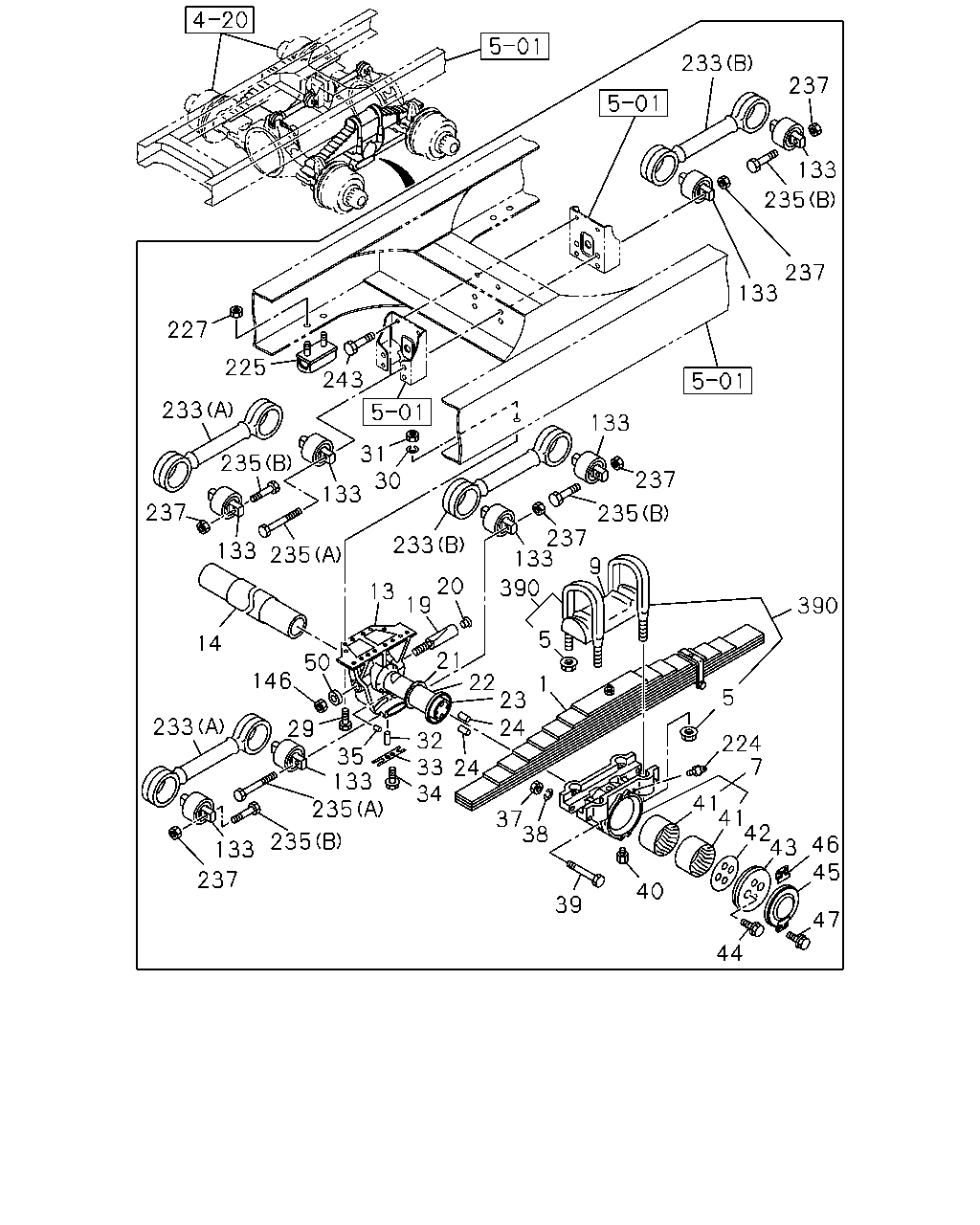

4-60 — REAR SUSPENSION (#26657) — 50 parça
çizim 24135
233 237 133 235 237 133 227 225 243 233 133 31 30 235 237 133 237 235 237 133 233 133 235 9 20 19 390 13 390 5 14 21 50 146 22 23 24 1 5 29 233 32 33 34 224 7 35 133 235 24 41 41 42 43 37 38 235 46 45 133 237 40 39 47 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> 5-LEAF 		1-51410-301-0 02 1 0411- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TAPER LEAF SUSP RR<SAT> 5-LEAF 		1-51410-301-0 02 1 0411- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF 		1-51410-294-0 02 1 0411- ● ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 0411- ● ●
7 SEAT; SPR,LWR 1-51385-091-2 02 1 0411- ● ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 0411- ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0411- ● ●
14 PIPE; TRUNNION BRKT 1-51389-032-0 01 1 0411- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0411- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0411- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0411- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-2 02 1 0411- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0411- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0411- ● ●
29 BOLT; BRKT TO FRAME
M18X75 		1-09000-221-2 24 1 0411-0411 ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) M18X75 		1-09000-221-2 24 1 0411-0411 ●
29 BOLT; BRKT TO FRAME
M18X80 		1-09000-428-1 24 1 0411- ● ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 0411- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0411- ● ●
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 0411- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0411- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0411- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28081-016-0 02 1 0411- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0411- ● ●
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 0411- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 0411- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0411- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0411- ● ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0411- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0411- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0411- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0411- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0411- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 0411- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 0411- ● ●
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 0411- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0411- ● ●
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 0411- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0411- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-072-1 02 1 0411- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-1 02 1 0411- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0411- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 03 1 0411- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 03 1 0411- ● ●
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 0411- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 0411- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0411- ● ●
243 BOLT; BRKT,TORQUE ROD
M14X205 		1-09000-147-0 02 1 0411- ● ●
243 BOLT; BRKT,TORQUE ROD
M14X50 		9-92061-450-0 02 1 0411- ● ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 0411- ● ●
