4-55 — FRONT LEAF SPRING (#26656) — 107 parça

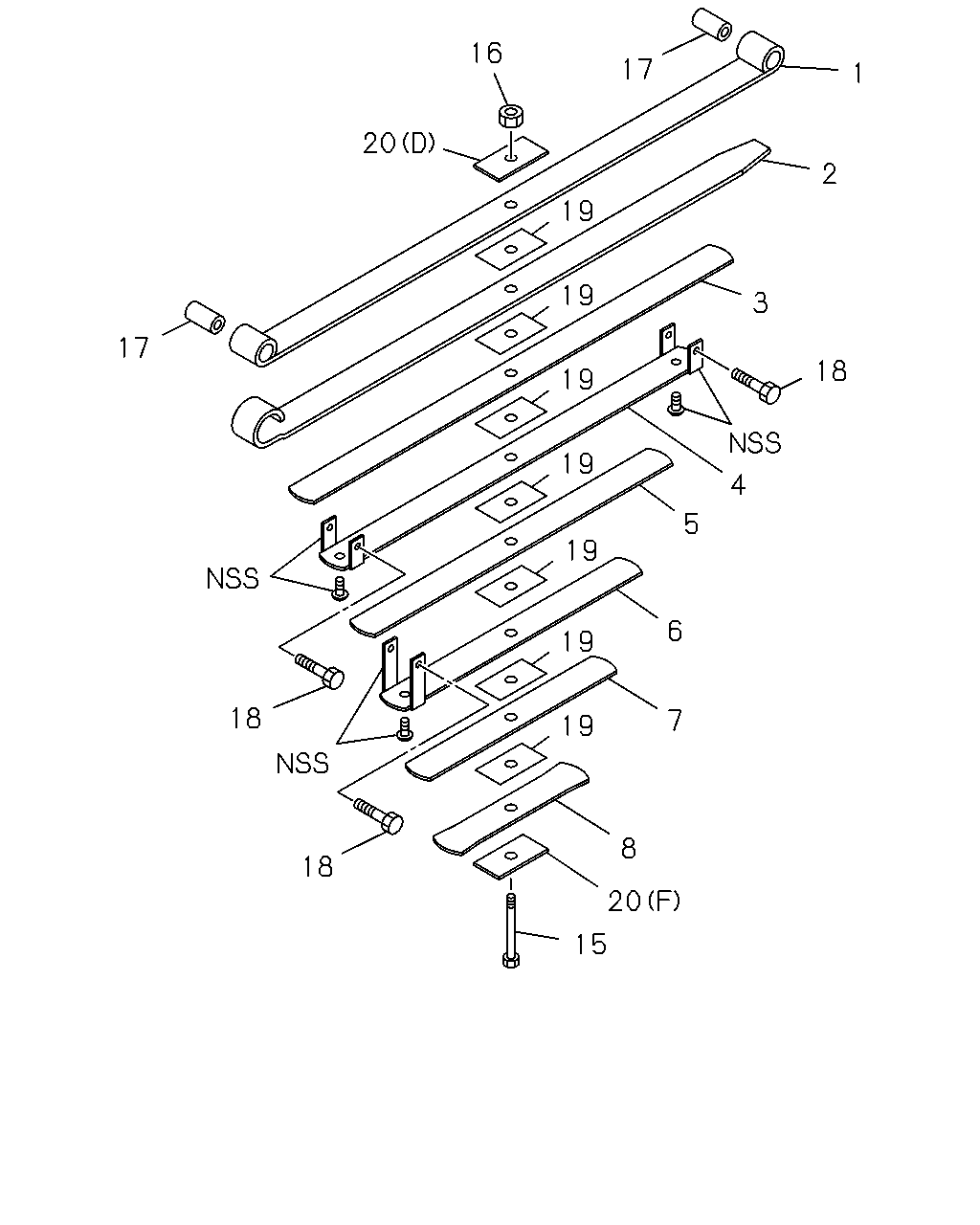

16 17 1 20 2 18 19 17 3 19 4 19 5 19 18 6 19 18 7 19 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51131-892-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51131-962-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51132-892-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 7LEAF ASM PART: B = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51132-962-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51133-892-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51133-962-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51134-892-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51134-962-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51135-962-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51136-962-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51137-962-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: C = 1-51130-962-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-961-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-934-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-934-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-934-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X103 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X102 ASM PART: A = 1-51130-934-0	1-09000-759-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-961-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-962-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-934-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: C = 1-51130-962-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 1-51130-934-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=15 ASM PART: B = 1-51130-961-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-934-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: A = 1-51130-934-0	1-51377-401-0	03	1	-

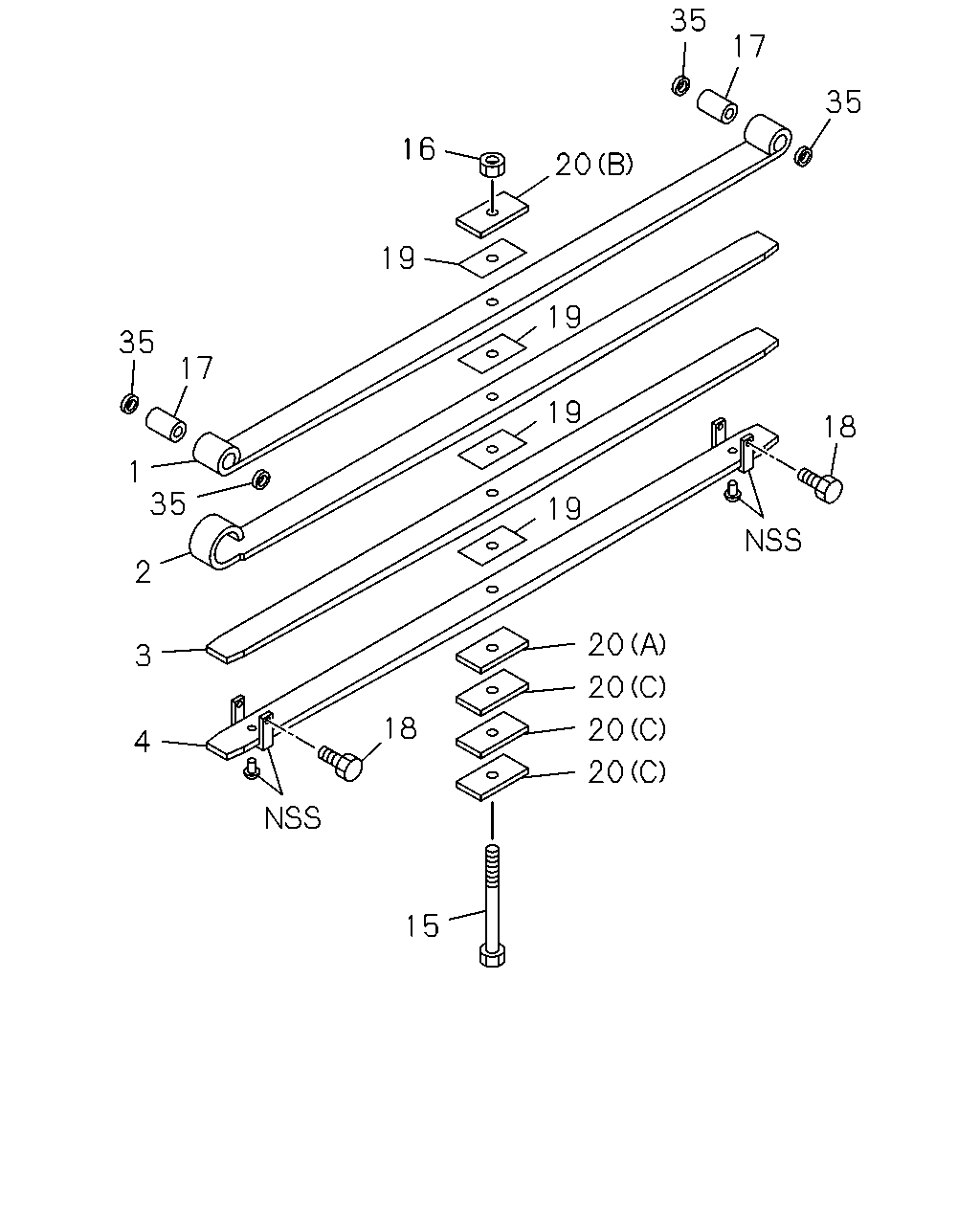

35 17 35 16 20 19 19 35 17 19 18 1 35 19 2 20 3 20 18 20 4 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51131-892-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51131-962-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51132-892-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 7LEAF ASM PART: B = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51132-962-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51133-892-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51133-962-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51134-892-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51134-962-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: C = 1-51130-962-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-961-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-934-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-934-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-934-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X103 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X102 ASM PART: A = 1-51130-934-0	1-09000-759-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-961-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-962-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-934-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: C = 1-51130-962-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 1-51130-934-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=15 ASM PART: B = 1-51130-961-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-934-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: A = 1-51130-934-0	1-51377-401-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-934-0, B = 1-51130-961-0, C = 1-51130-962-0	1-51177-321-0	04	1	-

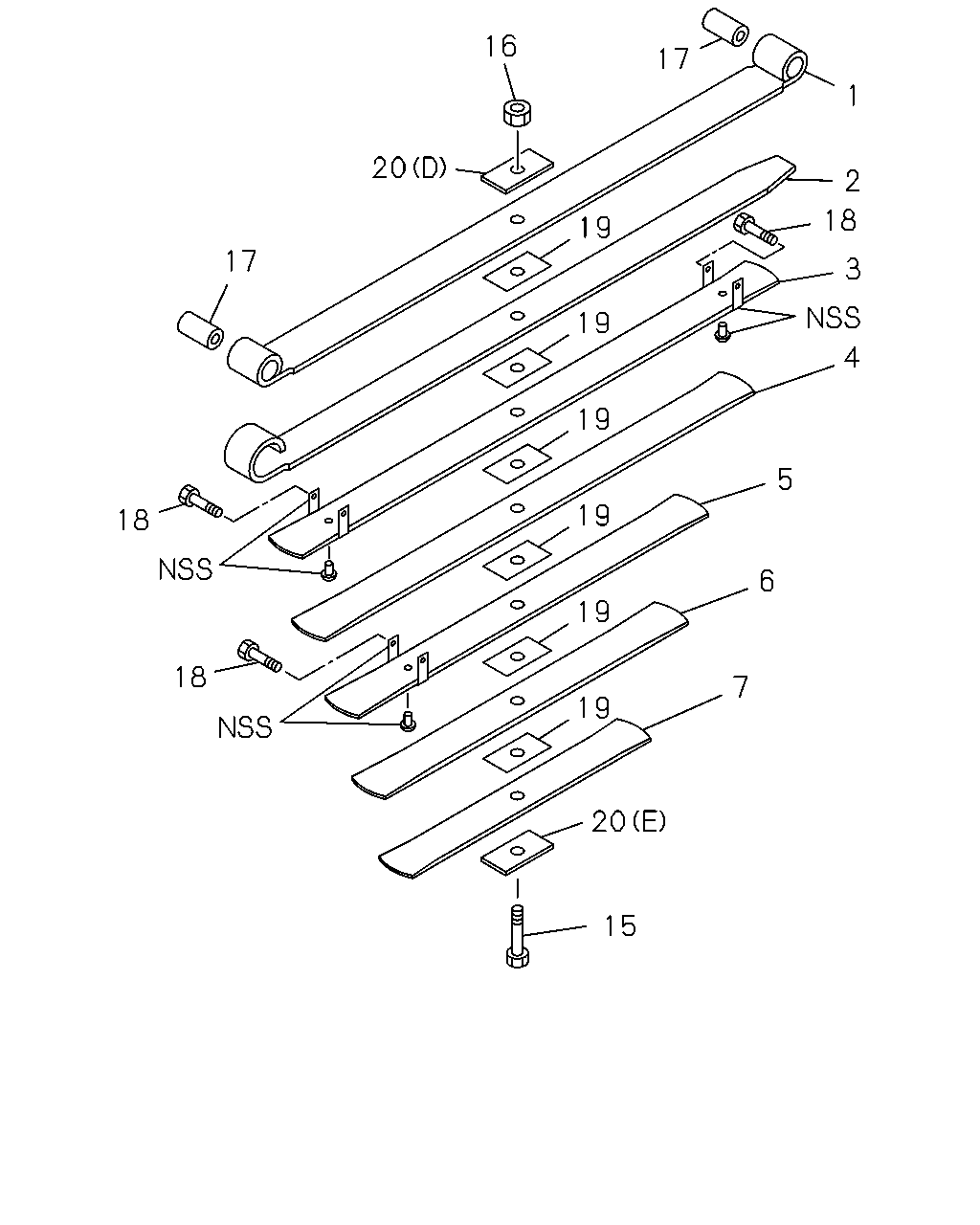

16 17 1 20 2 19 19 3 17 18 19 19 4 5 19 6 19 18 7 19 8 18 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51131-892-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51131-962-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51132-892-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 7LEAF ASM PART: B = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51132-962-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51133-892-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51133-962-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 4 LEAF ASM PART: A = 1-51130-934-0	1-51134-892-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51134-962-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51135-962-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51136-962-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 7 LEAF ASM PART: B = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51137-962-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 8 LEAF ASM PART: C = 1-51130-962-0	1-51138-962-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: C = 1-51130-962-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-961-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-934-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-934-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-934-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X103 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X102 ASM PART: A = 1-51130-934-0	1-09000-759-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-961-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-962-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-934-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: C = 1-51130-962-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: B = 1-51130-961-0, C = 1-51130-962-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 1-51130-934-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=15 ASM PART: B = 1-51130-961-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-934-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: A = 1-51130-934-0	1-51377-401-0	03	1	-
