◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#26655) — 41 parça

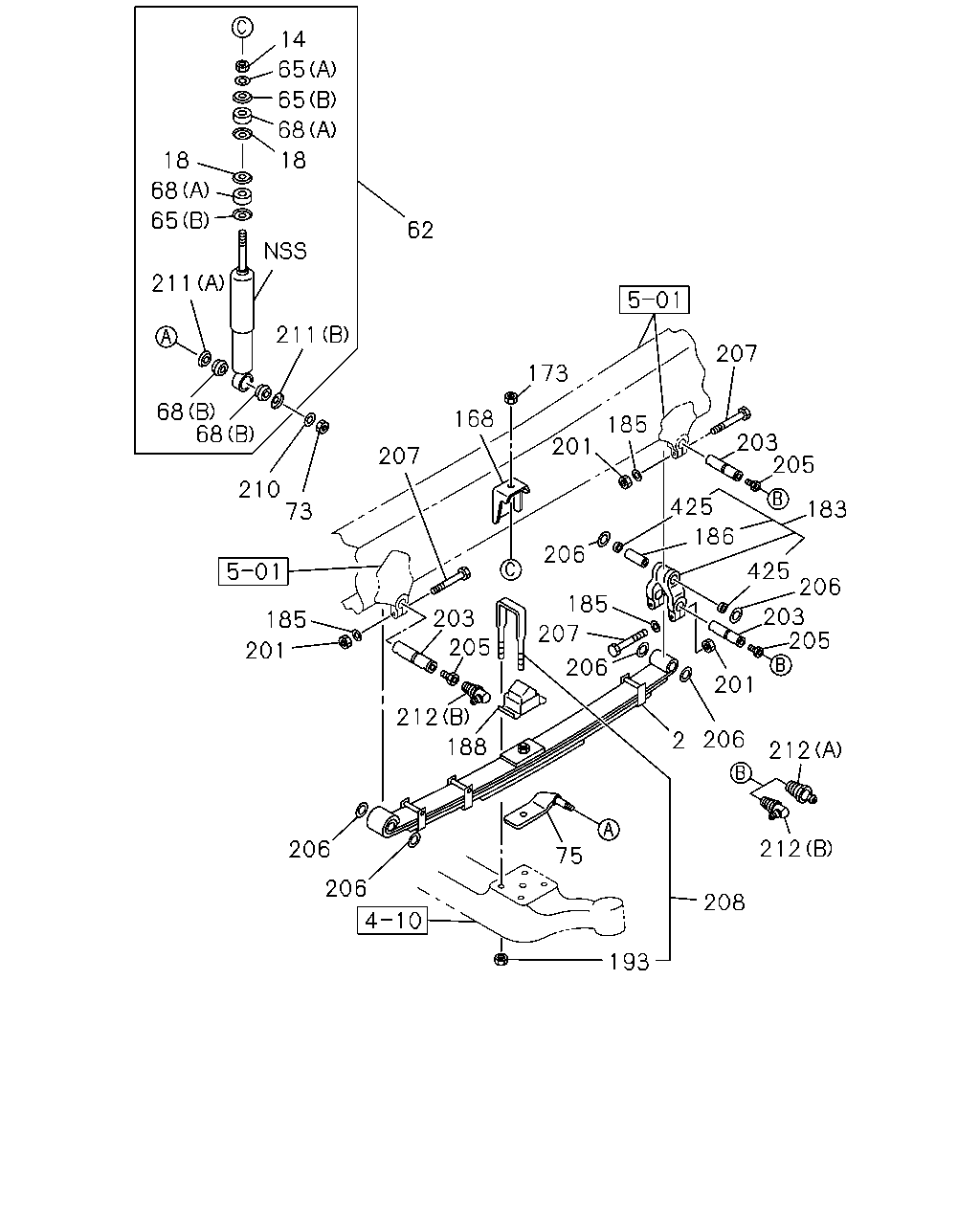

çizim 23830
14 65 65 68 18 18 68 65 62 211 211 207 173 68 68 168 185 203 205 201 207 210 73 425 183 186 206 425 206 185 203 205 203 185 207 205 201 206 201 212 206 2 188 212 212 206 75 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4 LEAF 		1-51130-934-0 02 1 0411- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> 4 LEAF 		1-51130-934-0 02 1 0411- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> MULTI LEAF SUSPENSION FRT<SAQ> 7 LEAF 7-LEAF 		1-51130-961-0 02 1 0411- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) CONCRETE PUMP<RA5> MULTI LEAF SUSPENSION FRT<SAQ> 7 LEAF 7-LEAF 		1-51130-961-0 02 1 0411- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. MIXER TRUCK<RA2> 8 LEAF 8-LEAF 		1-51130-962-0 02 1 0411- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. CONCRETE PUMP<RA5> 8 LEAF 8-LEAF 		1-51130-962-0 02 1 0411- ●
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 0411- ● ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0411- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-433-1 02 1 0411- ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 0411- ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0411- ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0411- ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0411- ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0411- ● ●
73 NUT; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> M20 		9-99110-520-0 02 1 0411- ● ●
75 BRACKET; FRT S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51681-826-1 01 1 0411- ● ●
75 BRACKET; FRT S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51681-825-1 01 1 0411- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0411- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0411- ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0411- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0411- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0411- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-0 02 1 0411- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0411- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0411- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0411- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0411- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0411- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0411- ● ●
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> L=230 		1-87870-269-1 04 1 0411- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> EXC. MIXER TRUCK<RA2> L=230 		1-87870-269-1 04 1 0411- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) CONCRETE PUMP<RA5> L=230 		1-87870-269-1 04 1 0411- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> EXC. CONCRETE PUMP<RA5> L=230 		1-87870-269-1 04 1 0411- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MIXER TRUCK<RA2> L=250 		1-87870-343-0 04 1 0411- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. CONCRETE PUMP<RA5> L=250 		1-87870-343-0 04 1 0411- ●
210 WASHER; S/ABS,OUTER
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> ID=21 		9-09160-520-0 02 1 0411- ● ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0411- ● ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0411- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0411- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 0411- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0411- ● ●
