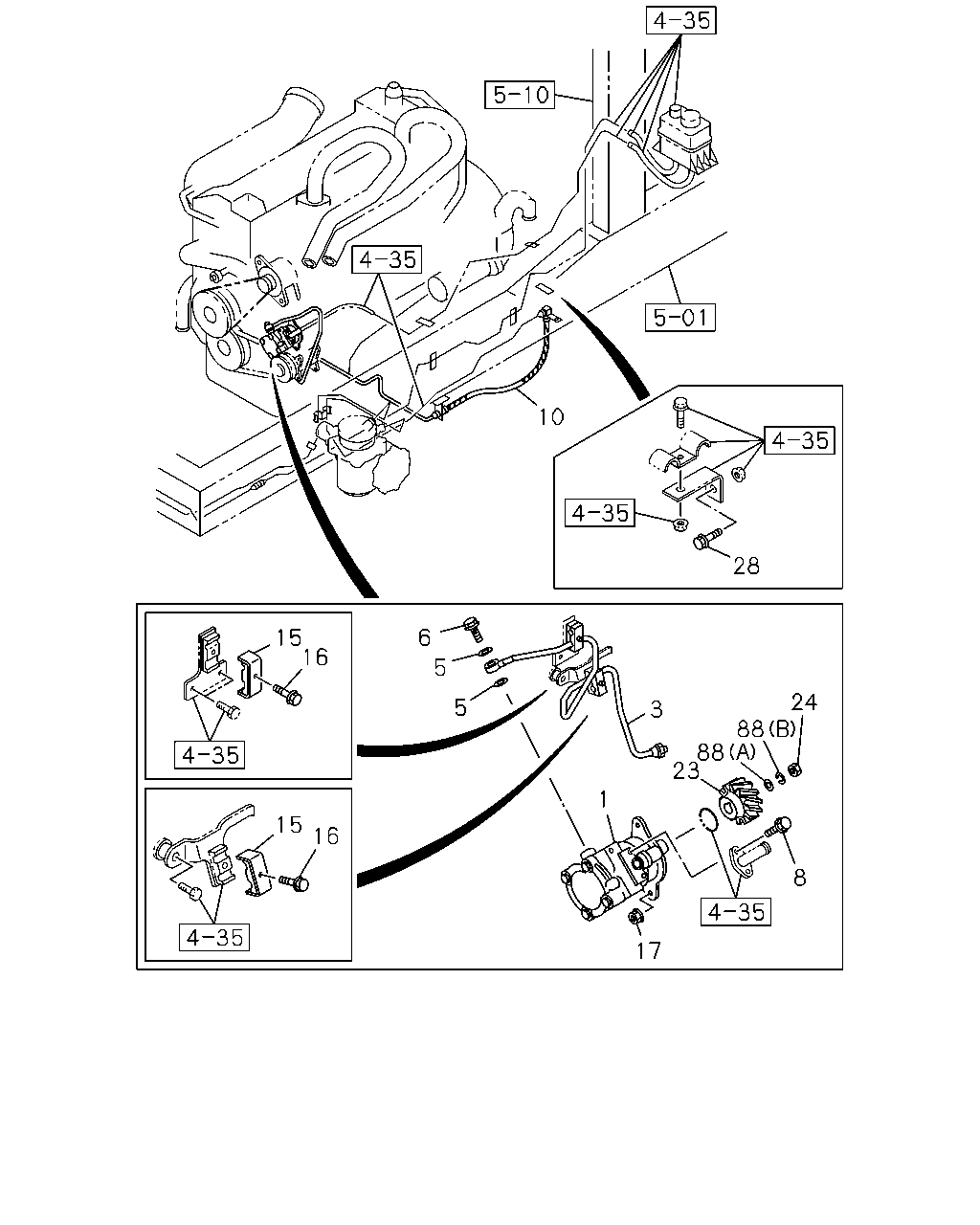

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#26652) — 14 parça

10 28 15 16 6 5 24 88 88 23 5 3 1 15 16 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-561-2	01	1	0411-	●	●
3	PIPE; OIL,CHARGE,P/S	1-13313-773-1	01	1	0411-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0411-	●	●
6	BOLT; EYE,P/S PIPE M18X33	1-09675-058-0	01	1	0411-	●	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0411-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=430	1-09365-045-0	01	1	0411-	●	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-2	02	1	0411-	●	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	0411-	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	0411-	●	●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	0411-	●	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0411-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	01	1	0411-	●	●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0411-	●	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0411-	●	●
