4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#26651) — 83 parça

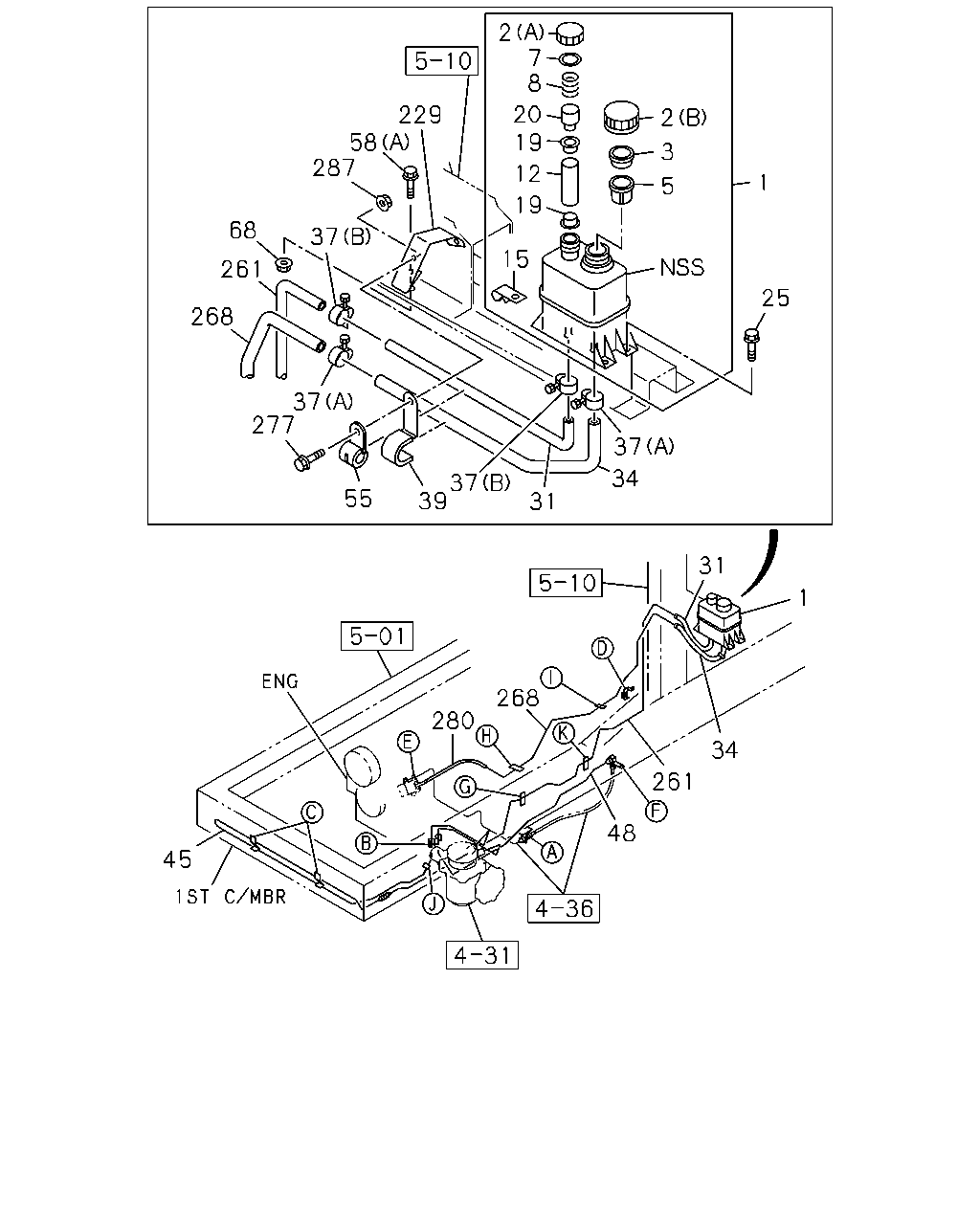

2 7 8 20 19 229 58 287 2 3 12 1 5 19 68 37 15 261 25 268 37 277 37 34 37 39 55 31 31 1 268 280 34 261 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0411-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	0411-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	0411-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0411-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0411-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0411-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0411-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0411-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0411-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0411-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0411-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0411-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0411-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0411-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0411-	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0411-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2805	1-21117-640-0	01	1	0411-0411	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2811	1-21117-689-0	01	1	0412-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1863	1-21117-638-0	01	1	0411-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0411-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0411-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	03	1	0411-	●	●
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0411-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0411-	●	●
261	PIPE; OIL,UNION TO HOSE L=2472	1-21117-639-0	01	1	0411-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0411-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0411-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0411-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0411-	●	●

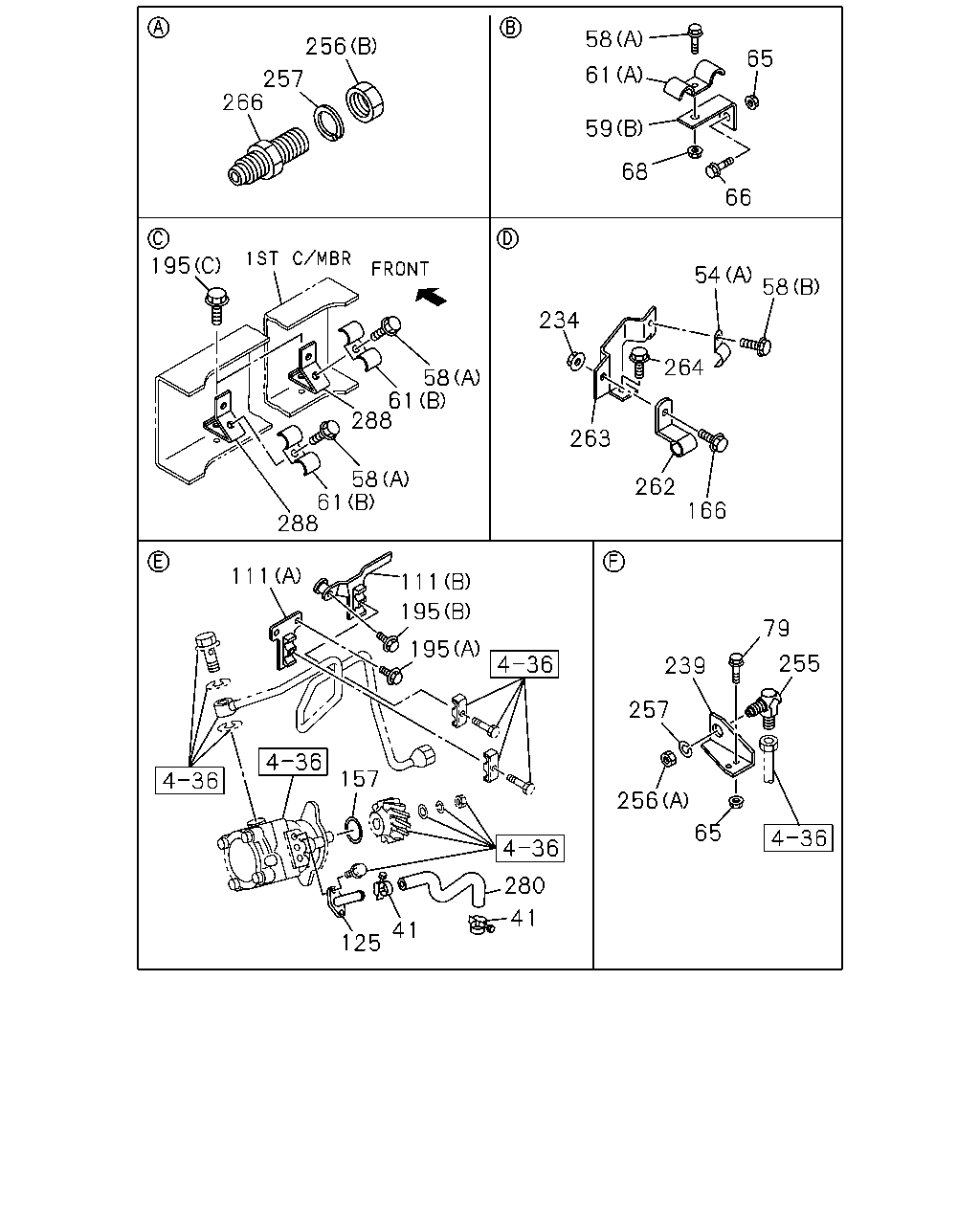

58 256 65 61 257 266 59 68 66 195 54 58 234 264 58 61 288 263 58 61 288 262 166 111 111 195 79 195 255 239 257 157 256 65 280 41 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0411-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0411-	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0411-	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0411-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0411-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	03	1	0411-	●	●
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0411-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=115 B=25	1-47476-758-0	01	1	0411-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0411-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0411-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0411-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
66	BOLT; BRKT,OIL PIPE M8X35 FLANGE	0-28680-835-0	01	1	0411-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0411-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0411-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0411-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0411-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0411-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0411-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0411-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0411-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0411-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0411-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0411-	●	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0411-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0411-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0411-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0411-	●	●
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0411-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0411-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0411-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0411-	●	●
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0411-	●	●

166 54 166 54 63 65 64 58 54 58 54 59 277 61 63 65 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0411-	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0411-	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0411-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0411-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	03	1	0411-	●	●
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0411-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=115 B=25	1-47476-758-0	01	1	0411-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0411-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0411-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0411-	●	●
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0411-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	01	1	0411-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0411-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
