4-20 — REAR AXLE CASE AND SHAFT (#26646) — 83 parça

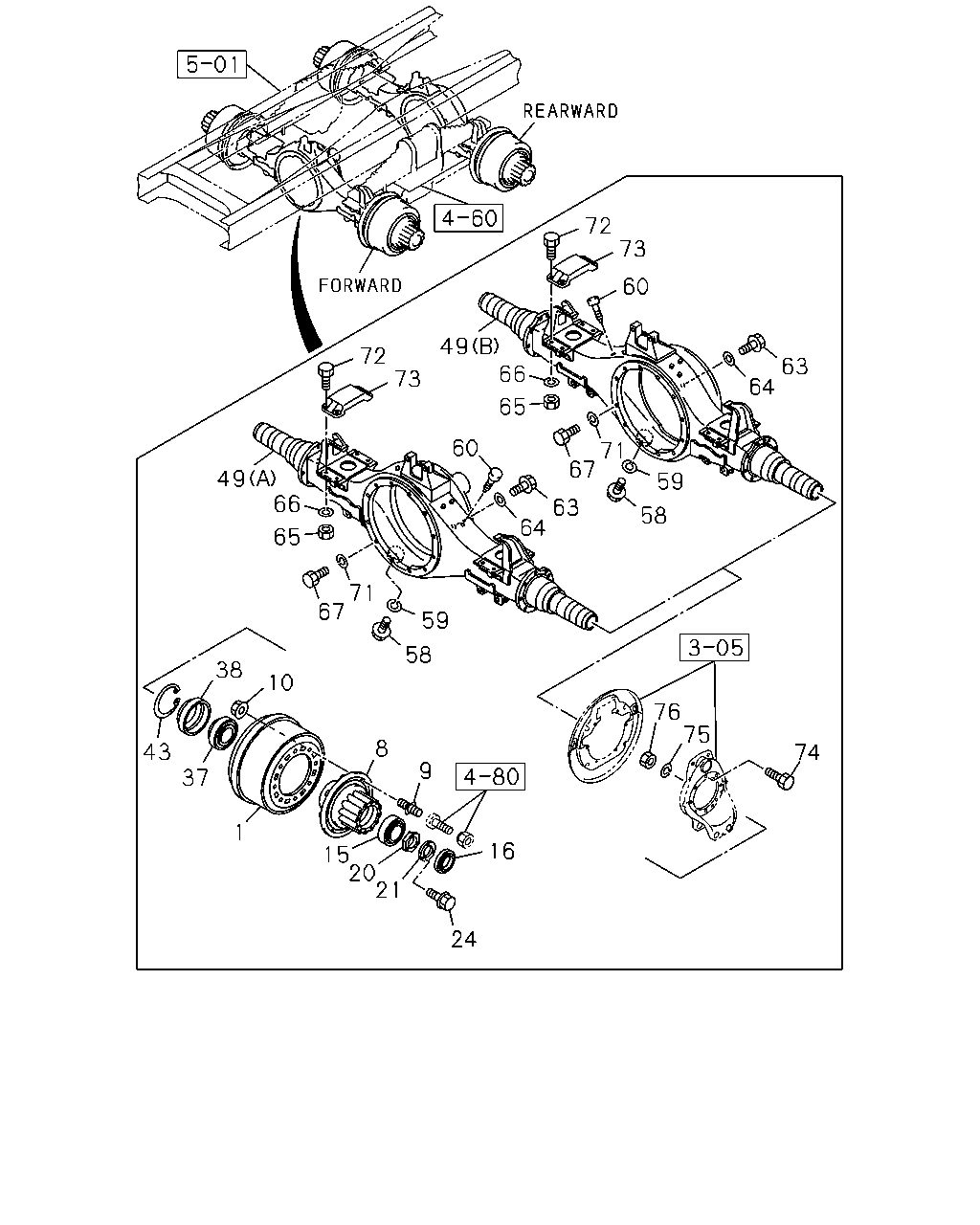

72 73 60 49 66 72 73 63 64 65 71 67 60 49 66 59 63 64 58 65 71 67 59 58 38 10 76 75 8 43 74 9 37 1 16 15 20 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-357-0	02	1	0411-	●	●
1	DRUM; BRK,RR TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-357-0	02	1	0411-	●	●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-377-2	02	1	0411-	●	●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-377-2	02	1	0411-	●	●
1	DRUM; BRK,RR MULTI LEAF SUSP RR<SAS> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-358-0	02	1	0411-	●	●
1	DRUM; BRK,RR MULTI LEAF SUSP RR<SAS> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-358-0	02	1	0411-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-085-0	02	1	0411-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-085-0	02	1	0411-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-104-0	02	1	0411-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-104-0	02	1	0411-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X93 RH THREAD	1-42337-066-1	20	1	0411-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X93 RH THREAD	1-42337-066-1	20	1	0411-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	0411-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	0411-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	0411-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	0411-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	0411-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	0411-	●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0411-	●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0411-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0411-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0411-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0411-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0411-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0411-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0411-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0411-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0411-	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0411-	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0411-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0411-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0411-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0411-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0411-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0411-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0411-	●	●
49	CASE; RR AXLE FINAL GEAR 39/7 17.5"(W3Z) TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) FORWARD	1-42190-461-0	01	1	0411-	●	●
49	CASE; RR AXLE FINAL GEAR 39/7 17.5"(W3Z) TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) REARWARD	1-42190-463-0	01	1	0411-	●	●
49	CASE; RR AXLE RR BRK AIR D410 WEDGE-220-30/30<B9V> REAR AXLE RT210<C2A> MULTI LEAF SUSP RR<SAS> (A) FORWARD	1-42190-514-1	01	1	0411-	●	●
49	CASE; RR AXLE RR BRK AIR D410 WEDGE-220-30/30<B9V> REAR AXLE RT210<C2A> MULTI LEAF SUSP RR<SAS> (B) REARWARD	1-42190-515-0	01	1	0411-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> TAPER LEAF SUSP RR<SAT> (A) FORWARD	1-42190-464-0	01	1	0411-		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> TAPER LEAF SUSP RR<SAT> (B) REARWARD	1-42190-467-0	01	1	0411-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0411-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0411-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0411-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0411-	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	0411-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0411-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0411-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0411-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0411-	●	●
65	NUT M14	9-99110-514-0	08	1	0411-	●	●
65	NUT M14	9-99110-514-0	08	1	0411-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0411-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0411-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0411-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0411-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0411-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	0411-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0411-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0411-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0411-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0411-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0411-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0411-	●	●
74	BOLT; RR BRK ASM SETTING TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X50	1-09040-066-0	14	1	0411-	●	●
74	BOLT; RR BRK ASM SETTING TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X50	1-09040-066-0	14	1	0411-	●	●
74	BOLT; RR BRK ASM SETTING MULTI LEAF SUSP RR<SAS> M14X50	1-09040-066-0	16	1	0411-	●	●
74	BOLT; RR BRK ASM SETTING MULTI LEAF SUSP RR<SAS> M14X50	1-09040-066-0	16	1	0411-	●	●
74	BOLT; RR BRK ASM SETTING TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X50	1-09040-066-0	16	1	0411-		●
74	BOLT; RR BRK ASM SETTING TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X50	1-09040-066-0	16	1	0411-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0411-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0411-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0411-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0411-	●	●

30 33 30 33 25 25 25 33 30 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

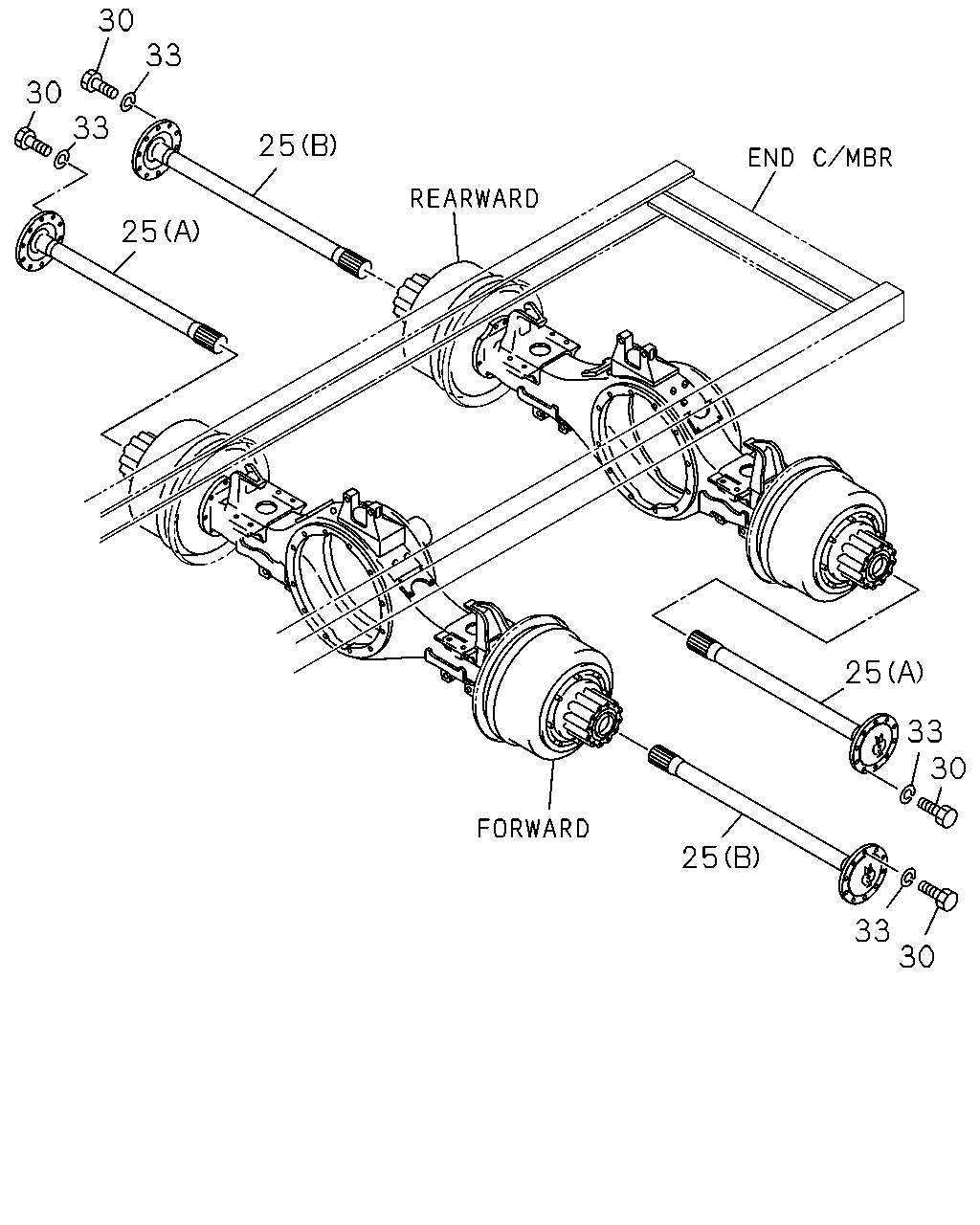

25	SHAFT; AXLE,RR (A) RH FORWARD,LH REARWARD L=976	1-42171-356-0	01	1	0411-	●	●
25	SHAFT; AXLE,RR (A) RH FORWARD,LH REARWARD L=976	1-42171-356-0	01	1	0411-	●	●
25	SHAFT; AXLE,RR (B) RH REARWARD,LH FORWARD L=1106	1-42171-357-0	01	1	0411-	●	●
25	SHAFT; AXLE,RR (B) RH REARWARD,LH FORWARD L=1106	1-42171-357-0	01	1	0411-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0411-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0411-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0411-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0411-	●	●
