4-11 — FRONT HUB AND DRUM OR ROTOR (#26645) — 34 parça

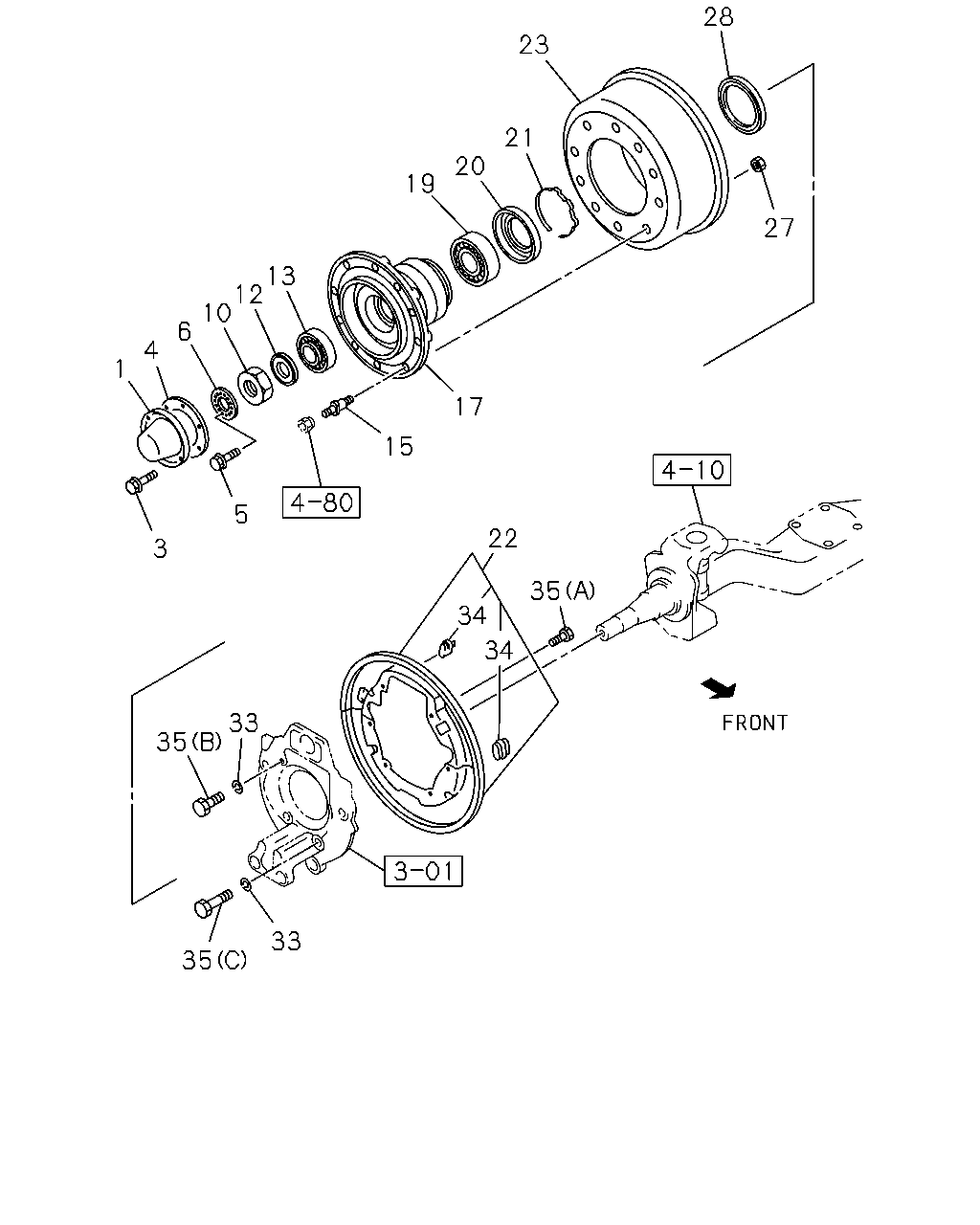

çizim 82606
28 23 21 20 19 27 13 12 10 6 4 1 17 15 5 22 3 35 34 34 33 35 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0411- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0411- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-1 02 1 0411- ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0411- ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0411- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0411- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0411- ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 0411- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F063<FS7> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 0411- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F063<FS7> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 0411- ● ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F063<FS7> DISC WHEEL STEEL<SDN> EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>,FRONT AXLEWIDE TYPE<C1U> M22X42.8,M22X55.5 RH THREAD 		1-42337-067-0 20 1 0411- ● ●
15 PIN; WHEEL,FRT AXLE
FRT BRK AIR D410 WEDGE-160-24<B7Q> INTERNATIONAL STANDARD ISO 10STUD<B3V> AXLE FRONT F075<FH5> DISC WHEEL STEEL<SDN> EXC. FRONT AXLE WIDE TYPE<C1U> M22X42.8,M22X55.5 RH THREAD 		1-42337-067-0 20 1 0411- ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE WIDE TYPE<C1U> AXLE FRONT F075<FH5>,FRONT AXLE F063<FS7> EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> M22X40.8,M22X68.5 RH THREAD 		1-42337-075-0 20 1 0411- ● ●
17 HUB; FRT AXLE
FRONT AXLE F063<FS7> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42312-151-3 02 1 0411- ● ●
17 HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F063<FS7> DISC WHEEL STEEL<SDN> EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>,FRONT AXLEWIDE TYPE<C1U> 		1-42312-160-0 02 1 0411- ● ●
17 HUB; FRT AXLE
FRT BRK AIR D410 WEDGE-160-24<B7Q> INTERNATIONAL STANDARD ISO 10STUD<B3V> AXLE FRONT F075<FH5> DISC WHEEL STEEL<SDN> EXC. FRONT AXLE WIDE TYPE<C1U> 		1-42312-160-0 02 1 0411- ●
17 HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE WIDE TYPE<C1U> AXLE FRONT F075<FH5>,FRONT AXLE F063<FS7> EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-42312-165-0 02 1 0411- ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 0411- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0411- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0411- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-812-0 02 1 0411- ● ●
23 DRUM; BRK,FRT
FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-42315-365-0 02 1 0411- ●
23 DRUM; BRK,FRT
AXLE FRONT F075<FH5> EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-42315-380-0 02 1 0411- ● ●
23 DRUM; BRK,FRT
FRONT AXLE F063<FS7> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42315-380-0 02 1 0411- ● ●
23 DRUM; BRK,FRT
FRONT AXLE F063<FS7> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42315-355-0 02 1 0411- ● ●
27 NUT; WHEEL PIN,FRT AXLE
AXLE FRONT F075<FH5> M22 		1-09400-071-0 20 1 0411- ● ●
27 NUT; WHEEL PIN,FRT AXLE
FRONT AXLE F063<FS7> INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-09400-071-0 20 1 0411- ● ●
27 NUT; WHEEL PIN,FRT AXLE
FRONT AXLE F063<FS7> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE 		1-09440-065-0 16 1 0411- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0411- ● ●
33 WASHER; LK,DRUM COVER
ID=18.2 		9-09150-818-0 12 1 0411- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0411- ● ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-583-0 04 1 0411- ● ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 0411- ● ●
35 BOLT; DRUM COVER
(B) M18X45 		9-92061-845-0 08 1 0411- ● ●
