4-01 — PROPELLER SHAFT (#26643) — 124 parça
çizim 81809
56 95 9 1 8 128 225 104 9 8 106 106 56 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MIXER TRUCK<RA2> (A) L=570 		1-37124-642-1 01 1 0411- ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (A) L=655 		1-37124-643-1 01 1 0411- ●
1 SHAFT; PROP
(C) L=1110 		1-37124-566-1 01 1 0411- ●
1 SHAFT; PROP
(B) L=844 		1-37152-891-0 01 1 0411- ●
1 SHAFT; PROP
(C) L=1010 		1-37124-712-1 01 1 0411- ●
1 SHAFT; PROP
(B) L=1674 		1-37153-371-0 01 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0411- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0411- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0411- ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0411- ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0411- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0411- ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0411- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0411- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0411- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0411- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0411- ● ● ●

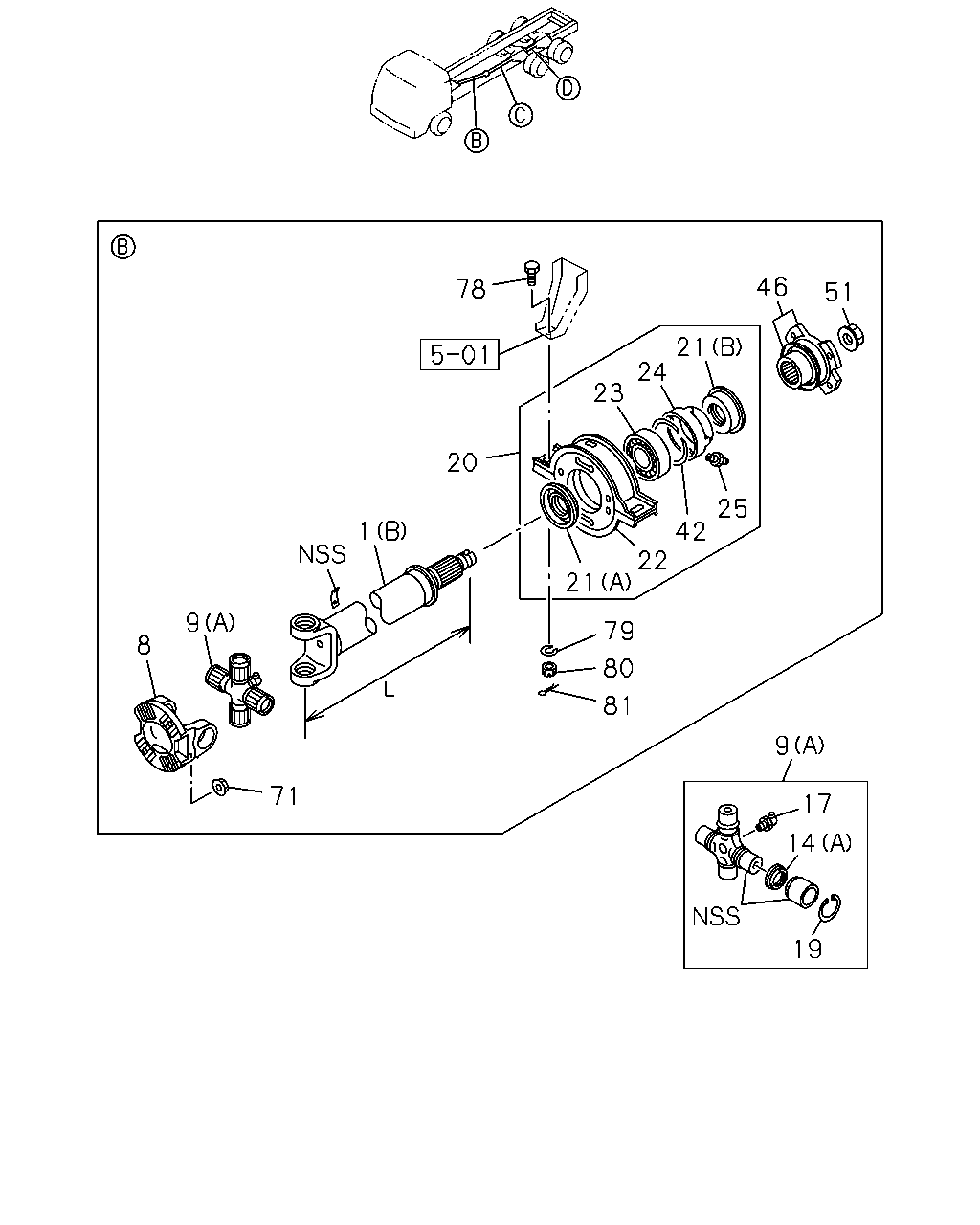

çizim 81860
46 78 51 21 24 23 20 25 42 22 1 21 9 79 8 80 81 9 71 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MIXER TRUCK<RA2> (A) L=570 		1-37124-642-1 01 1 0411- ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (A) L=655 		1-37124-643-1 01 1 0411- ●
1 SHAFT; PROP
(C) L=1110 		1-37124-566-1 01 1 0411- ●
1 SHAFT; PROP
(B) L=844 		1-37152-891-0 01 1 0411- ●
1 SHAFT; PROP
(C) L=1010 		1-37124-712-1 01 1 0411- ●
1 SHAFT; PROP
(B) L=1674 		1-37153-371-0 01 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0411- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0411- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 0411- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0411- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0411- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0411- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0411- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0411- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 0411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0411- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0411- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0411- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0411- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0411- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0411- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0411- ● ●
çizim 84330
95 56 9 1 8 128 225 104 9 8 106 106 9 71 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MIXER TRUCK<RA2> (A) L=570 		1-37124-642-1 01 1 0411- ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (A) L=655 		1-37124-643-1 01 1 0411- ●
1 SHAFT; PROP
(C) L=1110 		1-37124-566-1 01 1 0411- ●
1 SHAFT; PROP
(B) L=844 		1-37152-891-0 01 1 0411- ●
1 SHAFT; PROP
(C) L=1010 		1-37124-712-1 01 1 0411- ●
1 SHAFT; PROP
(B) L=1674 		1-37153-371-0 01 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0411- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0411- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0411- ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0411- ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0411- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0411- ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0411- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0411- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0411- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0411- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0411- ● ● ●

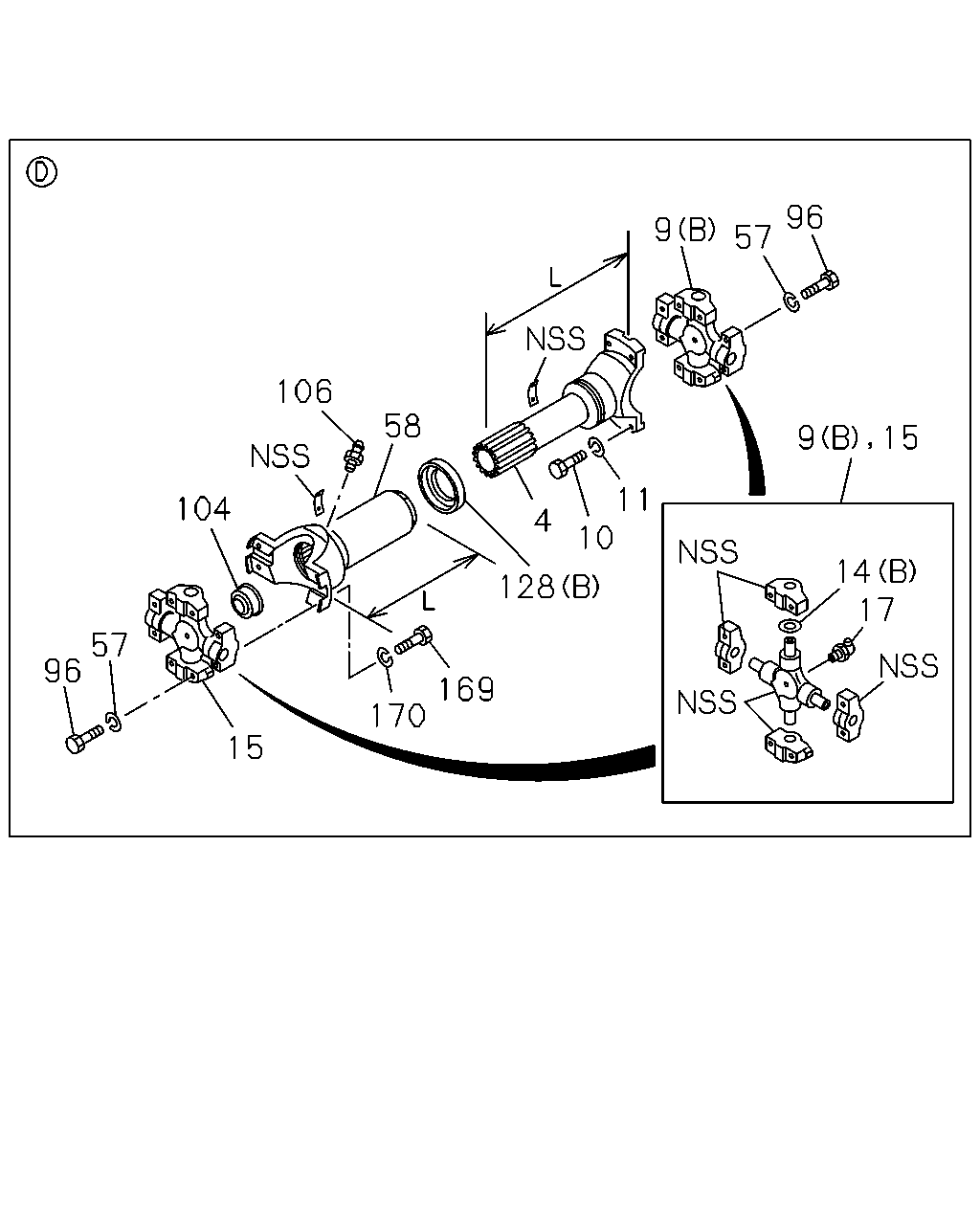

çizim 84419
96 9 57 106 58 9 15 11 10 104 4 14 17 128 57 96 169 170 15
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0411- ● ●
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0411- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0411- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0411- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0411- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0411- ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0411- ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0411- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0411- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0411- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0411- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0411- ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0411- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0411- ● ● ●
