Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#26641) — 301 parça

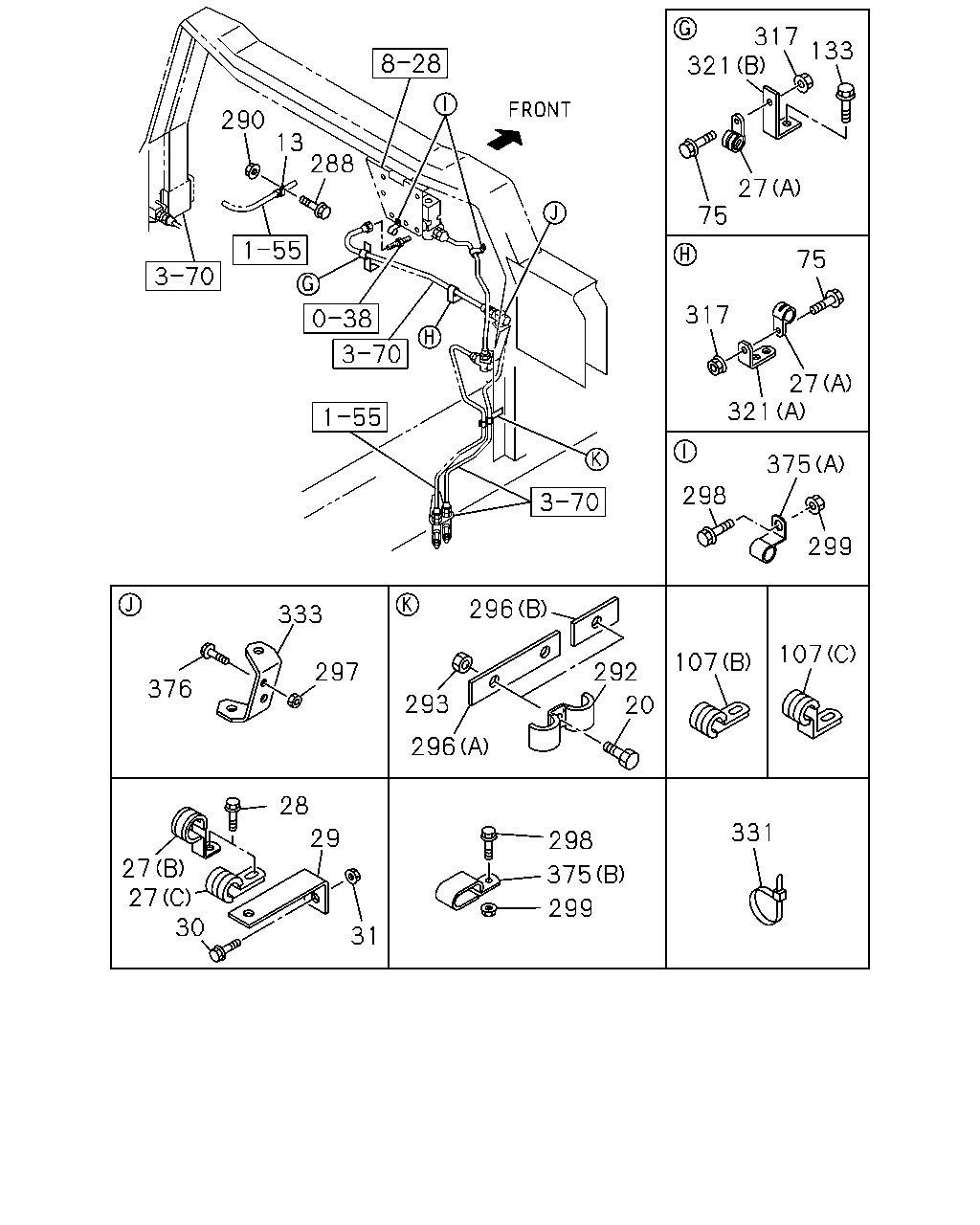

317 321 133 290 13 288 27 75 75 317 27 321 375 298 299 296 333 107 107 292 297 376 293 20 296 28 331 29 298 27 27 30 375 299 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0411-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0411-	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0411-	●	●
27	CLIP; FLEX HOSE (C) ID=26 L=27	1-09701-006-0	01	1	0411-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0411-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	01	1	0411-		●
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	0411-	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0411-	●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0411-	●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
107	CLIP; NYLON TUBE (A) L=300	1-09707-001-1	01	1	0411-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0411-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	12	1	0411-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	9-09525-896-0	01	1	0411-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0411-	●	●
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0411-	●	●
133	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0411-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0411-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0411-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	03	1	0411-		●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0411-	●	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28680-825-0	01	1	0411-	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28680-825-0	02	1	0411-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	06	1	0411-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0411-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	0411-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0411-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0411-		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-208-0	01	1	0411-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0411-	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
296	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0411-	●	●
296	BRACKET; CLIP (B)	1-47475-648-0	01	1	0411-	●	●
297	NUT; BRKT DUMP TRUCK<RA1> M8 FLANGE	0-91150-108-0	06	1	0411-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	07	1	0411-	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	15	1	0411-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
298	BOLT; CLIP ENG CONTROL TICS<Q3P> MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
299	NUT; CLIP ENG CONTROL TICS<Q3P> MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0411-	●	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0411-	●	●
331	CLIP; NYLON TUBE ID=13 H=75 L=25	1-09700-601-0	02	1	0501-		●
331	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	0411-	●	●
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	0411-	●	●
338	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0501-		●
375	CLIP; AIR PIPE ENG CONTROL TICS<Q3P> MIXER TRUCK<RA2> (B) ID=7 L=20	9-09524-635-0	02	1	0411-	●	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0411-		●
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0411-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0411-	●	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0411-	●	●

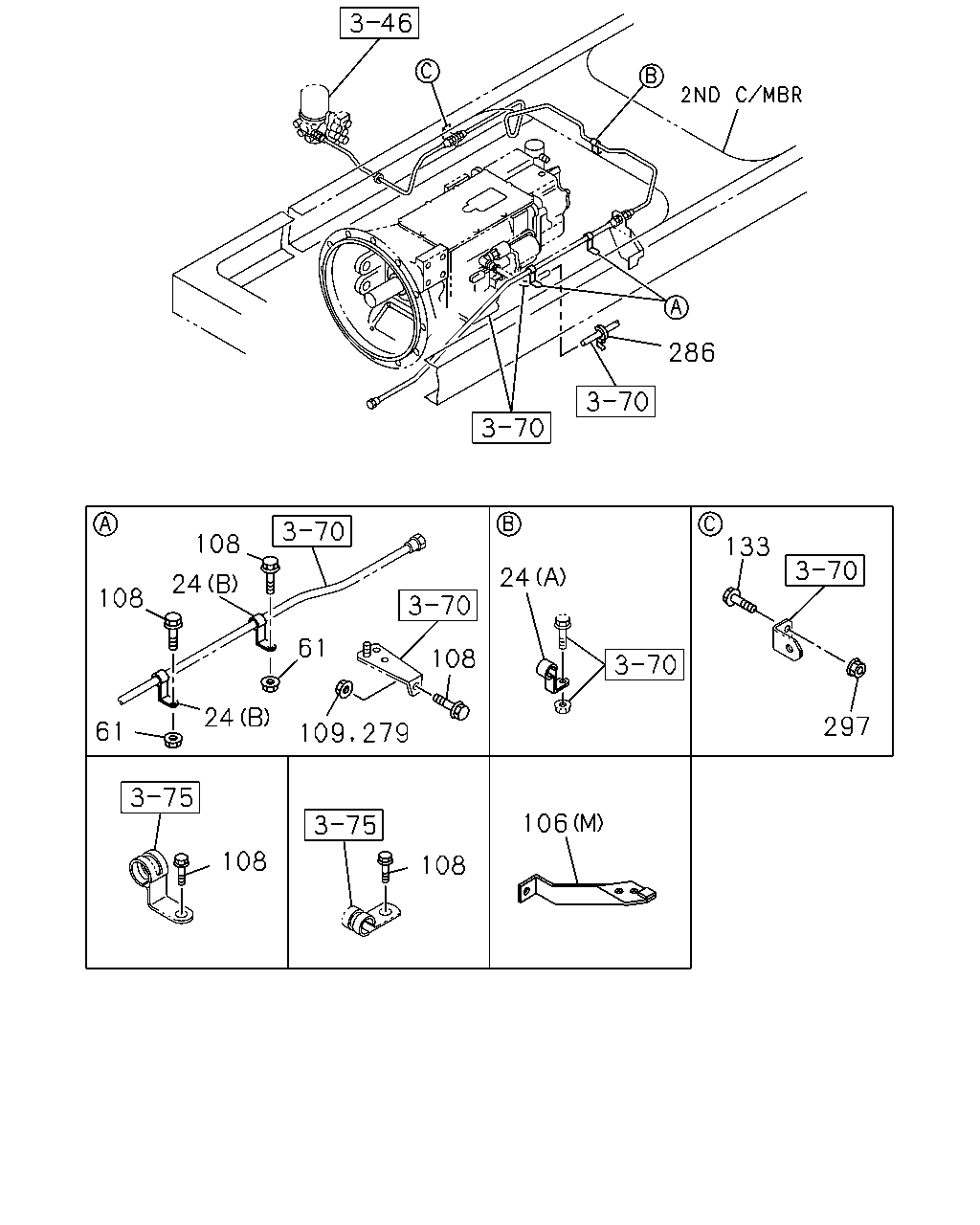

286 133 108 24 24 108 61 108 24 297 61 106 108 108 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0411-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0411-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
106	BRACKET; TUBE CLIP (H)	1-47471-205-0	01	1	0411-0412	●
106	BRACKET; TUBE CLIP (K)	1-47479-870-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (I)	1-47471-108-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (L)	1-47471-144-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	05	1	0411-	●	●
106	BRACKET; TUBE CLIP (M)	1-47477-746-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	04	1	0411-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-562-0	02	1	0411-0411	●	●
106	BRACKET; TUBE CLIP W/STUD M8X20	1-47471-209-0	02	1	0411-	●	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0411-		●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	08	1	0411-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0411-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	06	1	0411-	●	●
133	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0411-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0411-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0411-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	03	1	0411-		●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0411-	●	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28680-825-0	01	1	0411-	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28680-825-0	02	1	0411-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	06	1	0411-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0411-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	0411-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0411-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0411-		●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	19	1	0411-	●	●
286	CLIP; NYLON TUBE ID=15 & 7	1-09709-311-0	01	1	0411-	●	●
297	NUT; BRKT DUMP TRUCK<RA1> M8 FLANGE	0-91150-108-0	06	1	0411-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	07	1	0411-	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	15	1	0411-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
338	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0501-		●

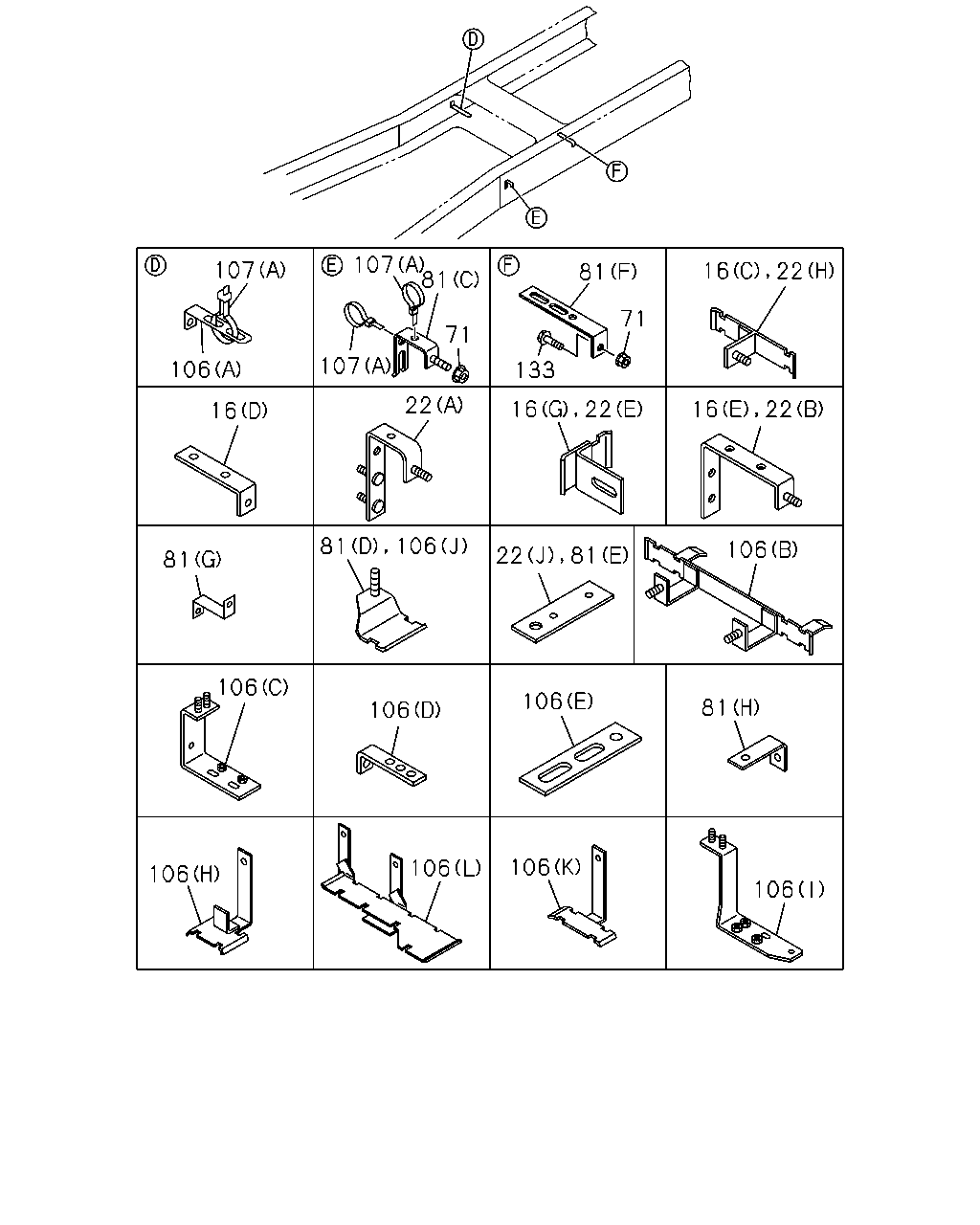

107 81 107 81 71 71 107 106 133 22 16 22 16 81 106 106 81 106 106 81 106 106 106 106 106 16 22 22 16 81 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP MIXER TRUCK<RA2> (G)	1-47479-693-0	01	1	0411-	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	09	1	0411-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	0411-		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	02	1	0411-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	0411-		●
16	BRACKET; PIPE CLIP (H)	1-47471-081-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (I)	1-47479-381-2	04	1	0411-		●
22	BRACKET; CLIP MIXER TRUCK<RA2> (E)	1-47479-693-0	01	1	0411-	●
22	BRACKET; CLIP (A)	1-47479-329-0	02	1	0411-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	02	1	0411-		●
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	0411-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0411-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0411-	●	●
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	0411-	●	●
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	0411-	●	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	02	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	06	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-381-2	08	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	0411-		●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0411-		●
22	BRACKET; CLIP (F)	1-47479-381-2	03	1	0411-	●
22	BRACKET; CLIP (J) L=130	1-47479-575-0	02	1	0411-0501		●
22	BRACKET; CLIP L=130	1-47478-959-0	02	1	0502-		●
71	NUT; BRKT M8 FLANGE	0-91150-108-0	14	1	0411-	●	●
81	BRACKET; CLIP (G)	1-47478-113-0	02	1	0411-	●	●
81	BRACKET; CLIP (H) L=115 B=25	1-47476-758-0	01	1	0411-	●	●
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	04	1	0411-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0411-	●	●
81	BRACKET; CLIP (D)	1-47479-562-0	02	1	0411-0411	●	●
81	BRACKET; CLIP W/STUD M8X20	1-47471-209-0	02	1	0411-	●	●
81	BRACKET; CLIP (E) L=130	1-47479-575-0	02	1	0411-0411	●	●
81	BRACKET; CLIP L=150	1-47471-217-0	02	1	0411-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0411-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (H)	1-47471-205-0	01	1	0411-0412	●
106	BRACKET; TUBE CLIP (K)	1-47479-870-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (I)	1-47471-108-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (L)	1-47471-144-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	05	1	0411-	●	●
106	BRACKET; TUBE CLIP (M)	1-47477-746-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	04	1	0411-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-562-0	02	1	0411-0411	●	●
106	BRACKET; TUBE CLIP W/STUD M8X20	1-47471-209-0	02	1	0411-	●	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0411-		●
107	CLIP; NYLON TUBE (A) L=300	1-09707-001-1	01	1	0411-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0411-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	12	1	0411-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	9-09525-896-0	01	1	0411-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0411-	●	●
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0411-	●	●
133	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0411-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0411-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0411-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	03	1	0411-		●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0411-	●	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28680-825-0	01	1	0411-	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28680-825-0	02	1	0411-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	06	1	0411-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0411-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	0411-	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0411-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0411-		●
338	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0501-		●

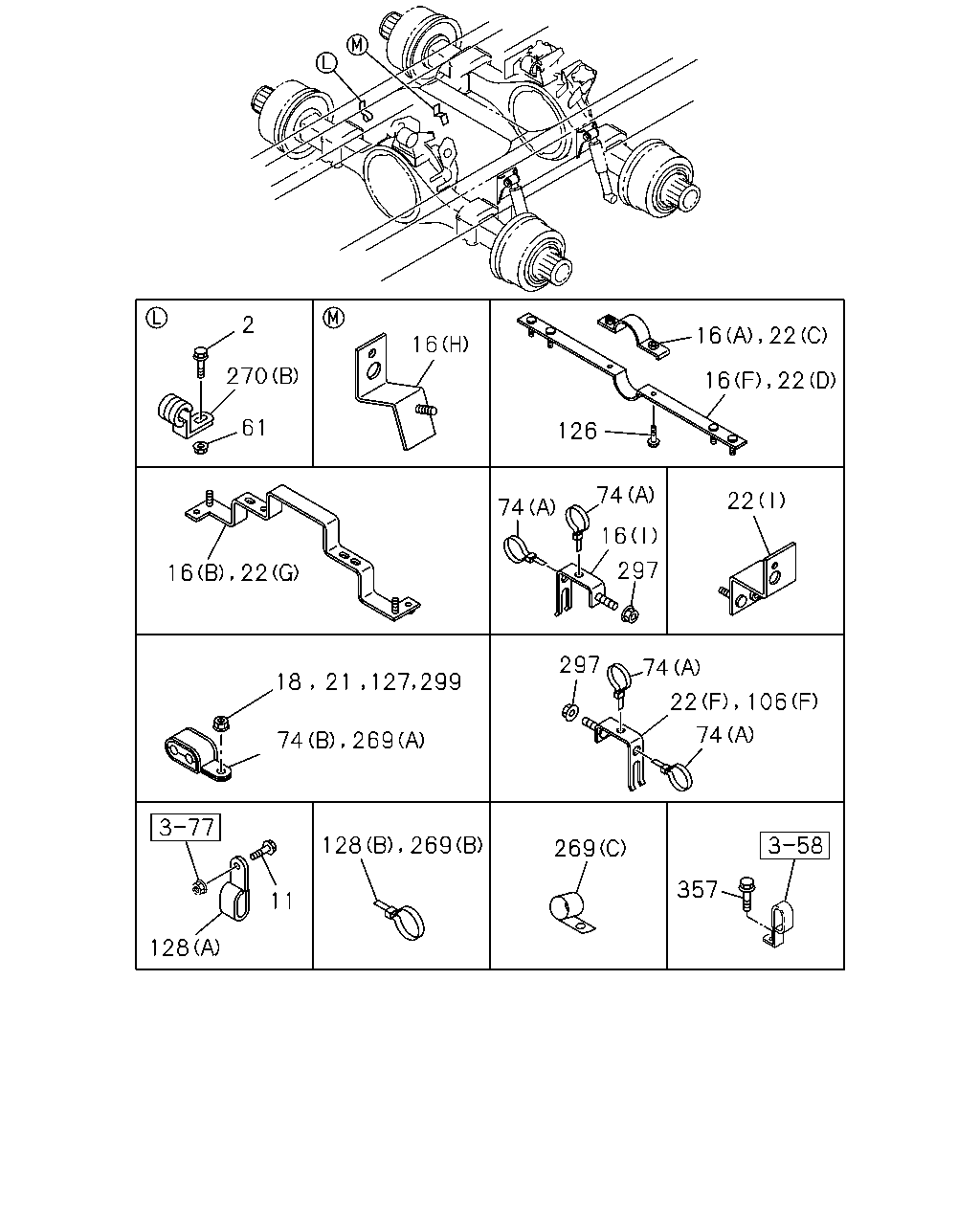

2 16 22 16 270 61 126 74 22 74 16 297 297 74 18 21 22 106 74 269 357 11 128 16 22 269 128 74 269 16 22 127 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP MIXER TRUCK<RA2> (G)	1-47479-693-0	01	1	0411-	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	09	1	0411-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	0411-		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	02	1	0411-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	0411-		●
16	BRACKET; PIPE CLIP (H)	1-47471-081-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0411-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (I)	1-47479-381-2	04	1	0411-		●
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0411-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0411-		●
22	BRACKET; CLIP MIXER TRUCK<RA2> (E)	1-47479-693-0	01	1	0411-	●
22	BRACKET; CLIP (A)	1-47479-329-0	02	1	0411-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	02	1	0411-		●
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	0411-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0411-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0411-	●	●
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	0411-	●	●
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	0411-	●	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	02	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	06	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-381-2	08	1	0411-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	0411-		●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0411-		●
22	BRACKET; CLIP (F)	1-47479-381-2	03	1	0411-	●
22	BRACKET; CLIP (J) L=130	1-47479-575-0	02	1	0411-0501		●
22	BRACKET; CLIP L=130	1-47478-959-0	02	1	0502-		●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
74	CLIP; NYLON TUBE MIXER TRUCK<RA2> (A) L=350	1-09707-183-0	12	1	0411-	●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	19	1	0411-0501		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	17	1	0502-		●
74	CLIP; NYLON TUBE DUMP TRUCK<RA1> (A) L=350	1-09707-183-0	10	1	0411-	●
74	CLIP; NYLON TUBE (B)	1-09701-306-0	03	1	0411-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	16	1	0411-0501		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) L=350	1-09707-183-0	15	1	0502-		●
106	BRACKET; TUBE CLIP (H)	1-47471-205-0	01	1	0411-0412	●
106	BRACKET; TUBE CLIP (K)	1-47479-870-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (I)	1-47471-108-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (L)	1-47471-144-0	01	1	0411-	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	05	1	0411-	●	●
106	BRACKET; TUBE CLIP (M)	1-47477-746-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	04	1	0411-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-562-0	02	1	0411-0411	●	●
106	BRACKET; TUBE CLIP W/STUD M8X20	1-47471-209-0	02	1	0411-	●	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0411-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0411-		●
126	BOLT; CLIP BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28680-825-0	01	1	0411-	●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	03	1	0411-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0411-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28680-825-0	02	1	0411-		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	02	1	0411-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0411-	●	●
127	NUT; CLIP BRKT DUMP TRUCK<RA1> M8 FLANGE	0-91150-108-0	04	1	0411-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0411-0501	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0502-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	02	1	0502-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	07	1	0411-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	14	1	0411-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0411-	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	08	1	0411-		●
127	NUT; CLIP BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	05	1	0411-	●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	09	1	0411-		●
128	CLIP; NYLON TUBE ID=31 H=30 L=35	1-09700-994-0	02	1	0502-		●
128	CLIP; NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	0411-	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (B) L=350	1-09707-183-0	13	1	0411-		●
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	17	1	0411-		●
128	CLIP; NYLON TUBE DUMP TRUCK<RA1> (B) L=350	1-09707-183-0	06	1	0411-	●
128	CLIP; NYLON TUBE MIXER TRUCK<RA2> (B) L=350	1-09707-183-0	07	1	0411-	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	05	1	0411-	●	●
269	CLIP; BAND,NYLON TUBE (A)	1-09701-306-0	03	1	0411-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	0411-	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=27.5 H=23 L=24	1-09700-863-0	01	1	0412-	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26	1-09701-236-0	01	1	0412-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	0411-0411	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	02	1	0412-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	0411-	●	●
297	NUT; BRKT DUMP TRUCK<RA1> M8 FLANGE	0-91150-108-0	06	1	0411-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	07	1	0411-	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	15	1	0411-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0411-	●	●
299	NUT; CLIP ENG CONTROL TICS<Q3P> MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
338	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0501-		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	02	1	0411-	●	●

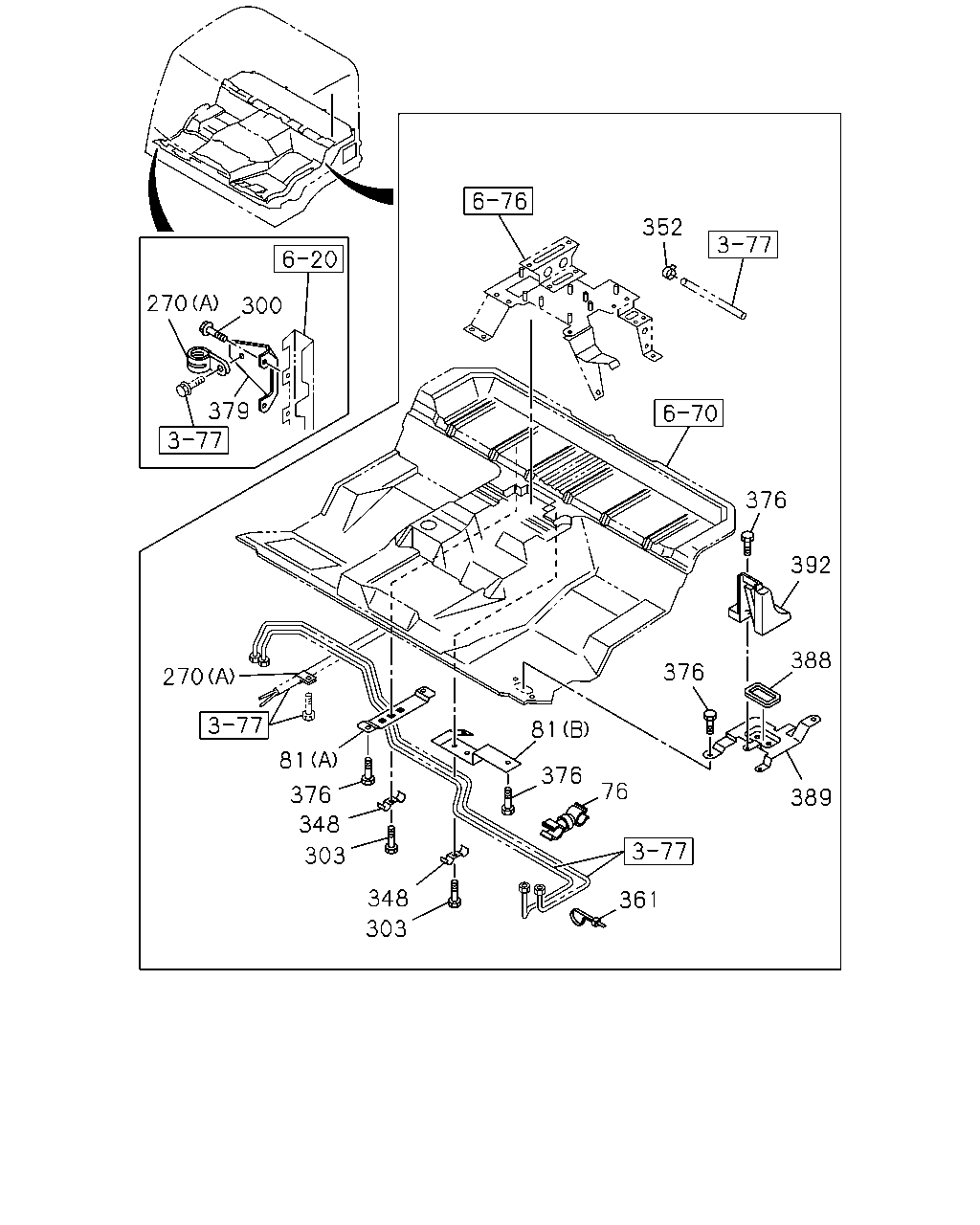

352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 348 303 348 361 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	01	1	0411-	●	●
81	BRACKET; CLIP (G)	1-47478-113-0	02	1	0411-	●	●
81	BRACKET; CLIP (H) L=115 B=25	1-47476-758-0	01	1	0411-	●	●
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	04	1	0411-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0411-	●	●
81	BRACKET; CLIP (D)	1-47479-562-0	02	1	0411-0411	●	●
81	BRACKET; CLIP W/STUD M8X20	1-47471-209-0	02	1	0411-	●	●
81	BRACKET; CLIP (E) L=130	1-47479-575-0	02	1	0411-0411	●	●
81	BRACKET; CLIP L=150	1-47471-217-0	02	1	0411-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0411-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0411-	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=27.5 H=23 L=24	1-09700-863-0	01	1	0412-	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26	1-09701-236-0	01	1	0412-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	0411-0411	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	02	1	0412-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	0411-	●	●
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0411-	●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0411-	●	●
338	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0501-		●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	01	1	0411-	●	●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	0411-	●	●
352	CLIP; EXH HOSE PARKING BRAKE VALVE LEVER TYPE<W48> ID=14	8-94238-572-0	02	1	0411-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0411-	●	●
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0411-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0411-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0411-	●	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0411-	●	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0411-	●	●
388	SEAL L=215	1-79738-794-1	01	1	0411-	●	●
389	BRACKET; UNION	1-79738-790-1	01	1	0411-	●	●
392	COVER; BRKT	1-73996-264-1	01	1	0411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
