3-70 — BRAKE PIPING; AIR,AIR MASTER (#2664) — 78 parça

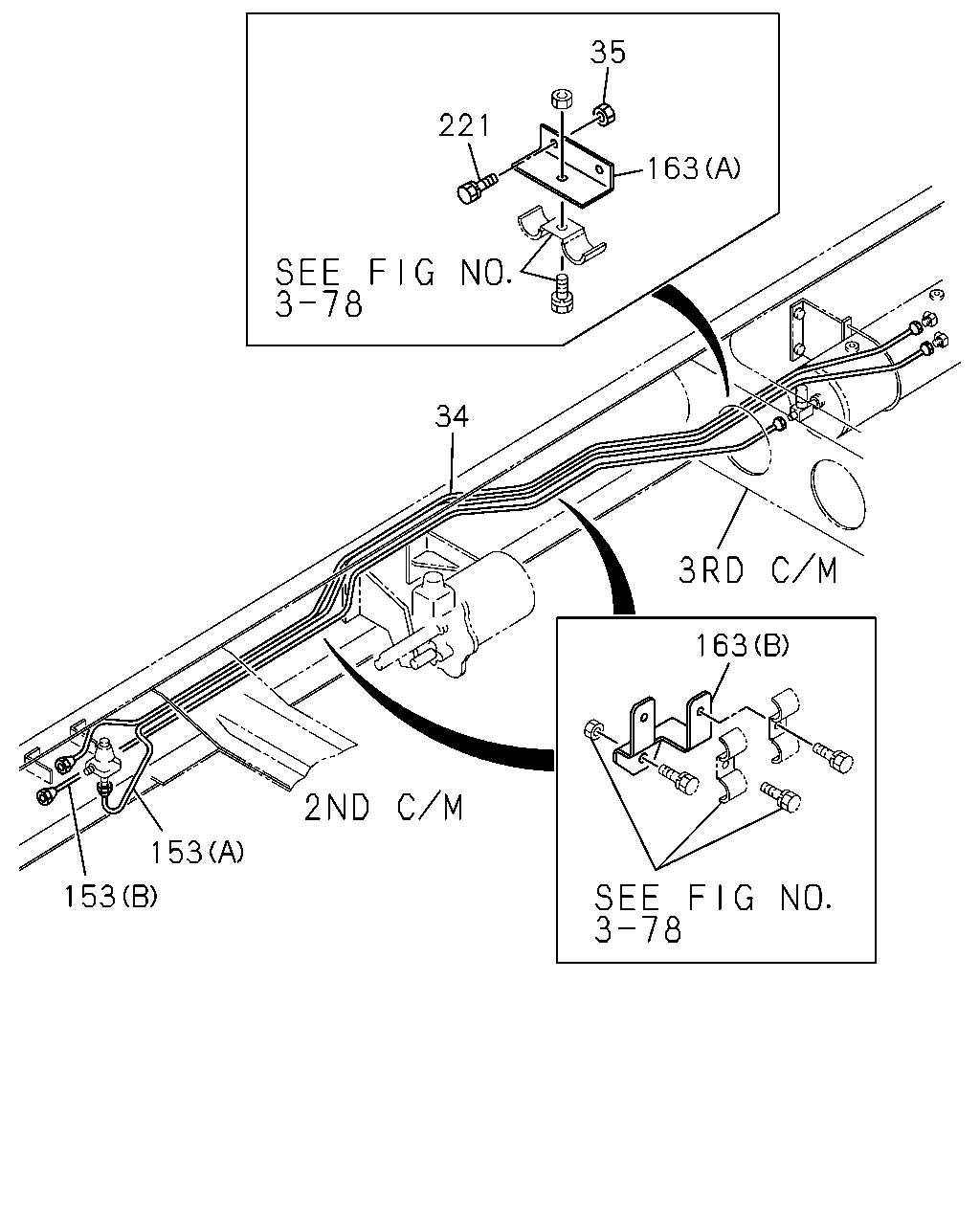

çizim 35184
35 221 163 34 163 153 153
BalonParca AdiParca NoAdetTipApplied Date A B
34 PIPE; AIR
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1748 SERVICED BY L=1800 		1-49111-465-0 01 1 9101-9105 ● ●
34 PIPE; AIR
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1740 SERVICED BY L=1800 		1-49111-465-0 01 1 9106- ● ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2211 SERVICED BY L=2250 		1-49111-467-0 01 1 9101-9105 ● ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2203 SERVICED BY L=2250 		1-49111-467-0 01 1 9106- ● ●
35 NUT; BRKT
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09110-408-0 03 1 9101- ● ●
35 NUT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09110-408-0 04 1 9101- ● ●
153 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1683 		1-47485-755-0 01 1 9101- ● ●
153 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2143 		1-47485-756-0 01 1 9101- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47475-272-1 01 1 9101- ● ●
163 BRACKET; AIR PIPE
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 W/NUT 		1-47475-439-2 01 1 9101- ● ●
163 BRACKET; AIR PIPE
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 W/NUT 		1-47475-439-2 02 1 9101- ● ●
221 BOLT; BRKT
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-01900-820-0 03 1 9101-9204 ● ●
221 BOLT; BRKT
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50040-820-0 03 1 9205- ● ●
221 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-01900-820-0 04 1 9101-9204 ● ●
221 BOLT; BRKT
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50040-820-0 04 1 9205- ● ●

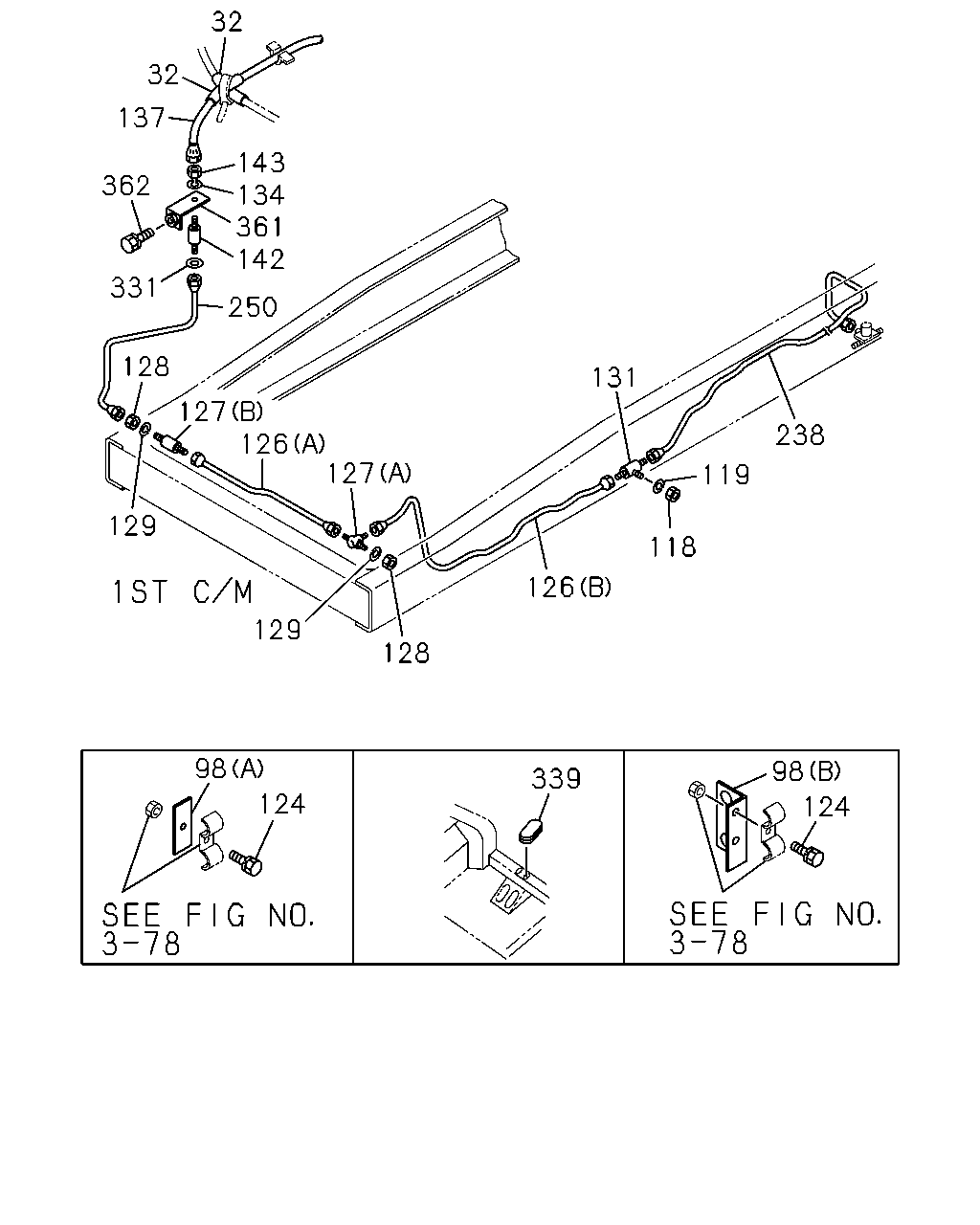

çizim 36134
32 32 137 143 134 361 142 362 331 250 128 131 127 126 238 127 119 129 118 126 129 128 98 98 339 124 124
BalonParca AdiParca NoAdetTipApplied Date A B
32 SLEEVE; RUBBER,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=20 		1-09337-007-0 02 1 9101- ●
32 SLEEVE; RUBBER,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9101- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47475-299-2 01 1 9101- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-47475-221-0 01 1 9101- ●
118 NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-99111-412-0 01 1 9101- ● ●
119 WASHER; LK,UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09150-512-0 01 1 9101-9312 ● ●
124 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-01900-820-0 02 1 9101-9204 ●
124 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50040-820-0 02 1 9205- ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=769 SERVICED BY L=800 		1-47434-384-0 01 1 9101-9111 ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> (A) L=769 SERVICED BY L=800 		1-47434-384-0 01 1 9112- ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=922 SERVICED BY L=1000 		1-47434-386-0 01 1 9101-9111 ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> (B) L=922 SERVICED BY L=1000 		1-47434-386-0 01 1 9112- ●
126 PIPE; AIR,UNION TO UNION
OVERHEAD COOLING SYSTEM<YS9> (A) L=772 SERVICED BY L=800 		1-47434-384-0 01 1 9112- ●
126 PIPE; AIR,UNION TO UNION
OVERHEAD COOLING SYSTEM<YS9> (B) L=902 SERVICED BY L=1000 		1-47434-386-0 01 1 9112- ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=871 SERVICED BY L=900 		1-47434-385-0 01 1 9101- ●
127 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 2WAY 		1-09654-059-0 01 1 9101-9111 ●
127 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> (A) M12 2WAY 		1-09654-059-2 01 1 9112- ●
127 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=62.5 		9-09223-206-1 01 1 9101- ●
127 UNION; AIR PIPE
OVERHEAD COOLING SYSTEM<YS9> (B) M12 		9-09228-306-1 01 1 9112- ●
127 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=69 		9-09225-106-1 01 1 9101- ●
128 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X1.5 		9-09840-280-0 01 1 9101- ●
128 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X1.25 		9-99111-412-0 01 1 9101- ● ●
129 WASHER; LK,PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09150-512-0 02 1 9101-9312 ● ●
131 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09654-170-1 01 1 9101- ● ●
134 WASHER; LK,UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
134 WASHER; LK,UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2 		9-09150-510-0 01 1 9101- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-07210-670-0 01 1 9101- ● ●
142 NIPPLE; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09650-270-1 01 1 9101- ● ●
143 NUT; NIPPLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09111-410-0 01 1 9101- ● ●
238 PIPE; AIR,UNION TO UNION
AT545 A/T ALLISON(MD1) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1287 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ● ●
238 PIPE; AIR,UNION TO UNION
AT545 A/T ALLISON(MD1) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1287 SERVICED BY L=1400 		1-47426-389-0 01 1 9301- ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> L=1287 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> L=1287 SERVICED BY L=1400 		1-47426-389-0 01 1 9301- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=509 SERVICED BY L=550 		1-47426-344-0 01 1 9101- ●
250 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=455 SERVICED BY L=460 		1-47426-342-0 01 1 9101- ●
331 WASHER; PL,PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09160-512-0 01 1 9101- ●
339 GROMMET; AIR PIPE 1-09333-097-0 01 1 9101- ● ●
361 BRACKET; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47475-941-0 01 1 9101- ● ●
362 BOLT; BRKT,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-01900-816-0 01 1 9101-9204 ● ●
362 BOLT; BRKT,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50040-816-0 01 1 9205- ● ●

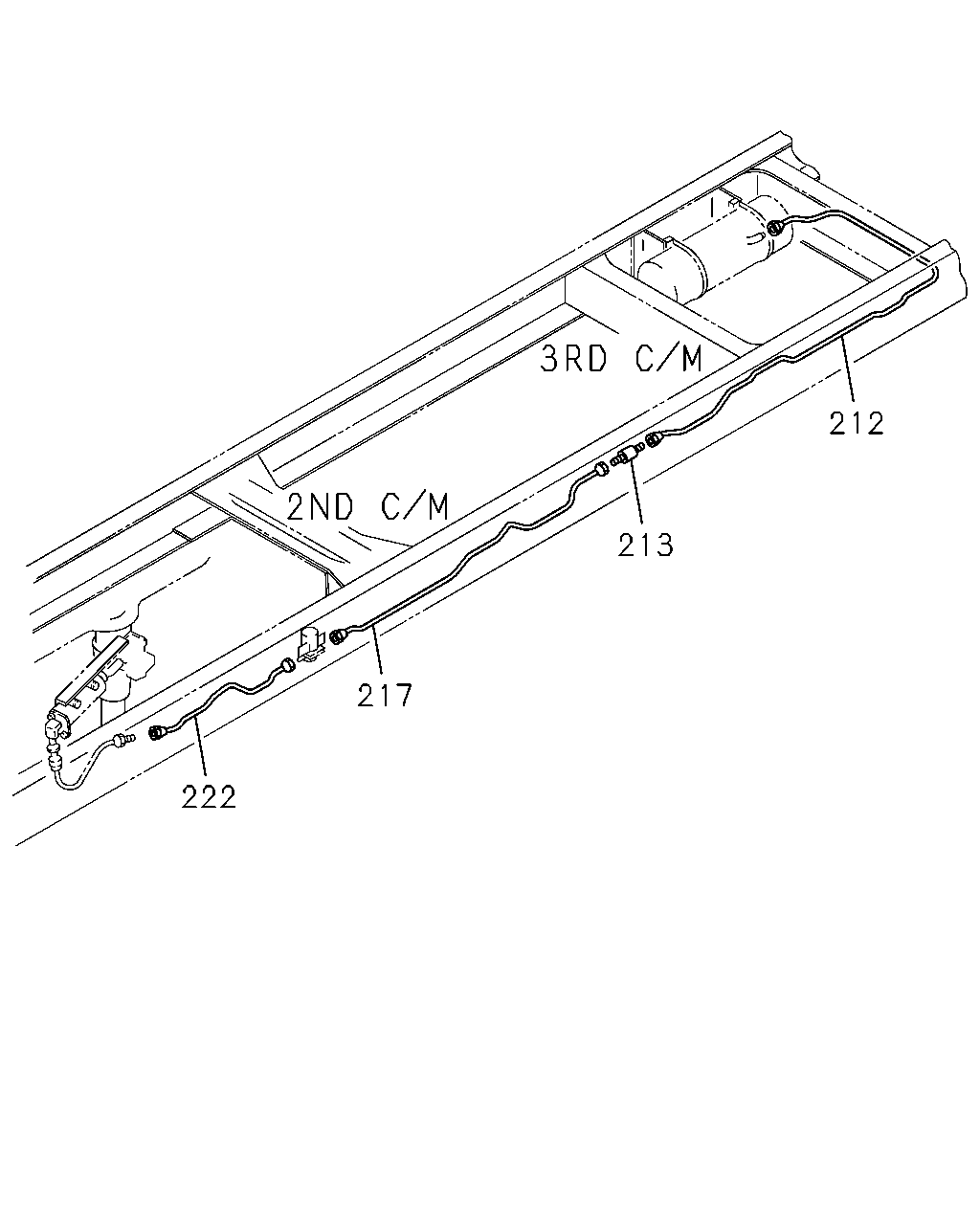

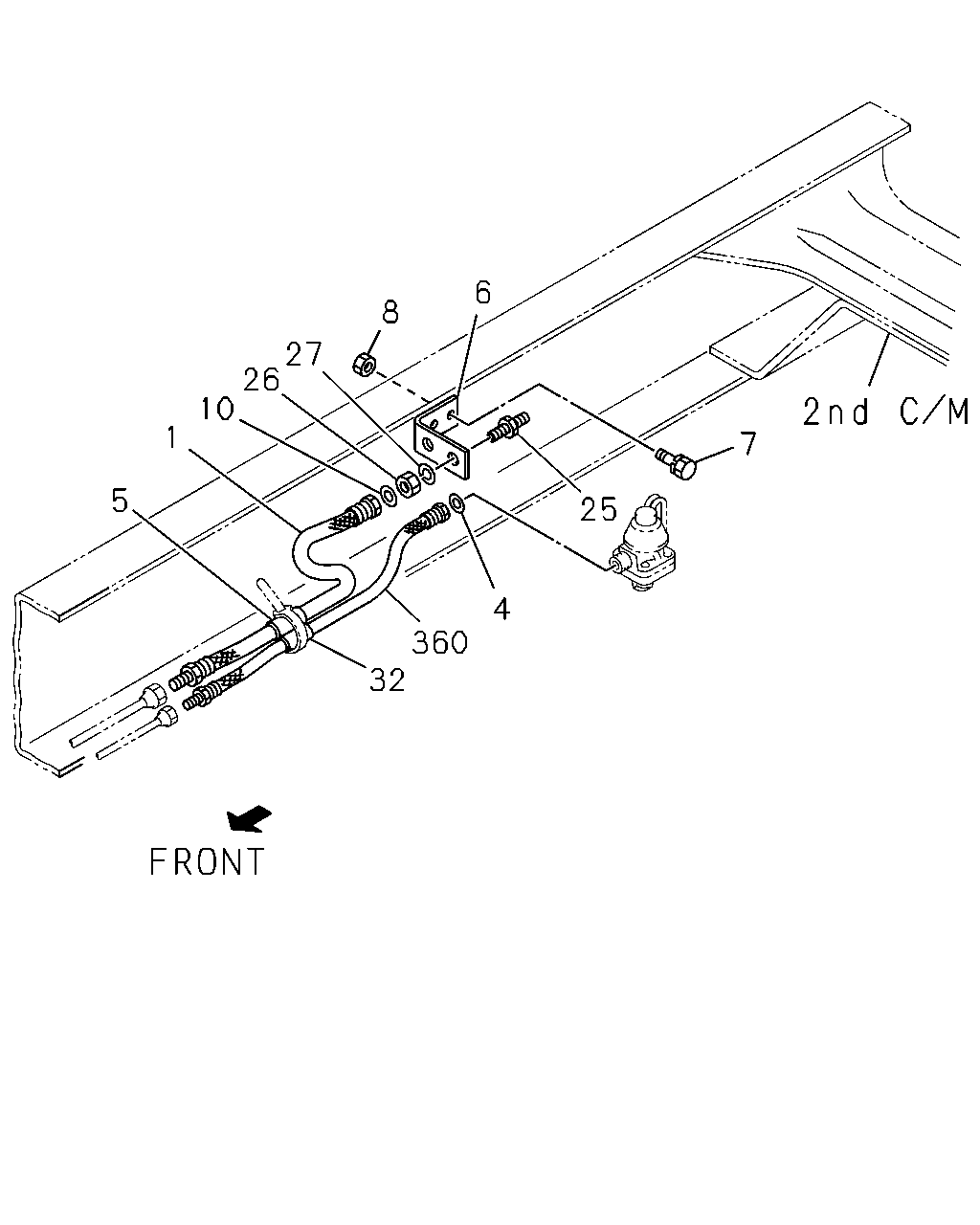

çizim 36645
212 213 217 222
BalonParca AdiParca NoAdetTipApplied Date A B
212 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1595 SERVICED BY L=1700 		1-47434-412-0 01 1 9101-9212 ● ●
212 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1595 SERVICED BY L=1700 		1-47426-391-0 01 1 9301- ● ●
212 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2076 SERVICED BY L=2150 		1-47437-958-0 01 1 9101-9212 ● ●
212 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2076 SERVICED BY L=2150 		1-47426-394-0 01 1 9301- ● ●
213 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09223-008-1 01 1 9101- ● ●
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1416 SERVICED BY L=1550 		1-47437-957-0 01 1 9101-9212 ● ●
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1416 SERVICED BY L=1550 		1-47426-390-0 01 1 9301- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=998 SERVICED BY L=1000 		1-47434-386-0 01 1 9101- ● ●
çizim 36646
6 8 27 26 10 1 7 5 25 4 360 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		0-07836-360-1 01 1 9101-9105 ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=340 		0-07836-340-1 01 1 9106- ● ●
4 GASKET; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09572-510-0 01 1 9101- ● ●
5 SLEEVE; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=23 OD=27 L=40 		1-09337-015-0 01 1 9101- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47465-851-1 01 1 9101- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-01900-820-0 02 1 9101-9204 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50040-820-0 02 1 9205- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09110-408-0 02 1 9101- ● ●
10 GASKET; CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09572-510-0 01 1 9101- ● ●
25 VALVE; CHECK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-48410-138-1 01 1 9101- ● ●
26 NUT; CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 		9-99111-420-0 01 1 9101- ● ●
27 WASHER; LK,CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09150-520-0 01 1 9101- ● ●
32 SLEEVE; RUBBER,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=20 		1-09337-007-0 02 1 9101- ●
32 SLEEVE; RUBBER,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9101- ● ●
360 HOSE; FLEX,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-07120-570-0 01 1 9101- ● ●
