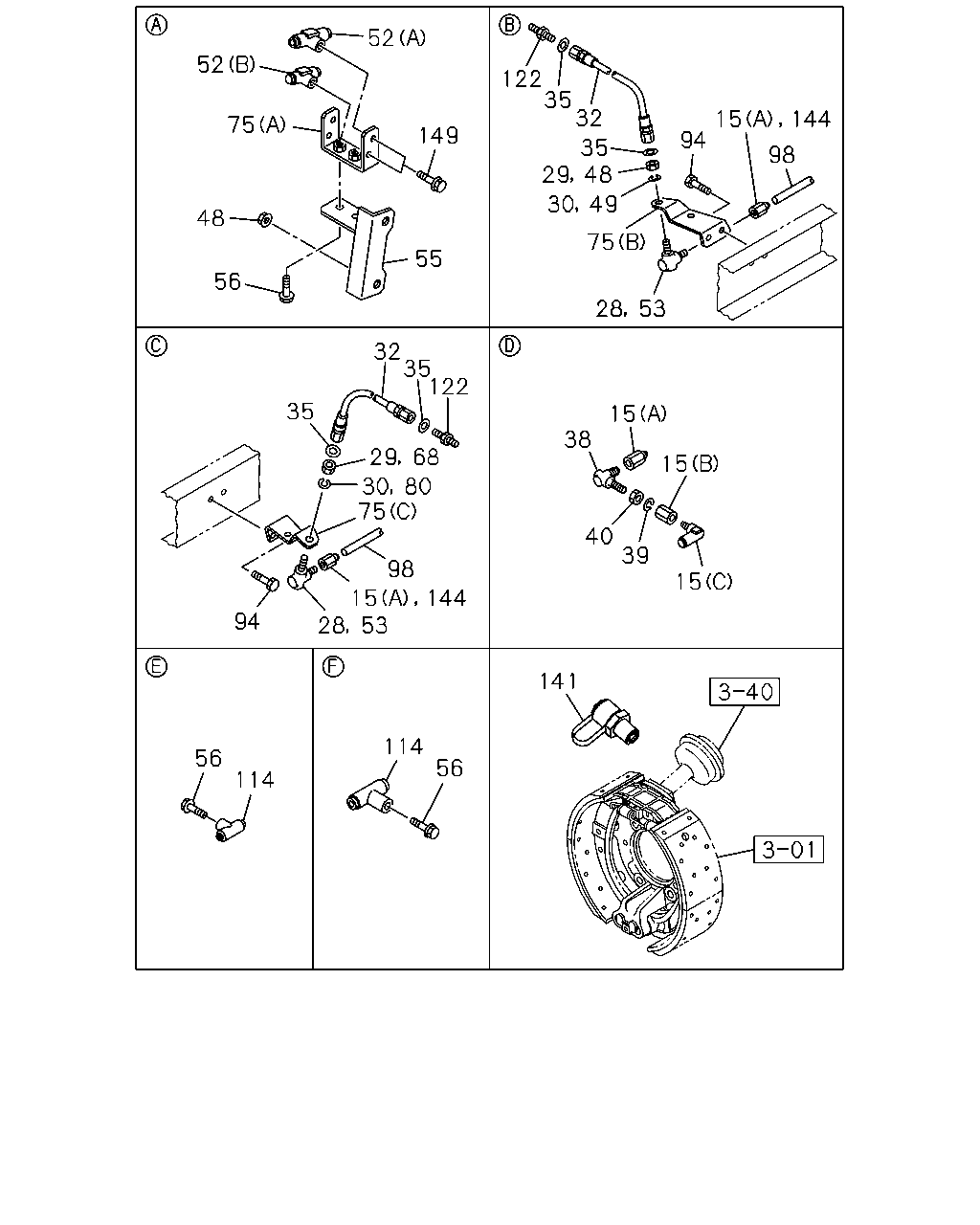

3-75 — BRAKE PIPING; AIR,FRONT (#26639) — 96 parça

52 52 122 35 32 15 144 75 149 94 35 48 98 29 30 49 48 75 55 56 28 53 32 35 122 35 15 38 29 68 15 75 40 39 98 15 15 144 94 141 114 56 56 114 28 53 30 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0411-	●	●
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0411-	●	●
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	0411-	●	●
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0411-	●	●
28	NIPPLE; AIR PIPE	1-09654-128-1	02	1	0411-	●	●
29	NUT; NIPPLE M20	9-99111-420-0	02	1	0411-	●	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	0411-	●	●
32	HOSE; FLEX,FRT L=430	0-07847-430-1	02	1	0411-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0411-	●	●
38	UNION; AIR PIPE M20	9-09235-212-1	02	1	0411-	●	●
39	NUT; PIPE UNION M20	9-99111-420-0	02	1	0411-	●	●
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	02	1	0411-	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0411-	●	●
48	NUT; UNION BRKT M20	9-99111-420-0	01	1	0411-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	9-09150-520-0	01	1	0411-	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09661-128-0	01	1	0411-	●	●
52	CONNECTOR; NYLON TUBE (B)	1-09661-133-0	01	1	0411-	●	●
53	UNION; ELBOW	1-09654-128-1	02	1	0411-	●	●
55	BRACKET; TUBE UNION	1-47479-993-1	01	1	0411-	●	●
56	BOLT; UNION BRKT M8X16 FLANGE	0-28080-816-0	04	1	0411-	●	●
68	NUT; UNION M20	9-99111-420-0	01	1	0411-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	0411-	●	●
75	BRACKET; UNION (C)	1-47479-765-1	01	1	0411-	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	0411-	●	●
80	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0411-	●	●
94	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0411-0412	●	●
94	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0411-0412	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0501-	●	●
98	TUBE; NYLON L=210 OD=12	1-49221-444-0	01	1	0411-	●	●
98	TUBE; NYLON L=175 OD=12	1-49221-445-0	01	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0501-	●
98	TUBE; NYLON WHEEL BASE 5900MM(59W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 5900MM(59W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0501-		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0501-	●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0501-		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	02	1	0501-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0411-	●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0411-		●
98	TUBE; NYLON WHEEL BASE 6600MM(66W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 6600MM(66W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0501-		●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0411-	●	●
114	UNION; NYLON TUBE	1-09661-128-0	02	1	0411-	●	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-0	01	1	0411-	●	●
122	CONNECTOR; FLEX HOSE	1-09661-607-0	01	1	0411-	●	●
141	CONNECTOR; TEST	1-47459-013-0	01	1	0411-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0411-	●	●
149	BOLT; UNION M8X16 FLANGE	0-28080-816-0	02	1	0411-	●	●

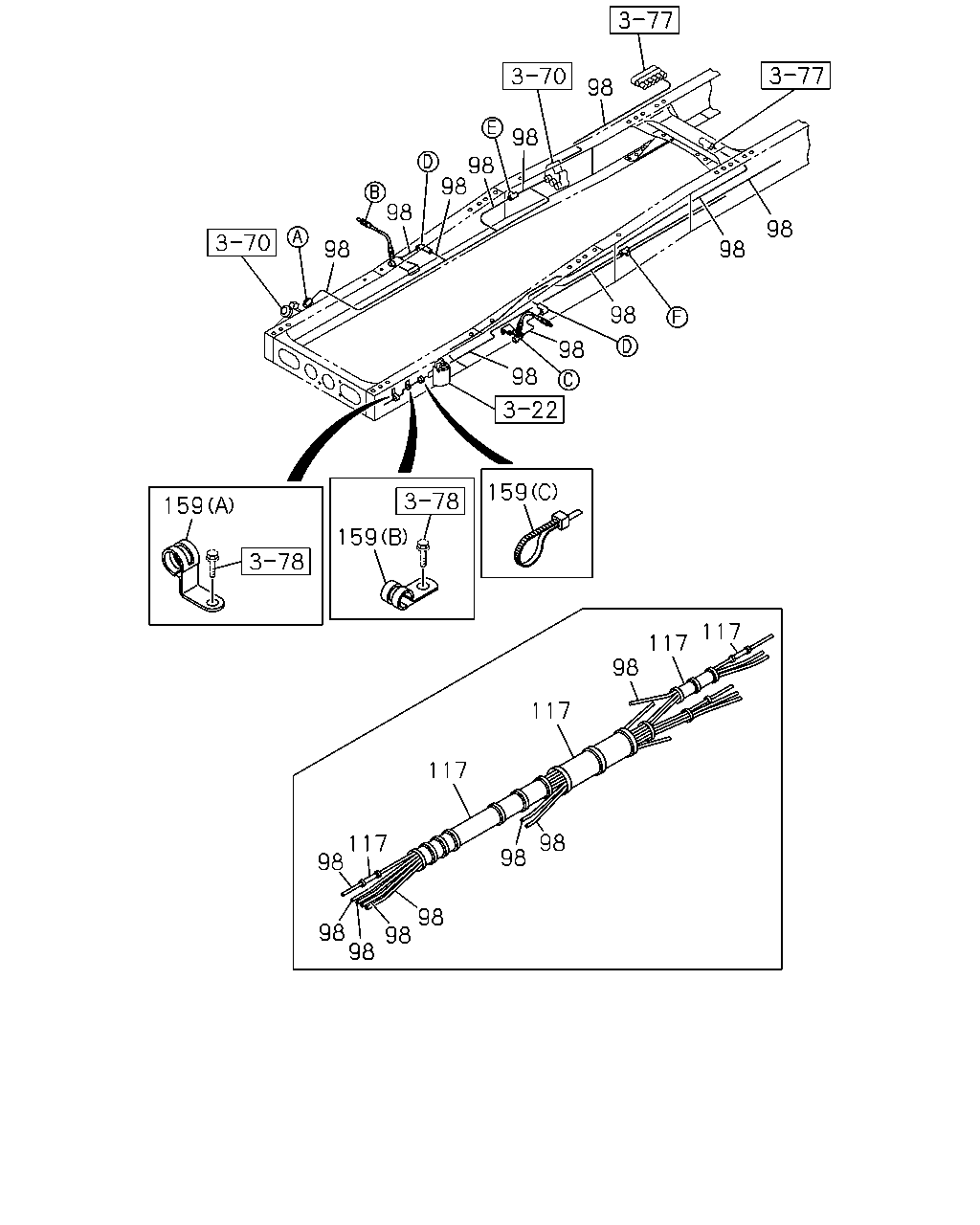

98 98 98 98 98 98 98 98 98 98 98 159 159 159 117 117 98 117 117 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON L=210 OD=12	1-49221-444-0	01	1	0411-	●	●
98	TUBE; NYLON L=175 OD=12	1-49221-445-0	01	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0501-	●
98	TUBE; NYLON WHEEL BASE 5900MM(59W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 5900MM(59W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0501-		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0501-	●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0501-		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	02	1	0501-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0411-	●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0411-		●
98	TUBE; NYLON WHEEL BASE 6600MM(66W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 6600MM(66W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0501-		●
98	TUBE; NYLON WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0501-		●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0411-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0411-	●	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0501-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0501-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0411-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0411-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0411-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0411-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0411-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0411-	●	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	0411-	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0411-	●	●
159	CLIP; NYLON TUBE (A) ID=19 L=39 H=21	1-09700-972-1	02	1	0411-	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0411-	●	●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0411-	●	●
159	CLIP; NYLON TUBE (A) ID=45 H=31 L=35	1-09701-308-0	01	1	0411-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	18	1	0411-		●
159	CLIP; NYLON TUBE (B) ID=19 L=28	9-09525-856-0	02	1	0411-		●
