3-46 — AIR DRYER (#26635) — 25 parça

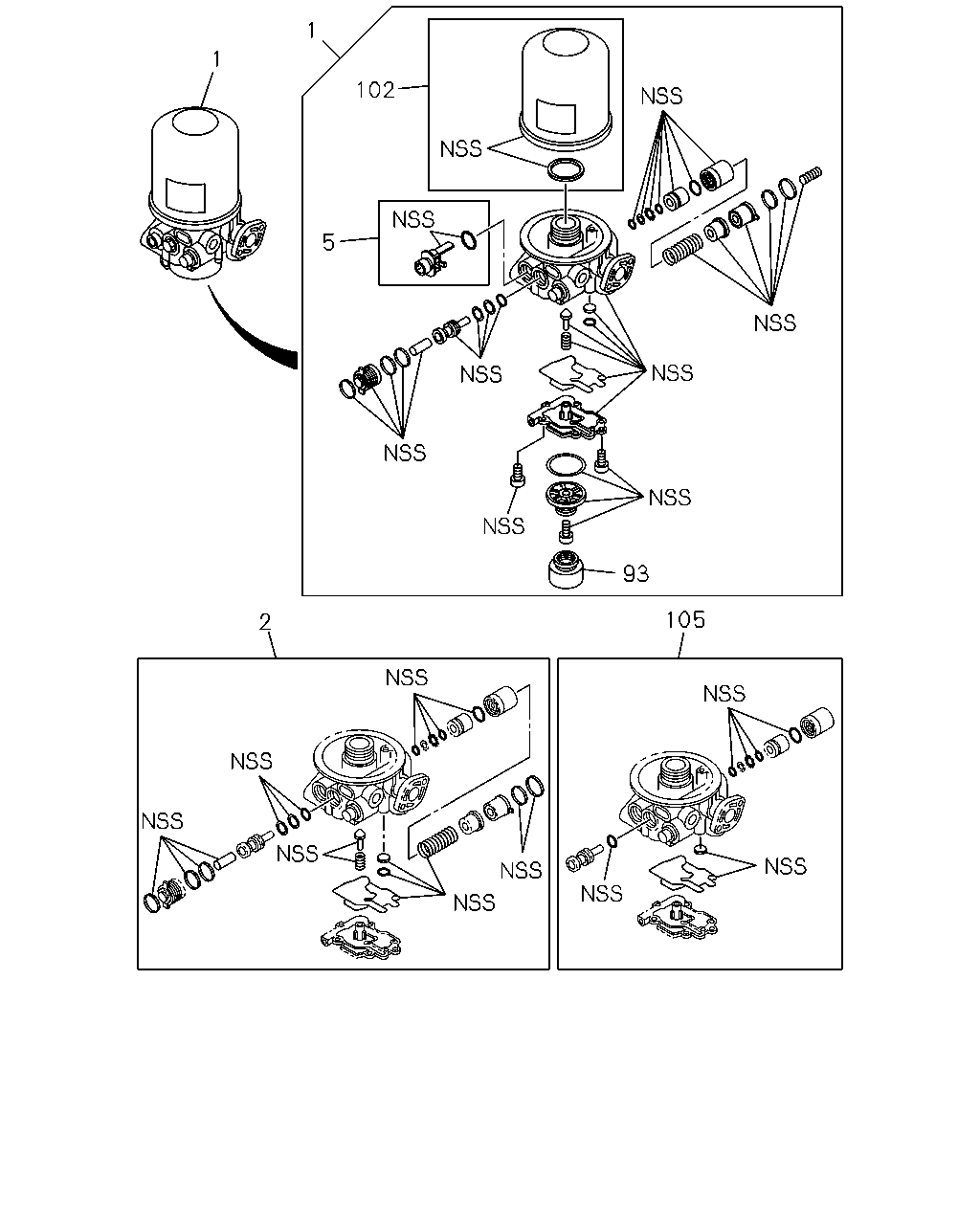

çizim 24136
1 1 102 5 93 105 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-85576-370-0 01 1 0411- ● ●
2 REPAIR KIT; AIR DRYER 1-85576-367-0 01 1 0411- ● ●
5 HEATER ASM; AIR DRYER 1-85576-363-0 01 1 0411- ● ●
93 SILENCER; AIR DRYER 1-85576-362-0 01 1 0411- ● ●
102 CARTRIDGE; AIR DRYER 1-85576-365-0 01 1 0411- ● ●
105 SEAL KIT; AIR DRYER 1-85576-366-0 01 1 0411- ● ●
120 TAPPET 1-87411-310-0 01 1 0411- ● ●

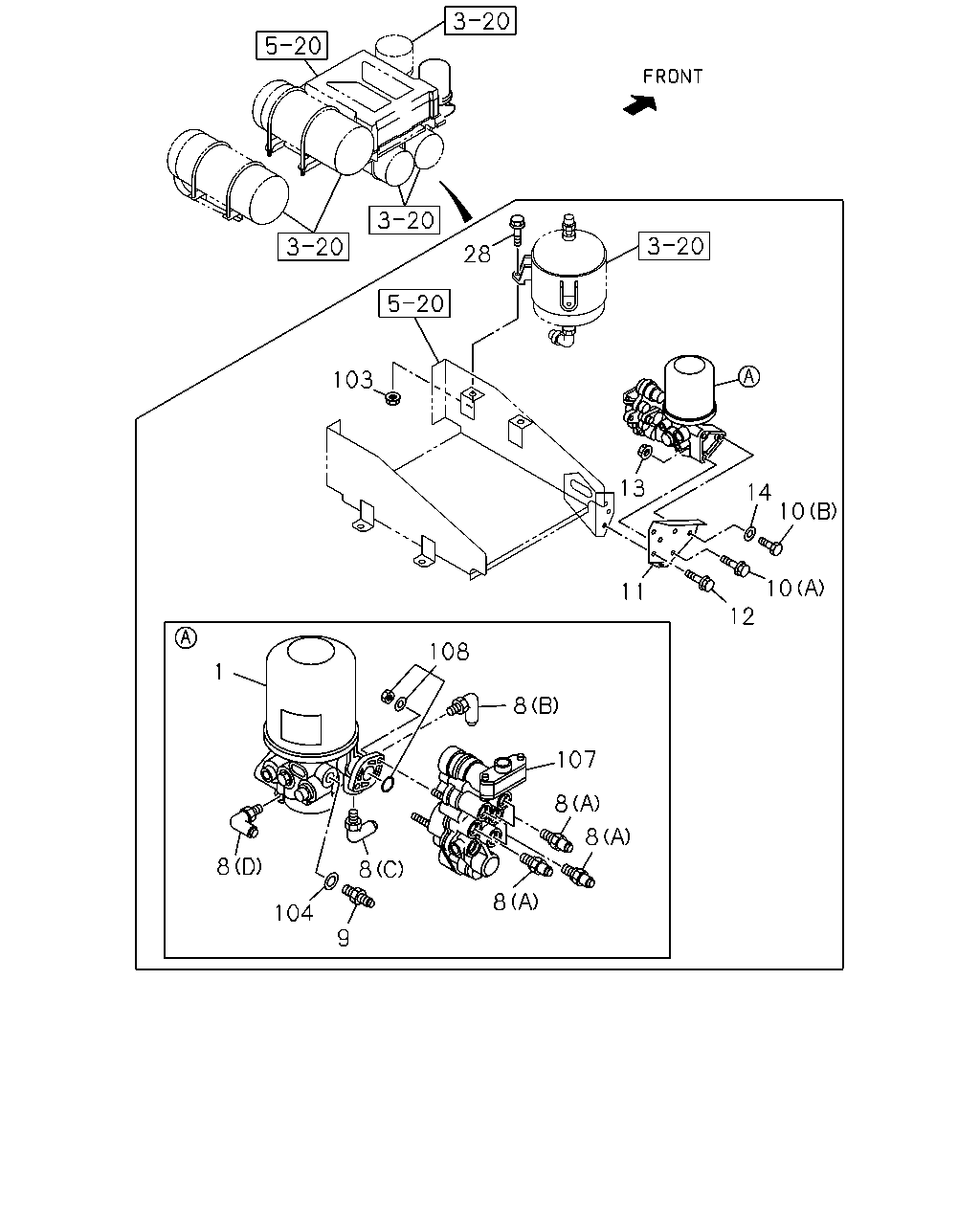

çizim 82410
28 103 13 14 10 10 11 12 108 1 8 107 8 8 8 8 8 104 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-85576-370-0 01 1 0411- ● ●
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT 		1-09661-050-0 05 1 0411- ● ●
8 CONNECTOR; OUT,AIR DRYER
(C) 		1-09661-521-0 01 1 0411- ● ●
8 CONNECTOR; OUT,AIR DRYER
(B) 		1-09661-520-0 01 1 0411- ● ●
8 CONNECTOR; OUT,AIR DRYER
(D) 		1-09661-574-0 01 1 0411- ● ●
9 CONNECTOR; PIPE,AIR DRYER 1-09654-416-1 01 1 0411- ● ●
10 BOLT; AIR DRYER
(A) M12X50 FLANGE 		0-28081-250-0 01 1 0411- ● ●
10 BOLT; AIR DRYER
(B) M12X25 		1-09009-081-0 02 1 0411- ● ●
11 BRACKET; AIR DRYER 1-48316-019-0 01 1 0411- ● ●
12 BOLT; BRKT
M12X30 FLANGE 		0-28681-230-0 03 1 0411- ● ●
13 NUT; AIR DRYER
M12 FLANGE 		0-91150-212-0 01 1 0411- ● ●
14 WASHER; PL,AIR DRYER
ID=12.5 		9-09160-512-0 02 1 0411- ● ●
28 BOLT; PURGE TANK
M10X25 FLANGE 		0-28681-025-0 02 1 0411- ● ●
103 NUT; PURGE TANK
M10 FLANGE 		0-91150-210-0 02 1 0411- ● ●
104 GASKET 9-09572-022-0 01 1 0411- ● ●
107 VALVE ASM; PROTECTION,AIR DRYER 1-85576-369-0 01 1 0411- ● ●
108 FIXING KIT; PROTECTION,AIR DRYER 1-85576-371-0 01 1 0411- ● ●
120 TAPPET 1-87411-310-0 01 1 0411- ● ●
