3-45 — LOAD SENSING PROPORTIONING VALVE (#26634) — 45 parça

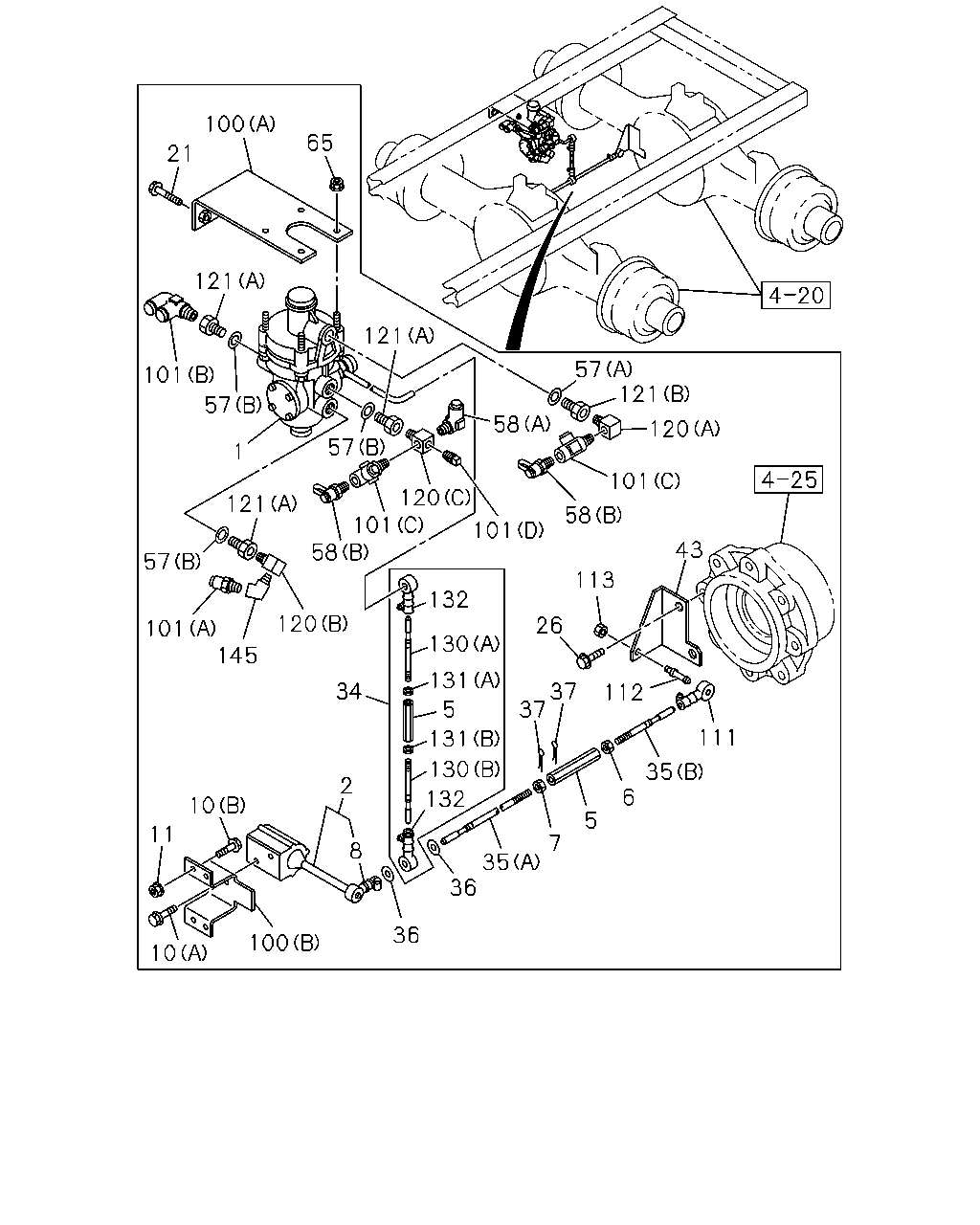

çizim 24723
100 65 21 121 121 57 121 101 57 58 120 57 1 101 120 101 58 121 58 101 43 57 113 132 120 26 101 145 130 131 34 37 37 112 5 111 131 130 35 2 6 132 10 5 11 7 8 35 36 36 100 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-150-0 01 1 0411- ● ●
2 DAMPER 1-47725-047-0 01 1 0411- ● ●
5 JOINT 1-09768-091-0 02 1 0411- ● ●
6 NUT; LK,UPR
M8 		9-09111-408-0 01 1 0411- ● ●
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 0411- ● ●
8 ROD END 1-47723-001-0 01 1 0411- ● ●
10 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0411- ● ●
10 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0411- ● ●
11 NUT; BRKT
M8 FLANGE 		0-91150-208-0 04 1 0411- ● ●
21 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0411- ● ●
26 BOLT; DAMPER
M8X12 FLANGE 		0-28080-812-0 02 1 0411- ● ●
34 ROD; LEVER TO ROD,LSPV 1-47725-046-0 01 1 0411- ● ●
35 ROD; LINK,LSPV
(B) 		1-09765-282-0 01 1 0411- ● ●
35 ROD; LINK,LSPV
(A) 		1-09765-318-0 01 1 0411- ● ●
36 WASHER; PL,ROD
ID=8.4 		9-09160-508-0 02 1 0411- ● ●
37 PIN; SPLIT,ROD
OD=1.8 L=25 		9-08112-025-0 02 1 0411- ● ●
43 BRACKET; DAMPER TO AXLE 1-42129-185-0 01 1 0411- ● ●
57 GASKET; CONNECTOR
(A) ID=16.2 OD=24 		9-09571-416-0 01 1 0411- ● ●
57 GASKET; CONNECTOR
(B) ID=22.5 		9-09571-422-0 03 1 0411- ● ●
58 CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0411- ● ●
58 CONNECTOR; LSPV
(B) 		1-47459-013-0 02 1 0411- ● ●
65 NUT; LSPV
M8 FLANGE 		0-91150-108-0 04 1 0411- ● ●
100 BRACKET; LSPV
(A) 		1-47471-208-0 01 1 0411- ● ●
100 BRACKET; LSPV
(B) 		1-42129-511-0 01 1 0411- ● ●
101 CONNECTOR; LSPV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0411- ● ●
101 CONNECTOR; LSPV
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0411- ● ●
101 CONNECTOR; LSPV
(C) 		1-09661-536-0 02 1 0411- ● ●
101 CONNECTOR; LSPV
(D) PT3/8 		9-09204-517-0 01 1 0411- ● ●
111 RUBBER; JOINT,LSPV 1-47723-001-0 01 1 0411- ● ●
112 PIN; JOINT RUBBER 1-09744-123-0 01 1 0411- ● ●
113 NUT; JOINT RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0411- ● ●
120 CONNECTOR
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0411- ● ●
120 CONNECTOR
(B) 		1-09661-303-0 01 1 0411- ● ●
120 CONNECTOR
(C) PT3/8 4WAY 		1-09661-489-0 01 1 0411- ● ●
121 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0411- ● ●
121 ADAPTER
(B) 		1-09661-044-0 01 1 0411- ● ●
130 ROD; JOINT
(B) 		1-09765-283-0 01 1 0411- ● ●
130 ROD; JOINT
(A) 		1-09765-290-0 01 1 0411- ● ●
131 NUT; JOINT
(A) LH THREAD 		1-09409-002-0 01 1 0411- ● ●
131 NUT; JOINT
(B) 		1-48119-089-0 01 1 0411- ● ●
132 RUBBER ASM; CONN 1-47723-001-0 02 1 0411- ● ●
145 UNION 1-09664-209-0 01 1 0411- ● ●

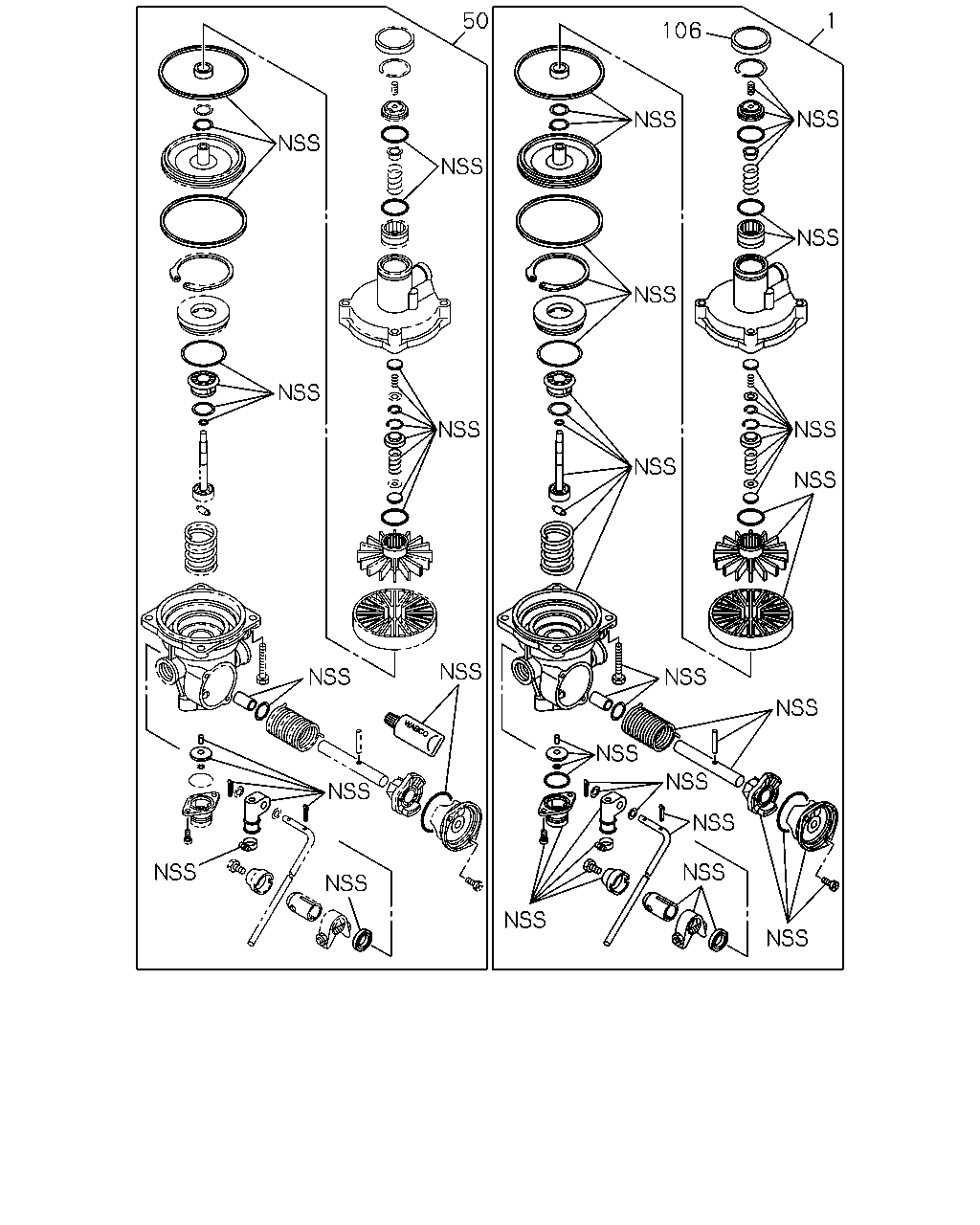

çizim 25047
50 1 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-150-0 01 1 0411- ● ●
50 REPAIR KIT; LSPV 1-85576-393-0 01 1 0411- ● ●
106 COVER; PISTON 1-47729-001-0 01 1 0411- ● ●
