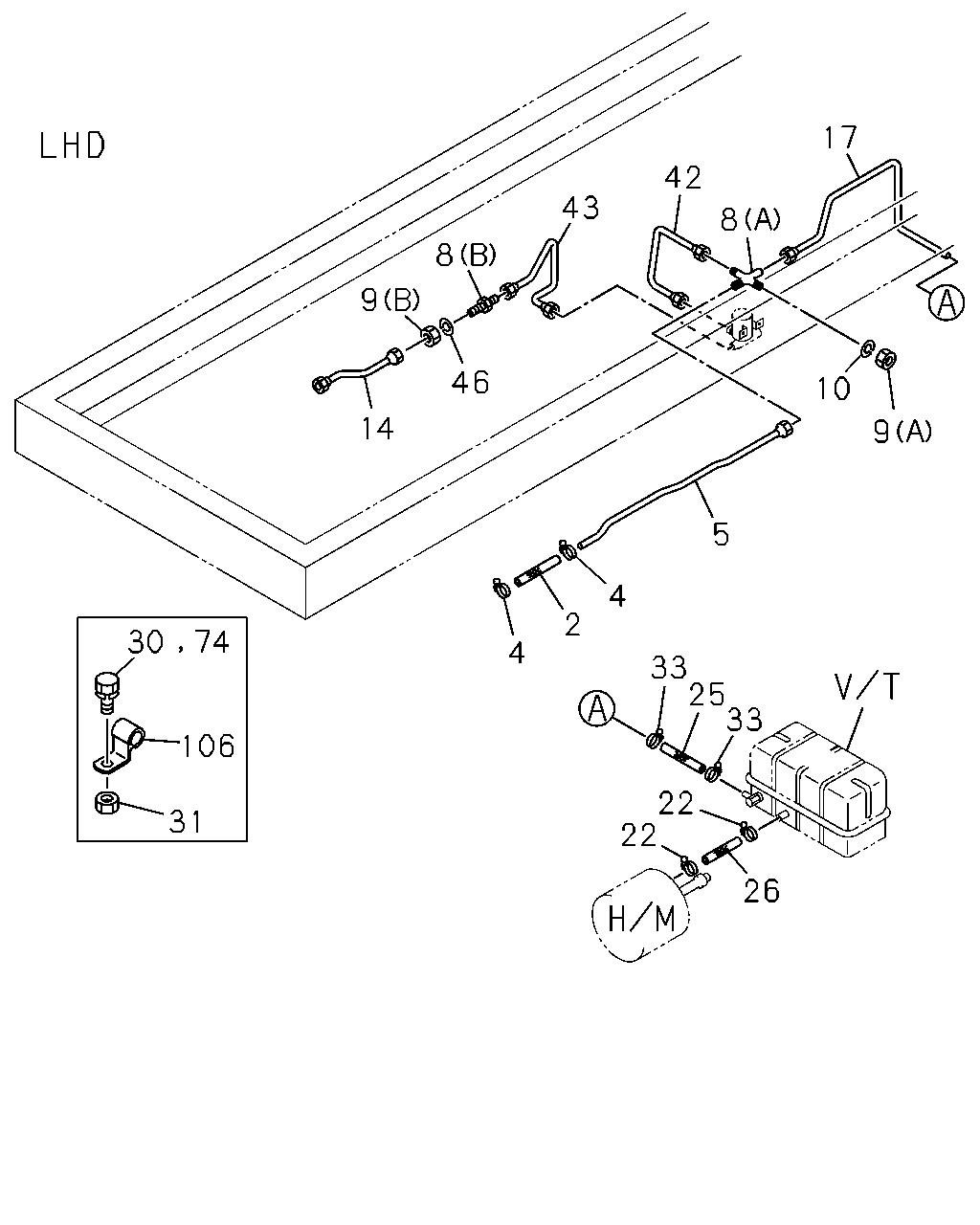

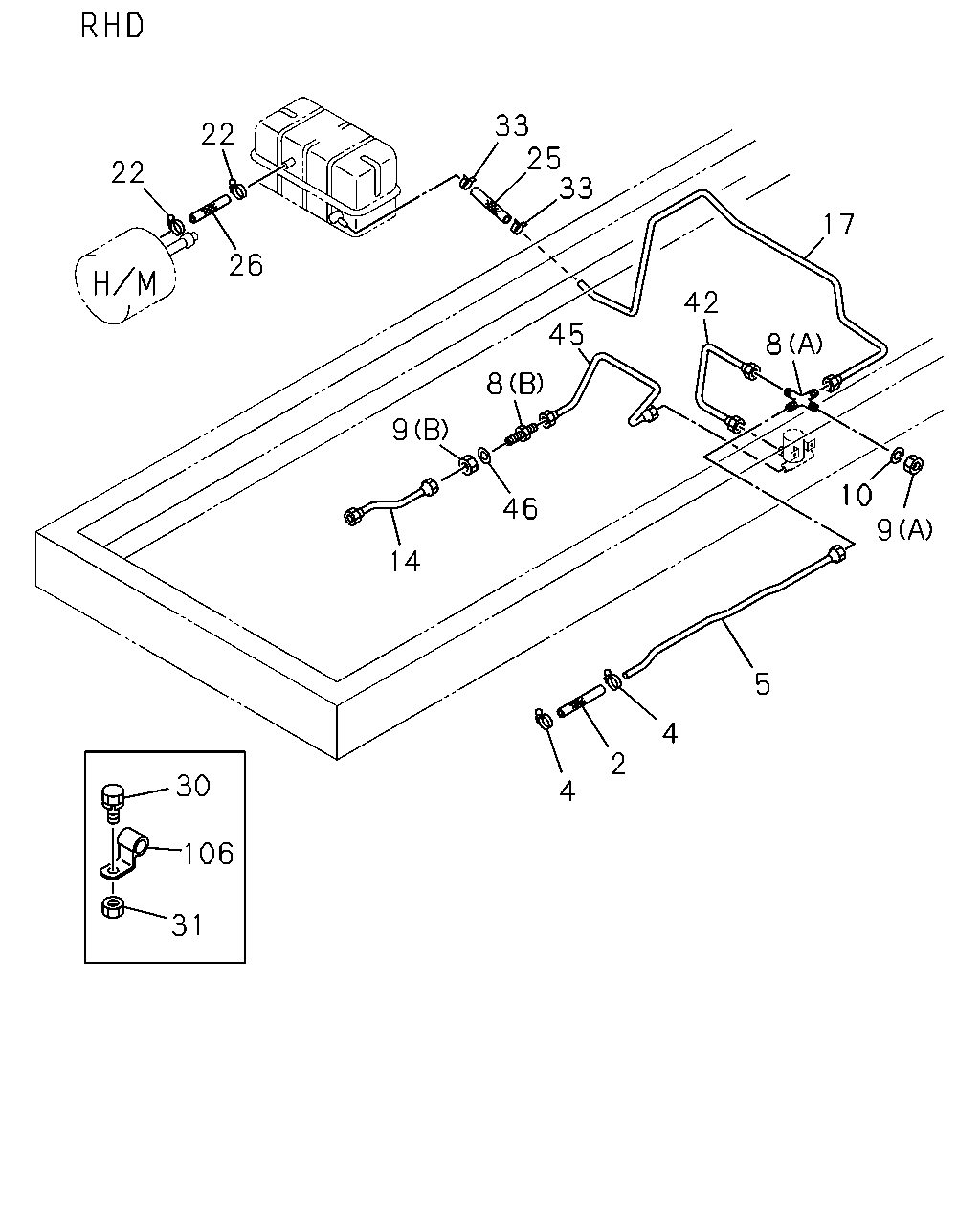

3-60 — BRAKE PIPING; VACUUM (#2663) — 60 parça

33 25 33 22 22 17 26 42 45 8 8 9 10 9 46 14 5 4 2 30 4 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; VAC PUMP SIDE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=260 SERVICED BY L=1500	1-09360-469-0	01	1	9101-	●	●
4	CLIP; HOSE,VAC PUMP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09704-037-0	02	1	9101-	●	●
5	PIPE; VAC,VAC PUMP TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-940-0	01	1	9101-	●
5	PIPE; VAC,VAC PUMP TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-231-0	01	1	9101-		●
8	UNION; VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A)	1-09656-143-1	01	1	9101-	●	●
8	UNION; VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9101-	●	●
9	NUT; UNION,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) M14	9-99110-414-0	01	1	9101-	●	●
9	NUT; UNION,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) M16	9-99111-416-0	01	1	9101-	●	●
10	WASHER; LK,UNION,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09150-514-0	01	1	9101-9312	●	●
14	PIPE; VAC,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=277 SERVICED BY L=350	1-47426-403-0	01	1	9101-9212	●	●
14	PIPE; VAC,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=277 SERVICED BY L=300	1-47426-402-0	01	1	9301-	●	●
17	PIPE; VAC,UNION TO VAC TANK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-941-0	01	1	9101-	●
17	PIPE; VAC,UNION TO VAC TANK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-230-0	01	1	9101-		●
22	CLIP; HOSE,VAC TANK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ID=32	9-09915-005-1	02	1	9101-	●	●
25	HOSE; VAC TANK TO VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=80 SERVICED BY L=1500	1-09360-470-0	01	1	9101-	●	●
26	HOSE; VAC TANK TO HYDROMASTER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=300 SERVICED BY L=1500	1-09360-471-0	01	1	9101-	●
26	HOSE; VAC TANK TO HYDROMASTER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=370	1-09360-709-0	01	1	9101-		●
30	BOLT; CLIP,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-01900-820-0	01	1	9101-9204	●	●
30	BOLT; CLIP,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	0-50040-820-0	01	1	9205-	●	●
31	NUT; CLIP,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09110-408-0	01	1	9101-	●	●
33	CLIP; VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09704-037-0	02	1	9101-	●	●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=309 SERVICED BY L=350	1-47426-403-0	01	1	9101-9212	●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=309 SERVICED BY L=350	1-47426-403-0	01	1	9301-	●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=332 SERVICED BY L=350	1-47437-961-0	01	1	9101-9212		●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=332 SERVICED BY L=350	1-47426-403-0	01	1	9301-		●
45	PIPE; VAC,MAG VLV TO POWER CHAMBER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=626 SERVICED BY L=660	1-47437-964-0	01	1	9101-9212	●
45	PIPE; VAC,MAG VLV TO POWER CHAMBER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=626 SERVICED BY L=660	1-47426-409-0	01	1	9301-	●
46	WASHER; LK,UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09150-516-0	01	1	9101-9312	●	●
106	CLIP; PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09700-606-0	01	1	9101-	●	●

17 42 43 8 8 9 46 10 14 5 4 2 30 74 4 33 25 33 106 22 22 31 26 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; VAC PUMP SIDE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=260 SERVICED BY L=1500	1-09360-469-0	01	1	9101-	●	●
4	CLIP; HOSE,VAC PUMP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09704-037-0	02	1	9101-	●	●
5	PIPE; VAC,VAC PUMP TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-940-0	01	1	9101-	●
5	PIPE; VAC,VAC PUMP TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-231-0	01	1	9101-		●
8	UNION; VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A)	1-09656-143-1	01	1	9101-	●	●
8	UNION; VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9101-	●	●
9	NUT; UNION,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) M14	9-99110-414-0	01	1	9101-	●	●
9	NUT; UNION,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) M16	9-99111-416-0	01	1	9101-	●	●
10	WASHER; LK,UNION,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09150-514-0	01	1	9101-9312	●	●
14	PIPE; VAC,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=277 SERVICED BY L=350	1-47426-403-0	01	1	9101-9212	●	●
14	PIPE; VAC,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=277 SERVICED BY L=300	1-47426-402-0	01	1	9301-	●	●
17	PIPE; VAC,UNION TO VAC TANK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-941-0	01	1	9101-	●
17	PIPE; VAC,UNION TO VAC TANK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47484-230-0	01	1	9101-		●
22	CLIP; HOSE,VAC TANK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ID=32	9-09915-005-1	02	1	9101-	●	●
25	HOSE; VAC TANK TO VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=80 SERVICED BY L=1500	1-09360-470-0	01	1	9101-	●	●
26	HOSE; VAC TANK TO HYDROMASTER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=300 SERVICED BY L=1500	1-09360-471-0	01	1	9101-	●
26	HOSE; VAC TANK TO HYDROMASTER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=370	1-09360-709-0	01	1	9101-		●
30	BOLT; CLIP,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-01900-820-0	01	1	9101-9204	●	●
30	BOLT; CLIP,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	0-50040-820-0	01	1	9205-	●	●
31	NUT; CLIP,VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09110-408-0	01	1	9101-	●	●
33	CLIP; VAC PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09704-037-0	02	1	9101-	●	●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=309 SERVICED BY L=350	1-47426-403-0	01	1	9101-9212	●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=309 SERVICED BY L=350	1-47426-403-0	01	1	9301-	●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=332 SERVICED BY L=350	1-47437-961-0	01	1	9101-9212		●
42	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=332 SERVICED BY L=350	1-47426-403-0	01	1	9301-		●
43	PIPE; VAC,MAG VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=717 SERVICED BY L=730	1-47437-965-0	01	1	9101-9212		●
43	PIPE; VAC,MAG VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=717 SERVICED BY L=730	1-47426-411-0	01	1	9301-		●
46	WASHER; LK,UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09150-516-0	01	1	9101-9312	●	●
74	BOLT; CLIP,VAC HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-01900-816-0	01	1	9101-9204		●
74	BOLT; CLIP,VAC HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	0-50040-816-0	01	1	9205-		●
106	CLIP; PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09700-606-0	01	1	9101-	●	●
