3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#26626) — 31 parça
Tümü
A - CXZ6MC
B - CXZ6MF
◀
[310A] FIXING;BRAKE VALVE (13 parça)

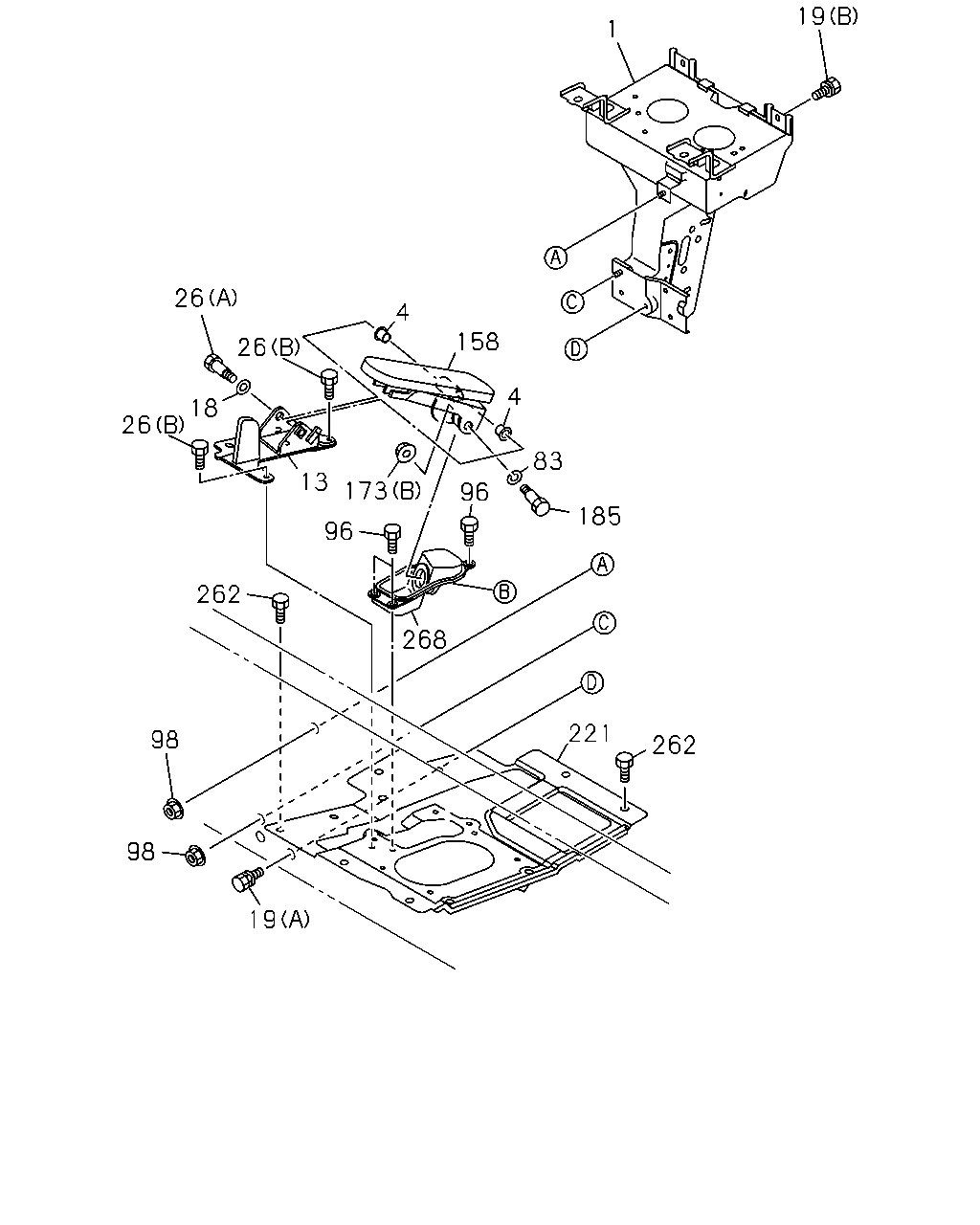

[310A] BRACKET AND PEDAL (18 parça)
▶
20
20
191
173
172
183
20
266
34
7
16
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
CONNECTOR; BRK VALVE
(A)
1-09656-708-0
02
1
0411-
●
●
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0411-
●
●
7
CONNECTOR; BRK VALVE
(D) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0411-
●
●
7
CONNECTOR; BRK VALVE
(C)
1-09661-285-0
02
1
0411-
●
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
0411-
●
●
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0411-
●
●
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
0411-
●
●
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
0411-
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
0411-
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
0411-
●
●
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
0411-
●
●
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
0411-
●
●
266
JOINT ROD
1-73908-166-3
01
1
0411-
●
●
19
1
26
4
158
26
4
18
26
83
96
13
173
185
96
262
268
221
98
262
98
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
1-73908-144-6
01
1
0411-
●
●
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
0411-
●
●
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
0411-
●
●
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
0411-
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0411-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0411-
●
●
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
0411-
●
●
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
0411-
●
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
0411-
●
●
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0411-
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0411-
●
●
158
PEDAL ASM; BRK
1-73908-068-5
01
1
0411-
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
0411-
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
0411-
●
●
185
BOLT; BRKT
1-73996-282-1
01
1
0411-
●
●
221
PLATE ASM; SIDE
1-73996-280-4
01
1
0411-
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
08
1
0411-
●
●
268
COVER; ROD
1-73908-192-1
01
1
0411-
●
●
