◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10949 - CXZ CHINA ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#26625) — 140 parça

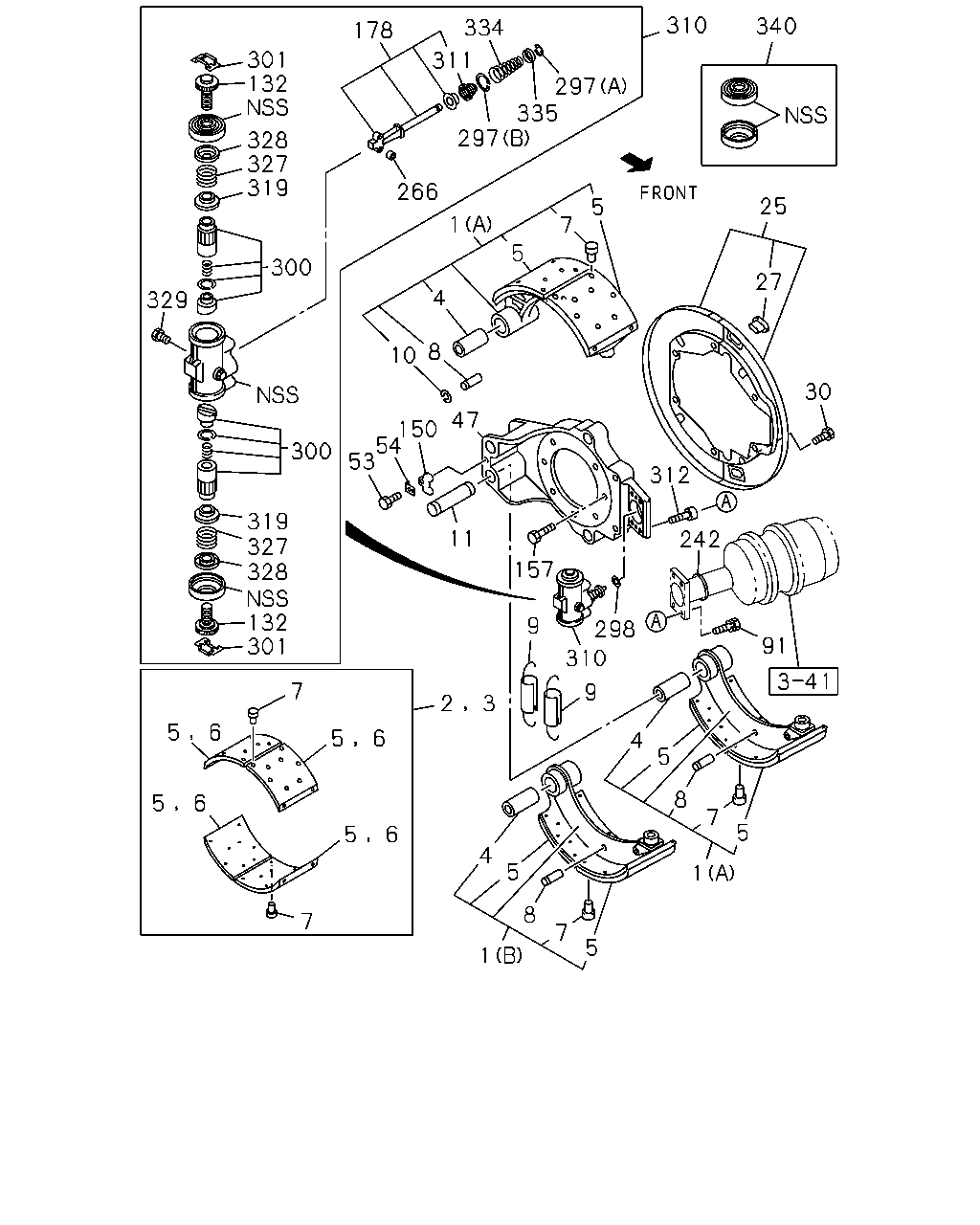

çizim 25206
301 132 328 327 319 300 329 300 319 327 328 132 301 7 5 6 5 6 7 5 6 5 6 2 3 1 4 5 8 7 5 4 5 8 7 5 9 310 9 157 298 242 91 30 312 11 47 150 54 53 10 8 4 5 7 5 25 27 340 310 297 335 297 266 1 334 311 178 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) LEADING 		1-47170-324-0 01 1 0411- ● ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) LEADING 		1-47170-324-0 01 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) LEADING 		1-47170-324-0 01 1 0411- ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) LEADING 		1-47170-324-0 01 1 0411- ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) TRAILING 		1-47170-325-0 01 1 0411- ● ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) TRAILING 		1-47170-325-0 01 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) TRAILING 		1-47170-325-0 01 1 0411- ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) TRAILING 		1-47170-325-0 01 1 0411- ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) LEADING 		1-47170-326-0 01 1 0411- ● ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) LEADING 		1-47170-326-0 01 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) LEADING 		1-47170-326-0 01 1 0411- ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) LEADING 		1-47170-326-0 01 1 0411- ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) TRAILING 		1-47170-327-0 01 1 0411- ● ●
1 SHOE; BRK,RR
MULTI LEAF SUSP RR<SAS> (A) TRAILING 		1-47170-327-0 01 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) TRAILING 		1-47170-327-0 01 1 0411- ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) TRAILING 		1-47170-327-0 01 1 0411- ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) LEADING 		1-47170-040-0 02 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) LEADING 		1-47170-040-0 02 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) TRAILING 		1-47170-041-0 02 1 0411- ● ●
1 SHOE; BRK,RR
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) TRAILING 		1-47170-041-0 02 1 0411- ● ●
2 LINING SET; RR BRK,STANDARD
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-773-0 02 1 0411- ● ●
2 LINING SET; RR BRK,STANDARD
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-773-0 02 1 0411- ● ●
2 LINING SET; RR BRK,STANDARD
MULTI LEAF SUSP RR<SAS> 		1-88310-775-0 02 1 0411- ● ●
2 LINING SET; RR BRK,STANDARD
MULTI LEAF SUSP RR<SAS> 		1-88310-775-0 02 1 0411- ● ●
2 LINING SET; RR BRK,STANDARD
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-775-0 02 1 0411- ●
2 LINING SET; RR BRK,STANDARD
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-775-0 02 1 0411- ●
3 LINING SET; RR BRK,OVER SIZE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-774-0 02 1 0411- ● ●
3 LINING SET; RR BRK,OVER SIZE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-774-0 02 1 0411- ● ●
3 LINING SET; RR BRK,OVER SIZE
MULTI LEAF SUSP RR<SAS> 		1-88310-776-0 02 1 0411- ● ●
3 LINING SET; RR BRK,OVER SIZE
MULTI LEAF SUSP RR<SAS> 		1-88310-776-0 02 1 0411- ● ●
3 LINING SET; RR BRK,OVER SIZE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-776-0 02 1 0411- ●
3 LINING SET; RR BRK,OVER SIZE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-88310-776-0 02 1 0411- ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-021-0 04 1 0411- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-021-0 04 1 0411- ● ●
5 LINING; RR BRK SHOE,STANDARD
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-091-0 08 1 0411- ● ●
5 LINING; RR BRK SHOE,STANDARD
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-091-0 08 1 0411- ● ●
5 LINING; RR BRK SHOE,STANDARD
MULTI LEAF SUSP RR<SAS> 		1-47126-093-0 08 1 0411- ● ●
5 LINING; RR BRK SHOE,STANDARD
MULTI LEAF SUSP RR<SAS> 		1-47126-093-0 08 1 0411- ● ●
5 LINING; RR BRK SHOE,STANDARD
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-093-0 08 1 0411- ●
5 LINING; RR BRK SHOE,STANDARD
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-093-0 08 1 0411- ●
6 LINING; RR BRK SHOE,OVER SIZE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-092-0 08 1 0411- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-092-0 08 1 0411- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
MULTI LEAF SUSP RR<SAS> 		1-47126-094-0 08 1 0411- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
MULTI LEAF SUSP RR<SAS> 		1-47126-094-0 08 1 0411- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-094-0 08 1 0411- ●
6 LINING; RR BRK SHOE,OVER SIZE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47126-094-0 08 1 0411- ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0411- ● ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47119-159-0 04 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-47119-159-0 04 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
MULTI LEAF SUSP RR<SAS> TRAILING 		1-47119-136-0 02 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
MULTI LEAF SUSP RR<SAS> TRAILING 		1-47119-136-0 02 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47119-136-0 02 1 0411- ●
8 PIN; RETURN SPRING,RR BRK SHOE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47119-136-0 02 1 0411- ●
8 PIN; RETURN SPRING,RR BRK SHOE
MULTI LEAF SUSP RR<SAS> LEADING 		1-47119-172-0 02 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
MULTI LEAF SUSP RR<SAS> LEADING 		1-47119-172-0 02 1 0411- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47119-172-0 02 1 0411- ●
8 PIN; RETURN SPRING,RR BRK SHOE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47119-172-0 02 1 0411- ●
9 SPRING; RETURN,BRK SHOE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-09583-366-0 04 1 0411- ● ●
9 SPRING; RETURN,BRK SHOE
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-09583-366-0 04 1 0411- ● ●
9 SPRING; RETURN,BRK SHOE
MULTI LEAF SUSP RR<SAS> 		1-09583-365-1 02 1 0411- ● ●
9 SPRING; RETURN,BRK SHOE
MULTI LEAF SUSP RR<SAS> 		1-09583-365-1 02 1 0411- ● ●
9 SPRING; RETURN,BRK SHOE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-09583-365-1 02 1 0411- ●
9 SPRING; RETURN,BRK SHOE
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-09583-365-1 02 1 0411- ●
10 RING; SNAP,SPR PIN
MULTI LEAF SUSP RR<SAS> ID=10 		9-09185-410-0 02 1 0411- ● ●
10 RING; SNAP,SPR PIN
MULTI LEAF SUSP RR<SAS> ID=10 		9-09185-410-0 02 1 0411- ● ●
10 RING; SNAP,SPR PIN
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10 		9-09185-410-0 02 1 0411- ●
10 RING; SNAP,SPR PIN
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10 		9-09185-410-0 02 1 0411- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0411- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0411- ● ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
MULTI LEAF SUSP RR<SAS> FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
MULTI LEAF SUSP RR<SAS> FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0411- ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0411- ●
25 COVER SET; RR BRK DRUM
MULTI LEAF SUSP RR<SAS> FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
MULTI LEAF SUSP RR<SAS> FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0411- ● ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0411- ●
25 COVER SET; RR BRK DRUM
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0411- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0411- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0411- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0411- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0411- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
MULTI LEAF SUSP RR<SAS> REARWARD 		1-47137-448-0 01 1 0411- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> REARWARD 		1-47137-448-0 01 1 0411- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
MULTI LEAF SUSP RR<SAS> REARWARD 		1-47137-449-0 01 1 0411- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
TAPER LEAF SUSP RR<SAT> INTERNATIONAL STANDARD ISO 10STUD<B3V> REARWARD 		1-47137-449-0 01 1 0411- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 0411- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> REARWARD 		1-47137-472-0 02 1 0411- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0411- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0411- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0411- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0411- ● ●
91 BOLT; CHAMBER
M10X53 		1-47139-148-0 08 1 0411- ● ●
91 BOLT; CHAMBER
M10X53 		1-47139-148-0 08 1 0411- ● ●
132 SCREW; ADJ,RR BRK 1-47623-035-0 04 1 0411- ● ●
132 SCREW; ADJ,RR BRK 1-47623-035-0 04 1 0411- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0411- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0411- ● ●
157 BOLT; RR BRK SET
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X50 		1-09040-066-0 02 1 0411- ● ●
157 BOLT; RR BRK SET
TAPER LEAF SUSP RR<SAT> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X50 		1-09040-066-0 02 1 0411- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0411- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0411- ● ●
242 SEAL 1-47159-186-0 04 1 0411- ● ●
242 SEAL 1-47159-186-0 04 1 0411- ● ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0411- ● ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0411- ● ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0411- ● ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0411- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0411- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0411- ● ●
298 GASKET 1-48259-231-0 02 1 0411- ● ●
298 GASKET 1-48259-231-0 02 1 0411- ● ●
300 SLEEVE 1-47629-247-0 04 1 0411- ● ●
300 SLEEVE 1-47629-247-0 04 1 0411- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0411- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0411- ● ●
310 EXPANDER 1-47601-087-0 02 1 0411- ● ●
310 EXPANDER 1-47601-087-0 02 1 0411- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0411- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0411- ● ●
312 BOLT; EXPANDER 1-47634-008-0 04 1 0411- ● ●
312 BOLT; EXPANDER 1-47634-008-0 04 1 0411- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 0411- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 0411- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 0411- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 0411- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 0411- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 0411- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0411- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0411- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 0411- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 0411- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0411- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0411- ● ●
340 BOOT SET; EXPANDER,RR 1-87831-090-0 02 1 0411- ● ●
340 BOOT SET; EXPANDER,RR 1-87831-090-0 02 1 0411- ● ●
