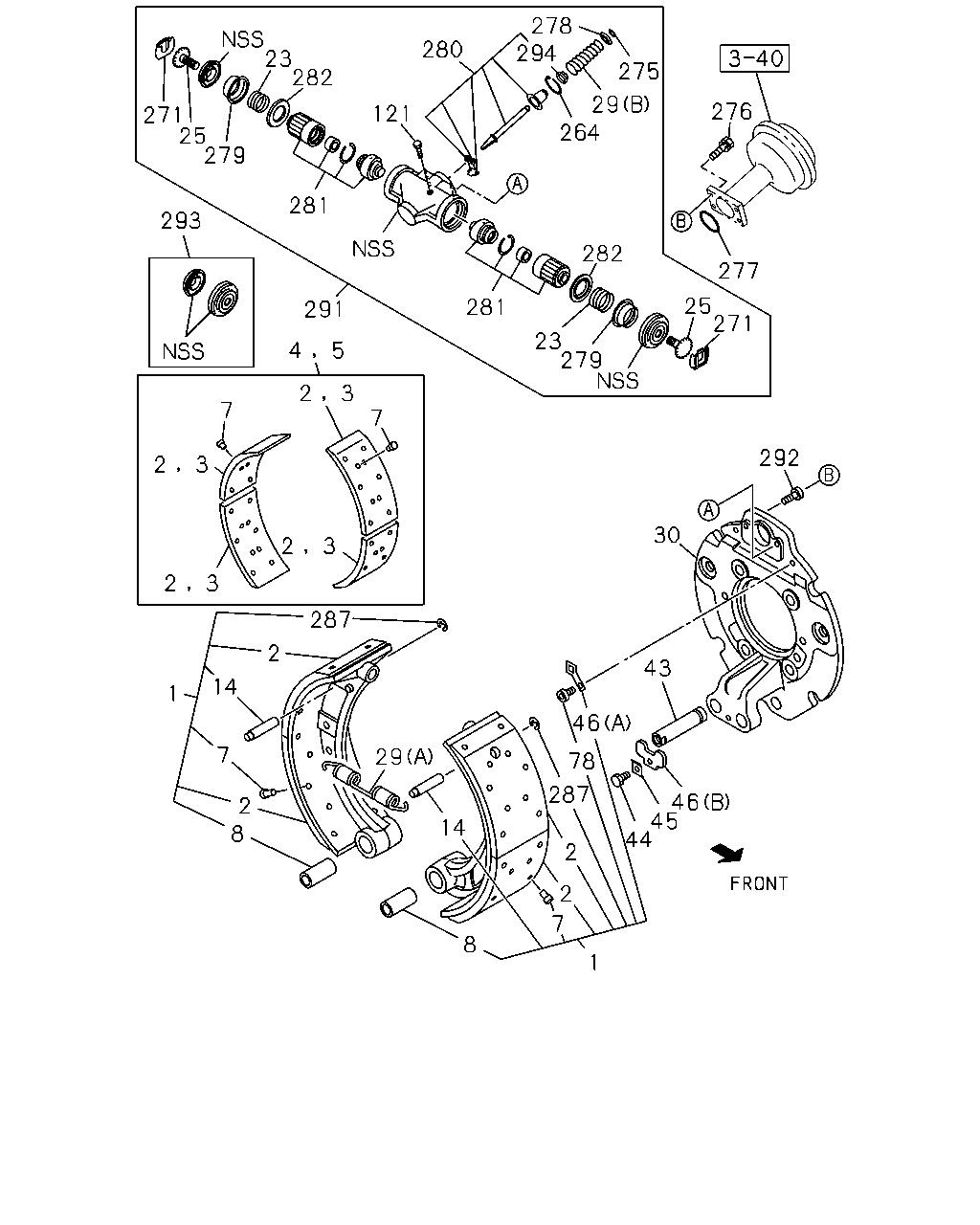

1 |
SHOE; BRK,FRT
FRT BRK AIR D410 WEDGE-160-24<B7Q>
LEADING
|
1-47170-316-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
FRT BRK AIR D410 WEDGE-160-24<B7Q>
TRAILING
|
1-47170-317-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
FRT BRK AIR D410 WEDGE-160-24<B7Q>
LEADING
|
1-47170-318-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
FRT BRK AIR D410 WEDGE-160-24<B7Q>
TRAILING
|
1-47170-319-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
LEADING
|
1-47170-036-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
LEADING
|
1-47170-036-0 |
01 |
1 |
0411- |
|
● |
| |
1 |
SHOE; BRK,FRT
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
TRAILING
|
1-47170-037-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
TRAILING
|
1-47170-037-0 |
01 |
1 |
0411- |
|
● |
| |
1 |
SHOE; BRK,FRT
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
LEADING
|
1-47170-038-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
LEADING
|
1-47170-038-0 |
01 |
1 |
0411- |
|
● |
| |
1 |
SHOE; BRK,FRT
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
TRAILING
|
1-47170-039-0 |
01 |
1 |
0411- |
● |
|
| |
1 |
SHOE; BRK,FRT
TRAILING
|
1-47170-039-0 |
01 |
1 |
0411- |
|
● |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-47126-698-0 |
08 |
1 |
0411- |
● |
|
| |
2 |
LINING; FRT BRK SHOE,STANDARD
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-47125-686-0 |
08 |
1 |
0411- |
● |
|
| |
2 |
LINING; FRT BRK SHOE,STANDARD
|
1-47125-686-0 |
08 |
1 |
0411- |
|
● |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-47126-699-0 |
08 |
1 |
0411- |
● |
|
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-47125-687-0 |
08 |
1 |
0411- |
● |
|
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
|
1-47125-687-0 |
08 |
1 |
0411- |
|
● |
| |
4 |
LINING SET; FRT BRK,STANDARD
FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-88311-314-0 |
02 |
1 |
0411- |
● |
|
| |
4 |
LINING SET; FRT BRK,STANDARD
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-88310-777-0 |
02 |
1 |
0411- |
● |
|
| |
4 |
LINING SET; FRT BRK,STANDARD
|
1-88310-777-0 |
02 |
1 |
0411- |
|
● |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-88311-315-0 |
02 |
1 |
0411- |
● |
|
| |
5 |
LINING SET; FRT BRK,OVER SIZE
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-88310-778-0 |
02 |
1 |
0411- |
● |
|
| |
5 |
LINING SET; FRT BRK,OVER SIZE
|
1-88310-778-0 |
02 |
1 |
0411- |
|
● |
| |
7 |
RIVET; LINING,FRT BRK
L=15.5
|
1-09732-053-0 |
80 |
1 |
0411- |
● |
● |
| |
8 |
BUSHING; BRK SHOE
|
1-47112-020-0 |
04 |
1 |
0411- |
● |
● |
| |
14 |
PIN; SHOE RETURN SPR
FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-47119-177-0 |
04 |
1 |
0411- |
● |
|
| |
14 |
PIN; SHOE RETURN SPR
EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q>
|
1-47119-035-0 |
04 |
1 |
0411- |
● |
|
| |
14 |
PIN; SHOE RETURN SPR
|
1-47119-035-0 |
04 |
1 |
0411- |
|
● |
| |
23 |
SPRING; COIL
|
1-47629-196-0 |
04 |
1 |
0411- |
● |
● |
| |
25 |
SCREW; ADJ,FRT WHEEL CYL
|
1-47623-035-0 |
04 |
1 |
0411- |
● |
● |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
(A)
|
1-09583-365-1 |
02 |
1 |
0411- |
● |
● |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
(B)
|
1-47649-041-0 |
02 |
1 |
0411- |
● |
● |
| |
30 |
BRACKET; ANCHOR,FRT
|
1-47137-512-0 |
02 |
1 |
0411- |
● |
● |
| |
43 |
PIN; ANCHOR
L=115.5
|
1-47131-044-0 |
04 |
1 |
0411- |
● |
● |
| |
44 |
BOLT; LOCK,ANCHOR PIN
M10X16
|
0-20801-016-0 |
02 |
1 |
0411- |
● |
● |
| |
45 |
WASHER; LK
|
1-47133-011-0 |
02 |
1 |
0411- |
● |
● |
| |
46 |
PLATE; LOCK
(A)
|
1-47119-152-0 |
04 |
1 |
0411- |
● |
● |
| |
46 |
PLATE; LOCK
(B)
|
1-47133-010-0 |
02 |
1 |
0411- |
● |
● |
| |
78 |
BOLT; LK,PLATE
|
1-47119-153-0 |
04 |
1 |
0411- |
● |
● |
| |
121 |
SCREW; LK SPR FRT WHEEL CYL
|
1-47619-149-1 |
04 |
1 |
0411- |
● |
● |
| |
264 |
RING; SNAP,SPR PIN
|
1-47649-034-1 |
02 |
1 |
0411- |
● |
● |
| |
271 |
CLIP; ADJ
|
1-47621-017-0 |
04 |
1 |
0411- |
● |
● |
| |
275 |
RING; RETAINER
|
1-47649-031-0 |
02 |
1 |
0411- |
● |
● |
| |
276 |
BOLT; CHAMBER
M10X42.5
|
1-47139-163-0 |
08 |
1 |
0411- |
● |
● |
| |
277 |
RING; CHAMBER
|
1-48259-231-0 |
02 |
1 |
0411- |
● |
● |
| |
278 |
RETAINER; SPRING
|
1-47649-020-0 |
02 |
1 |
0411- |
● |
● |
| |
279 |
CAGE; SPRING
|
1-47629-192-0 |
04 |
1 |
0411- |
● |
● |
| |
280 |
WEDGE; FRT WHEEL CYL
|
1-47640-012-0 |
02 |
1 |
0411- |
● |
● |
| |
281 |
SLEEVE
|
1-47629-247-0 |
04 |
1 |
0411- |
● |
● |
| |
282 |
RING; DRIVE
|
1-47629-200-0 |
04 |
1 |
0411- |
● |
● |
| |
287 |
RING; SNAP
FRT BRK AIR D410 WEDGE-160-24<B7Q>
ID=10
|
9-09185-410-0 |
08 |
1 |
0411- |
● |
|
| |
291 |
EXPANDER
|
1-47601-087-0 |
02 |
1 |
0411- |
● |
● |
| |
292 |
BOLT; EXPANDER
|
1-47634-008-0 |
04 |
1 |
0411- |
● |
● |
| |
293 |
BOOT SET; EXPANDER,FRT
|
1-87831-090-0 |
02 |
1 |
0411- |
● |
● |
| |
294 |
BOOT; WEDGE
|
1-47649-042-0 |
02 |
1 |
0411- |
● |
● |
