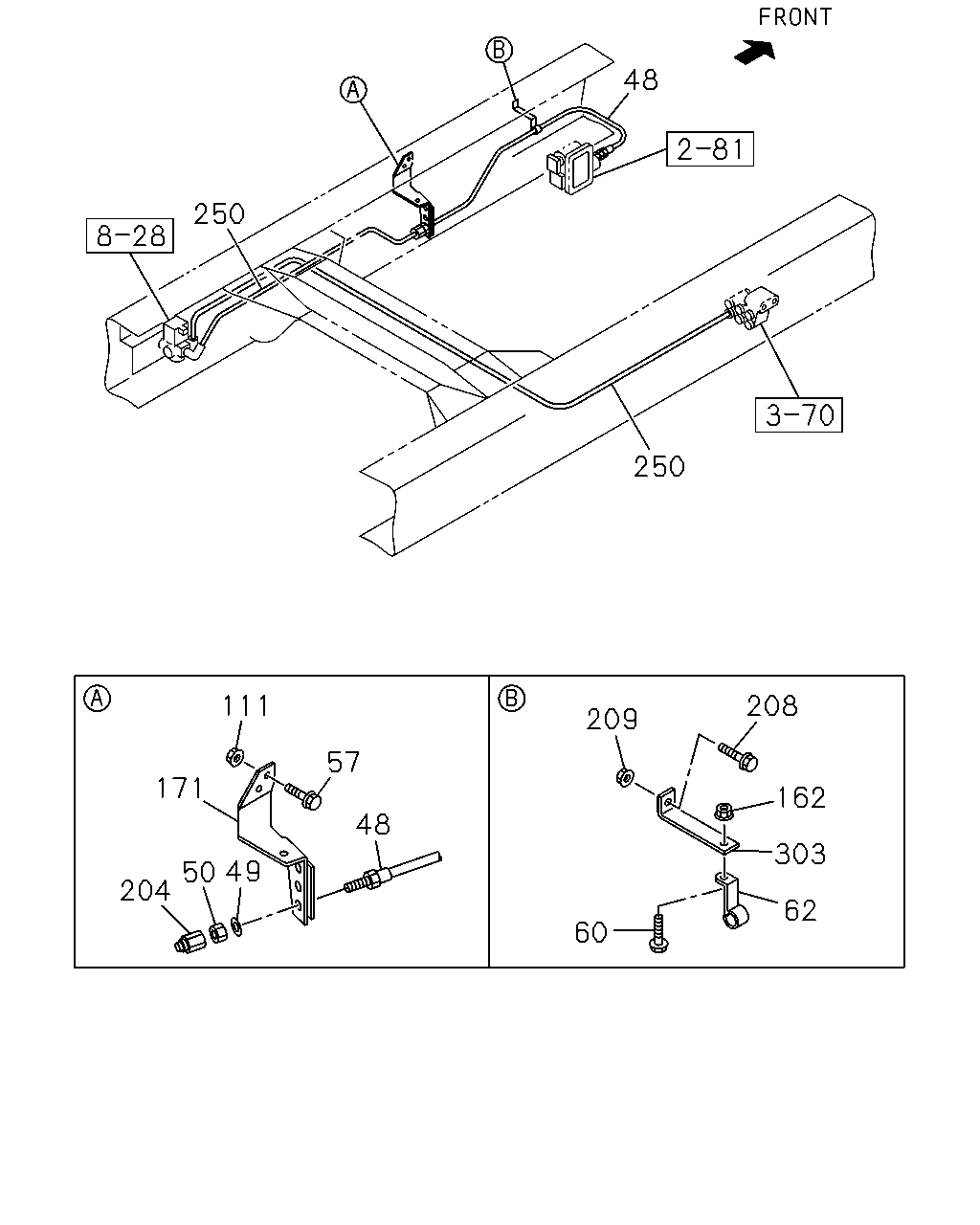

2-85 — POWER TAKE OFF CONTROL (#26623) — 24 parça

48 250 250 111 208 209 57 171 162 48 303 204 62 60 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760	1-09363-715-0	01	1	0411-	●	●
49	WASHER; LK,FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2	9-09150-512-0	01	1	0411-	●	●
50	NUT; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-09840-280-0	01	1	0411-	●	●
57	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE	0-28680-835-0	02	1	0411-	●	●
60	BOLT; CLIP FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	01	1	0411-	●	●
62	CLIP; PIPE,AIR TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30	1-09701-215-1	01	1	0411-	●	●
111	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
162	NUT; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
171	BRACKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47479-634-1	01	1	0411-	●	●
204	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0411-	●	●
208	BOLT; BRKT,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE	0-28680-835-0	01	1	0411-	●	●
209	NUT; BRKT,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0411-		●
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6	1-87411-002-0	02	1	0411-	●
303	BRACKET; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95	1-82699-085-0	01	1	0411-	●	●

246 132 217 3 3 1 3 3 3 1 139 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4> (A)	1-79996-244-0	01	1	0411-	●	●
1	LEVER ASM; PTO & DUMP CONT MIXER TRUCK<RA2> (B)	1-79907-045-1	01	1	0411-	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0411-	●	●
3	BOLT; BRKT,DUMP CONT LEVER MIXER TRUCK<RA2> M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	0411-	●	●
55	GROMMET; CABLE EXC. MIXER TRUCK<RA2>,DUMP CONTROL LEVER<RC4>	1-09983-068-0	01	1	0411-	●	●
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	0411-	●	●
139	BRACKET; CONT BOX MIXER TRUCK<RA2>	1-79907-044-0	01	1	0411-	●	●
217	WASHER; PL DUMP CONTROL LEVER<RC4> ID=4.3	9-09160-504-0	02	1	0411-	●	●
246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71180-408-0	02	1	0411-	●	●
