Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

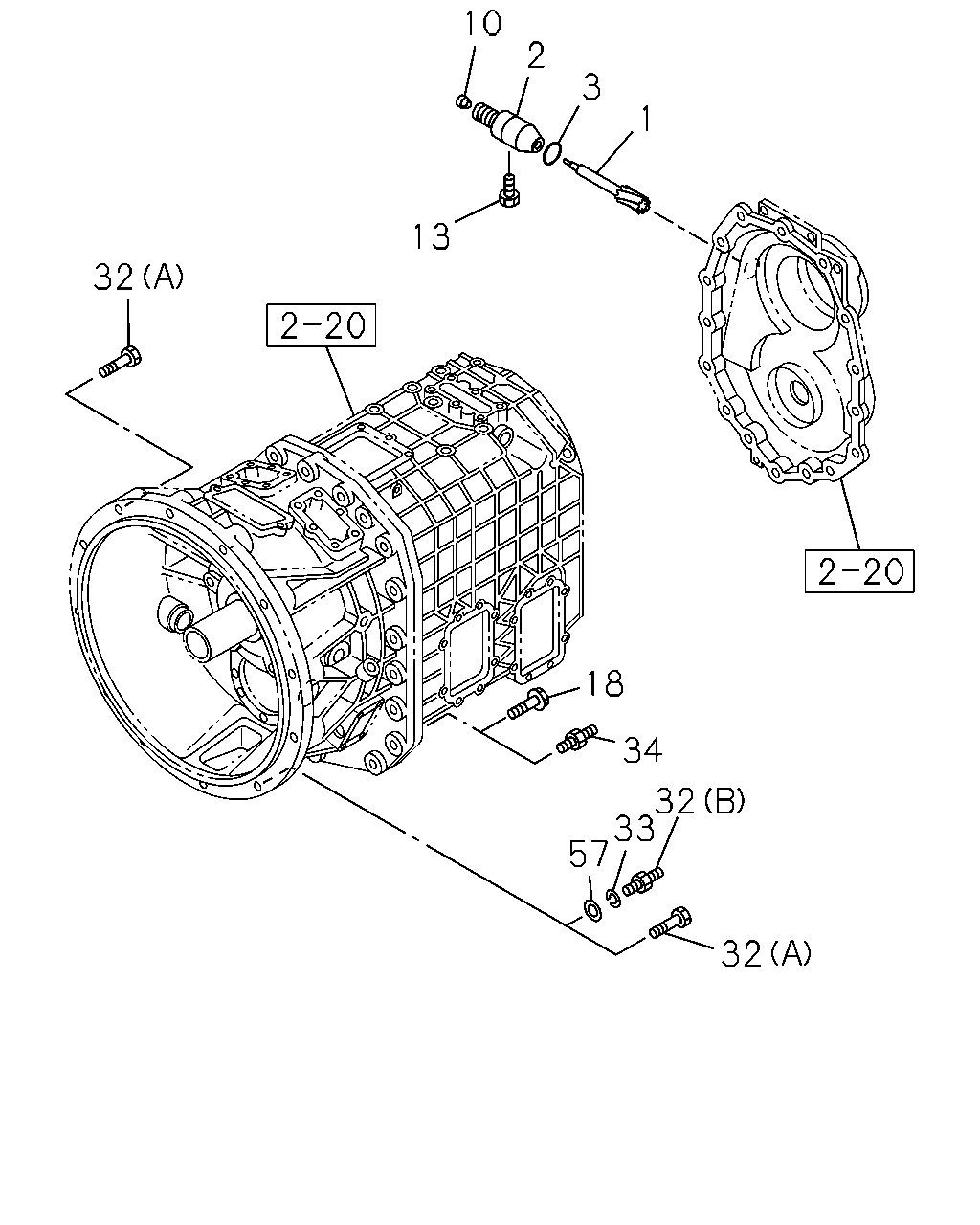

2-25 — SPEEDOMETER DRIVEN GEAR
(#26614) — 11 parça
10
2
3
1
13
32
18
34
32
33
57
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
0411-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
0411-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0411-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0411-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0411-
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28181-250-0
17
1
0411-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60
0-28181-260-0
10
1
0411-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
02
1
0411-
33
WASHER; LK,CLU HSG
ID=12.2
9-09150-612-0
02
1
0411-
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
02
1
0411-
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
02
1
0411-
